Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

10 part groups · 2 illustrations

Illustrations

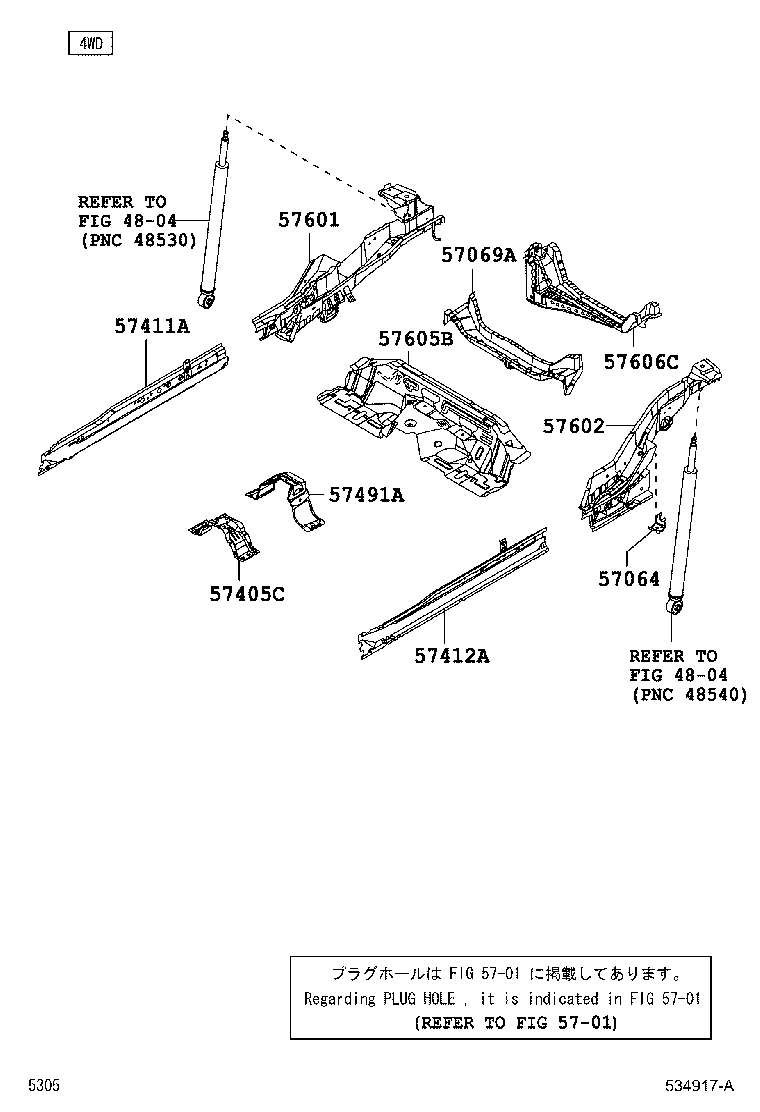

Figure 534916 534916 2011-09 → — Figure 534917A 534917A 2011-09 → —

Part groups

PNCDescription
57064 Bracket Sub-assy, Fuel Tank Mounting, Rear LH
57069A Member, Rear Floor, Center
57405C Member Sub-assy, Center Floor Cross, Rear
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57491A Retainer, Floor Member Reinforcement
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
