Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

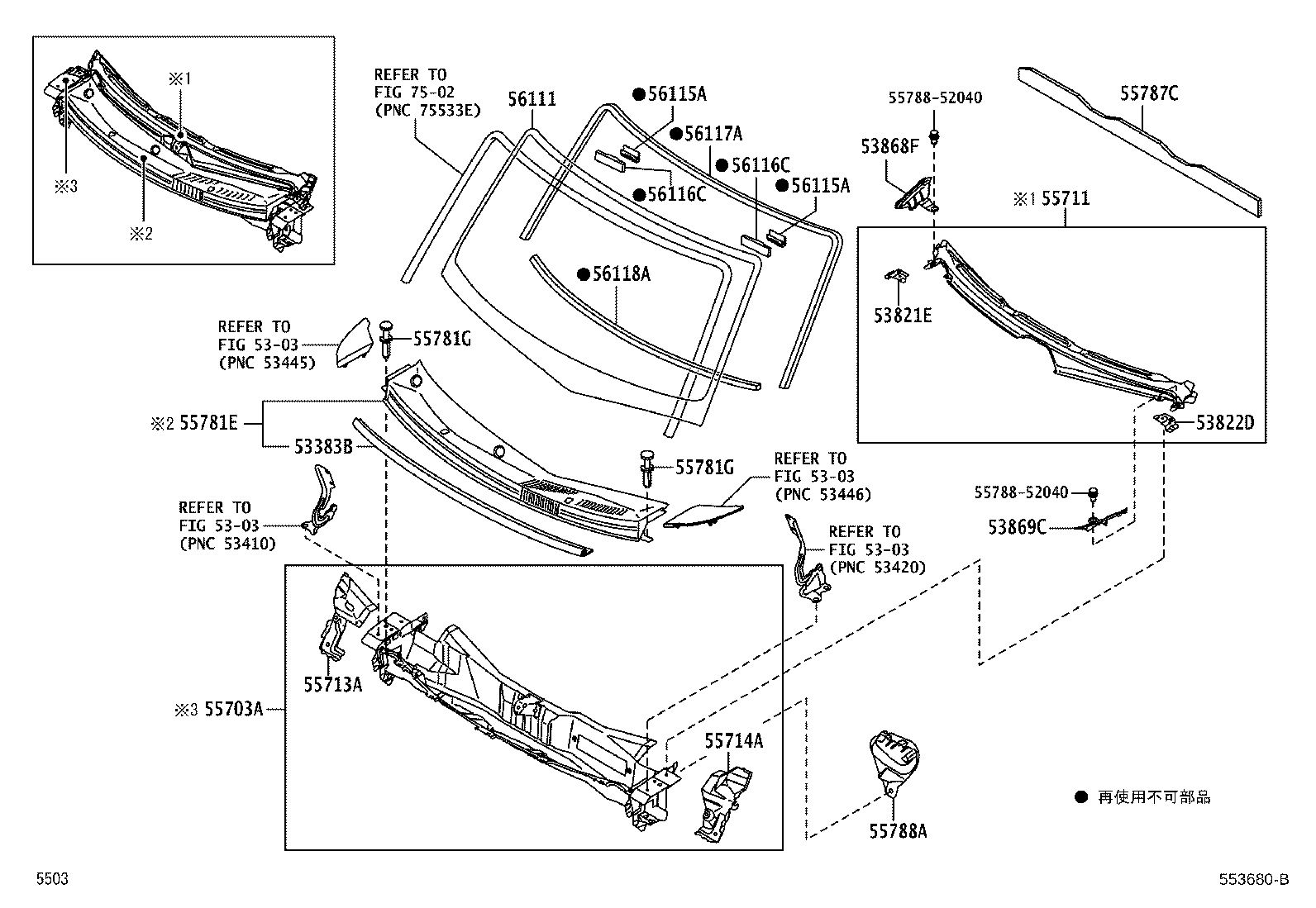

Figure 553679B 553679B 2011-09 → 2013-06 Figure 553680B 553680B 2013-06 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53821E Bracket, Front Fender, Rear RH
53822D Bracket, Front Fender, Rear LH
53868F Seal, Front Fender TO Cowl Side, NO.2 RH
53869C Seal, Front Fender TO Cowl Side, NO.2 LH
55703A Panel Sub-assy, Cowl Top, Inner
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55787C Insulator, Cowl Top Panel, NO.1
55788A Protector, Cowl Top Ventilator Louver
55879B Seal, Cowl Vent
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56118A Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
