Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

27 part groups · 3 illustrations

Illustrations

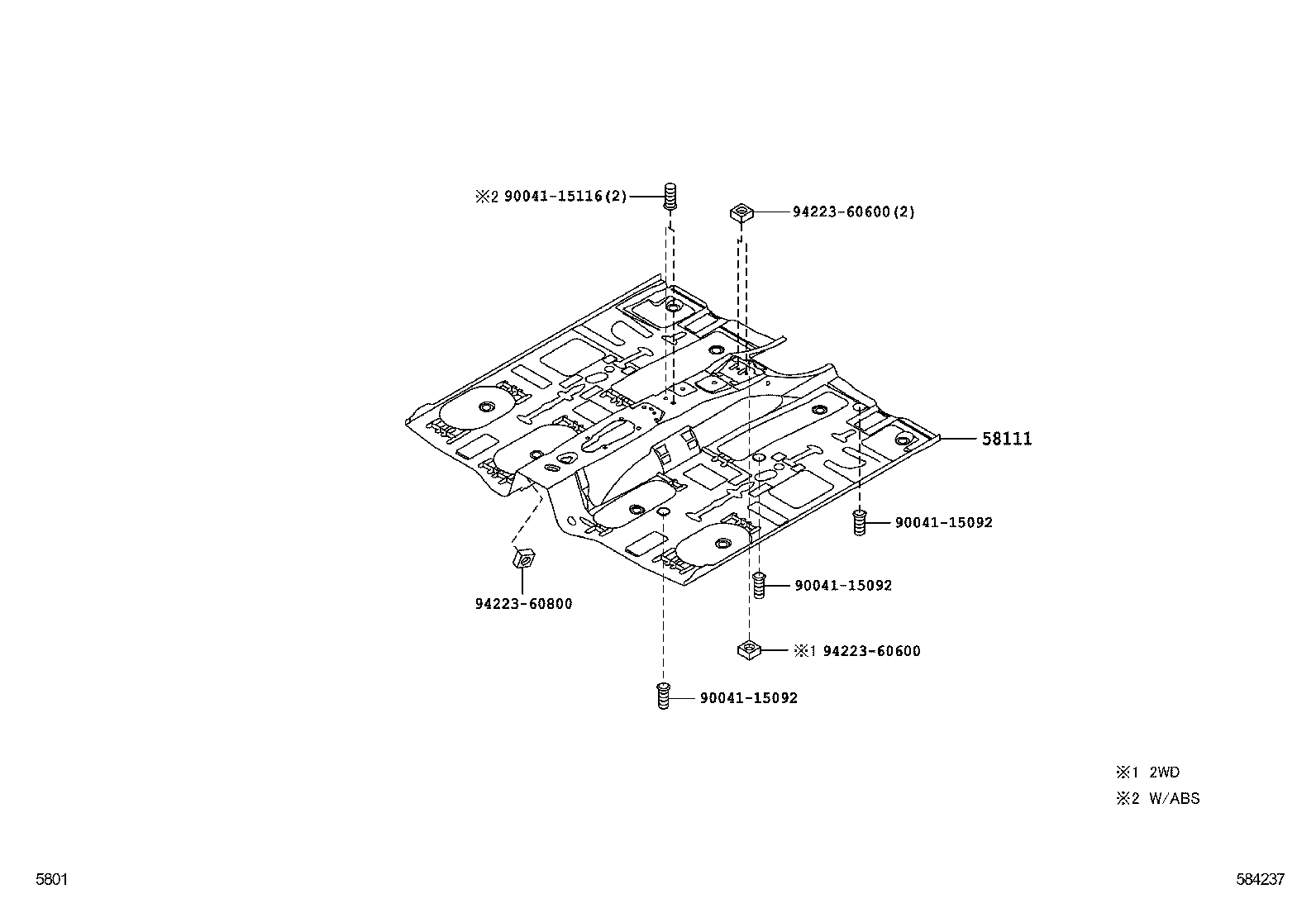

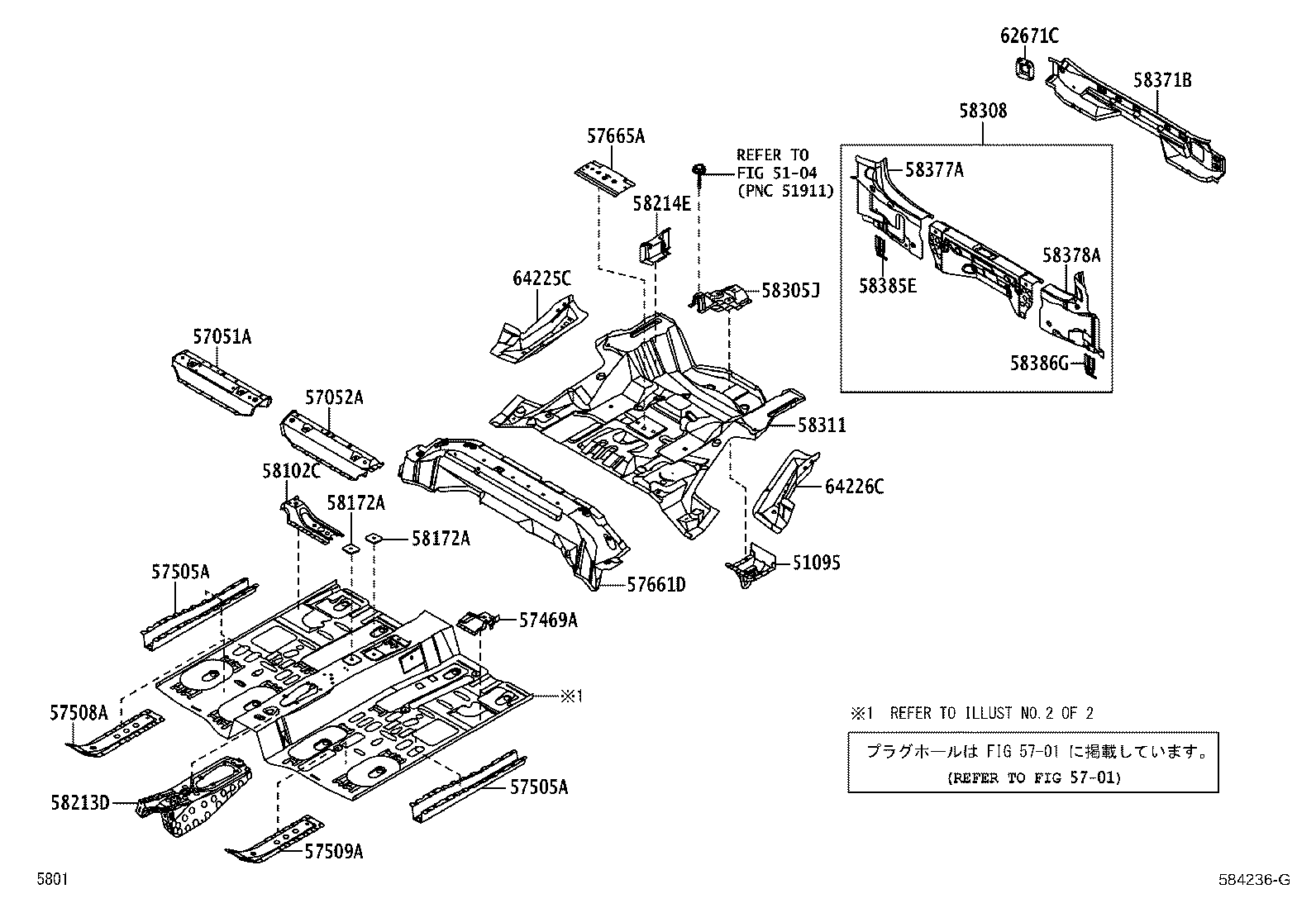

Figure 584238G 584238G 2011-09 → — Figure 584236G 584236G 2011-09 → — Figure 584237 584237 2011-09 → —

Part groups

PNCDescription
51095 Hook, Transport, Rear
57051A Member Sub-assy, Front Floor Cross, RH
57052A Member Sub-assy, Front Floor Cross, LH
57469A Bracket, Front Seat, Outside, Rear LH
57505A Reinforcement Sub-assy, Front Floor Under
57508A Reinforcement Sub-assy, Front Floor, RH
57509A Reinforcement Sub-assy, Front Floor, LH
57661D Member, Rear Floor Cross, Front
57665A Reinforcement, Rear Floor Crossmember, NO.2
58037 Reinforcement Sub-assy, Rear Floor Pan
58102C Reinforcement Sub-assy, Front Floor Side, RH
58111 Pan, Front Floor
58172A Plate, Parking Brake Mounting
58213D Reinforcement, Center Floor Panel
58214E Bracket, Jack Support
58305 Bracket Sub-assy, Spare Wheel Clamp
58305J Bracket, Spare Wheel Carrier
58308 Panel Sub-assy, Body Lower Back, Inner
58311 Pan, Rear Floor
58371B Panel, Body Lower Back, Outer
58377A Panel, Body Lower Back, RH
58378A Panel, Body Lower Back, LH
58385E Bracket, Rear Bumper Cover, RH
58386G Bracket, Rear Bumper Cover, LH
62671C Cover, Lower Back Panel
64225C Patch, Rear Seat Set, RH
64226C Patch, Rear Seat Set, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
