Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 3 illustrations

Illustrations

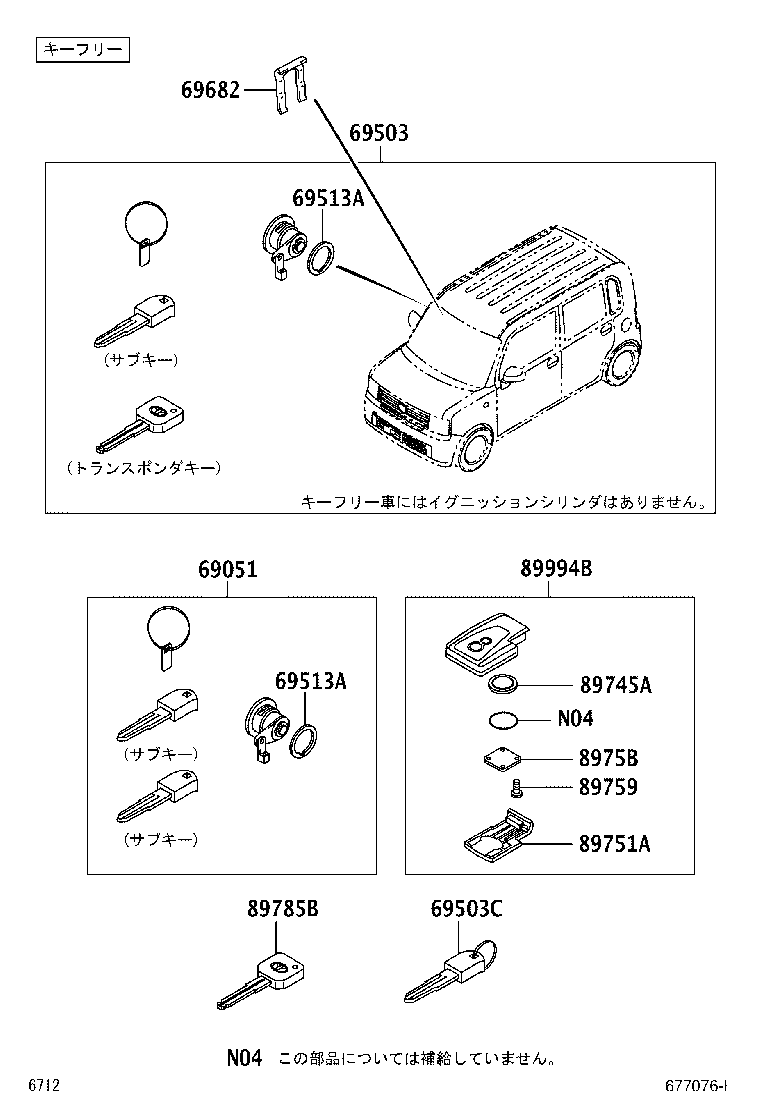

Figure 677075K 677075K 2011-09 → — Figure 677076I 677076I 2011-09 → — Figure 677076I 677076I 2014-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69503 Cylinder Set, Lock
69503A Key, Blank
69503C Key, Sub
69513A Pad, Door Cylinder
69570 Cylinder Assy, Ignition Switch Lock
69682 Retainer, Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89759 Screw, Door Control Transmitter
8975B Cover, Transmitter Battery Housing
89785B Transmitter, Transponder Key Master
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
