Toyota Pixis Space
2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan
Supported model
Data version 2016-12

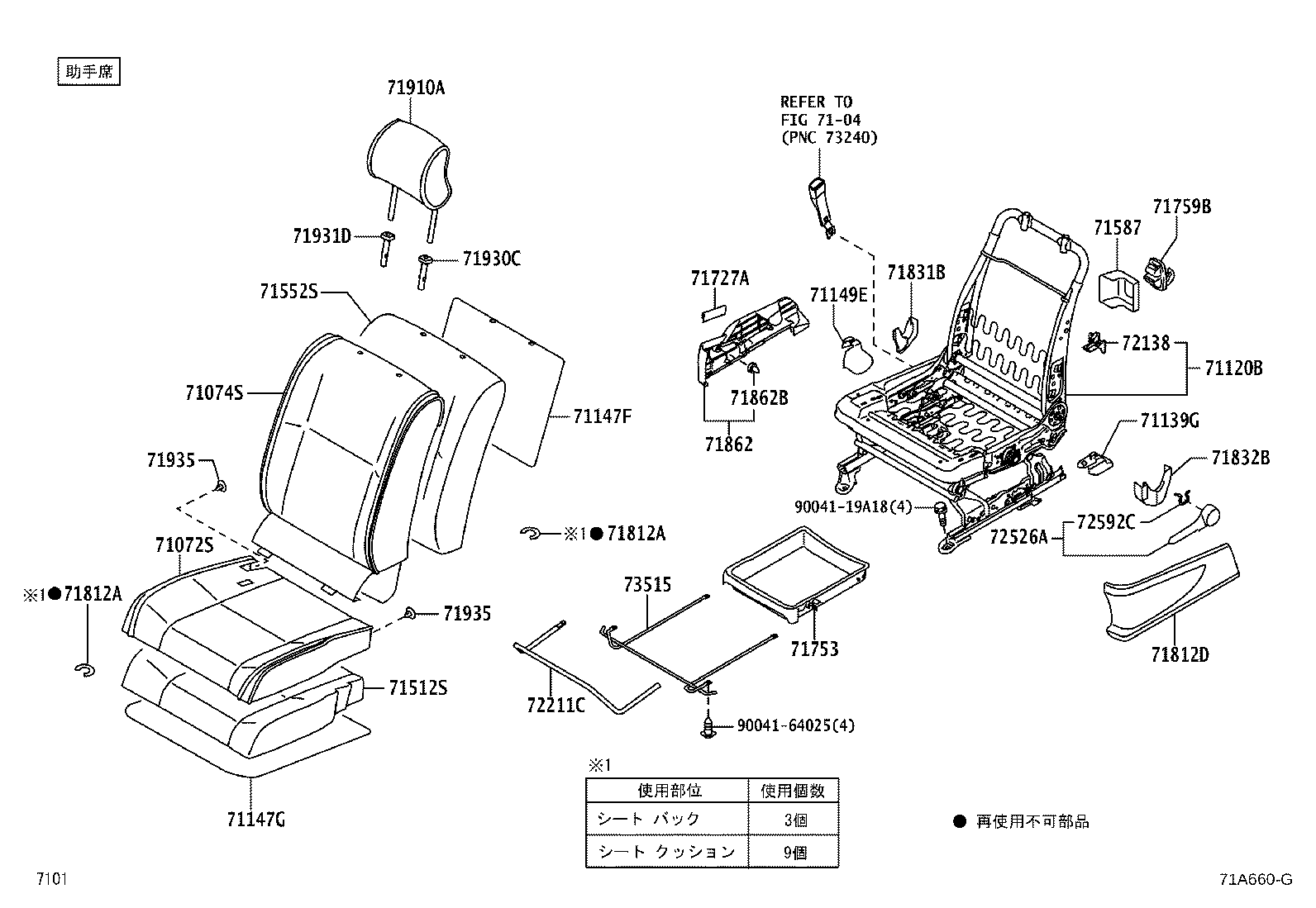

Front Seat & Seat Track
56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71139C | Cover, Front Seat Leg, RH |
| 71139G | Cover, Front Seat Leg |
| 71147D | Silencer, Seat Spring, RH(FOR SEATBACK) |
| 71147E | Silencer, Seat Spring, RH(FOR SEAT CUSHION) |
| 71147F | Silencer, Seat Spring, LH(FOR SEATBACK) |
| 71147G | Silencer, Seat Spring, LH(FOR SEAT CUSHION) |
| 71149D | Cover, Front Seat Leg, Inner (FOR RH SEAT) |
| 71149E | Cover, Front Seat Leg, Inner (FOR LH SEAT) |
| 71430C | Clip |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71727A | Trim, Seat Corner, NO.1 |
| 71753 | Tray, Front Seat Under |
| 71759B | Hook, Front Seatback |
| 71809B | Cover Sub-assy, Front Seat Armrest Holder |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811R | Clip, Front Seat Cushion Shield, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831B | Cover, Front Seat Hinge, RH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71861B | Clip(FOR FRONT SEAT SHIELD, RH) |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71862B | Clip(FOR FRONT SEAT SHIELD, LH) |
| 71910A | Headrest Assy, Front Seat |
| 71930C | Support, Front Seat Headrest, LH |
| 71931D | Support, Front Seat Headrest, RH |
| 71935 | Clip |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72413 | Lever, Vertical Adjuster Lock |
| 72462 | Cover, Vertical Adjuster RH |
| 72477 | Spacer, Vertical Adjuster |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72592C | Ring, Shaft Snap |
| 72809A | Lock Sub-assy, Center Armrest |
| 72810C | Armrest Assy, Front Seat, Center |
| 72810E | Bush, Front Seat Armrest, NO.1 |
| 72849 | Cap, Seat Armrest, NO.2 |
| 73515 | Rail, Front Seat Under Tray, NO.1 |
| 74808A | Box Sub-assy, Seat Trash |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
