Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

11 part groups · 2 illustrations

Illustrations

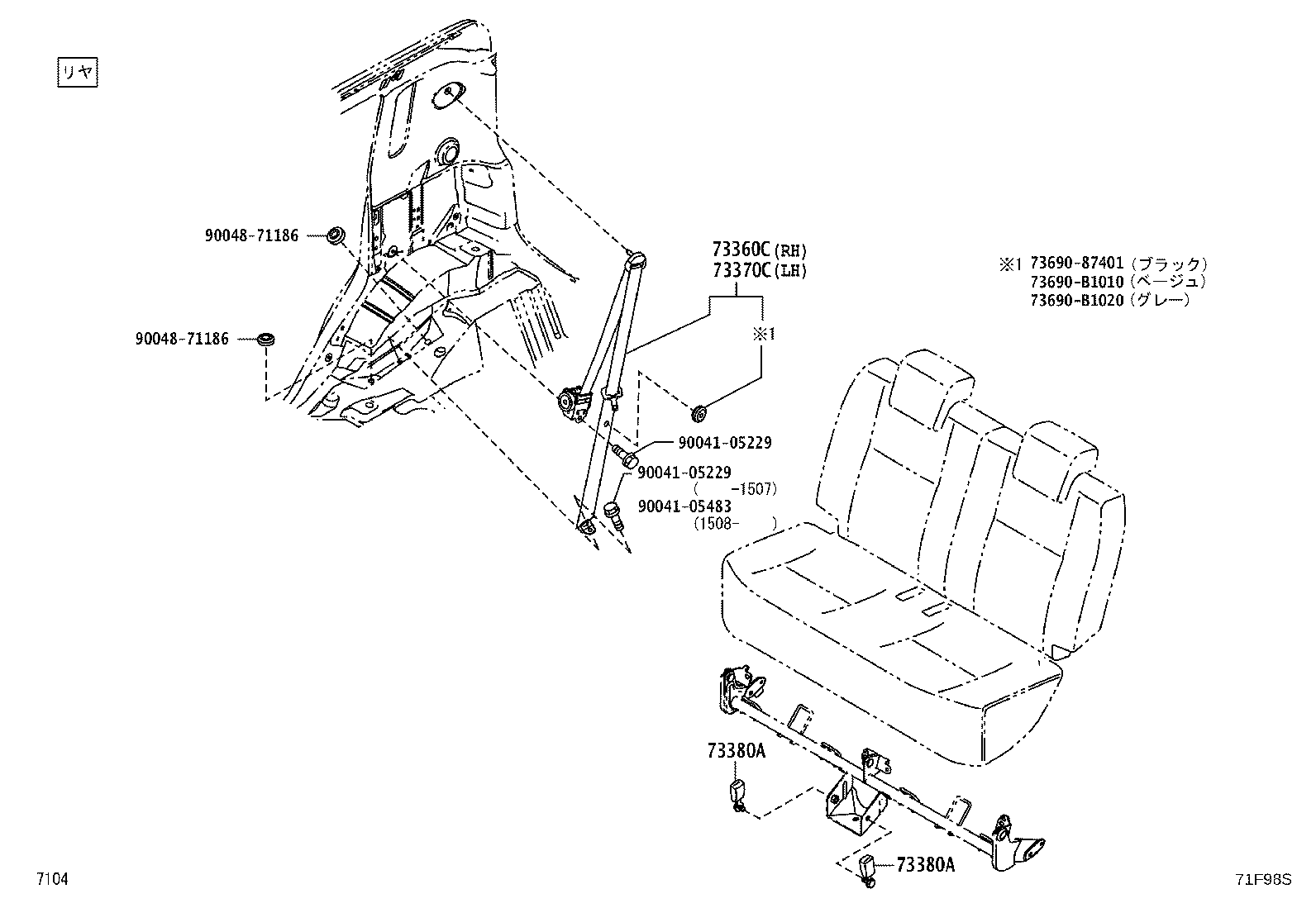

Figure 71F98R 71F98R 2011-09 → — Figure 71F98S 71F98S 2011-09 → —

Part groups

PNCDescription
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73237 Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380A Belt Assy, Rear Seat, Inner
73621 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
