Toyota Pixis Space
2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan
Supported model
Data version 2016-12
Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 4 illustrations
Part groups

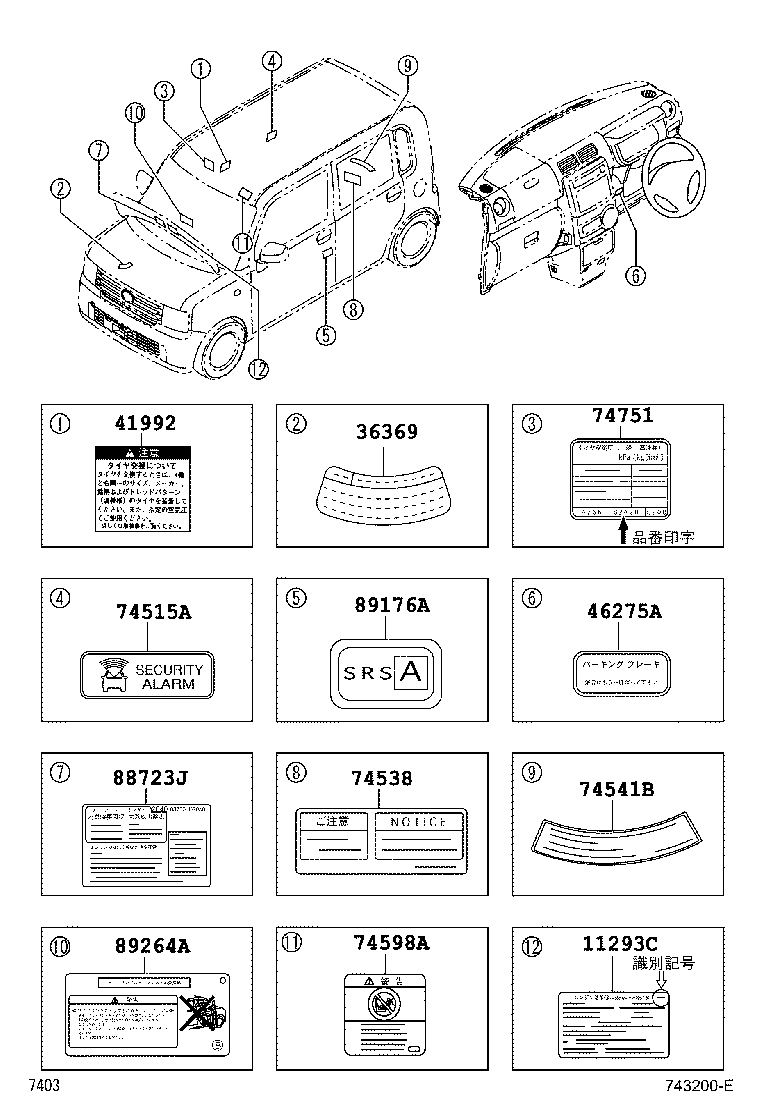

| PNC | Description |
|---|---|
| 11293C | Label, Tune-up Specification Information |
| 16793E | Label, Cooling Fan Caution |
| 36369 | Label, Transfer Information |
| 41992 | Label, Differential Notice |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 74515A | Plate, Theft Warning |
| 74538 | Plate, Jack Carrier Caution |
| 74541B | Plate, Compact Spare Tire Caution |

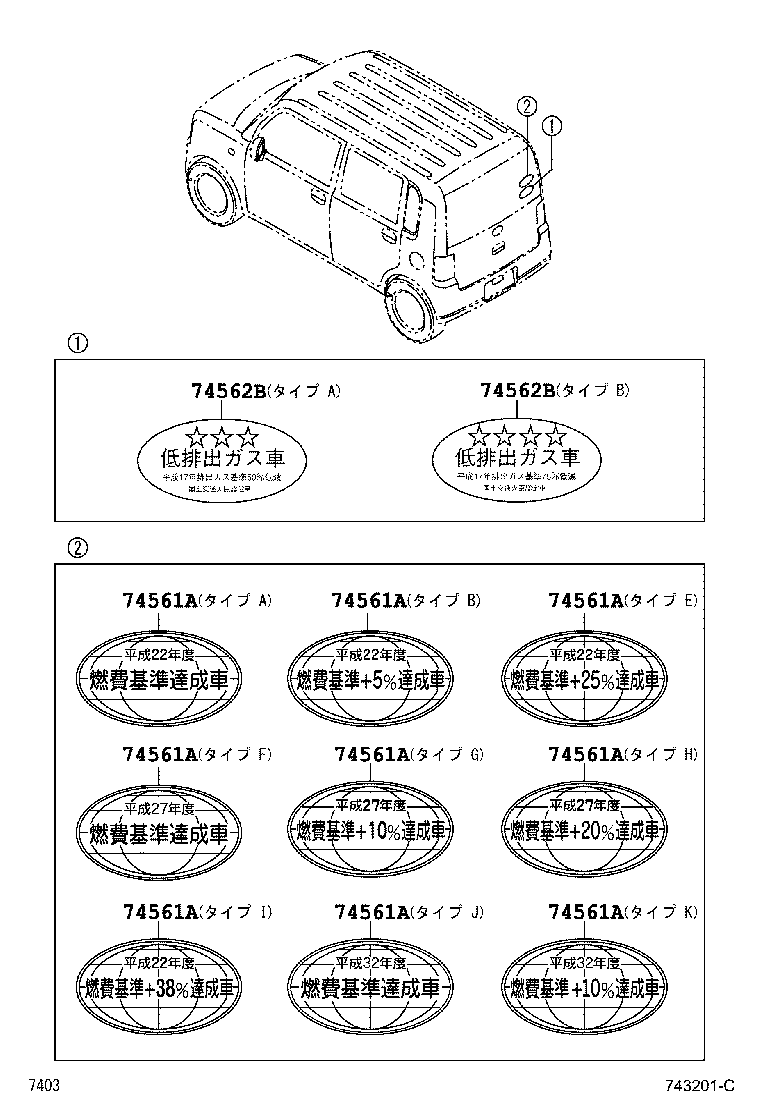

| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 82683C | Label, Fuse Block Notice |
| 88723J | Label, Cooler Service Caution, NO.2 |
| 89176A | Label, Airbag Deployment Information |
| 89264A | Label, Engine Stop & Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
