Toyota Pixis Space
2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan
Supported model
Data version 2016-12

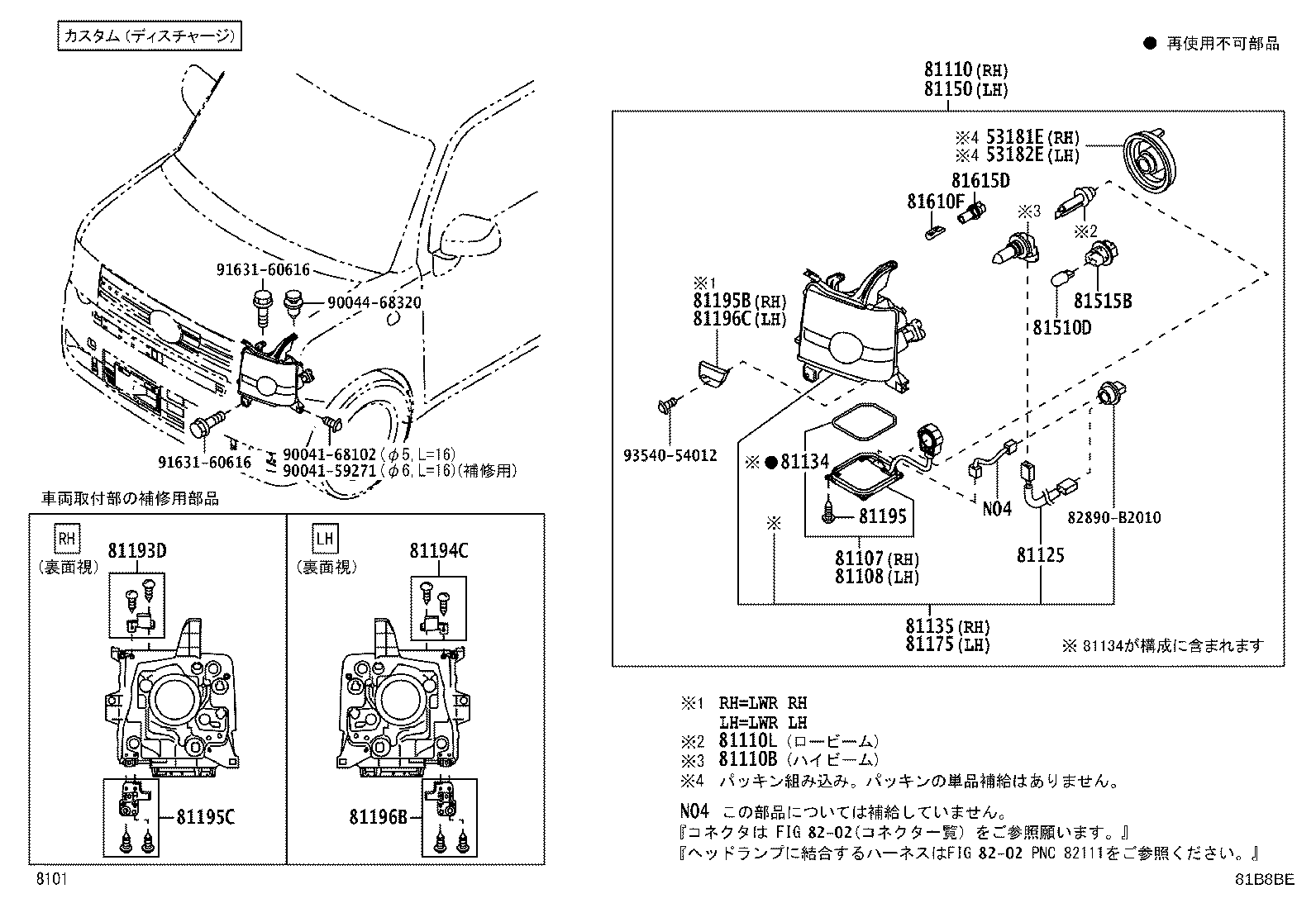

Headlamp
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53181E | Cover, Headlamp, RH |
| 53182E | Cover, Headlamp, LH |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110L | Bulb, Discharge Headlamp |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193D | Retainer, RH Headlamp Protector, Upper LH |
| 81194C | Retainer, LH Headlamp Protector, Upper RH |
| 81195 | Screw, Headlamp |
| 81195B | Retainer, RH Headlamp Protector, Lower RH |
| 81195C | Retainer, RH Headlamp Protector, Lower LH |
| 81196B | Retainer, LH Headlamp Protector, Lower RH |
| 81196C | Retainer, LH Headlamp Protector, Lower LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
