Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 2 illustrations

Illustrations

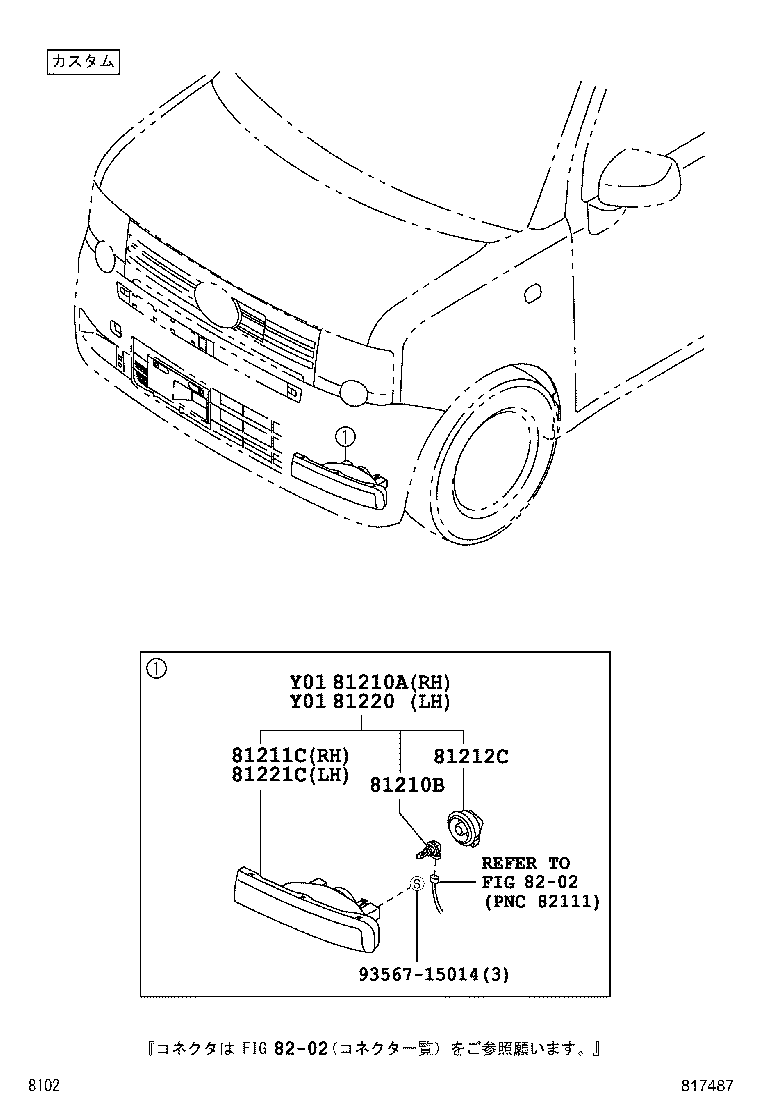

Figure 817486A 817486A 2011-09 → 2015-04 Figure 817487 817487 2011-09 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212C Cover, Fog Lamp
81216B Rim, Fog Lamp, RH NO.1
81217B Rim, Fog Lamp, LH NO.1
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
