Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

10 part groups · 2 illustrations

Illustrations

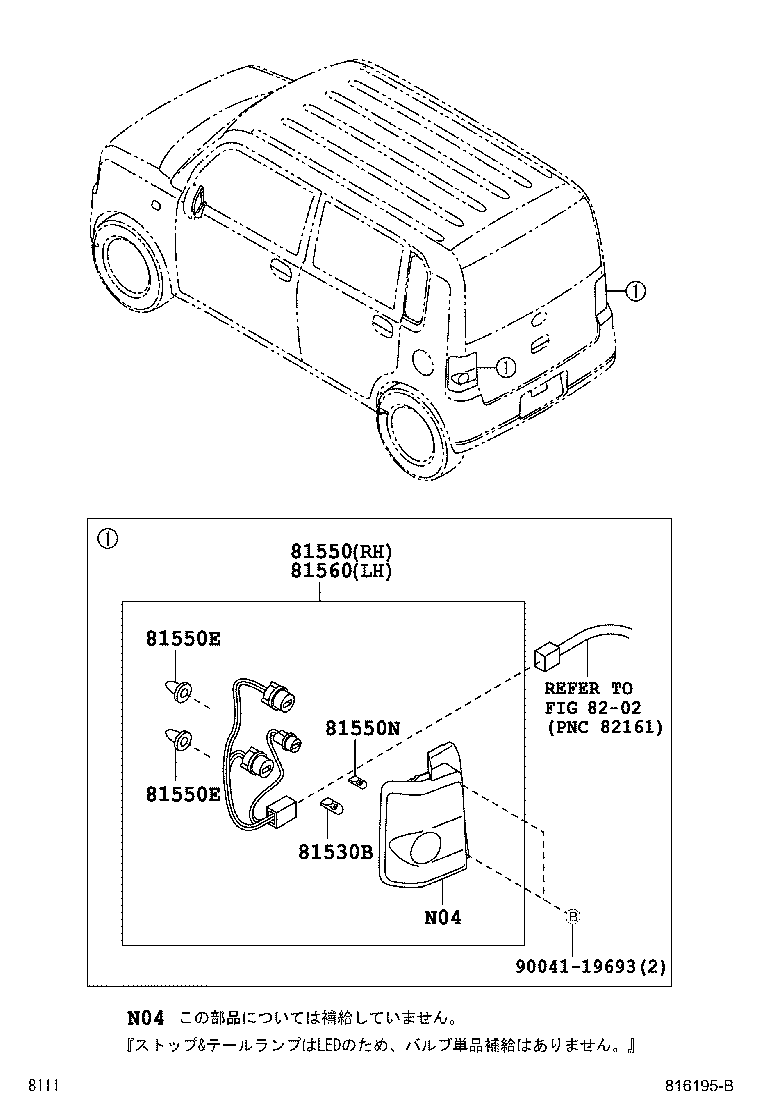

Figure 814647D 814647D 2011-09 → 2012-05 Figure 816195B 816195B 2012-04 → —

Part groups

PNCDescription
81530B Bulb, Rear Turn Signal Lamp
81550 Lamp Assy, Rear Combination, RH
81550E Clip(FOR REAR COMBINATION LAMP)
81550H Bulb, Tail & Stop Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
