Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 13 illustrations

Illustrations

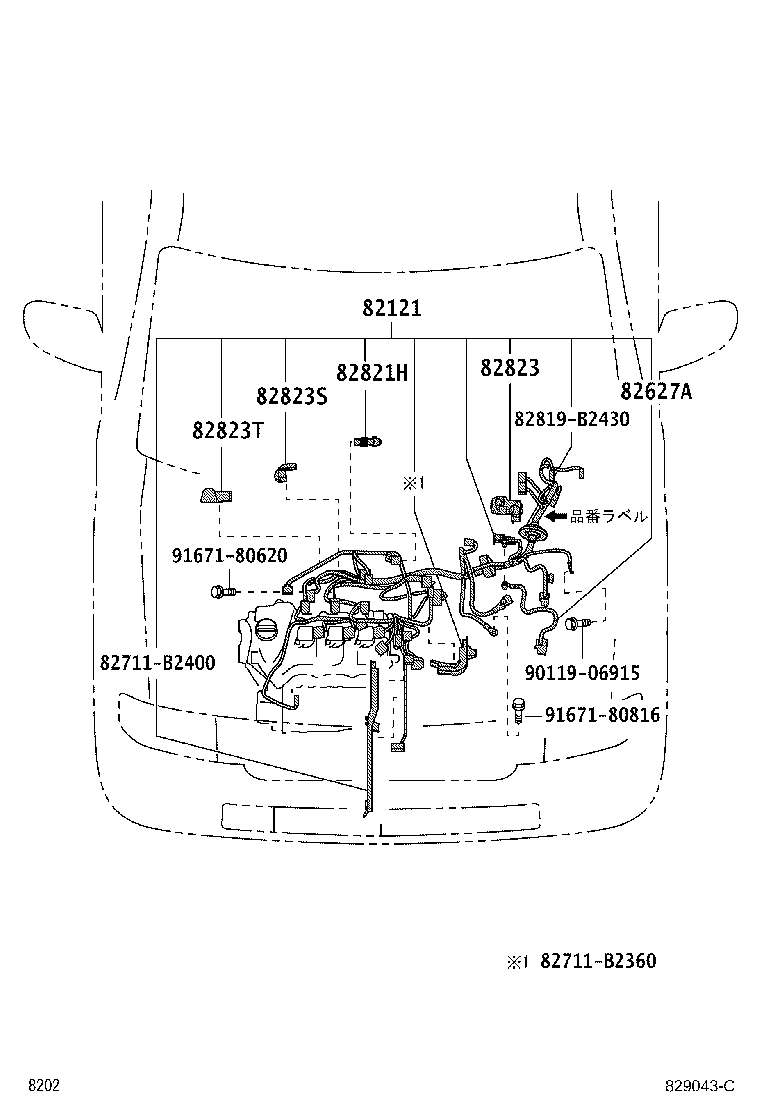

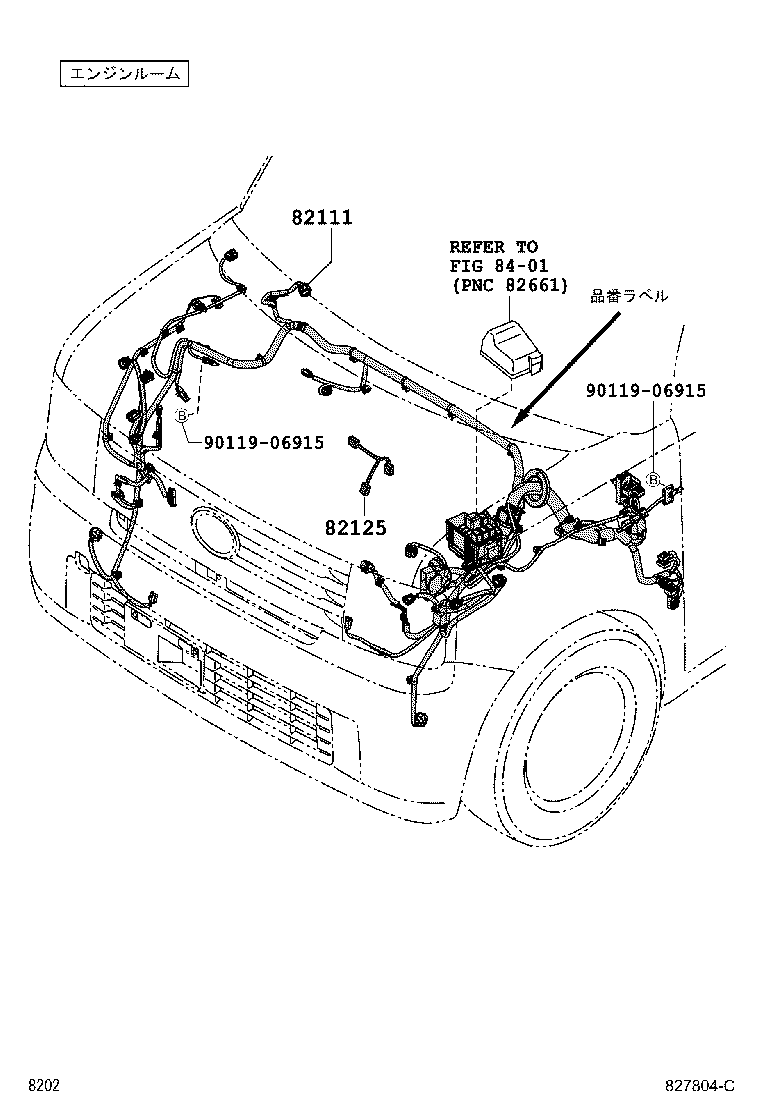

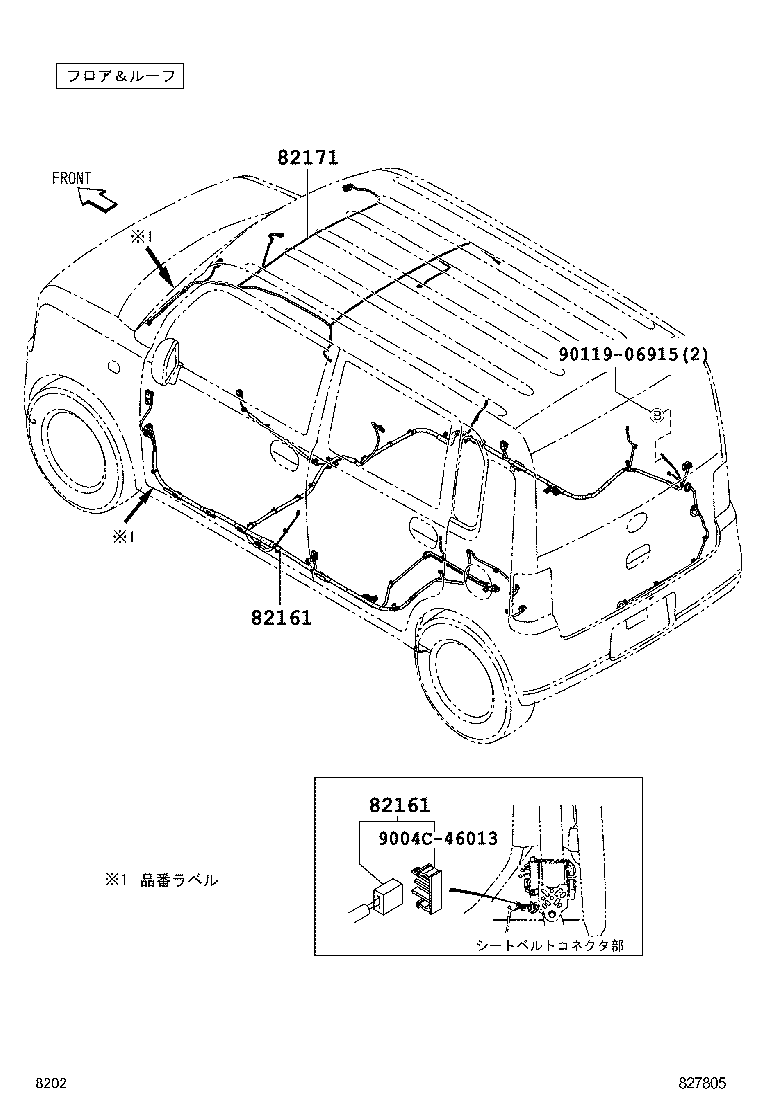

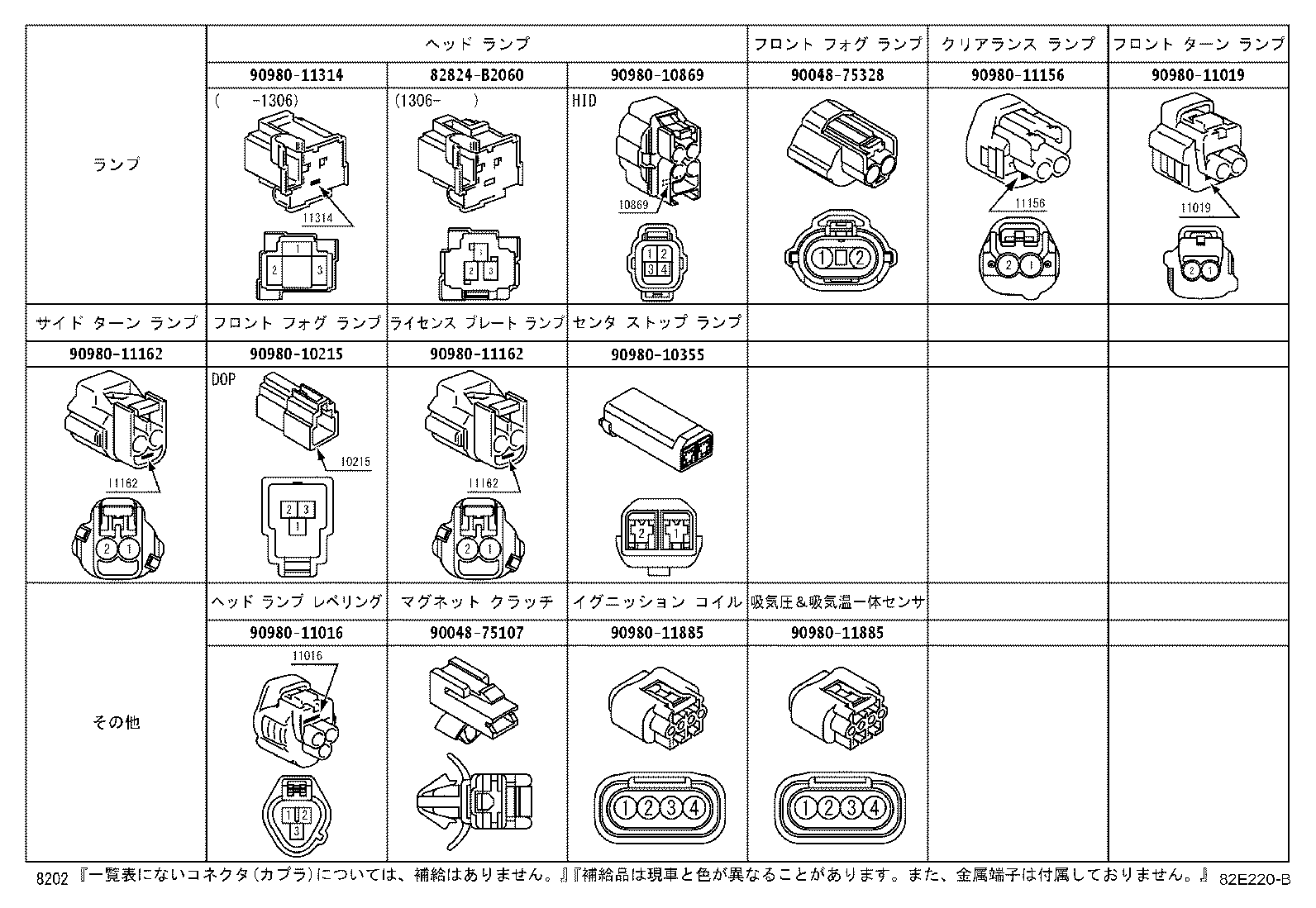

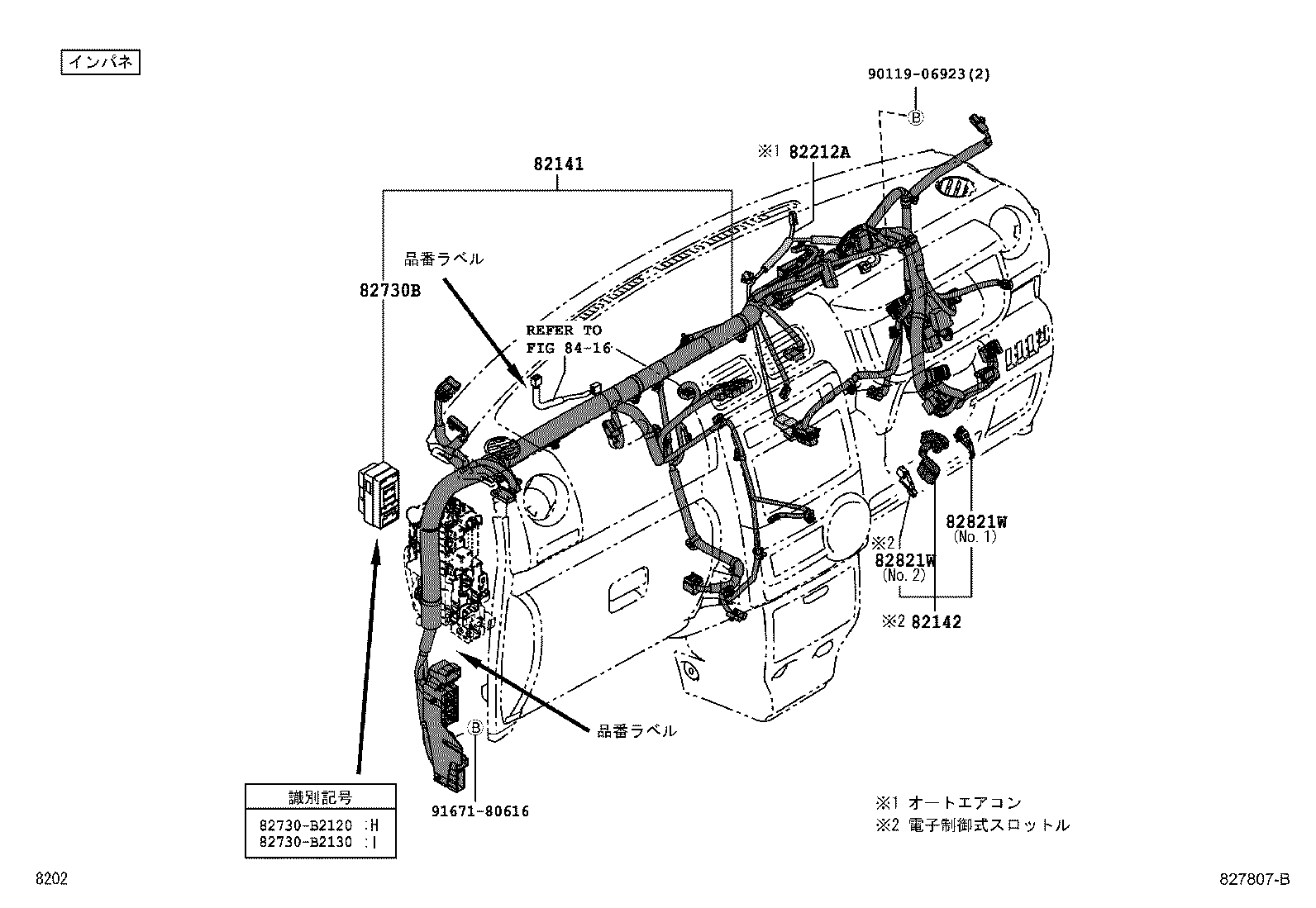

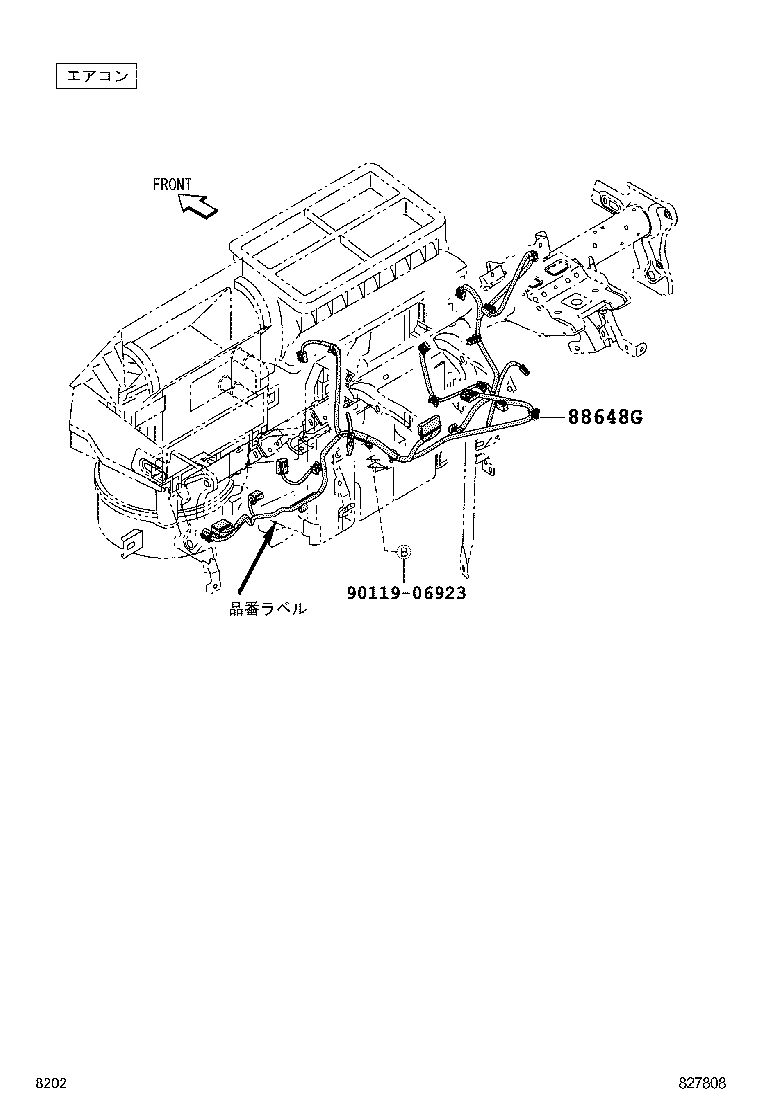

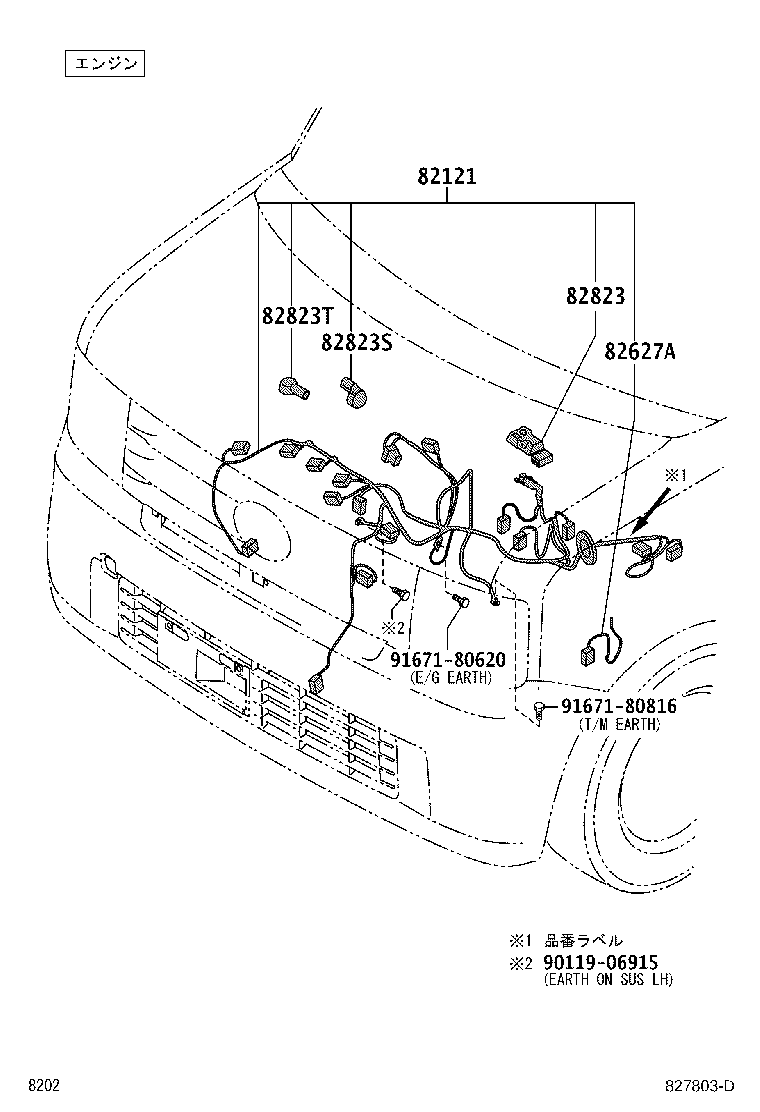

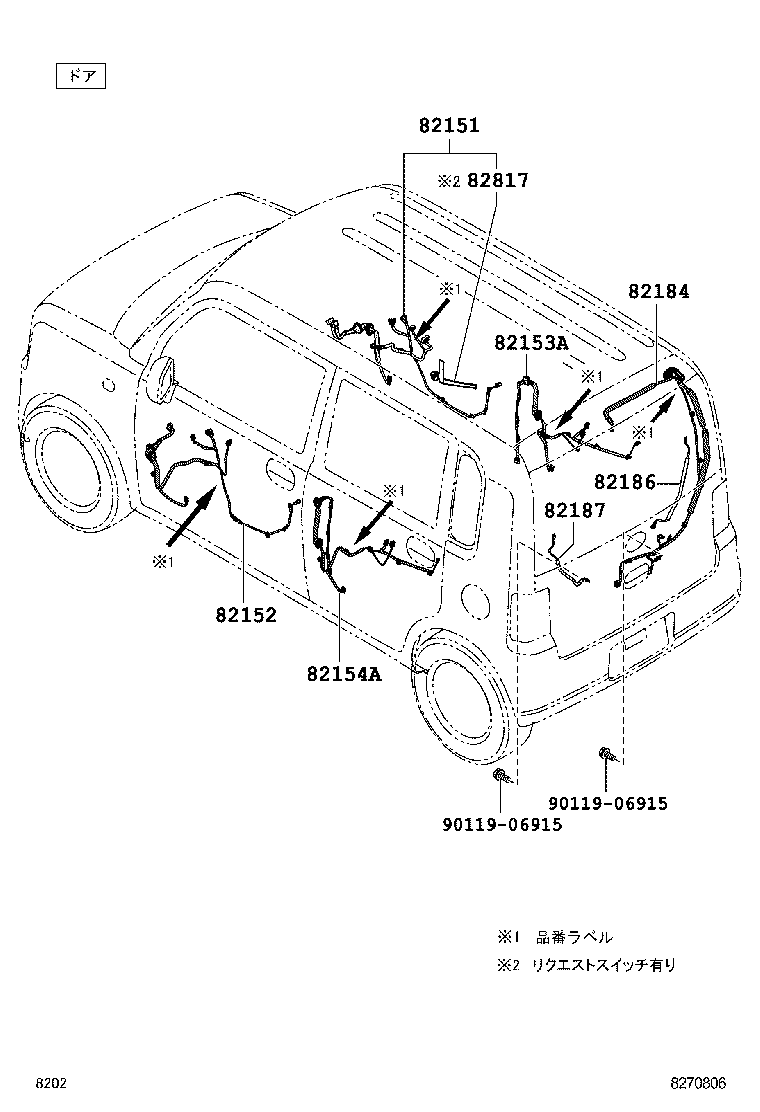

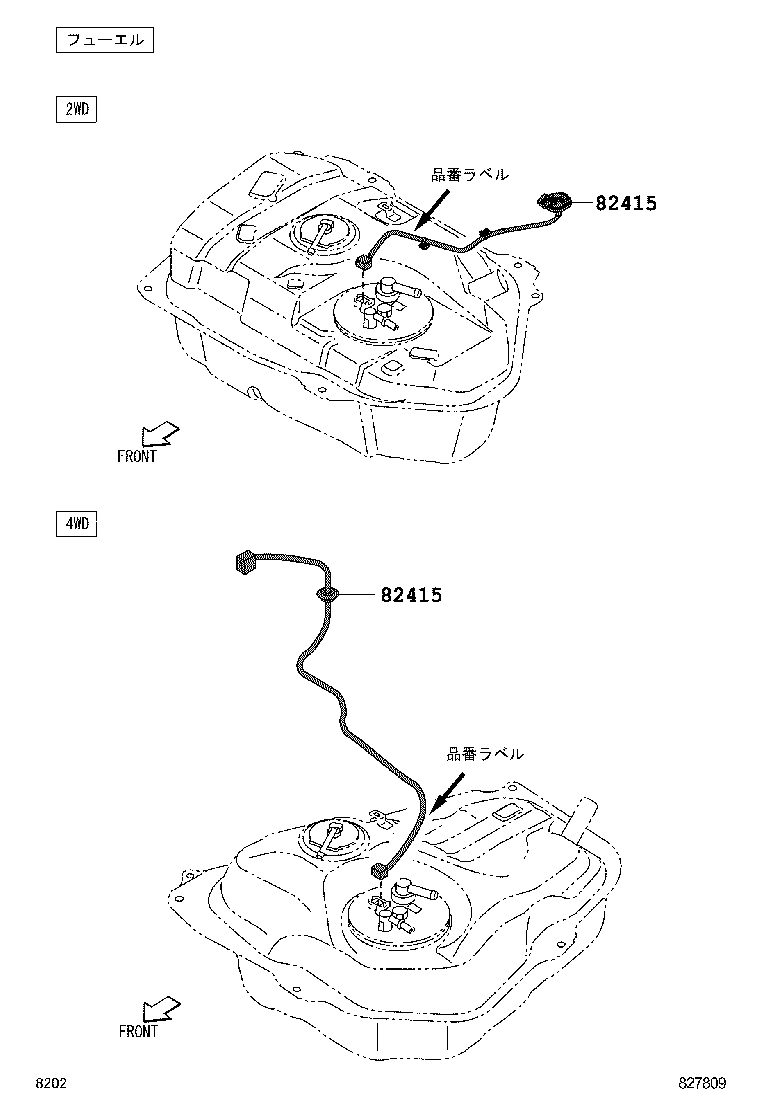

Figure 828863B 828863B 2011-09 → — Figure 827803D 827803D 2011-09 → 2013-06 Figure 829043C 829043C 2013-06 → — Figure 827804C 827804C 2011-09 → — Figure 827805 827805 2011-09 → — Figure 827806 827806 2011-09 → — Figure 827807B 827807B 2011-09 → — Figure 827808 827808 2011-09 → — Figure 827809 827809 2011-09 → — Figure 829057H 829057H 2011-09 → — Figure 829112 829112 2011-09 → — Figure 82E220B 82E220B 2011-09 → — Figure 827812A 827812A 2011-09 → —

Part groups

PNCDescription
82046D Wire, Body Ground
82111 Wire, Engine Room Main
82121 Wire, Engine
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82212A Harness, Air Conditioner
82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82730B Block Assy, Passenger Side Junction
82817 Protector, Wiring Harness, NO.1
82821H Cover, Connector
82821W Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
88648G Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
