Heating & Air Conditioning - Cooler Unit

15 part groups · 3 illustrations

Illustrations

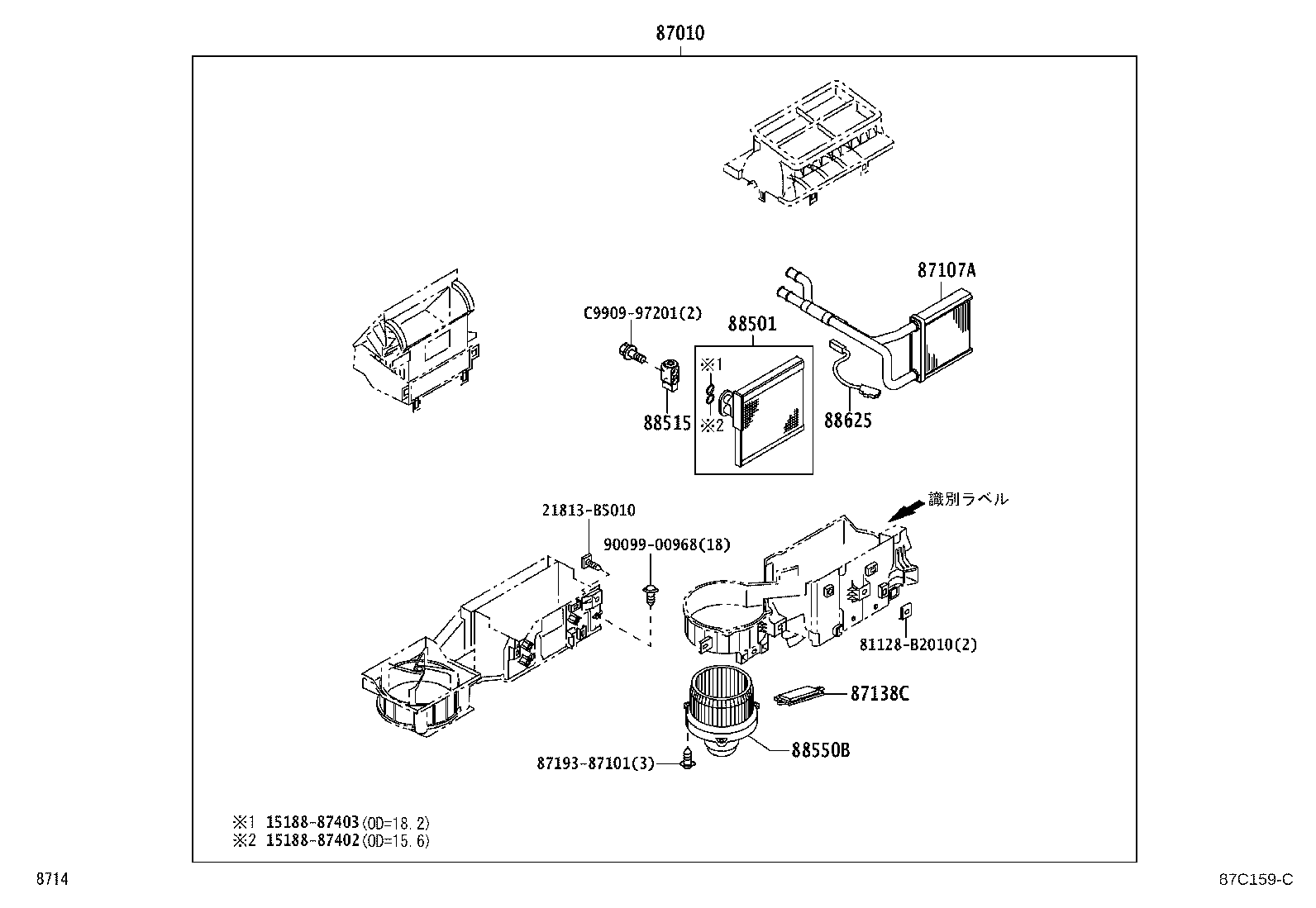

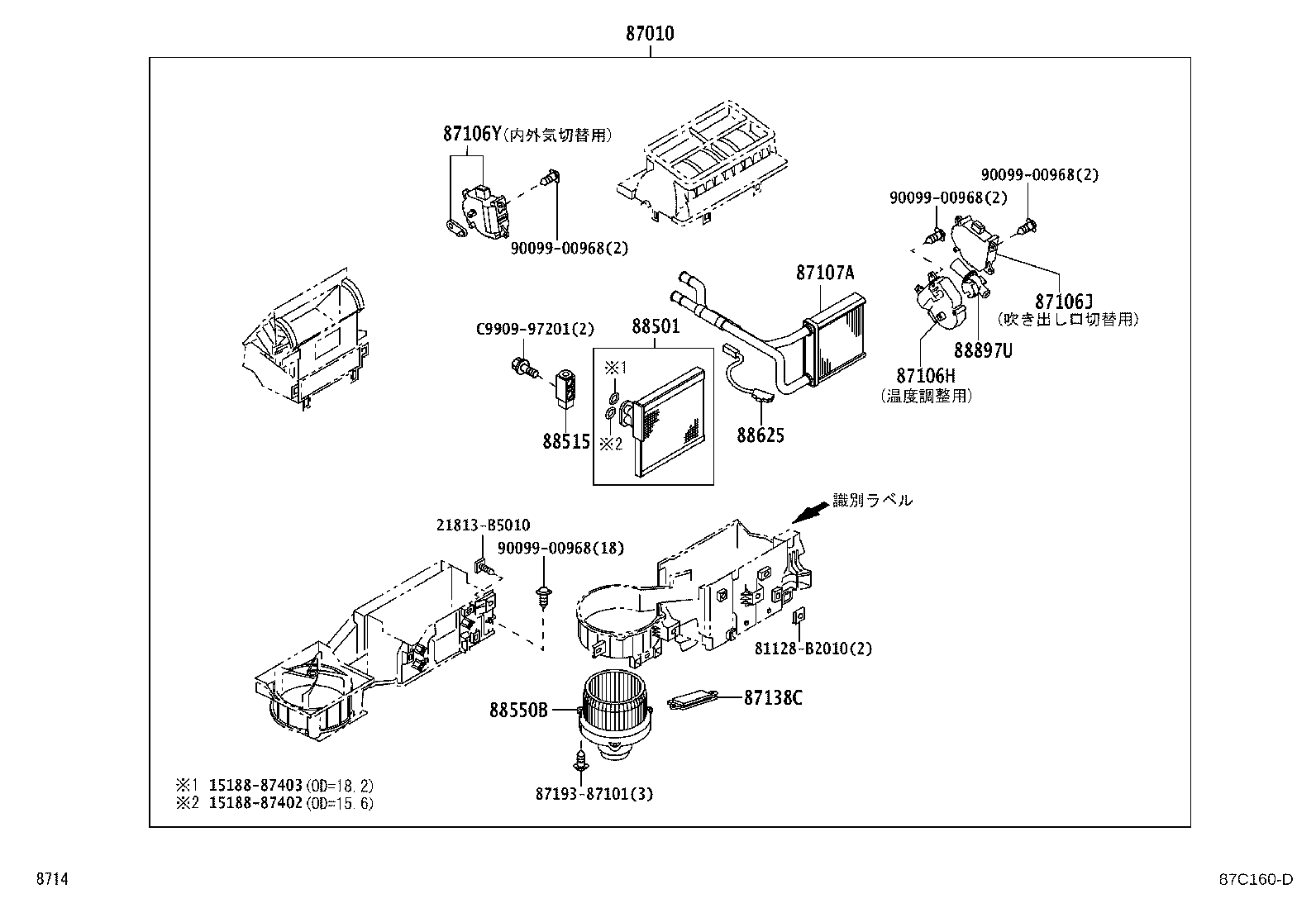

Figure 87C158B 87C158B 2011-09 → — Figure 87C159C 87C159C 2011-09 → — Figure 87C160D 87C160D 2011-09 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106Y Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A Unit Sub-assy, Heater Radiator
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88550B Motor Assy, Blower
88568B Filter, Air
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88892N Cover, Cooler, NO.2
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
