Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 4 illustrations

Illustrations

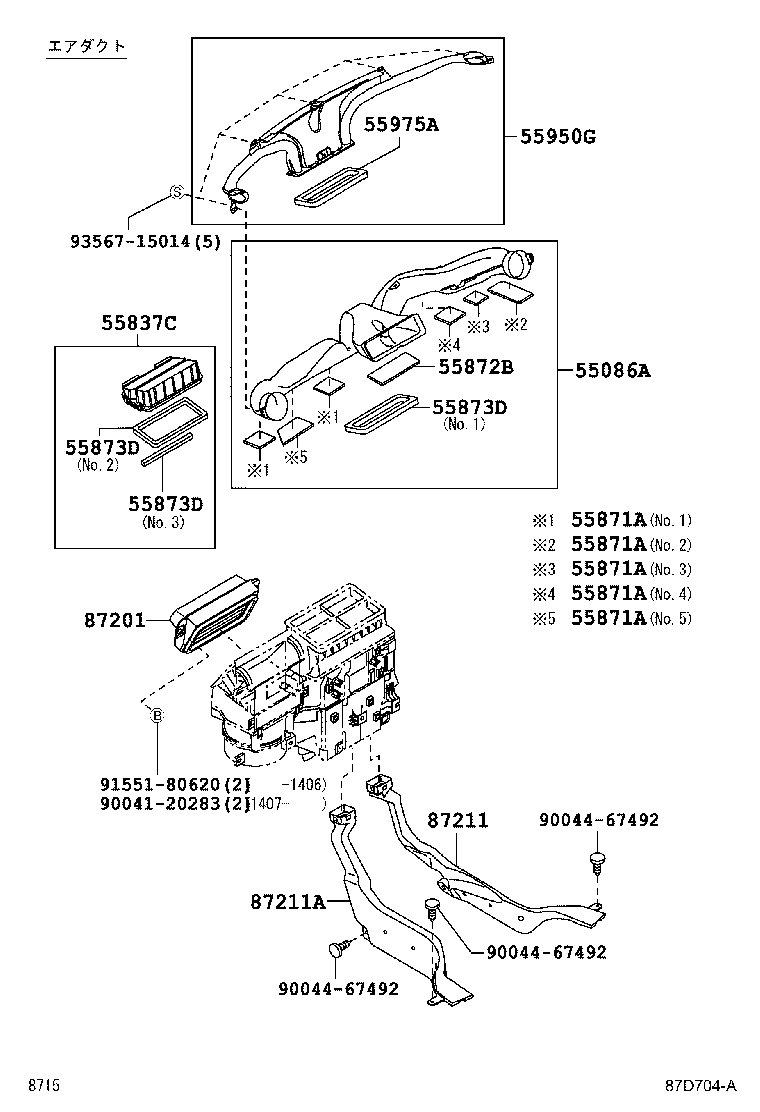

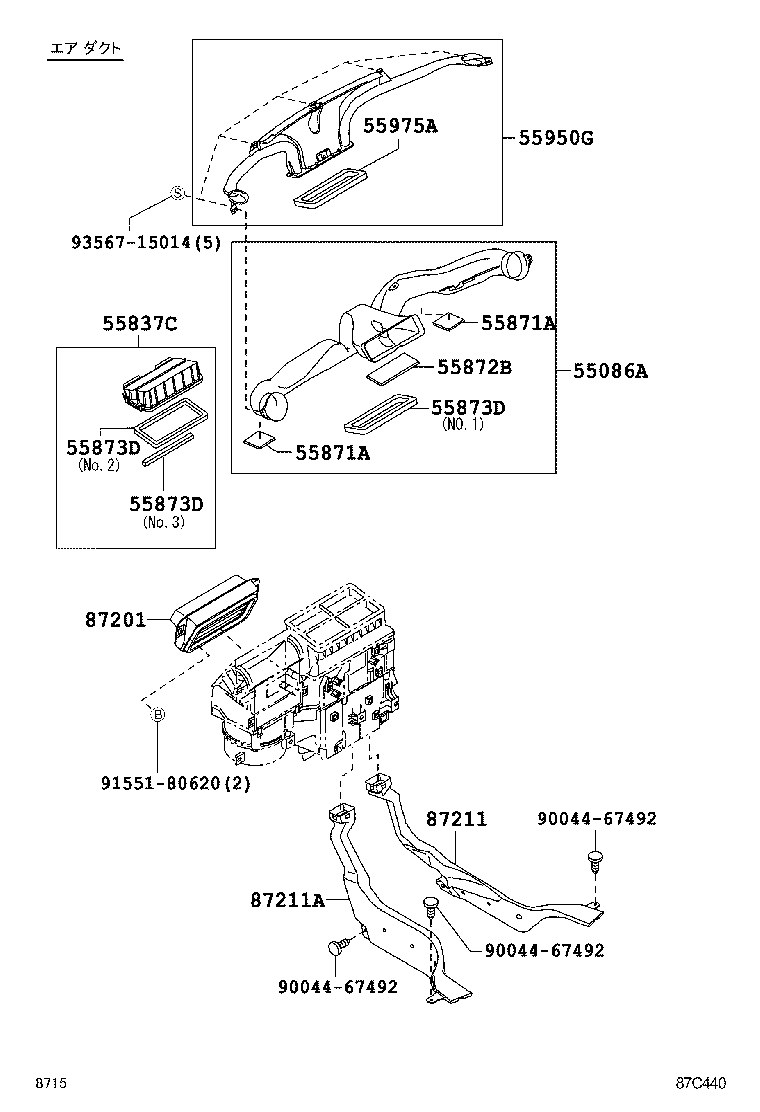

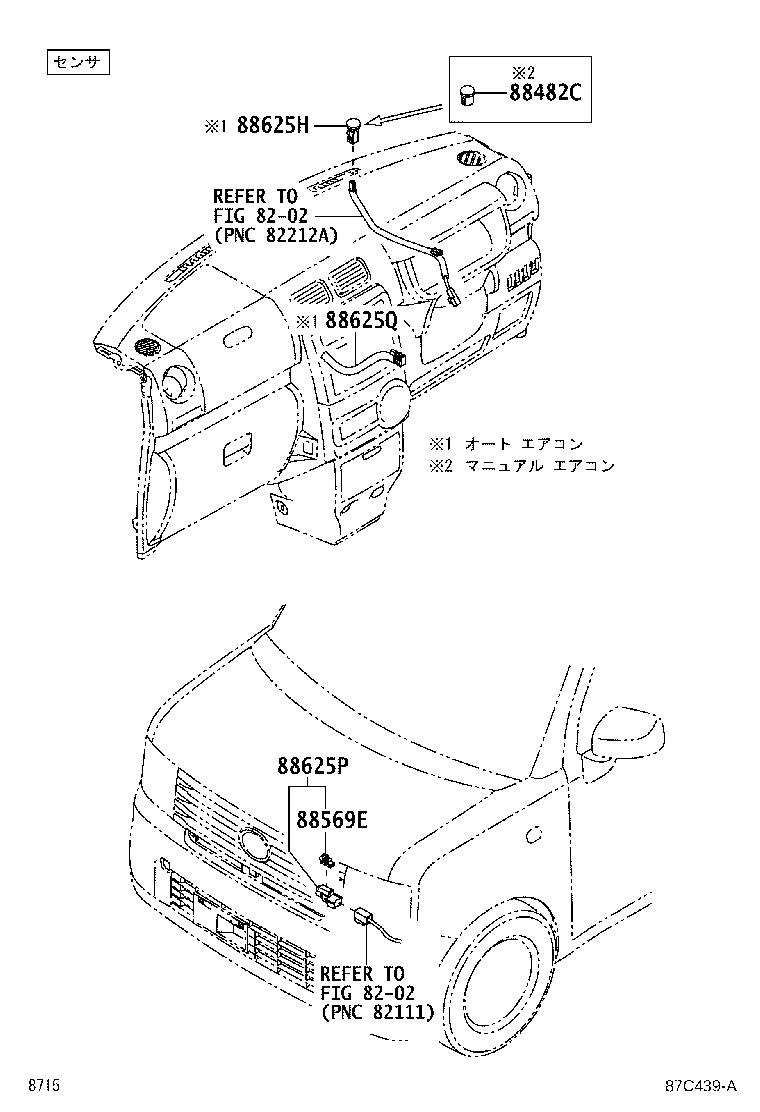

Figure 87F662C 87F662C 2011-09 → — Figure 87C440 87C440 2011-09 → 2013-06 Figure 87D704A 87D704A 2013-06 → — Figure 87C439A 87C439A 2011-09 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55837C Duct, Heater TO Register Center Sub
55871A Seal, Air Duct, NO.1
55872B Seal, Air Duct,NO.2
55873D Seal, Air Duct, Center
55905A Knob, Heater Control
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55975A Seal, Defroster Nozzle, NO.1
81930F Bulb, Heater Control Indicator Lamp
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88482C Cap, Cooler
88569E Clamp (FOR COOLER THERMISTOR)
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
