Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 3 illustrations

Illustrations

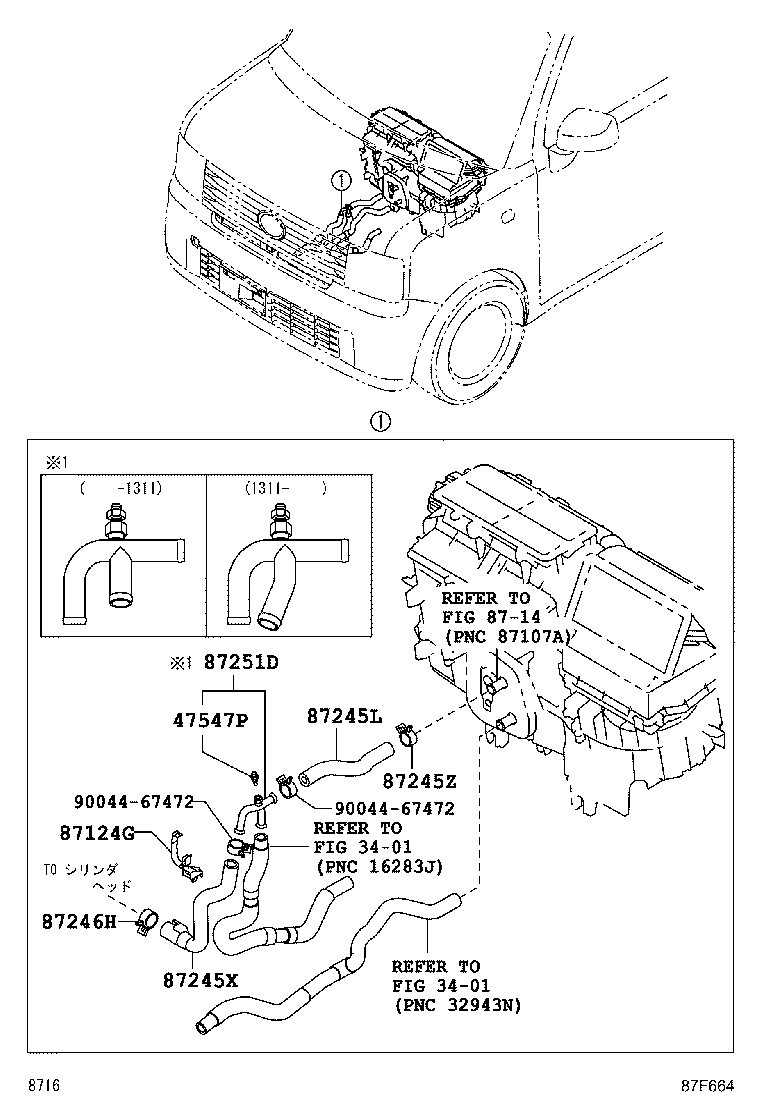

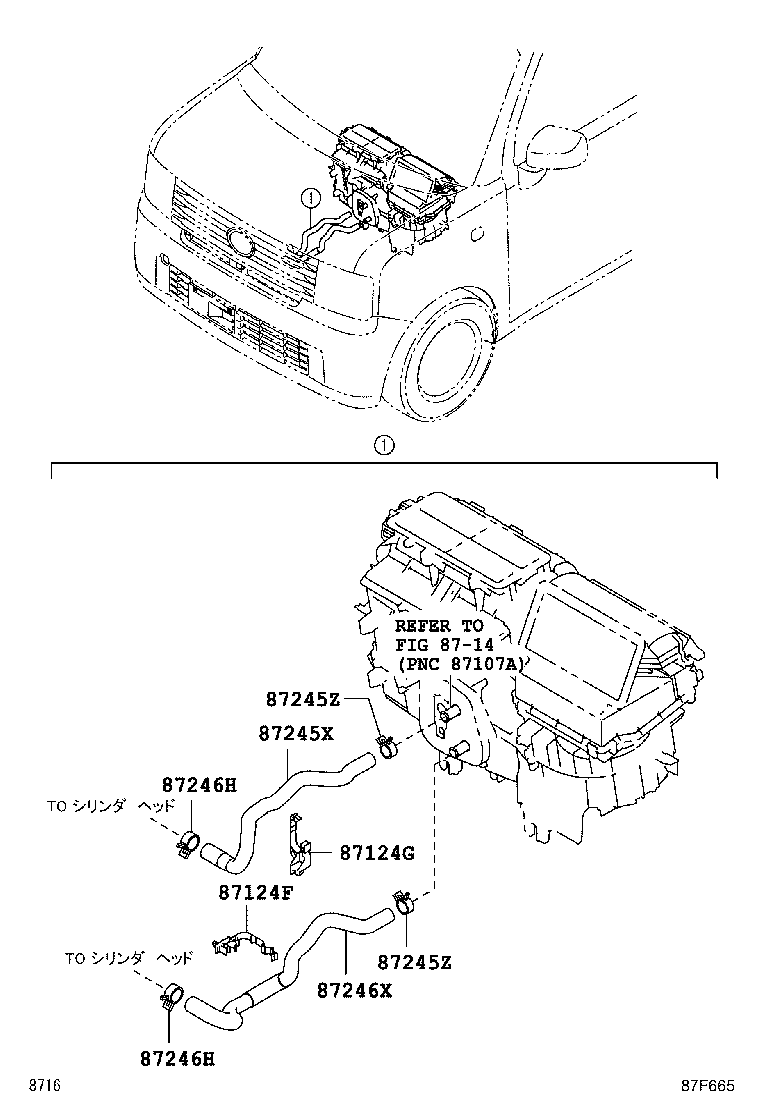

Figure 87F663 87F663 2011-09 → 2013-06 Figure 87F664 87F664 2013-06 → — Figure 87F665 87F665 2011-09 → —

Part groups

PNCDescription
47547P Plug, Bleeder(FOR WATER JOINT)
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87245L Hose, Heater Water, L
87245X Hose, Heater Water
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87246X Hose, Heater Water
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
