Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 6 illustrations

Illustrations

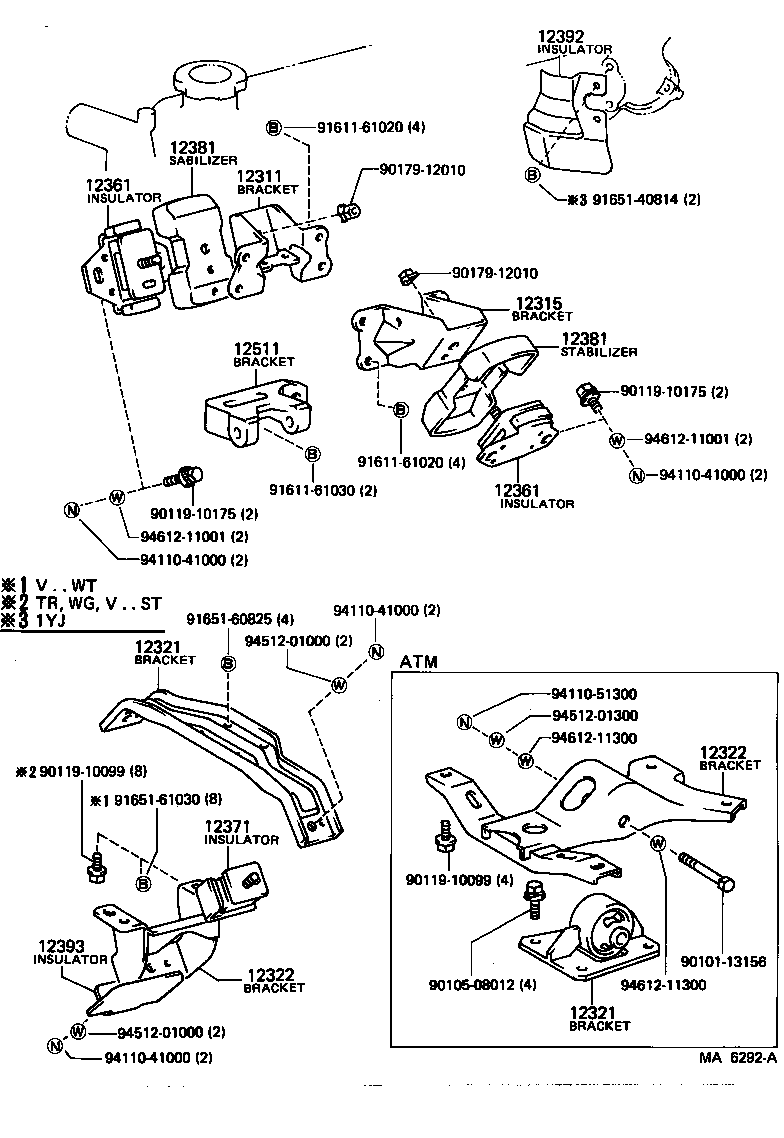

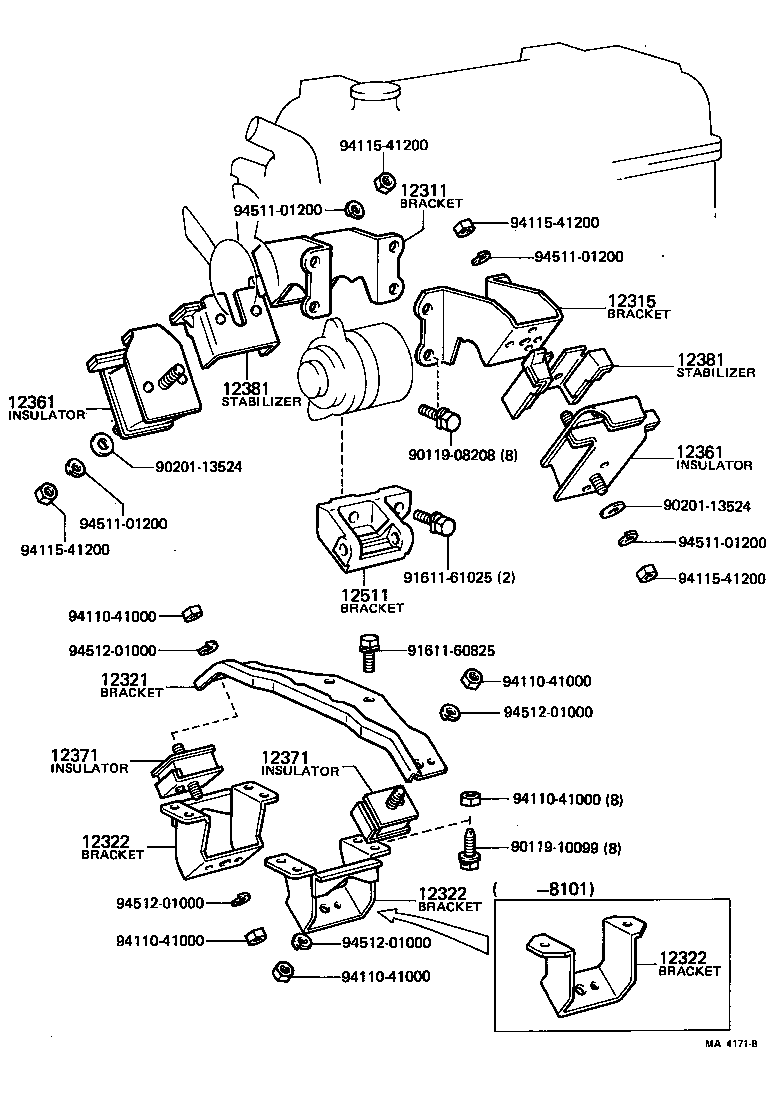

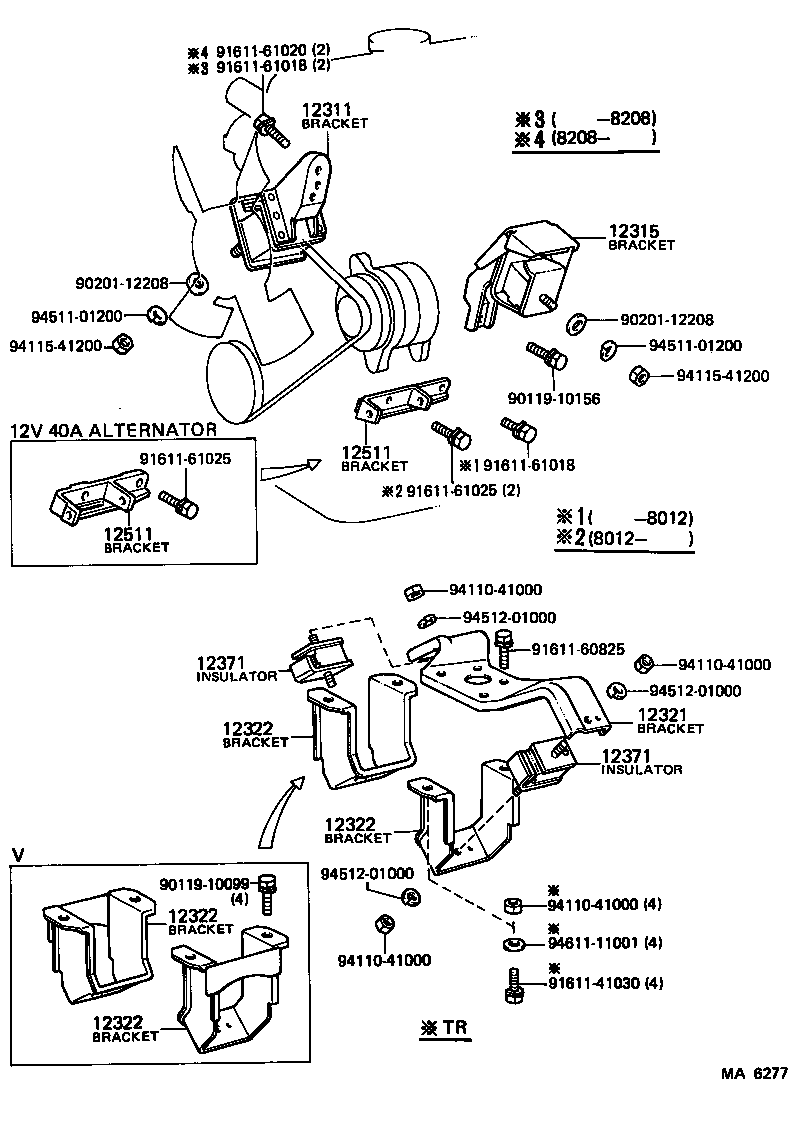

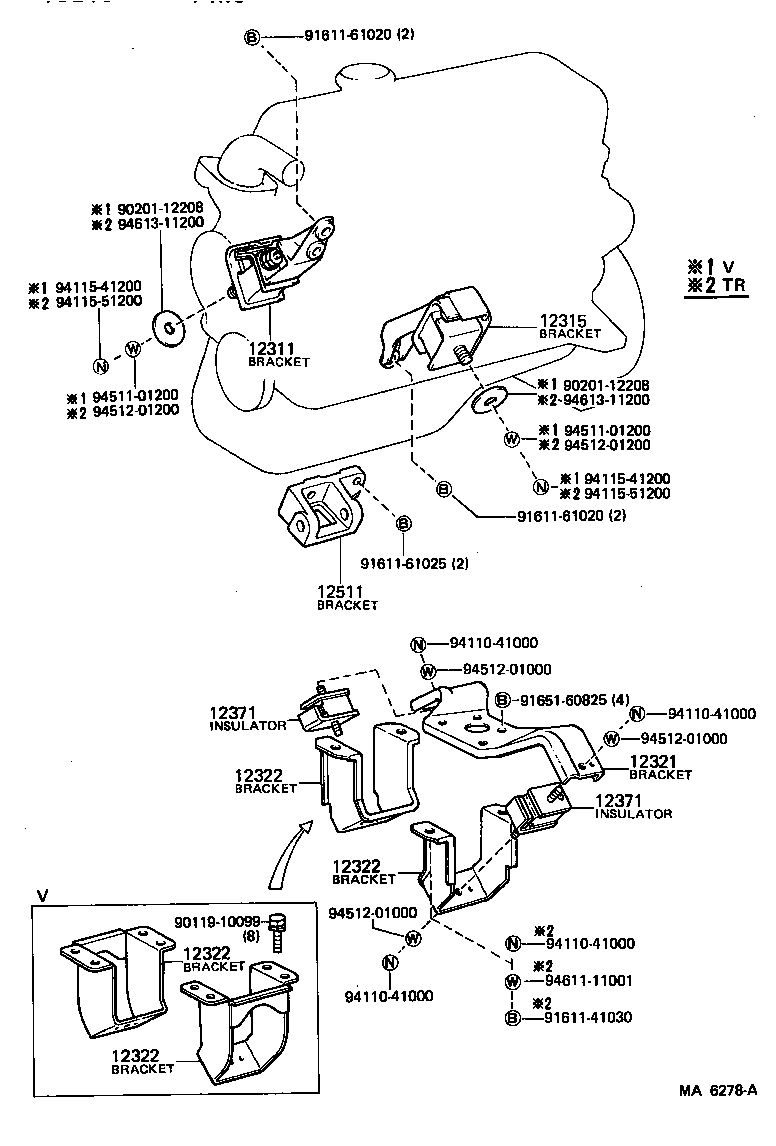

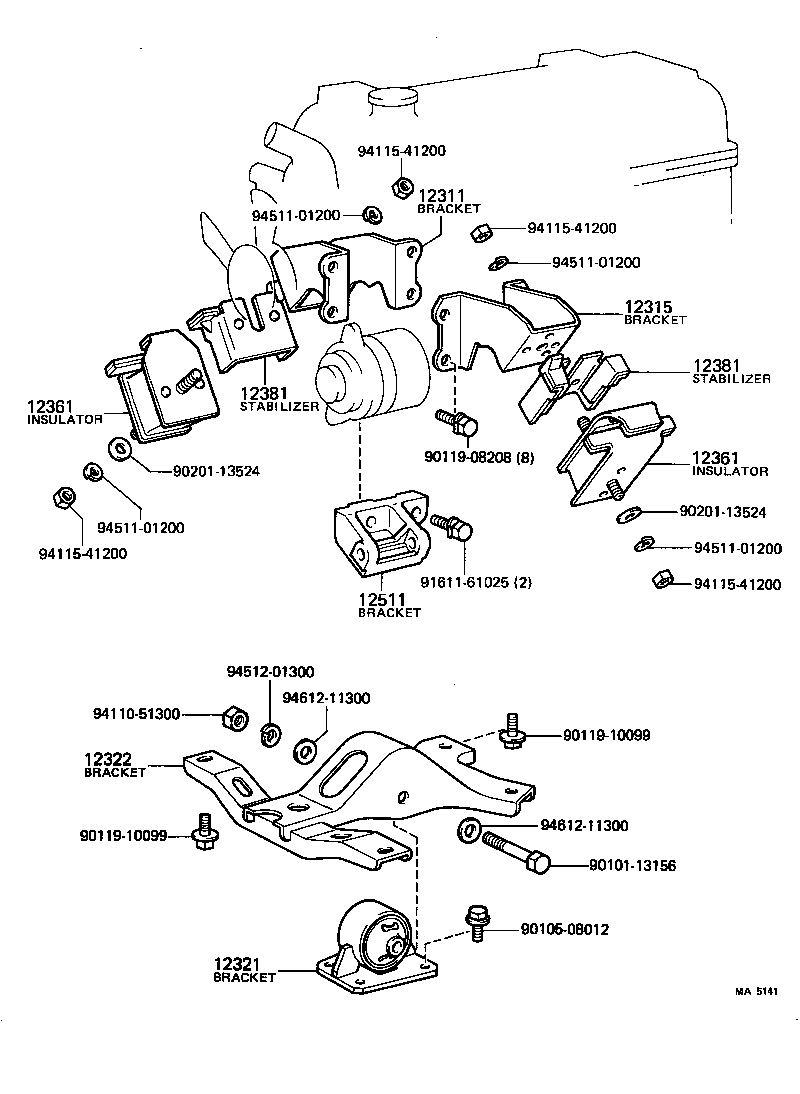

Figure MA6770A MA6770A 1982-10 → — Figure MA6277 MA6277 1979-10 → 1982-10 Figure MA6278A MA6278A 1982-10 → — Figure MA4171B MA4171B 1979-10 → 1982-10 Figure MA5141 MA5141 1981-01 → 1982-10 Figure MA6292A MA6292A 1982-10 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12393 Insulator, Engine Mounting Heat, Front
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
