Factory parts data · Europe

Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

5 part groups · 4 illustrations

Illustrations

Figure AS0344C

AS0344C 1982-10 → —

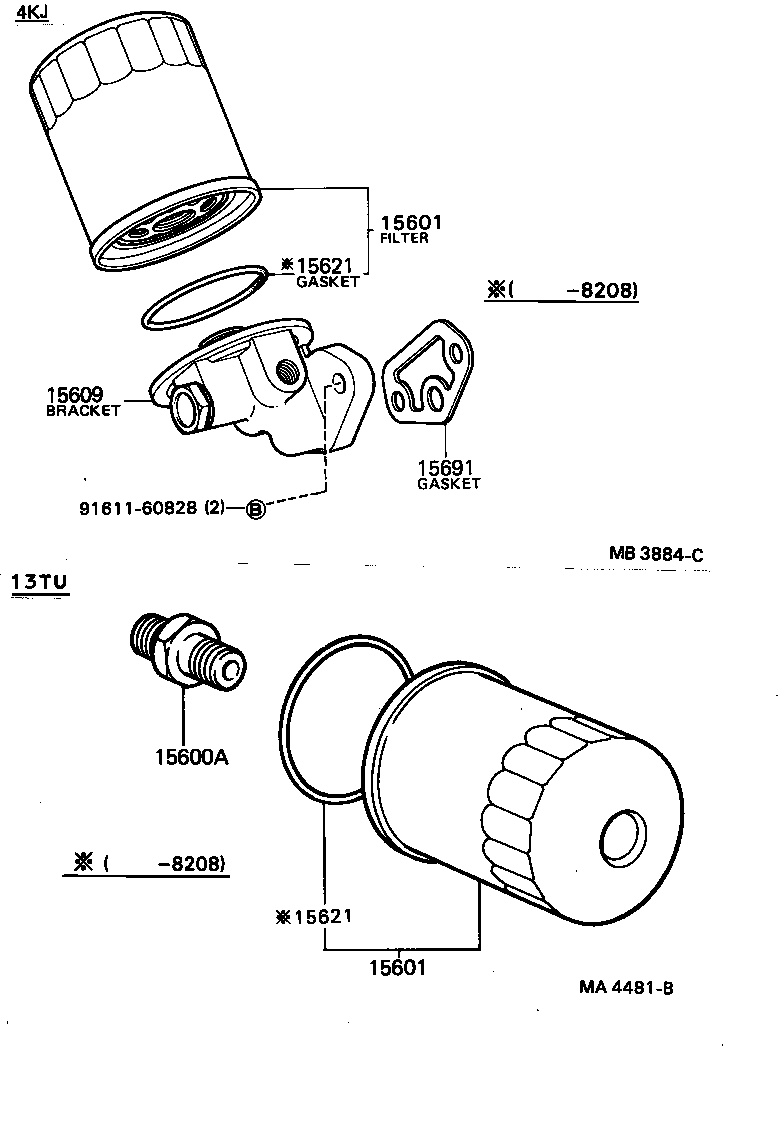

Figure AS0126C

AS0126C 1979-10 → —

Figure AS0126C

AS0126C 1979-10 → —

Figure AS0344C

AS0344C 1982-10 → —

Part groups

PNC	Description
15600A	Union(FOR OIL FILTER)
15601	Filter Sub-assy, Oil
15609	Bracket Sub-assy, Oil Filter
15621	Gasket, Oil Filter Body
15691	Gasket, Oil Filter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
