Toyota Lite/Townace Truck
1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan
Discontinued model
Data version 1987-04

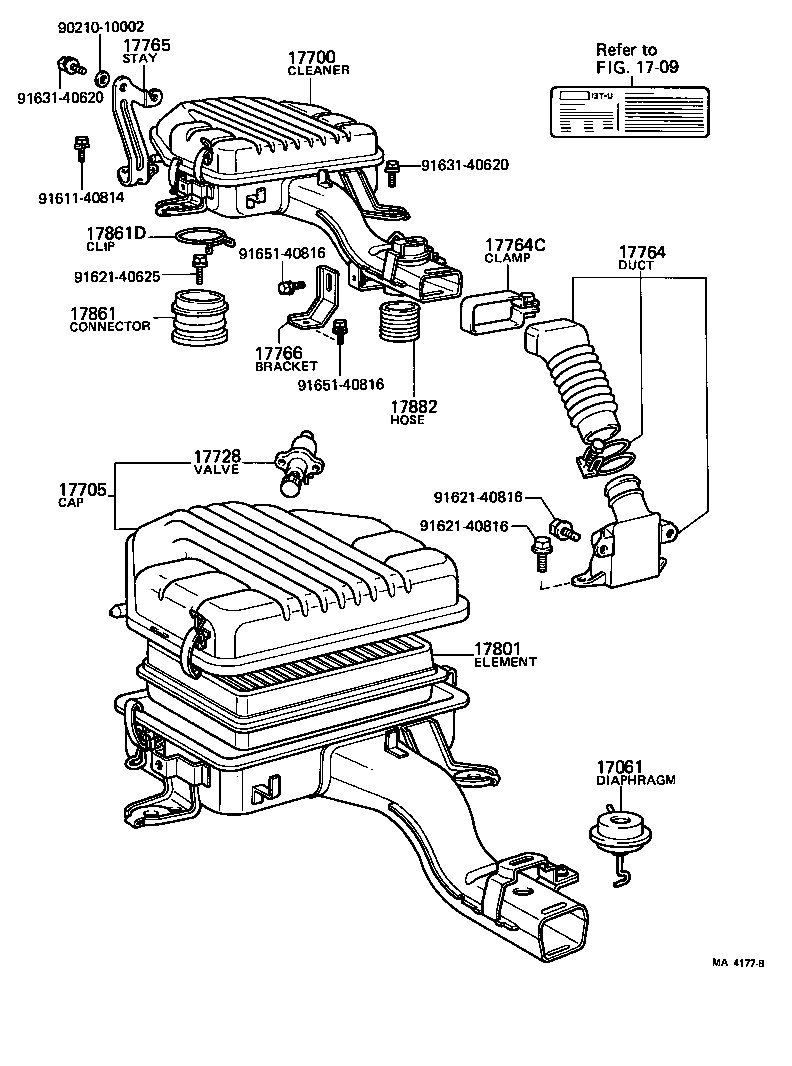

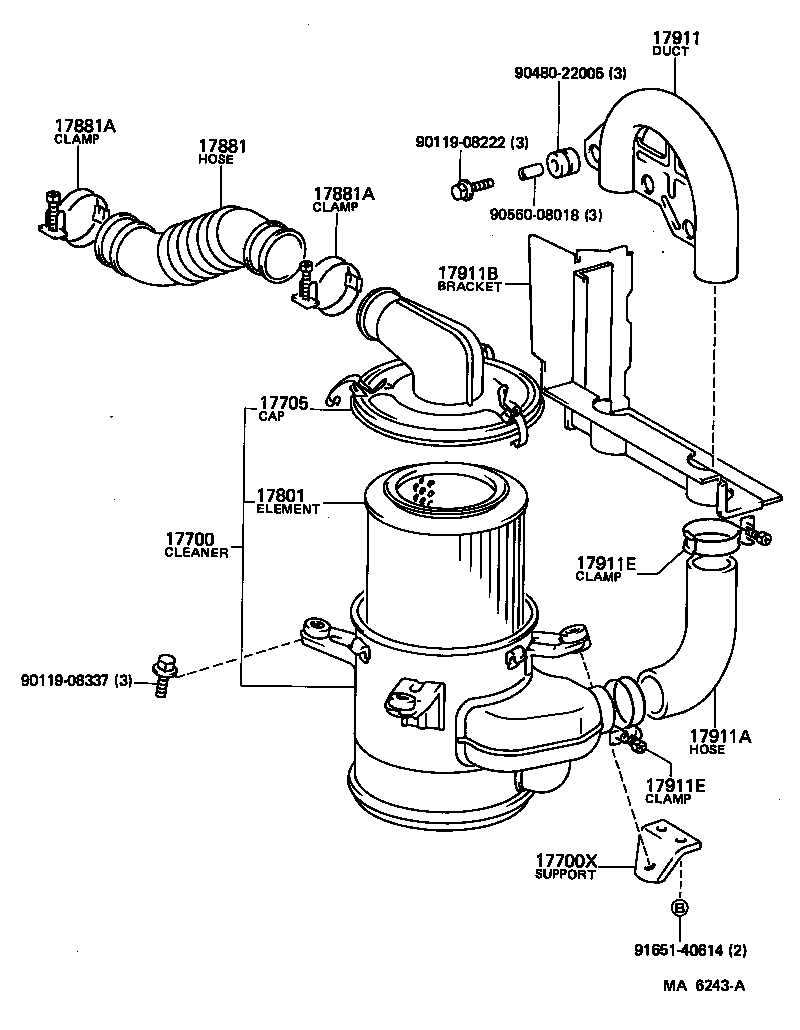

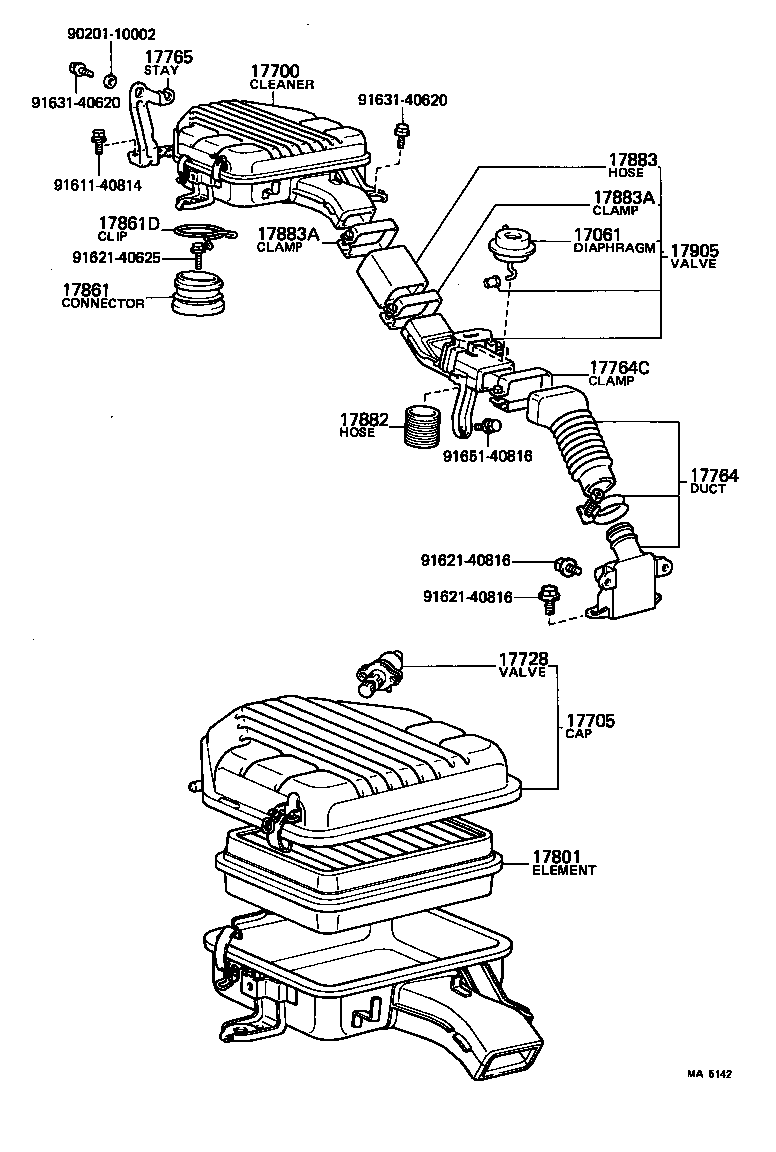

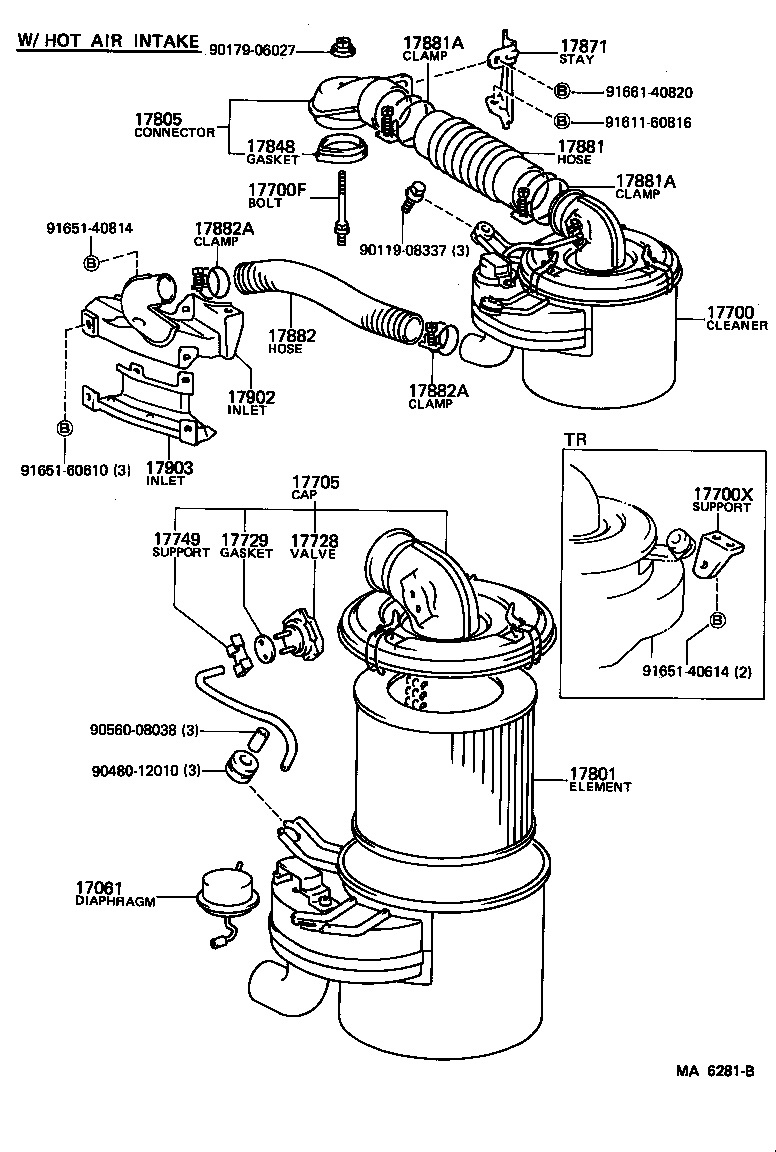

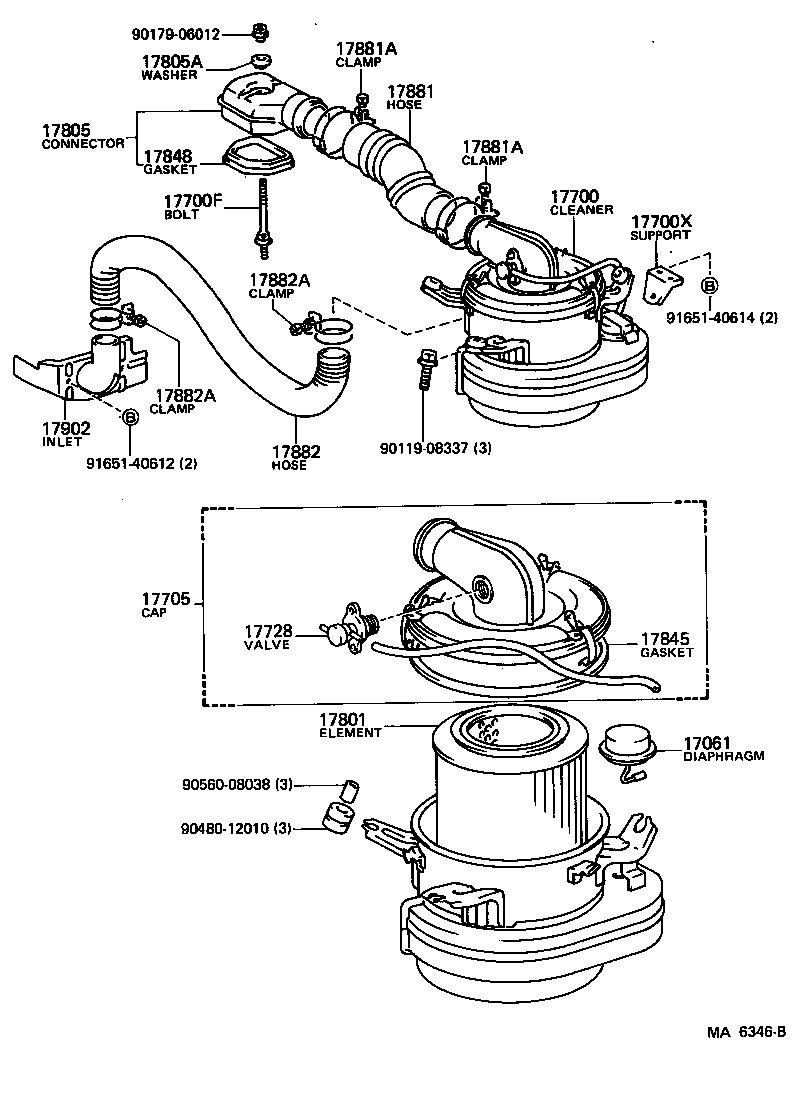

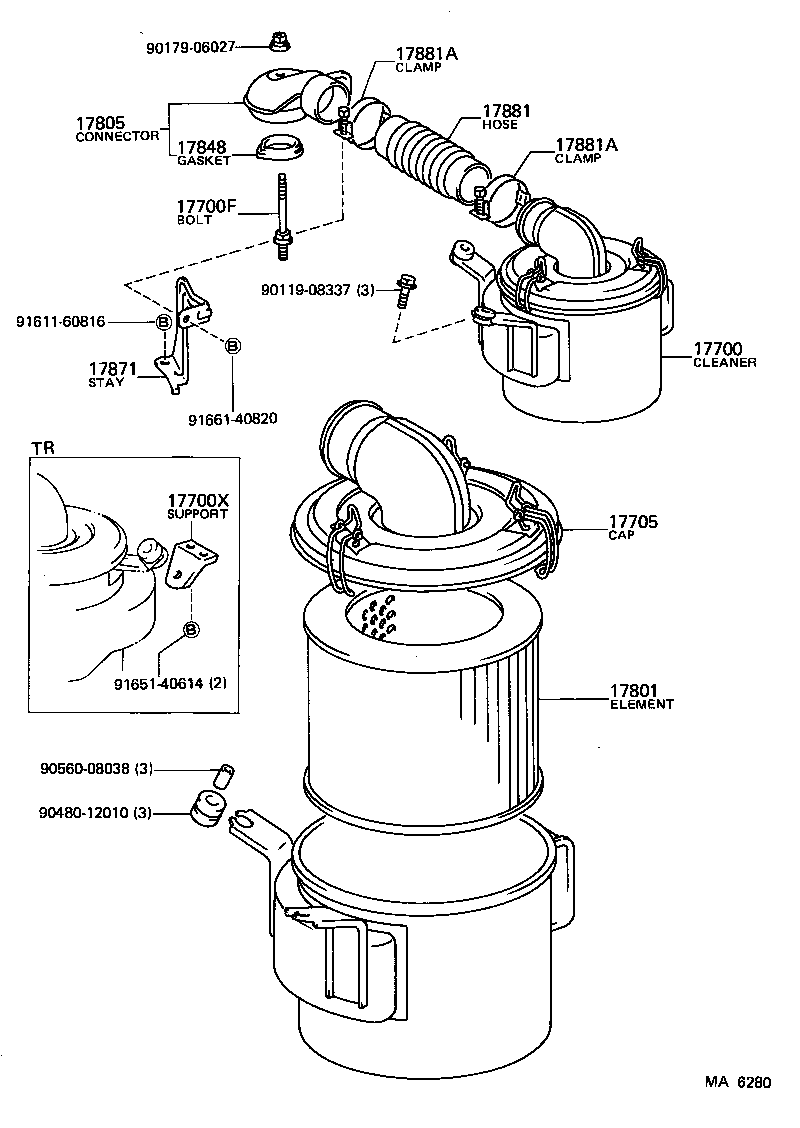

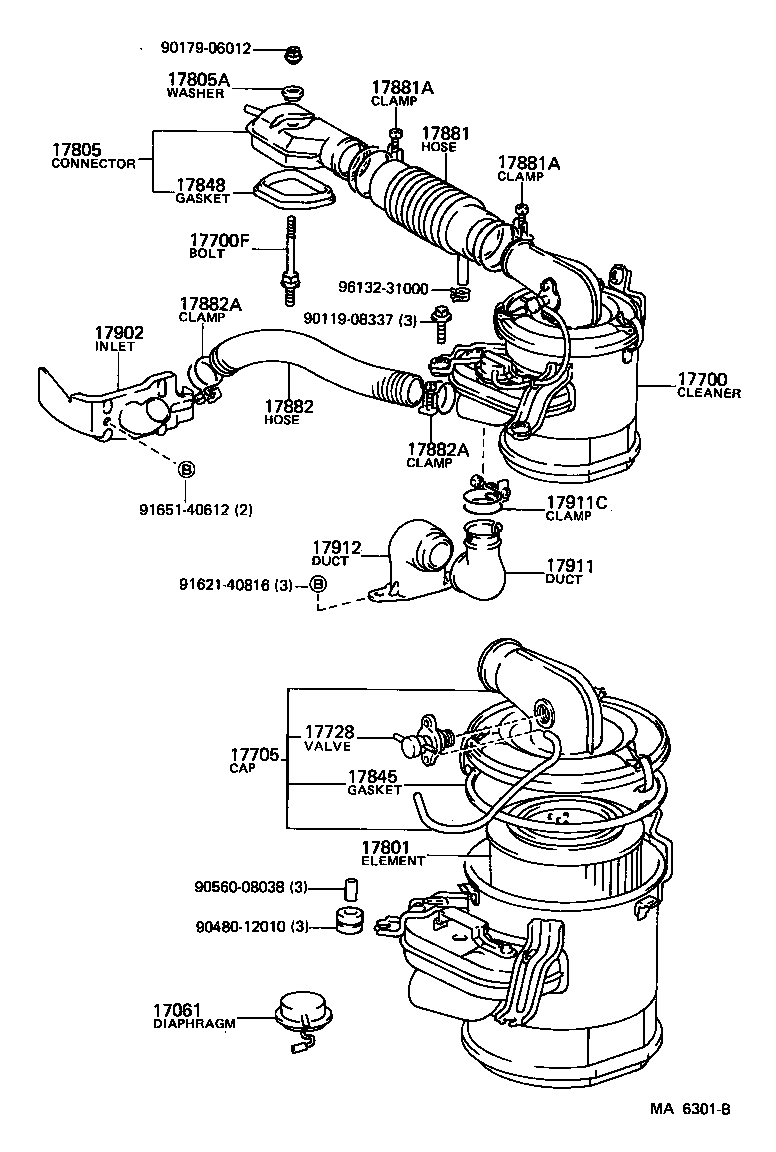

Air Cleaner
39 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 17061 | Diaphragm Sub-assy |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700B | Washer, Seal(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17700X | Bracket, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17709B | Spacer, Air Cleaner Inlet |
| 17728 | Valve, Thermostatic |
| 17729 | Gasket, Thermostat Valve |
| 17749 | Support, Thermostat Valve |
| 17764 | Duct, Air Cleaner |
| 17764C | Clamp, Hose(FOR AIR CLEANER DUCT) |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17766 | Stay, Air Cleaner, NO.2 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805A | Gasket & Washer, Seal |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17861 | Connector, Intake Air |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17871 | Stay, Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17902 | Inlet Sub-assy, Hot Air Intake, NO.1 |
| 17903 | Inlet Sub-assy, Hot Air Intake, NO.2 |
| 17905 | Valve Sub-assy, Air Cleaner Inlet |
| 17911 | Duct, Cool Air Intake, NO.1 |
| 17911A | Hose, Cool Air Intake, NO.1 |
| 17911B | Bracket, Cool Air Intake Duct, NO.1 |
| 17911C | Clamp, Cool Air Intake Duct, NO.1 |
| 17911E | Clamp, Cool Air Intake Hose, NO.1 |
| 17912 | Duct, Cool Air Intake, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
