Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

19 part groups · 2 illustrations

Illustrations

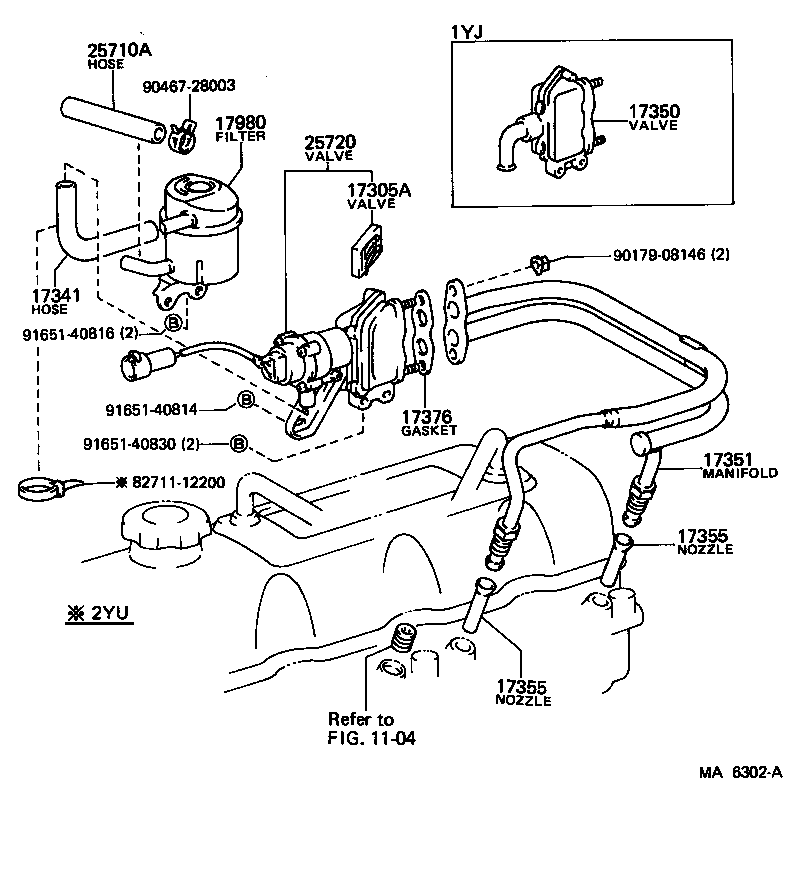

Figure MA4178B MA4178B 1979-10 → 1982-10 Figure MA6302A MA6302A 1982-10 → —

Part groups

PNCDescription
17305A Valve Sub-assy, Reed
17327 Bracket, Reed Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17355 Nozzle, Air Injection
17368 Support, Air Tube
17376 Gasket, Air Tube, NO.1
17980 Filter Assy, Air Suction
25710 Valve Assy, Air Switching
25710A Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
25710B Hose(FOR AIR SWITCHING VALVE TO CARBURETOR)
25710E Clip
25720 Valve Assy, Electric Air Control
25733 Pipe, NO.1(FOR REED VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
