Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 11 illustrations

Illustrations

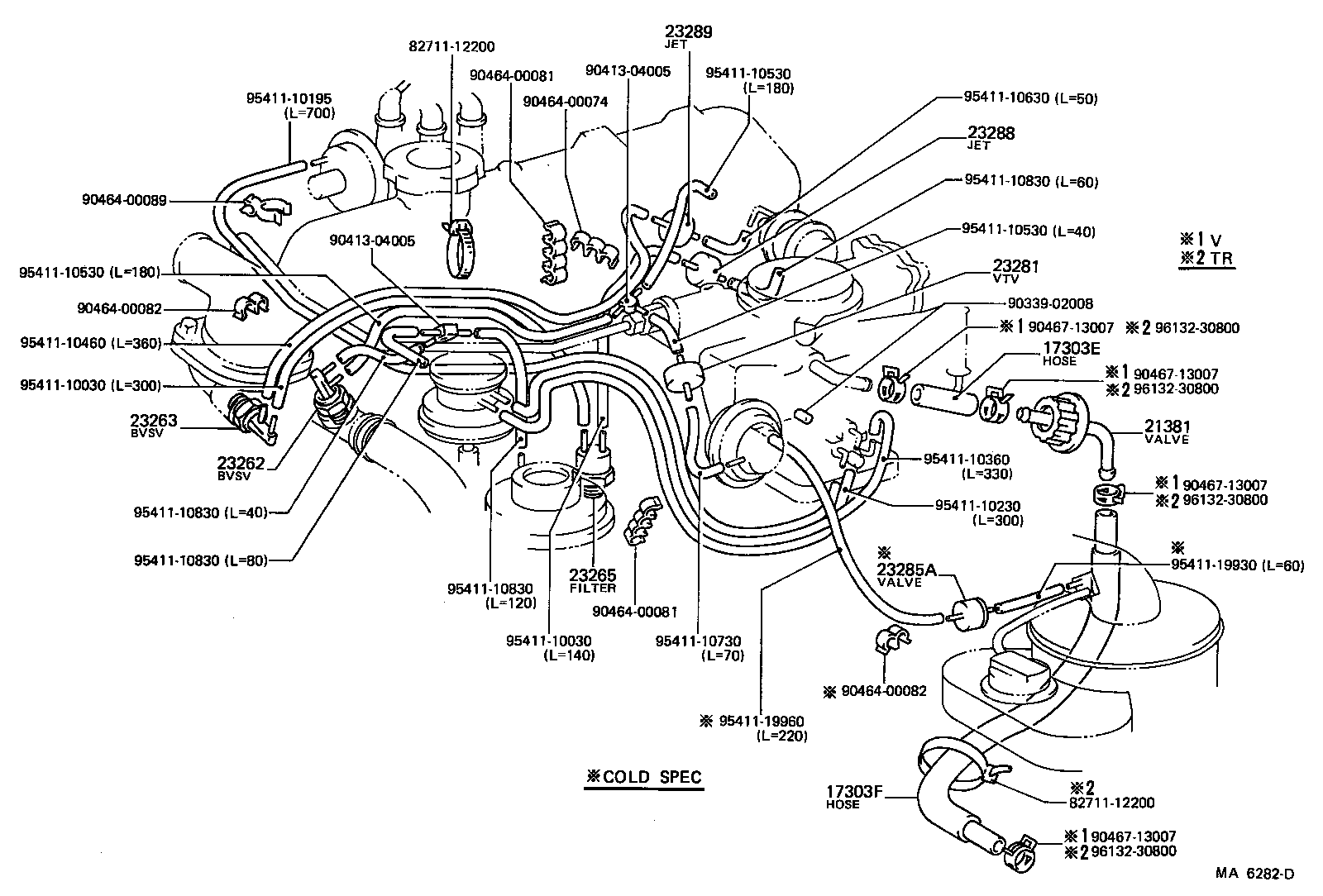

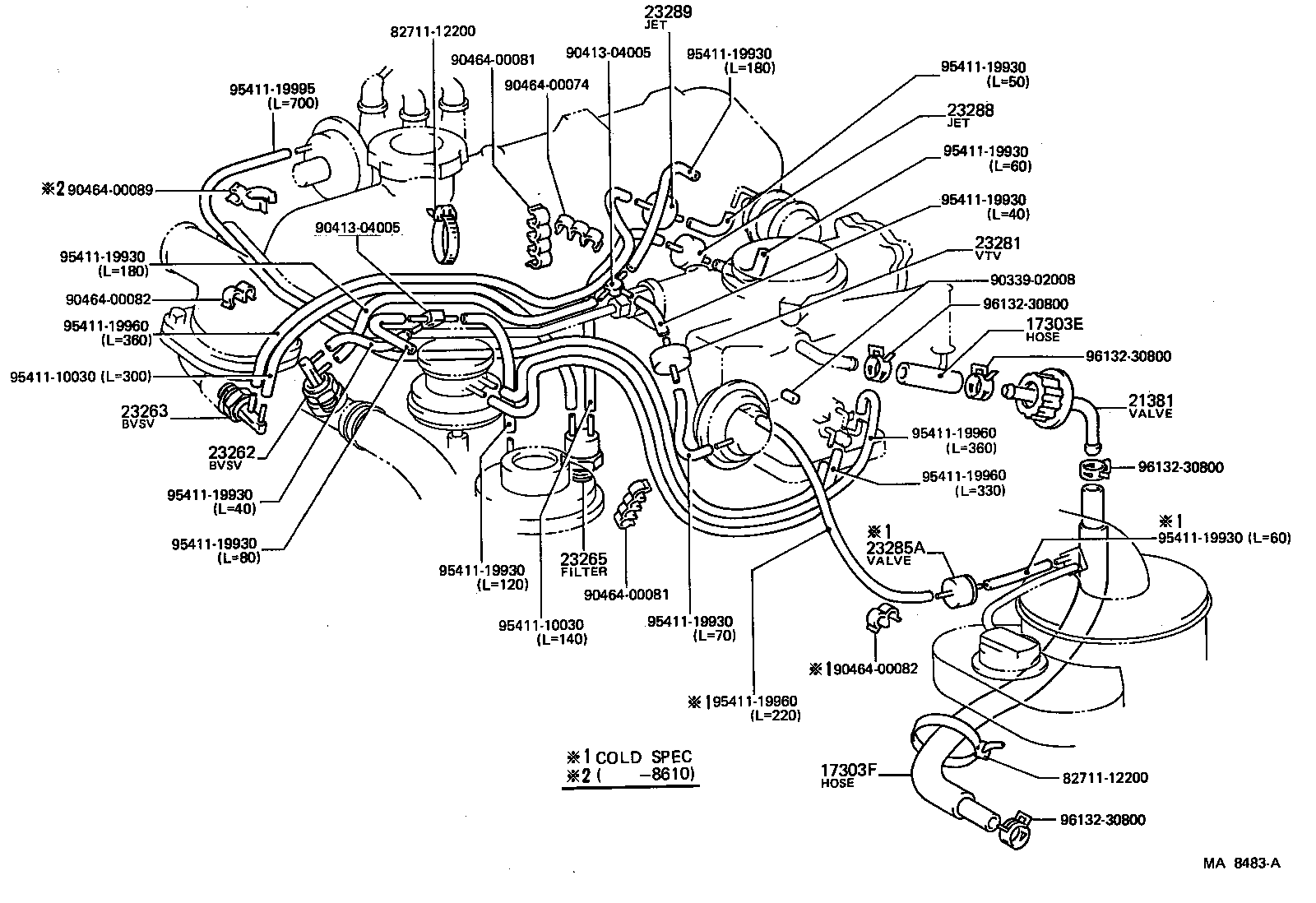

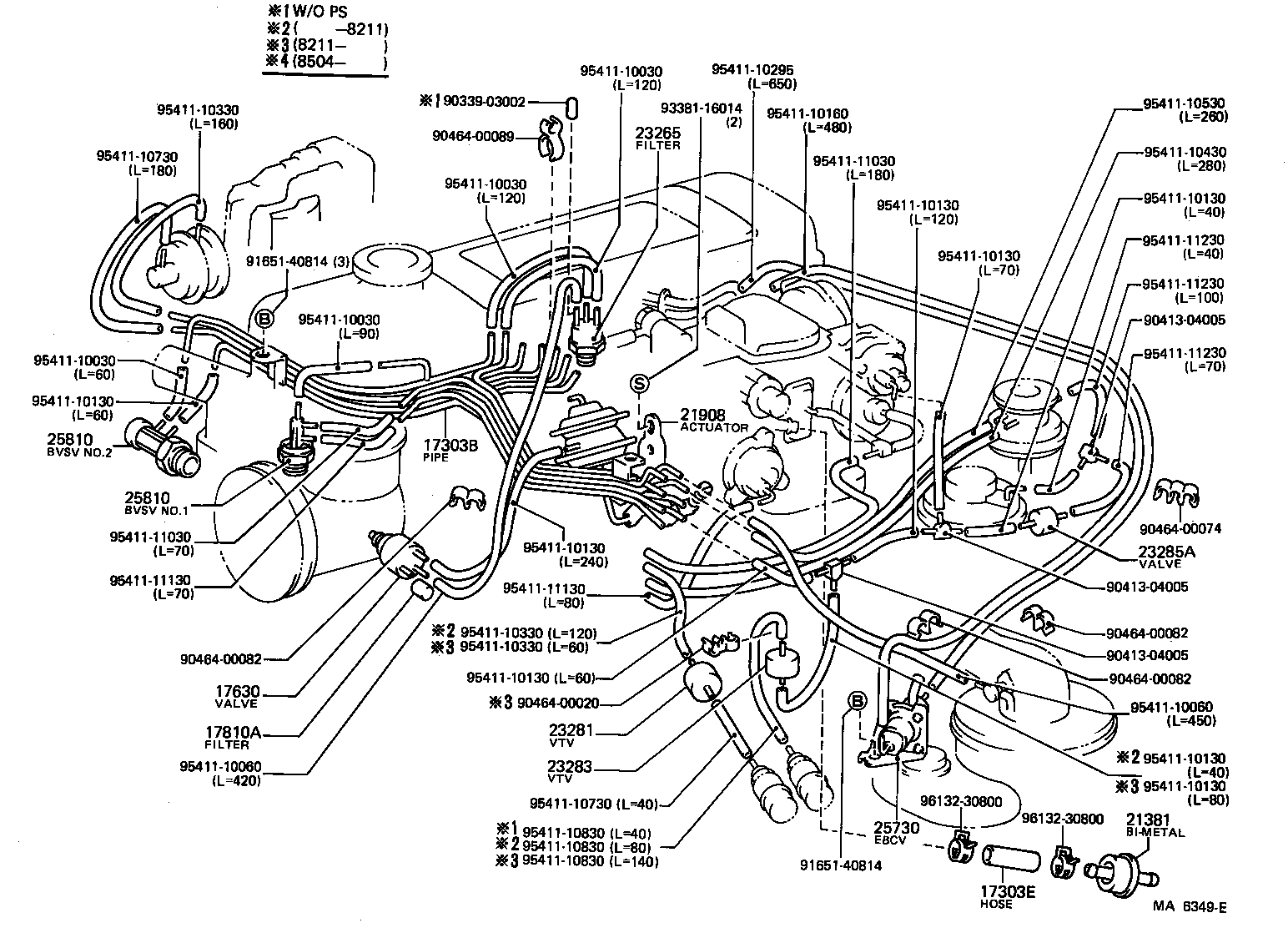

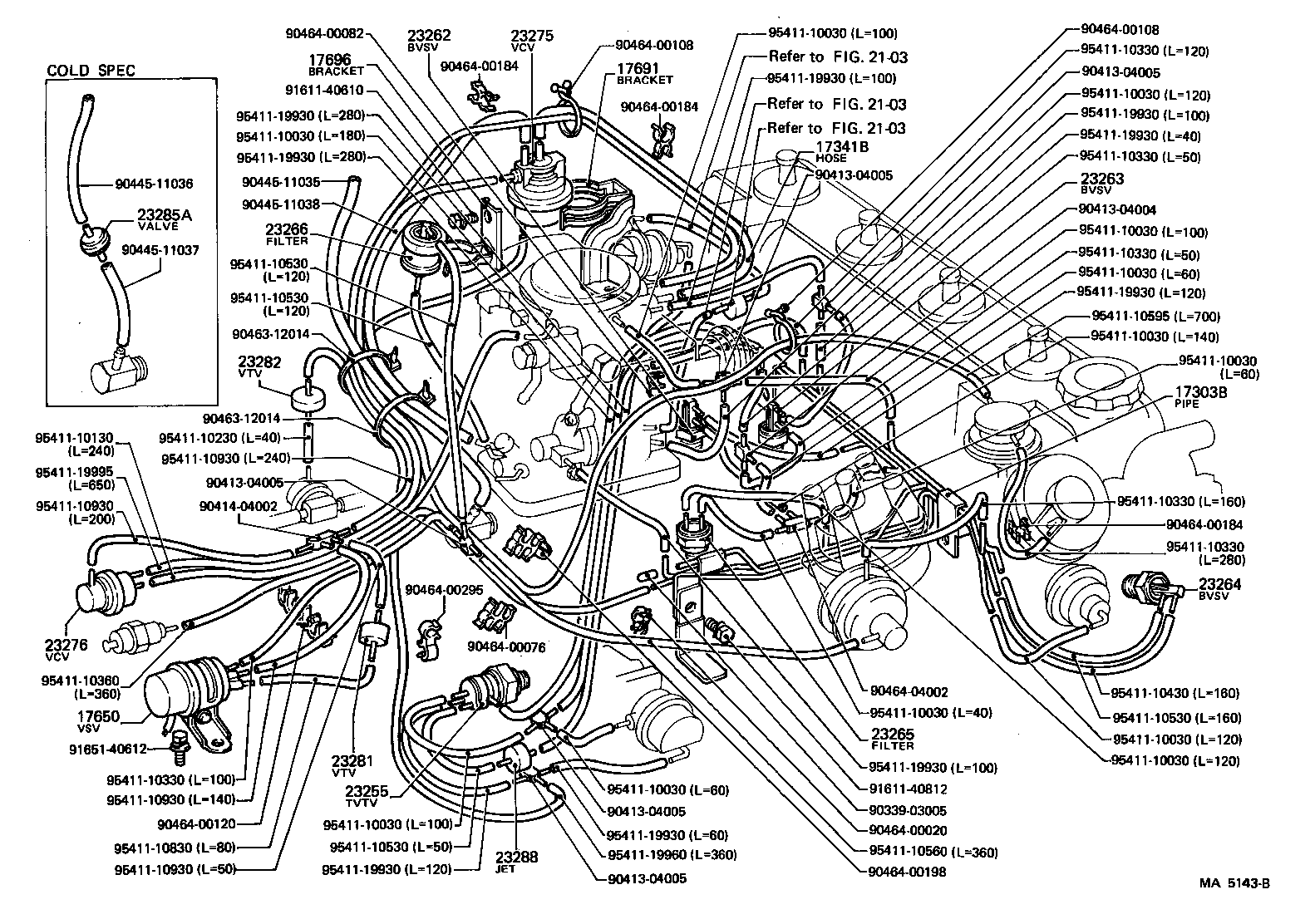

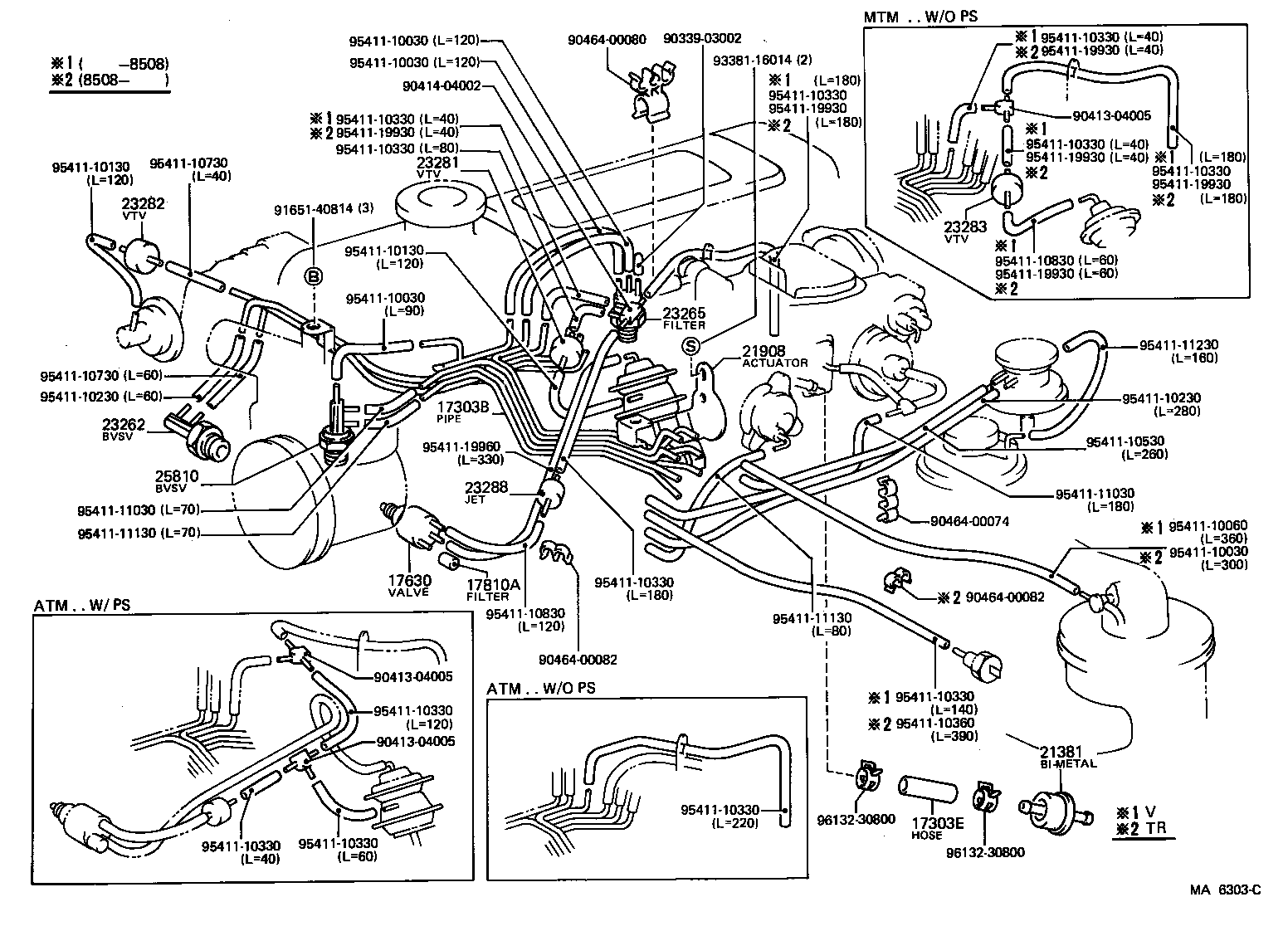

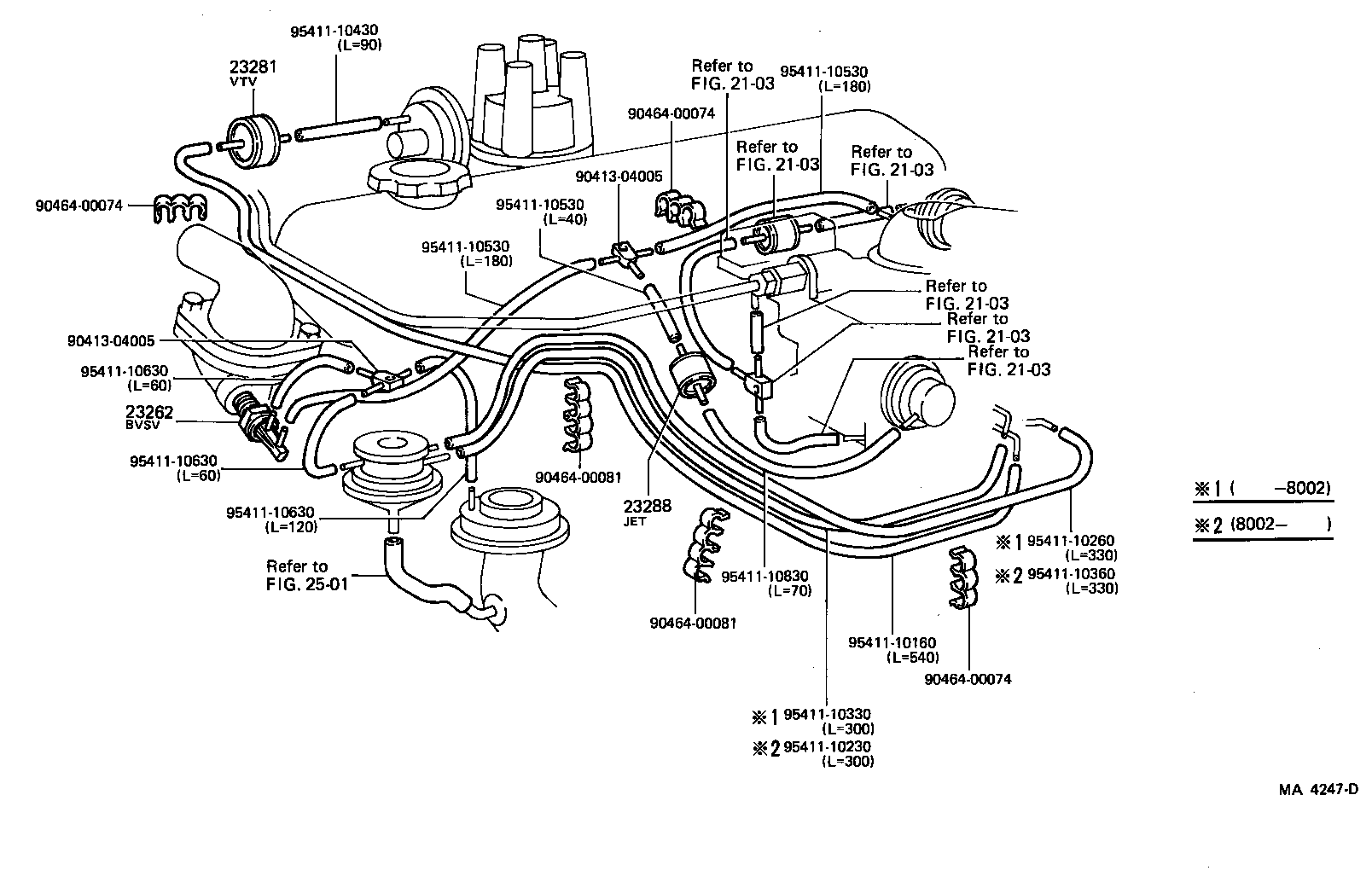

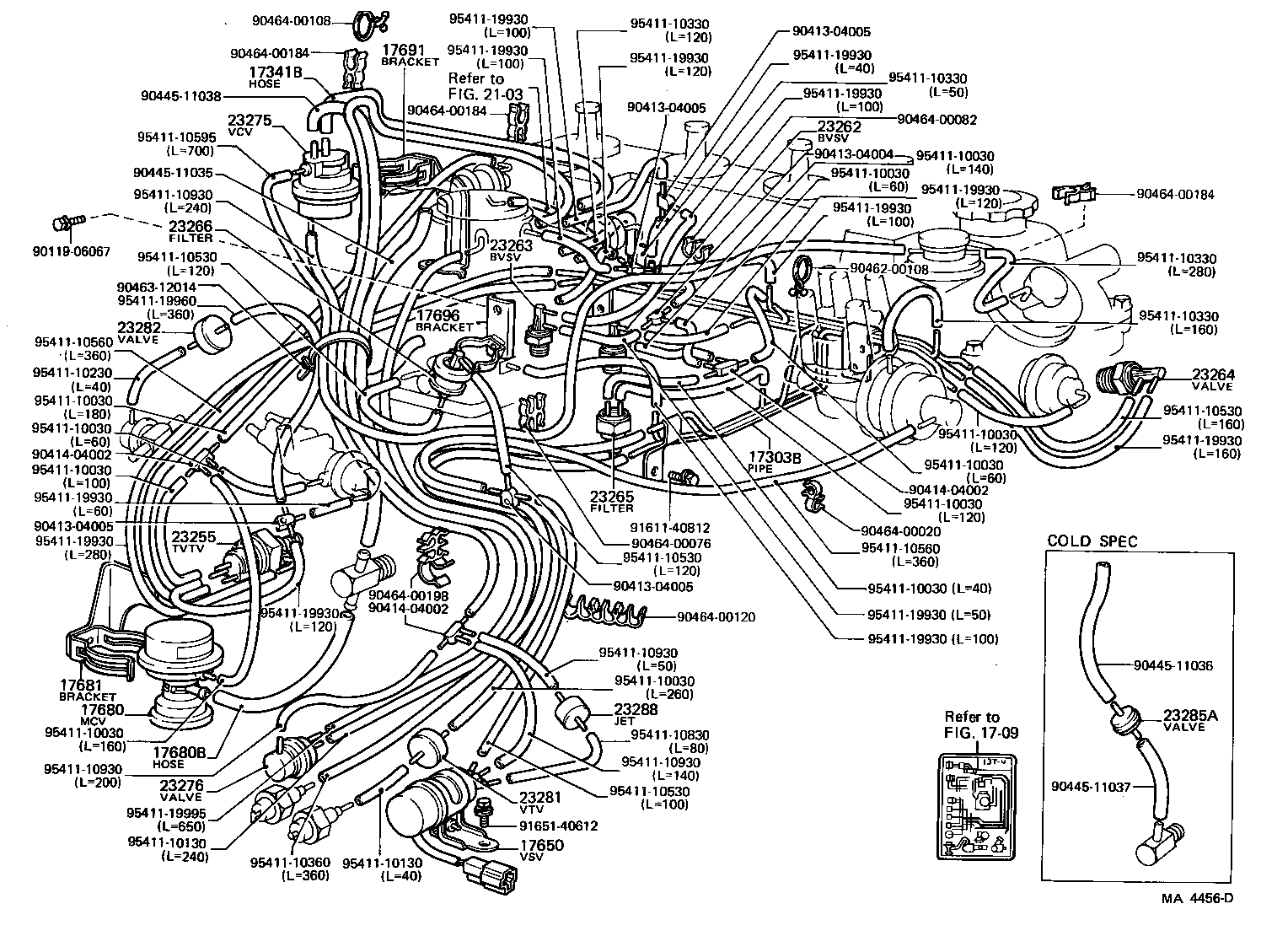

Figure MA9500 MA9500 1979-10 → — Figure MA9500 MA9500 1979-10 → — Figure MA4247D MA4247D 1979-10 → 1982-10 Figure MA6282D MA6282D 1982-10 → 1985-08 Figure MA8483A MA8483A 1985-08 → — Figure MA9500 MA9500 1979-10 → — Figure MA4456D MA4456D 1979-10 → 1982-10 Figure MA5143B MA5143B 1981-01 → 1982-10 Figure MA9500 MA9500 1979-10 → — Figure MA6303C MA6303C 1982-10 → — Figure MA6349E MA6349E 1982-10 → 1985-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17681 Bracket, Mixture Control Valve
17691 Bracket, Vacuum Control Valve, NO.1
17696 Bracket, Gas Filter
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
21908 Actuator Sub-assy, Idle-up
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25730 Valve Assy, Electric Bleed Air Control
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
