Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

33 part groups · 8 illustrations

Illustrations

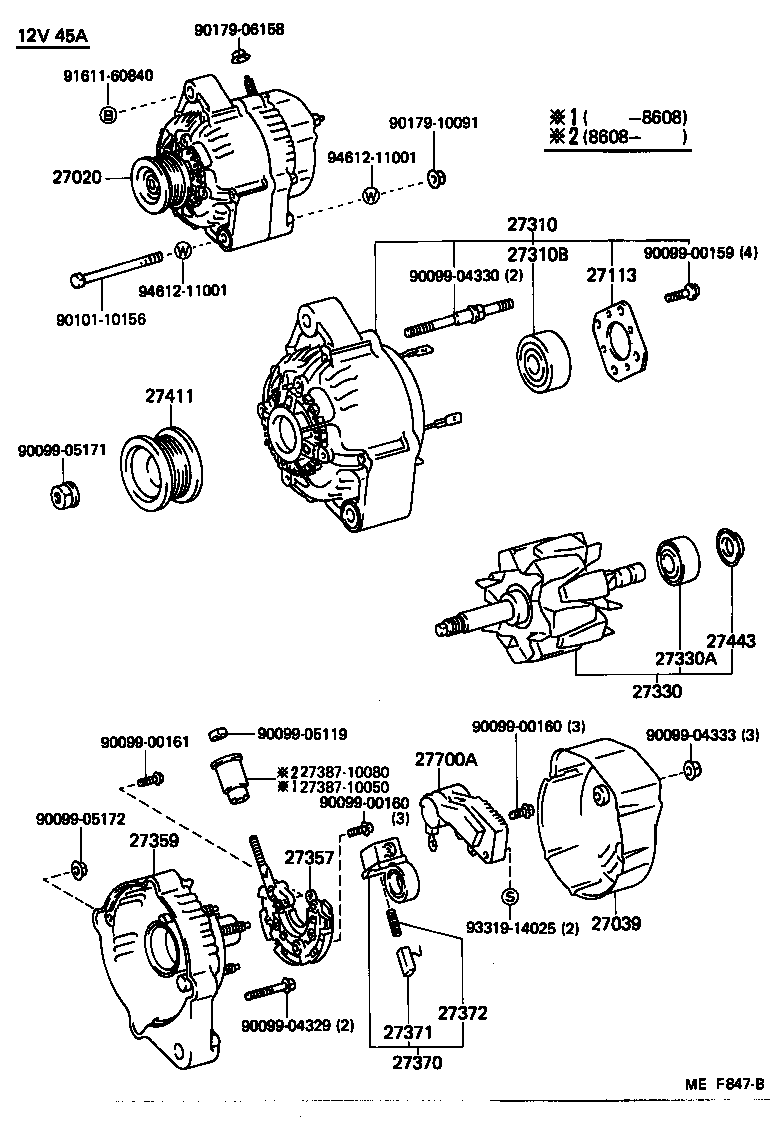

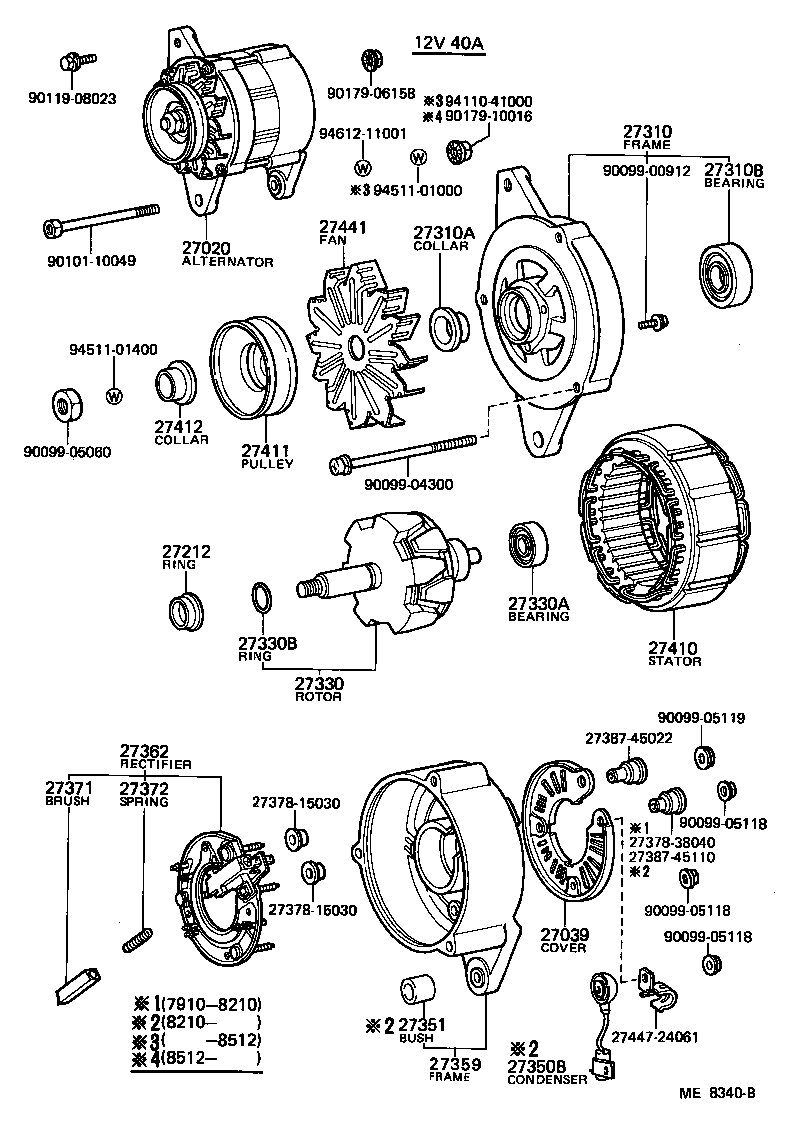

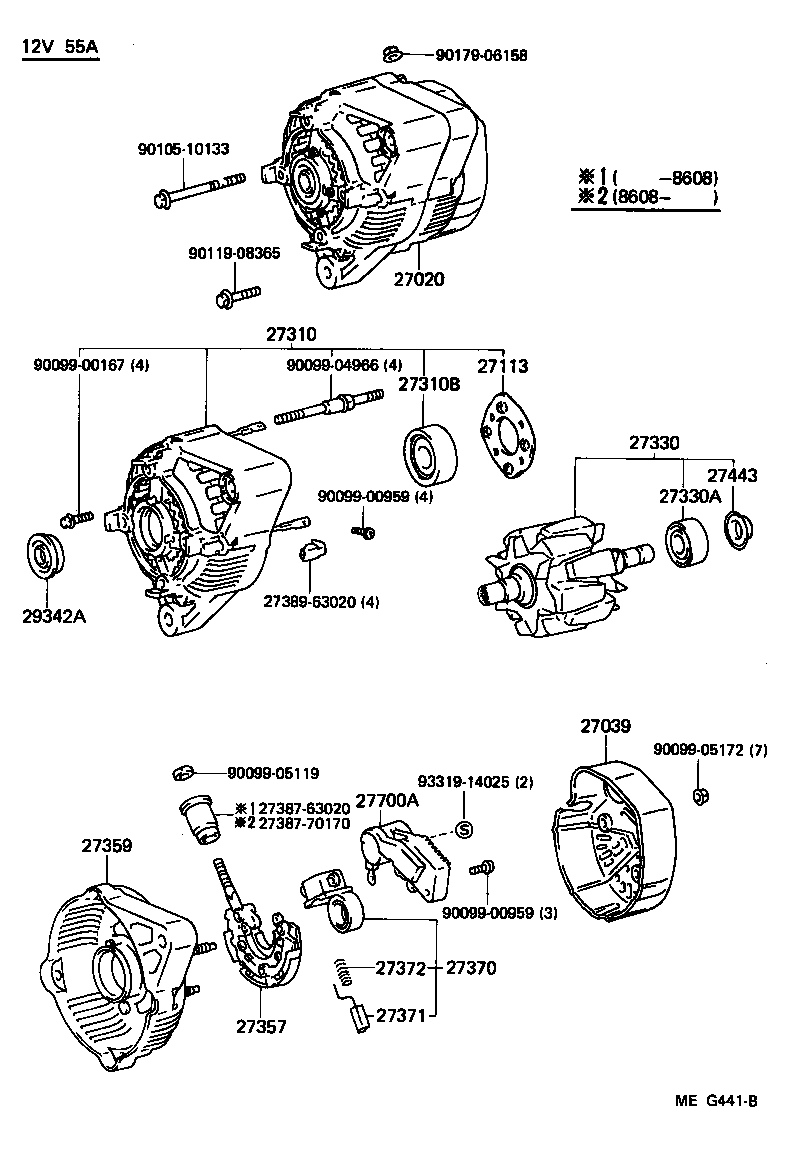

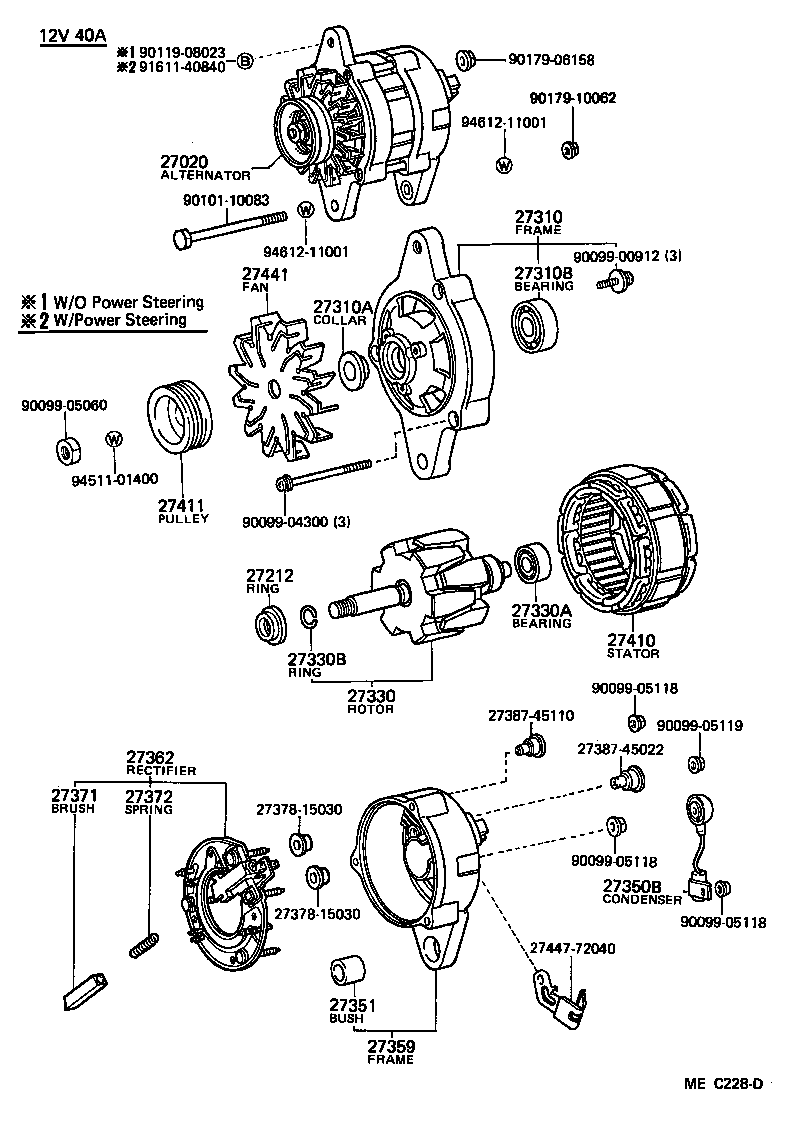

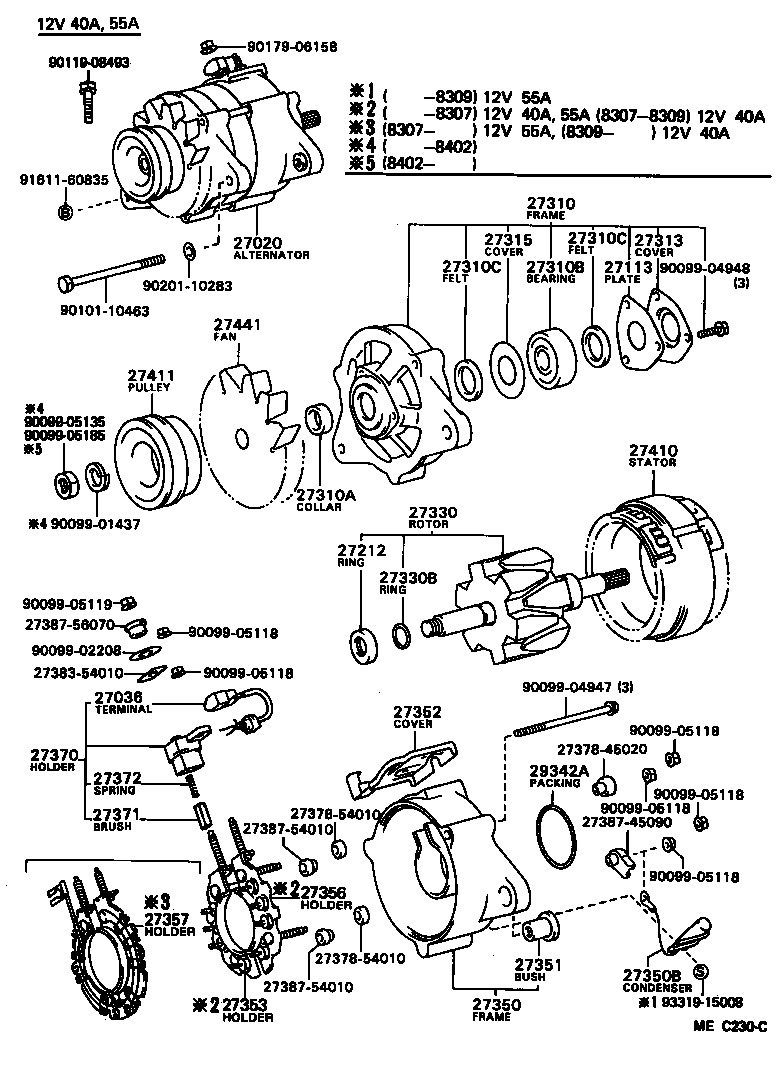

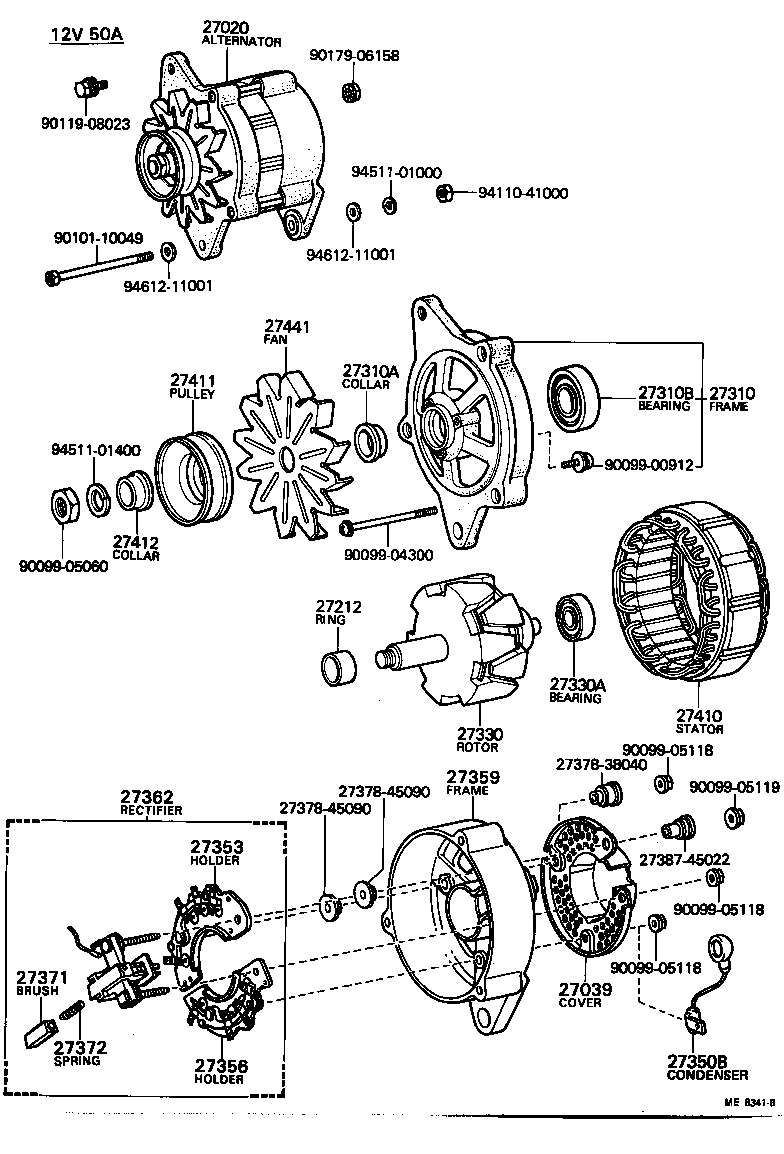

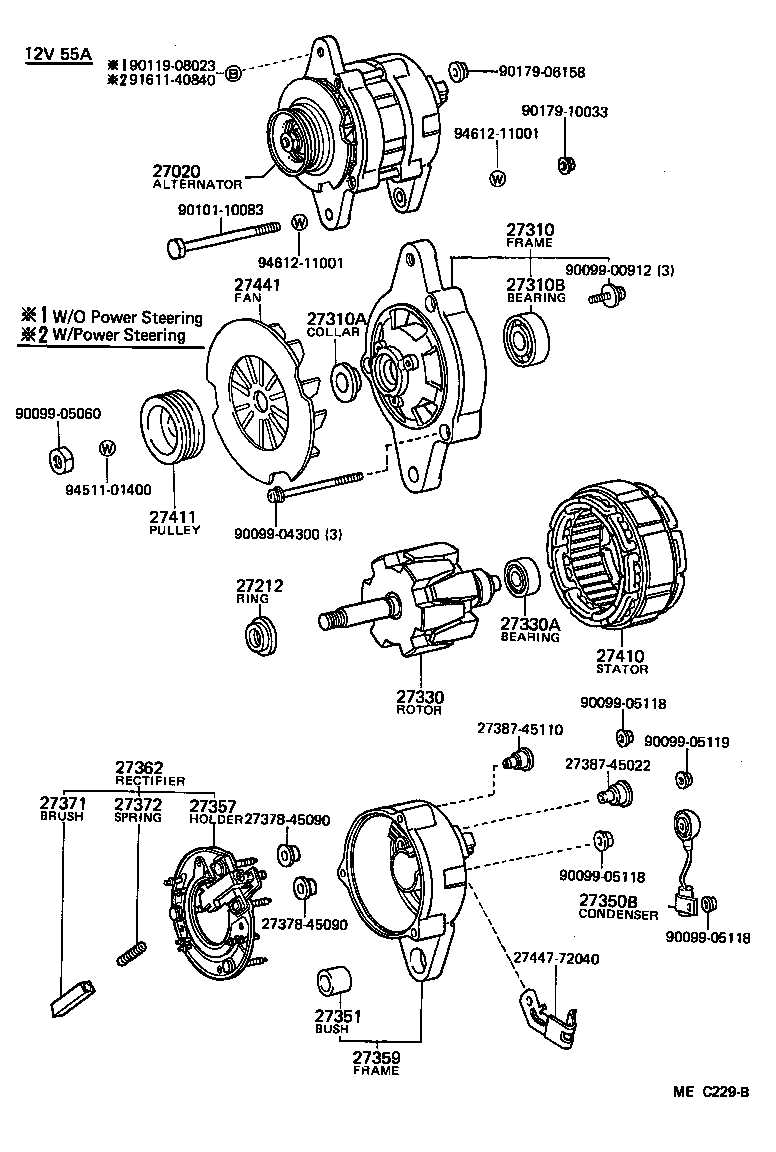

Figure ME8339C ME8339C 1979-10 → — Figure ME8340B ME8340B 1979-10 → — Figure ME8341B ME8341B 1979-10 → 1982-10 Figure MEC228D MEC228D 1982-10 → 1985-08 Figure MEF847B MEF847B 1985-08 → — Figure MEC229B MEC229B 1982-10 → 1985-08 Figure MEC230C MEC230C 1982-10 → 1985-08 Figure MEG441B MEG441B 1985-08 → —

Part groups

PNCDescription
27020 Alternator Assy
27036 Terminal Sub-assy, Lead Wire, Alternator
27039 Cover, Alternator Rear End
27113 Plate, Bearing Retainer, Alternator
27212 Ring, Space(FOR ALTERNATOR ROTOR)
27310 Frame Assy, Drive End, Alternator
27310A Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27310C Felt(FOR ALTERNATOR DRIVE END FRAME)
27313 Cover, Alternator Felt, Inner NO.2
27315 Cover, Alternator Felt, Inner NO.1
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27330B Ring, Snap(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27350B Condenser, Alternator
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27352 Cover, Frame Brush
27353 Holder, W/Rectifier Positive, Alternator
27356 Holder, W/Rectifier Negative, Alternator
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27362 Rectifier Assy, W/Brush
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412 Collar, Spacer(FOR ALTERNATOR PULLEY)
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
29342A Packing, Vacuum Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
