Factory parts data · Europe

Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

4 part groups · 3 illustrations

Illustrations

Figure MA9612

MA9612 1979-10 → —

Figure MF2348D

MF2348D 1979-10 → 1982-10

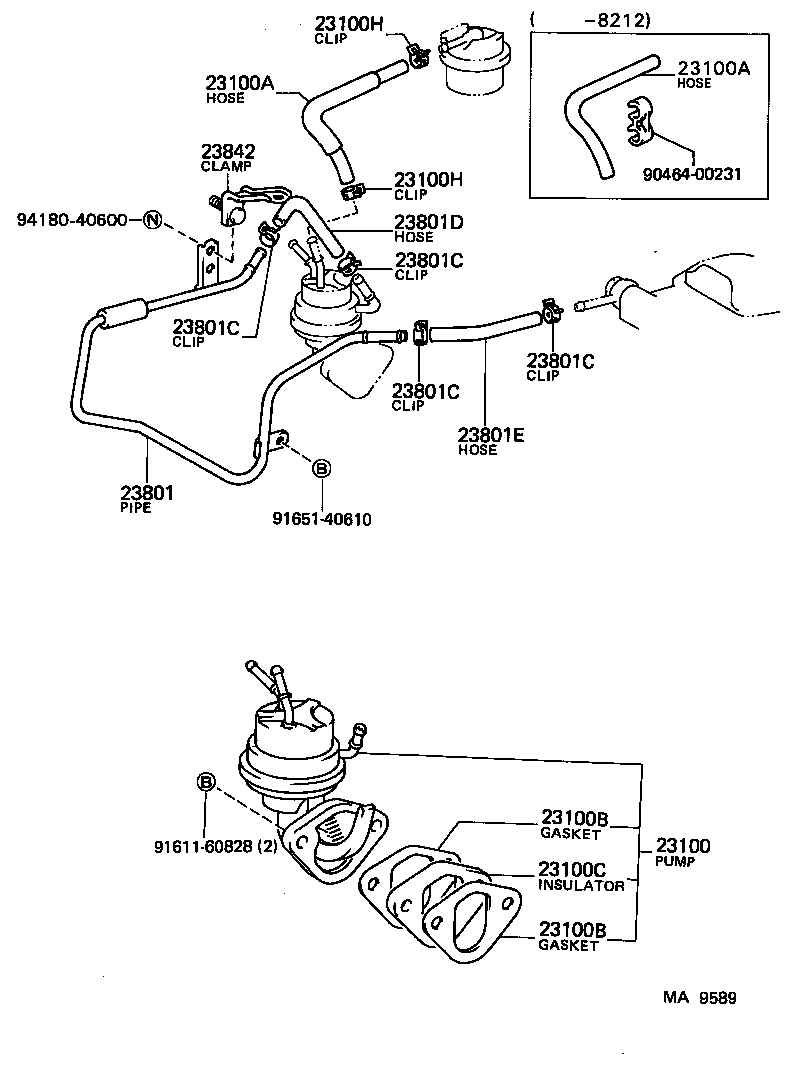

Figure MA9589

MA9589 1982-10 → —

Part groups

PNC	Description
23100	Pump Assy, Fuel
23100B	Gasket, Fuel Pump
23100C	Insulator, Fuel Pump
23292	Protector, Fuel Hose

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
