Toyota Lite/Townace Truck
1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan
Discontinued model
Data version 1987-04

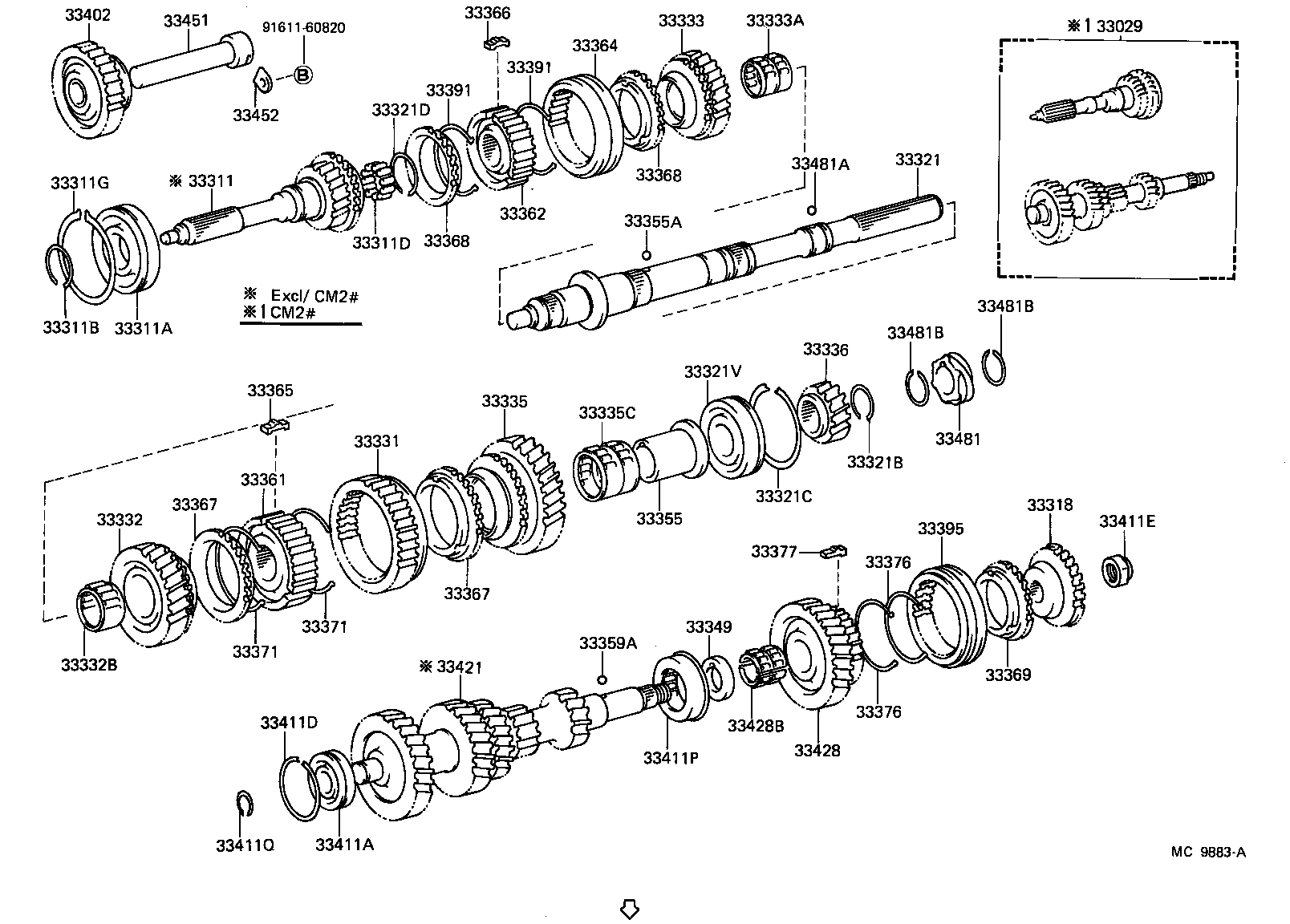

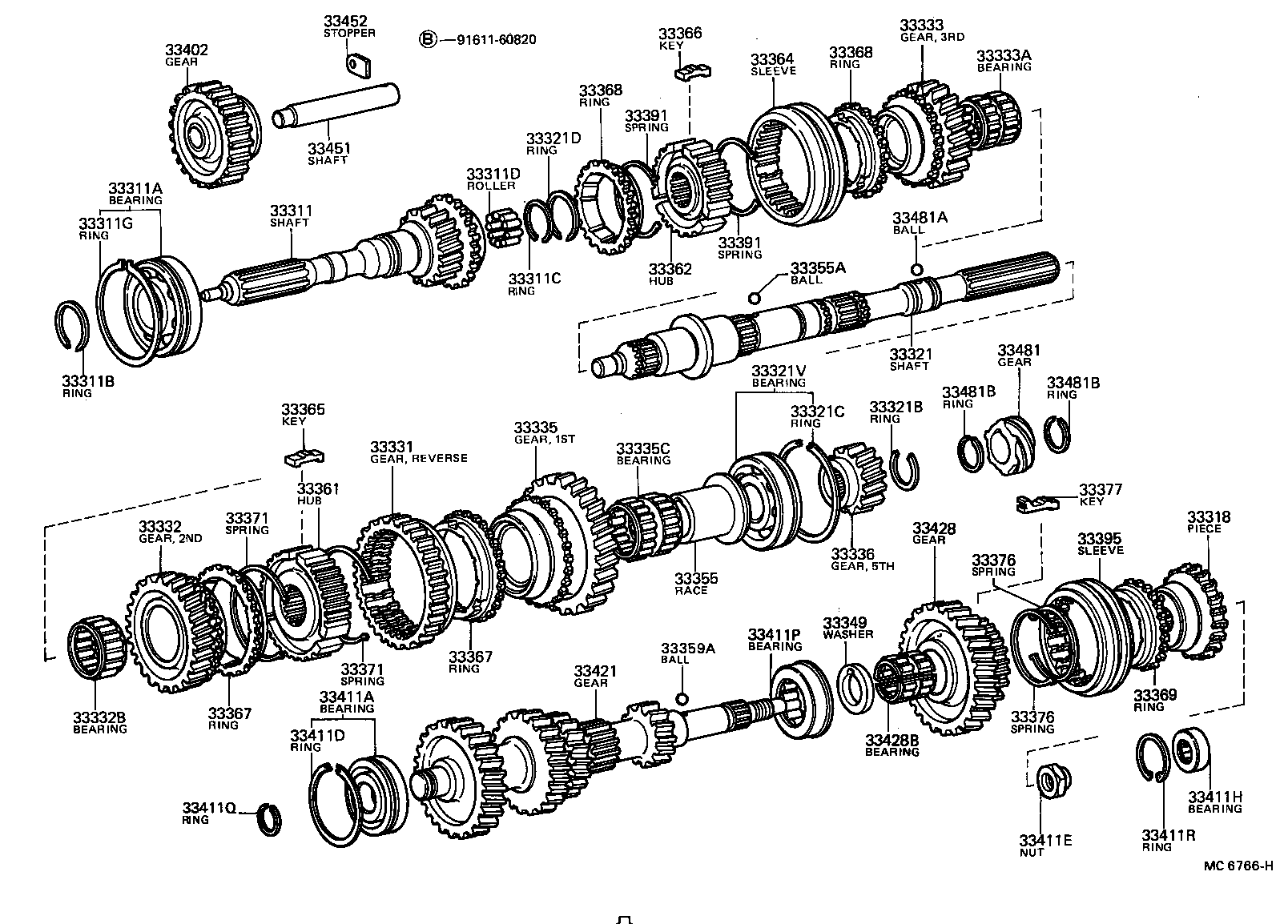

Transmission Gear (MTM)
64 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33029 | Shaft Set, Input |
| 33105 | Baffle Sub-assy, Extension Housing Oil |
| 33311 | Shaft, Input |
| 33311A | Bearing (FOR INPUT SHAFT FRONT) |
| 33311B | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33311C | Ring, Hole Snap (FOR NEEDLE ROLLER) |
| 33311D | Bearing, Input Shaft |
| 33311G | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33318 | Piece, Gear Spline, NO.5 |
| 33321 | Shaft, Output |
| 33321A | Bearing (FOR OUTPUT SHAFT REAR) |
| 33321B | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321C | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321D | Ring, Shaft Snap (FOR CLUTCH HUB SET) |
| 33321V | Bearing (FOR OUTPUT SHAFT CENTER) |
| 33331 | Gear, Reverse |
| 33332 | Gear, 2ND |
| 33332B | Bearing, Needle Roller (FOR 2ND GEAR) |
| 33333 | Gear, 3RD |
| 33333A | Bearing, Needle Roller (FOR 3RD GEAR) |
| 33335 | Gear, 1ST |
| 33335A | Ball, 1ST Shift Restrict |
| 33335C | Bearing, Needle Roller(FOR 1ST GEAR) |
| 33336 | Gear, 5TH |
| 33345 | Bush, 1ST Gear |
| 33349 | Washer, 5TH Gear Thrust |
| 33355 | Race, 1ST Gear Bearing Inner |
| 33355A | Key OR Ball, 1ST Gear Bearing Inner Race Lock |
| 33359A | Ball, 5TH Gear Bearing Inner Race Lock |
| 33361 | Hub, Transmission Clutch, NO.1 |
| 33362 | Hub, Transmission Clutch, NO.2 |
| 33364 | Sleeve, Transmission Hub, NO.2 |
| 33365 | Key, Synchromesh Shifting, NO.1 |
| 33366 | Key, Synchromesh Shifting, NO.2 |
| 33367 | Ring, Synchronizer, NO.1 |
| 33368 | Ring, Synchronizer, NO.2 |
| 33369 | Ring, Synchronizer, NO.3 |
| 33371 | Spring, Synchromesh Shifting Key, NO.1 |
| 33376 | Spring, Synchromesh Shifting Key (FOR NO.3 CLUTCH HUB) |
| 33377 | Key, Synchromesh Shifting (FOR NO.3 CLUTCH HUB) |
| 33391 | Spring, Synchromesh Shifting Key, NO.2 |
| 33395 | Sleeve, Transmission Hub, NO.3 |
| 33402 | Gear Sub-assy, Reverse Idler |
| 33411 | Countershaft |
| 33411A | Bearing OR Roller(FOR COUNTER GEAR FRONT) |
| 33411B | Spacer(FOR COUNTER GEAR BEARING) |
| 33411C | Key, Woodruff(FOR COUNTER GEAR SHAFT) |
| 33411D | Ring, Counter Gear Front Bearing Snap, NO.1 |
| 33411E | Nut(FOR COUNTER GEAR SHAFT) |
| 33411H | Bearing OR Roller(FOR COUNTER GEAR REAR) |
| 33411P | Bearing, Countershaft Center |
| 33411Q | Ring, Counter Gear Front Bearing Snap, NO.2 |
| 33411R | Ring, Snap, Counter Gear Rear Bearing |
| 33421 | Gear, Counter |
| 33428 | Gear, Countershaft 5TH |
| 33428B | Bearing (FOR COUNTER 5TH GEAR) |
| 33441 | Washer, Counter Gear Side Thrust, NO.1 |
| 33451 | Shaft, Reverse Idler Gear |
| 33451A | Key, Woodruff (FOR REVERSE IDLER GEAR SHAFT) |
| 33452 | Stopper, Reverse Idler Gear Shaft |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481A | Key OR Ball, Speedometer Drive Gear (MTM) |
| 33481B | Ring OR Spacer (FOR MTM SPEEDOMETER DRIVE GEAR) |
| 33481D | Spacer (FOR SPEEDOMETER DRIVE GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
