Toyota Lite/Townace Truck
1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan
Discontinued model
Data version 1987-04

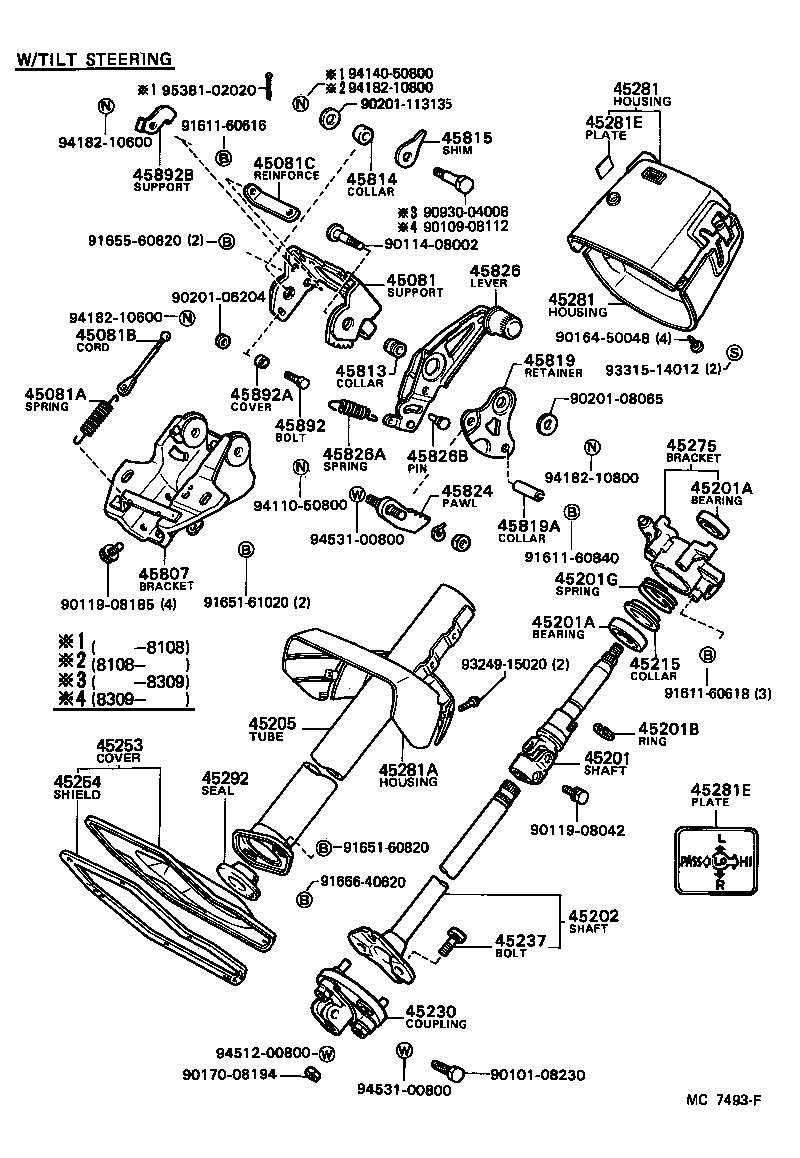

Steering Column & Shaft
54 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33621 | Plate, Control Lever Caution |
| 45081 | Support Sub-assy, Tilt Steering |
| 45081A | Spring, Tension(FOR TILT STEERING) |
| 45081B | Cord(FOR TILT STEERING) |
| 45081C | Reinforce, Tilt Steering Support |
| 45201 | Shaft Sub-assy, Steering Main |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45202 | Shaft Sub-assy, Steering Intermediate |
| 45205 | Tube Sub-assy, Steering Column |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45222 | Cover, Steering Gear Dust |
| 45230 | Coupling Assy, Flexible |
| 45237 | Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT) |
| 45240 | Worm Assy, Steering |
| 45240A | Bearing(FOR STEERING WORM) |
| 45240B | Seal, Oil(FOR STEERING WORM) |
| 45242 | Screw, Worm Bearing Adjusting |
| 45243 | Nut, Worm Bearing Adjusting Screw Lock |
| 45253 | Cover, Steering Column Hole |
| 45254 | Shield, Steering Column Hole |
| 45269 | Retainer, Main Shaft Bearing |
| 45275 | Bracket, Steering Column, Upper |
| 45281 | Housing, Steering Column |
| 45281A | Housing, Steering Column, NO.2 |
| 45281E | Plate, Safety Caution |
| 45292 | Seal, Main Shaft Lower Dust |
| 45301 | Housing Sub-assy, Steering Gear |
| 45301A | Bush OR Bearing, Sector Shaft, NO.1 |
| 45301B | Seal, Oil(FOR SECTOR SHAFT) |
| 45310 | Housing Assy, Steering Gear |
| 45312 | Bracket, Steering Gear Housing |
| 45331 | Cover, Sector Shaft End |
| 45332 | Gasket, Sector Shaft End Cover |
| 45351 | Shaft, Steering Sector |
| 45351A | Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING) |
| 45352 | Washer, Sector Shaft Thrust |
| 45357 | Screw, Sector Shaft Adjusting |
| 45372 | Plug, Steering Gear Housing Oil |
| 45401 | Arm Sub-assy, Pitman |
| 45807 | Bracket Sub-assy, Steering Column Upper Support |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45814 | Collar, Tilt Steering Support, NO.2 |
| 45815 | Shim, Tilt Steering Support |
| 45819 | Retainer, Tilt Lever |
| 45819A | Collar(FOR TILT LEVER RETAINER) |
| 45824 | Pawl, Tilt Steering |
| 45826 | Lever, Steering Tilt |
| 45826A | Spring, Tension(FOR STEERING TILT LEVER) |
| 45826B | Pin(FOR STEERING TILT LEVER) |
| 45892 | Bolt, Tilt Steering Support Stopper |
| 45892A | Cover, Tilt Steering Support Stopper |
| 45892B | Support, Tilt Steering Column Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
