Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

23 part groups · 2 illustrations

Illustrations

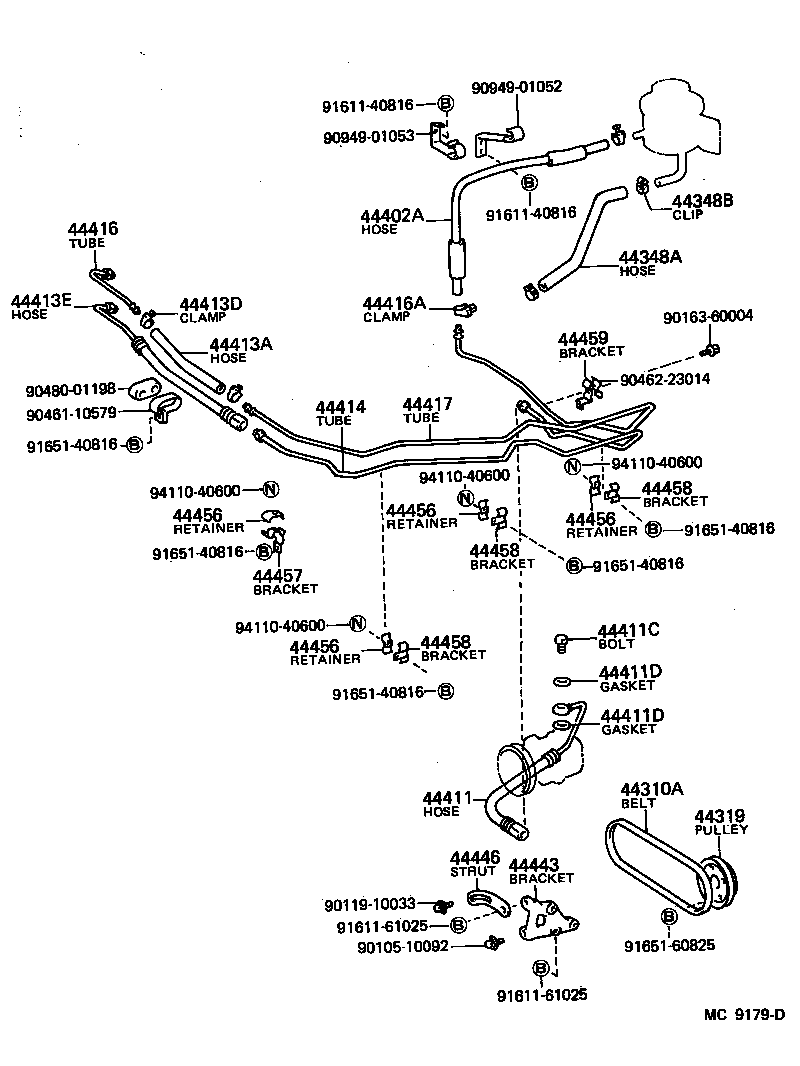

Figure MC9177C MC9177C 1982-10 → — Figure MC9179D MC9179D 1982-10 → 1985-08

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44402A Hose, Power Steering Oil Cooler Inlet
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413A Hose(FOR RETURN TUBE OUTLET)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44413E Tube, Pressure Feed, NO.1
44414 Tube, Pressure Feed, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416A Clamp(FOR RETURN HOSE)
44417 Tube, Return, NO.2
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44456 Retainer, Power Steering Tube Support, NO.1
44458 Bracket, Tube Support, NO.2
44459 Bracket, Tube Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
