Toyota Lite/Townace Truck
1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan
Discontinued model
Data version 1987-04

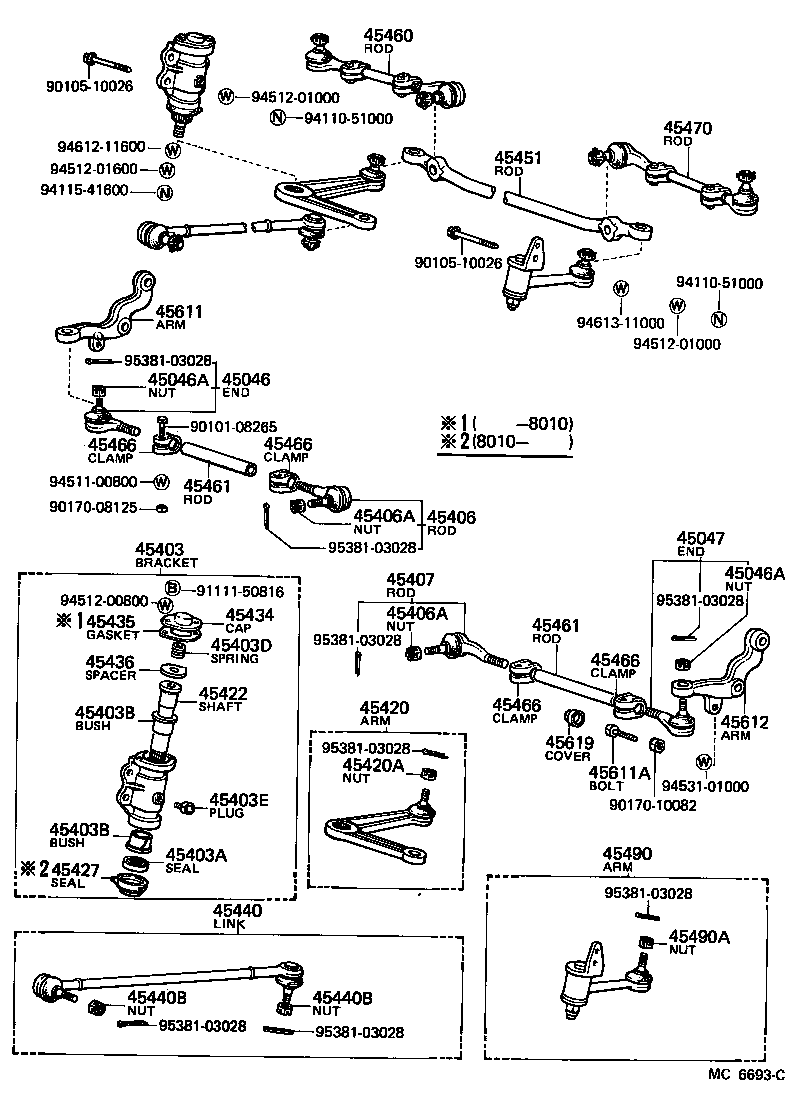

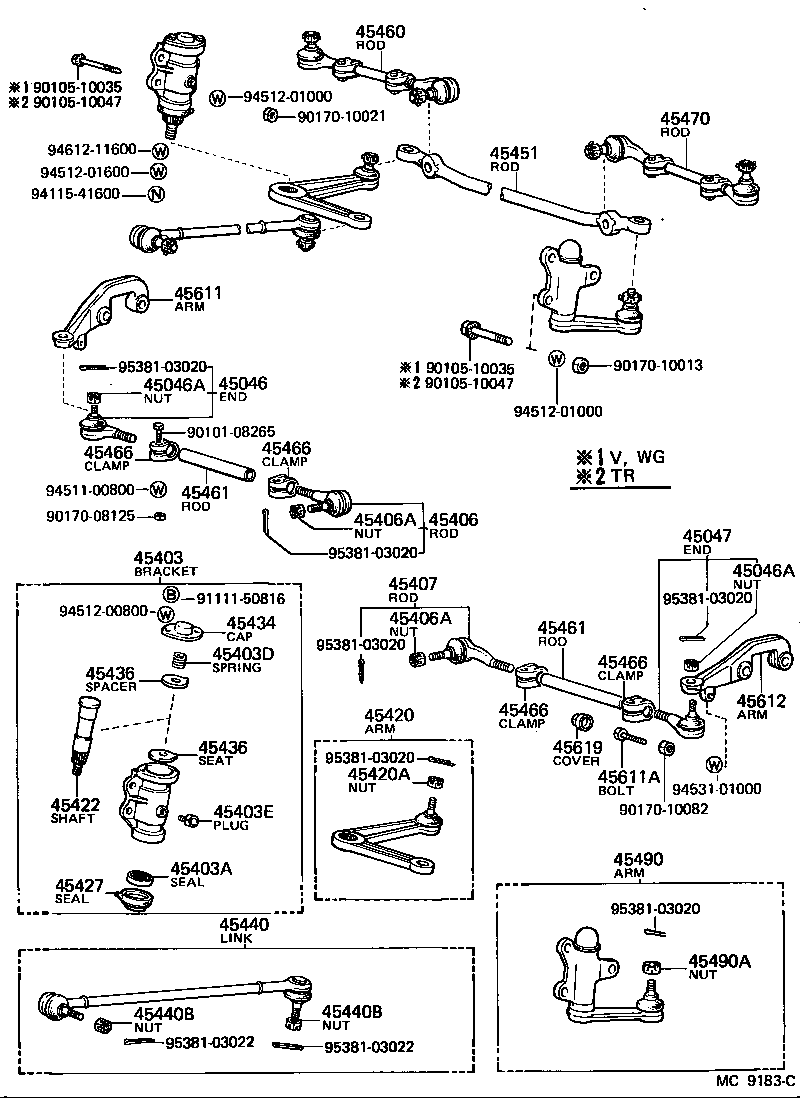

Front Steering Gear & Link
69 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

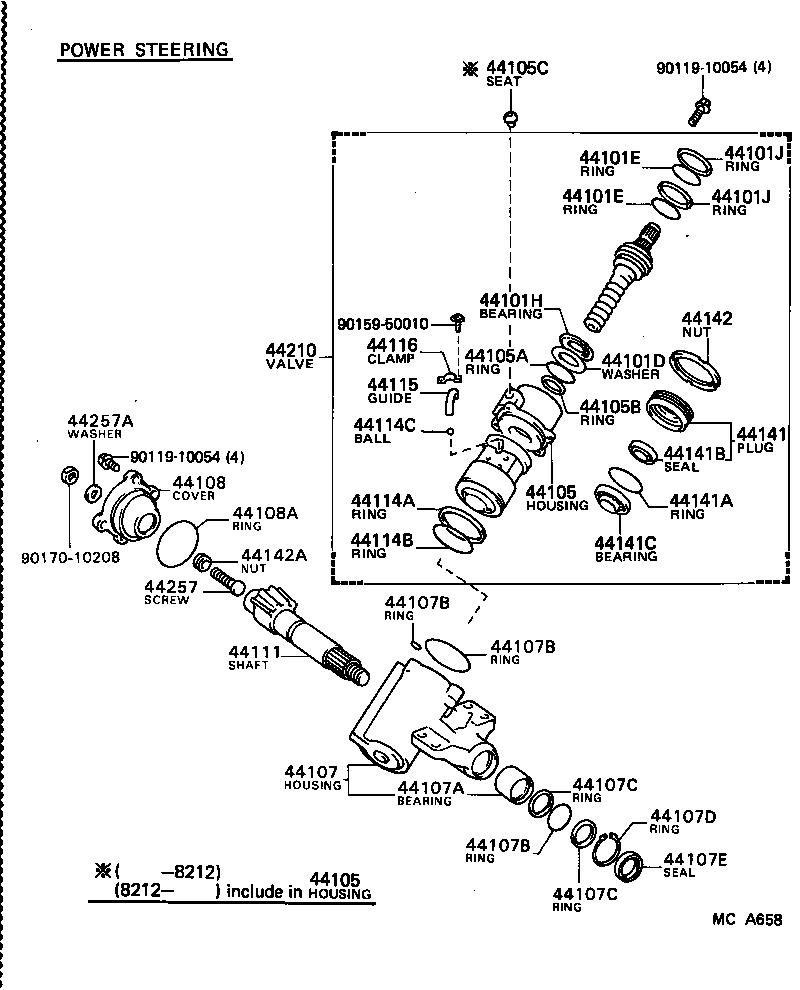

| 44101D | Washer, Plate(FOR STEERING WORM) |
| 44101E | Ring, O(FOR STEERING WORM) |
| 44101H | Bearing, Thrust Needle Roller(FOR STEERING WORM) |
| 44101J | Ring(FOR STEERING WORM) |
| 44101K | Worm Kit, Power Steering |
| 44105 | Housing Sub-assy, Valve |
| 44105A | Ring, O(FOR VALVE HOUSING) |
| 44105B | Ring(FOR VALVE HOUSING) |
| 44105C | Seat, Union(FOR VALVE BODY HOUSING) |
| 44107 | Housing Sub-assy, Power Steering Gear |
| 44107A | Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING) |
| 44107B | Ring, O(FOR POWER STEERING GEAR HOUSING) |
| 44107C | Ring(FOR POWER STEERING GEAR HOUSING) |
| 44107D | Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING) |
| 44107E | Seal, Oil(FOR POWER STEERING GEAR HOUSING) |
| 44108 | Cover Sub-assy, Side |
| 44108A | Ring, O(FOR SIDE COVER) |

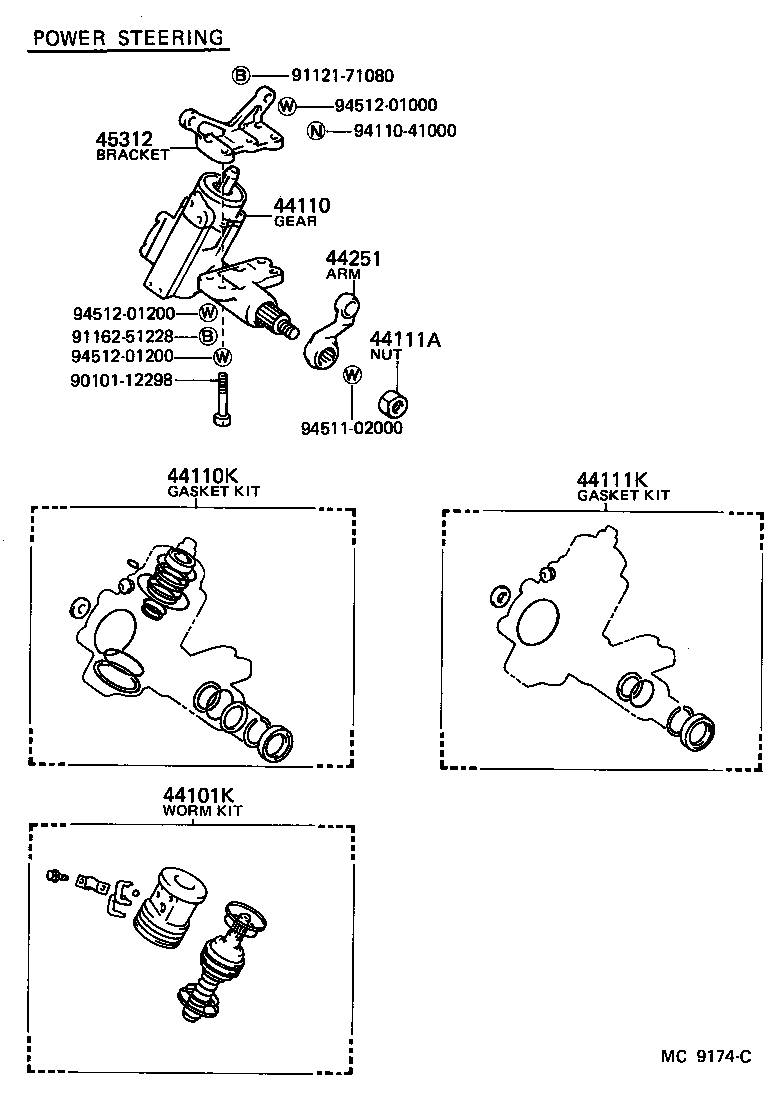

| 44110 | Gear Assy, Power Steering |
| 44110K | Gasket Kit, Power Steering Gear |
| 44111 | Shaft, Cross |
| 44111A | Nut, Hexagon(FOR CROSS SHAFT TO PITMAN ARM SETTING) |
| 44111K | Gasket Kit, Power Steering Cross Shaft Overhaul |
| 44114A | Ring(FOR POWER PISTON NUT) |
| 44114B | Ring, O(FOR POWER PISTON NUT) |
| 44114C | Ball(FOR POWER PISTON NUT) |
| 44115 | Guide, Ball |
| 44116 | Clamp, Ball Guide |
| 44141 | Plug, Adjuster |
| 44141A | Ring, O(FOR ADJUSTER PLUG) |
| 44141B | Seal, Oil(FOR ADJUSTER PLUG) |
| 44141C | Bearing(FOR ADJUSTER PLUG) |
| 44142 | Nut, Lock |
| 44142A | Nut, Lock, NO.1 |
| 44210 | Valve Assy, Power Steering Control |
| 44251 | Arm, Pitman |
| 44257 | Screw, Cross Shaft Adjusting |
| 44257A | Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW) |
| 44457 | Bracket, Tube Support, NO.1 |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45403 | Bracket Sub-assy, Center Arm |
| 45403A | Seal, Oil(FOR CENTER ARM BRACKET) |
| 45403B | Bush(FOR CENTER ARM BRACKET) |
| 45403D | Spring, Compression(FOR CENTER ARM SHAFT SET) |
| 45403E | Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT) |
| 45406 | Rod Sub-assy, Tie, RH |
| 45406A | Nut, Castle(FOR TIE ROD) |
| 45407 | Rod Sub-assy, Tie, LH |
| 45420 | Arm Assy, Steering Center |
| 45420A | Nut, Castle(FOR STEERING CENTER ARM) |
| 45422 | Shaft, Center Arm |
| 45427 | Seal, Center Arm Dust, Lower |
| 45434 | Cap, Center Arm Bracket |
| 45435 | Gasket, Center Arm Bracket Cap |
| 45436 | Seat, Center Arm Shaft |
| 45440 | Link Assy, Steering Drag |
| 45440B | Nut, Castle(FOR STEERING DRAG LINK) |
| 45451 | Rod, Steering Relay |
| 45460 | Rod Assy, Tie, RH |
| 45461 | Rod, Steering Tie |
| 45466 | Clamp, Tie Rod End |
| 45470 | Rod Assy, Tie, LH |
| 45490 | Arm Assy, Steering Idler |
| 45490A | Nut, Castle(FOR IDLER ARM) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611A | Bolt, Knuckle Stopper |
| 45612 | Arm, Steering Knuckle, LH |
| 45619 | Cover, Knuckle Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
