Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

12 part groups · 2 illustrations

Illustrations

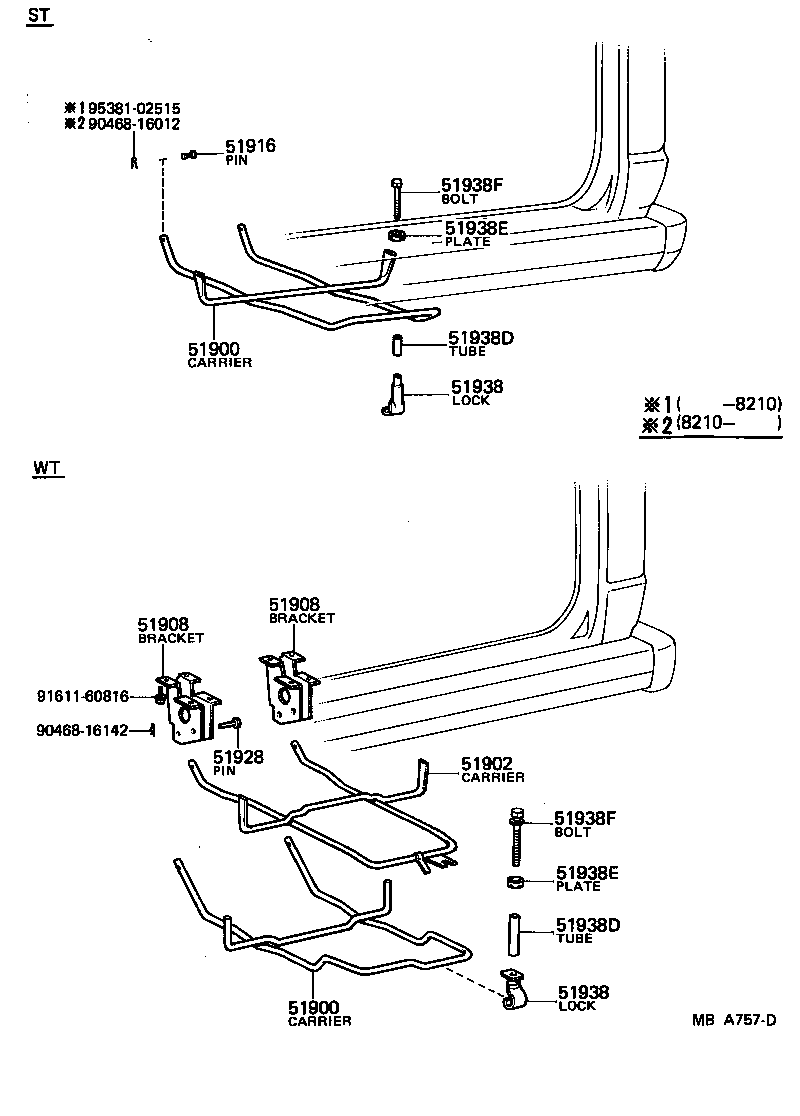

Figure MBA756E MBA756E 1979-10 → — Figure MBA757D MBA757D 1979-10 → 1985-08

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51902 Carrier Sub-assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51916 Pin, Spare Tire Carrier
51928 Pin, Spare Wheel Carrier
51938 Lock, Spare Wheel Carrier
51938D Tube(FOR SPARE WHEEL CARRIER BOLT)
51938E Plate, Spare Wheel Carrier Lock
51938F Bolt(FOR SPARE WHEEL CARRIER LOCK)
51941 Stopper, Spare Wheel Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
