Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 5 illustrations

Illustrations

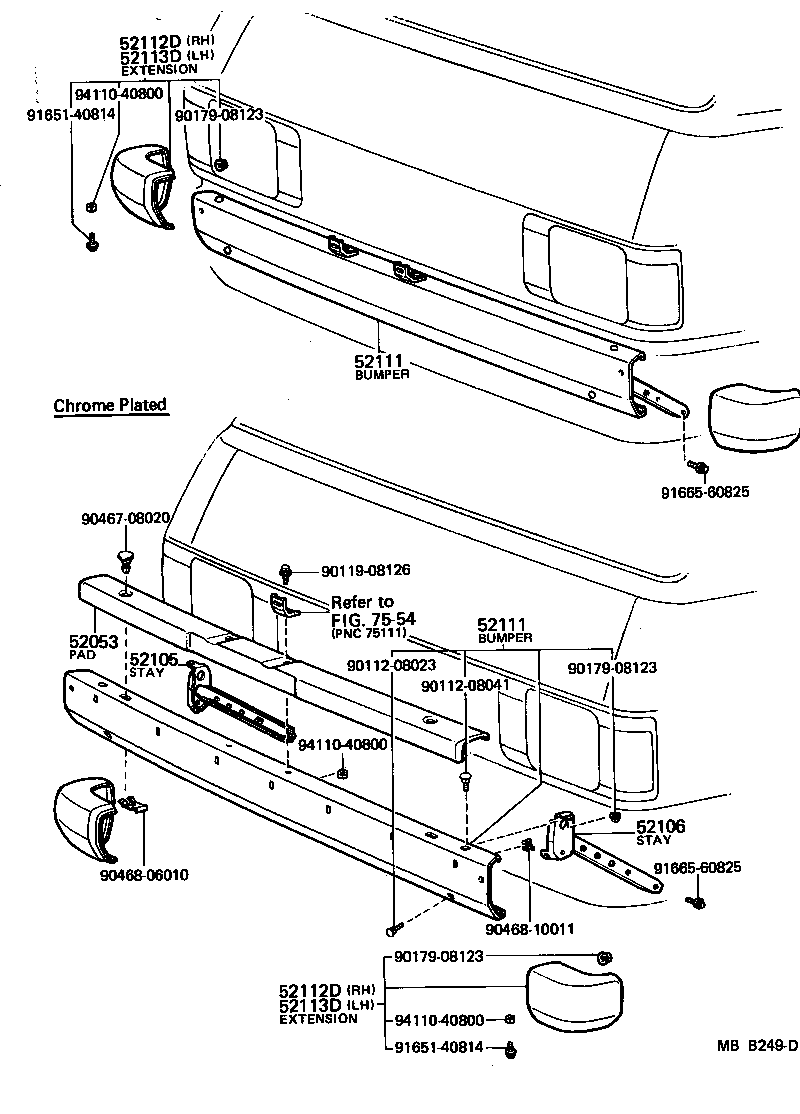

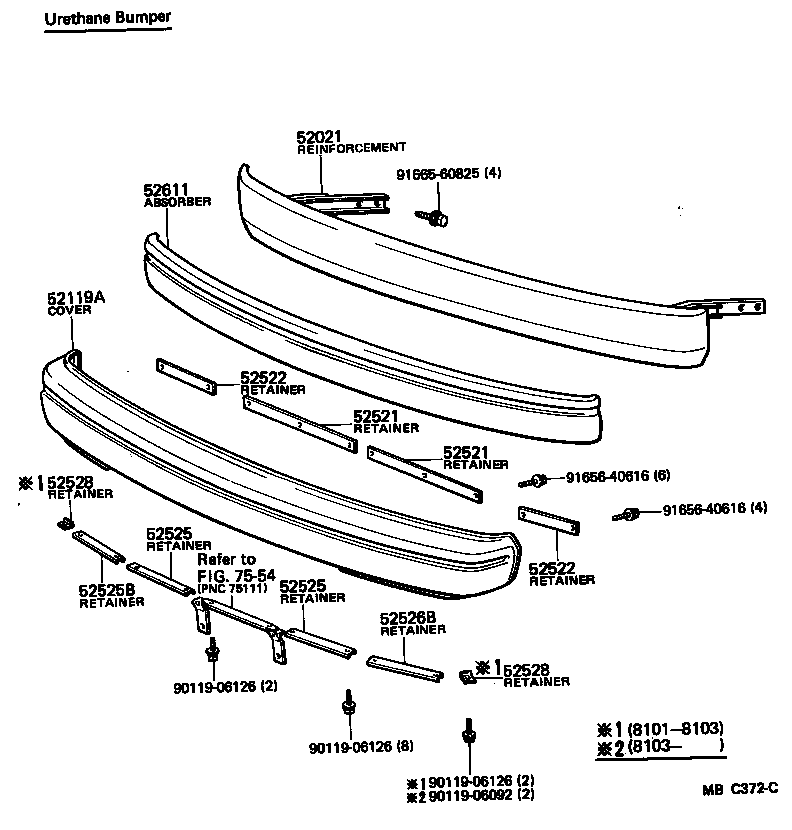

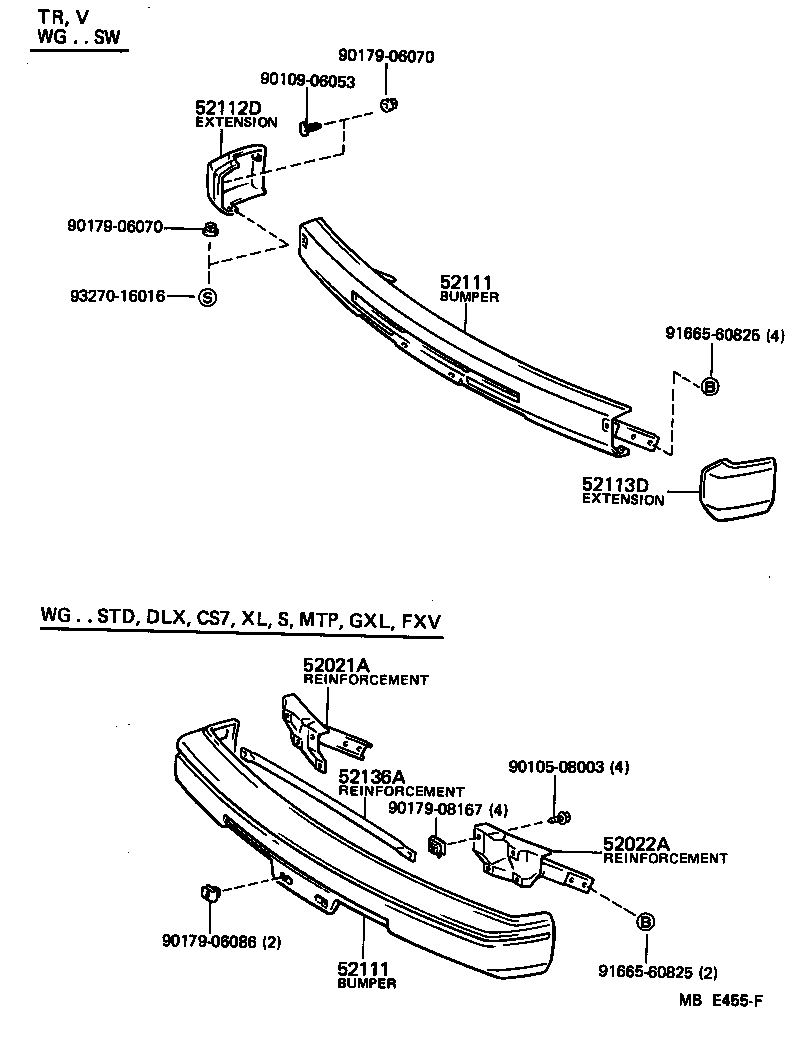

Figure MBA760E MBA760E 1979-10 → 1980-01 Figure MBB249D MBB249D 1980-01 → 1982-10 Figure MBC372C MBC372C 1981-01 → 1982-10 Figure MBE455F MBE455F 1982-10 → — Figure MBC511C MBC511C 1980-11 → 1980-11

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52021A Reinforcement Sub-assy, Front Bumper, RH
52022A Reinforcement Sub-assy, Front Bumper, LH
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52136A Reinforcement, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
