Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

19 part groups · 5 illustrations

Illustrations

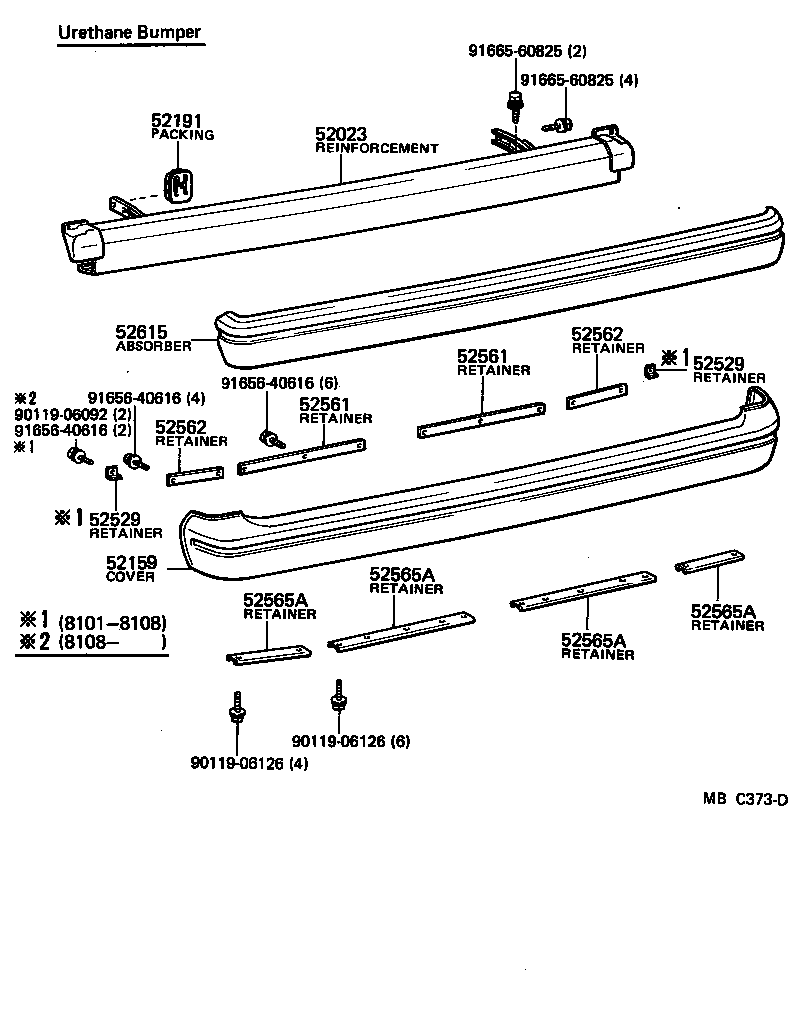

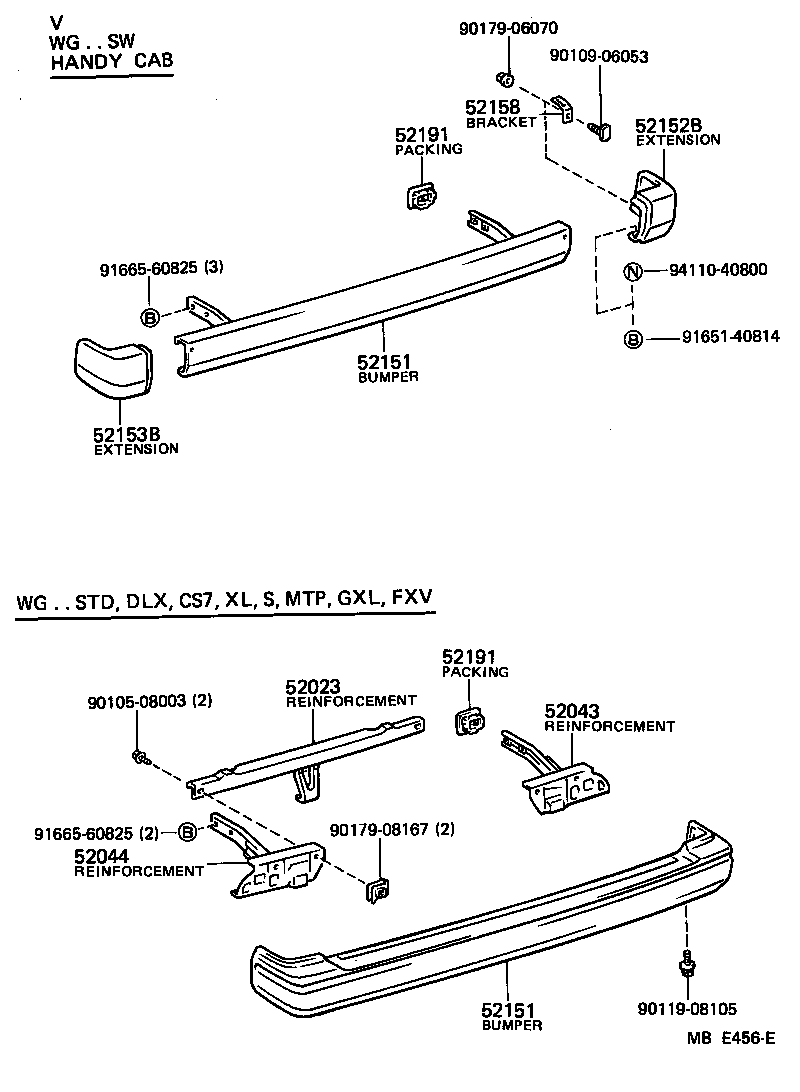

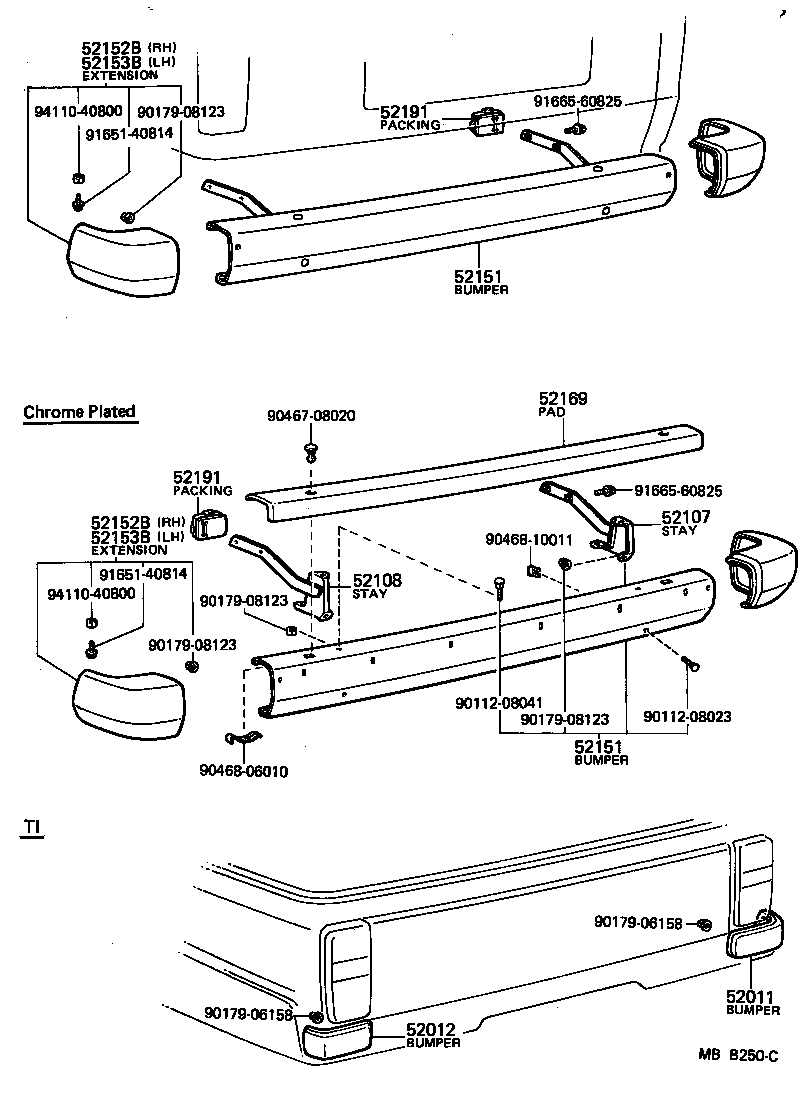

Figure MBA762E MBA762E 1979-10 → 1980-01 Figure MBB250C MBB250C 1980-01 → 1982-10 Figure MBB250C MBB250C 1982-10 → — Figure MBC373D MBC373D 1981-01 → 1982-10 Figure MBE456E MBE456E 1982-10 → 1985-08

Part groups

PNCDescription
52011 Bumper Sub-assy, Rear RH
52012 Bumper Sub-assy, Rear, LH
52023 Reinforcement Sub-assy, Rear Bumper
52043 Reinforcement Sub-assy, Rear Bumper, RH
52044 Reinforcement Sub-assy, Rear Bumper, LH
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52158 Bracket, Rear Bumper
52159 Cover, Rear Bumper
52169 Pad, Rear Bumper
52191 Packing, Rear Bumper Stay
52529 Retainer, Rear Bumper, Upper Corner
52561 Retainer, Rear Bumper, Upper Center
52562 Retainer, Rear Bumper, Upper Side
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
