Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

31 part groups · 6 illustrations

Illustrations

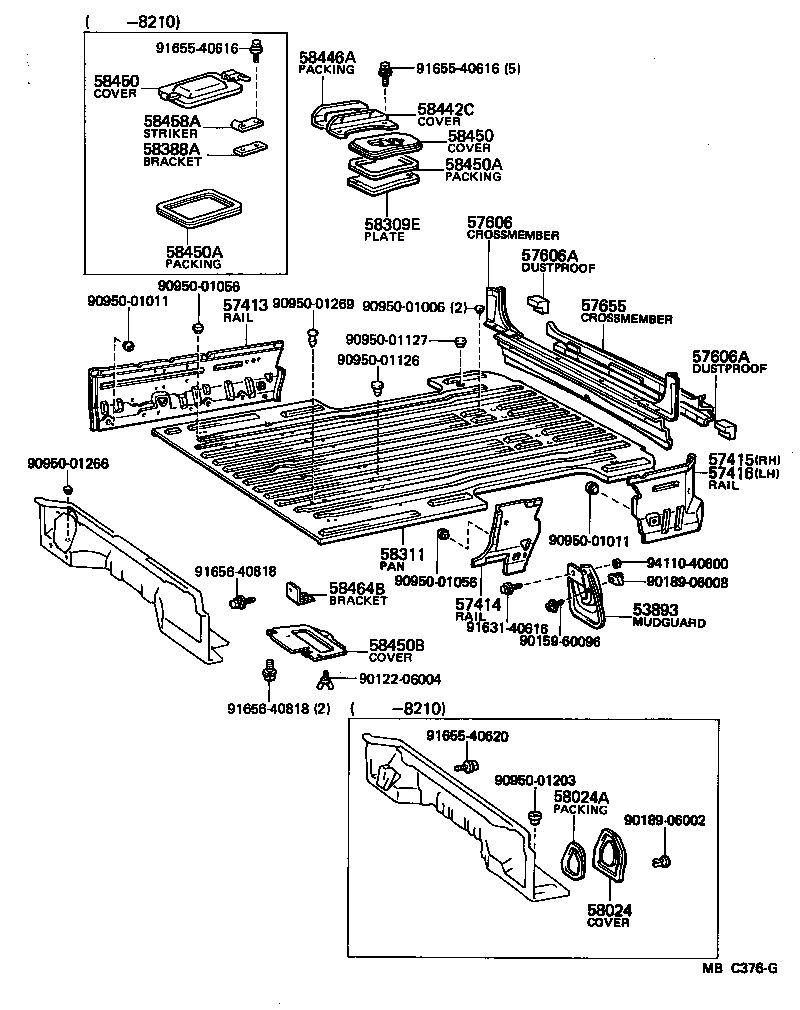

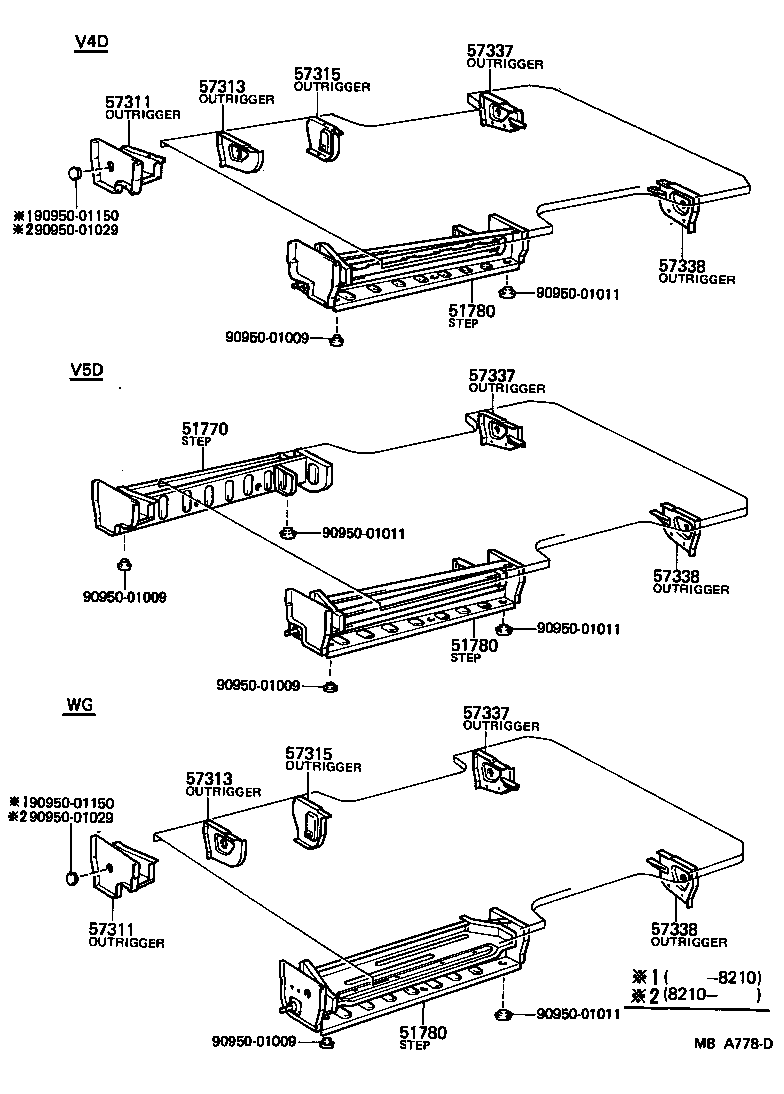

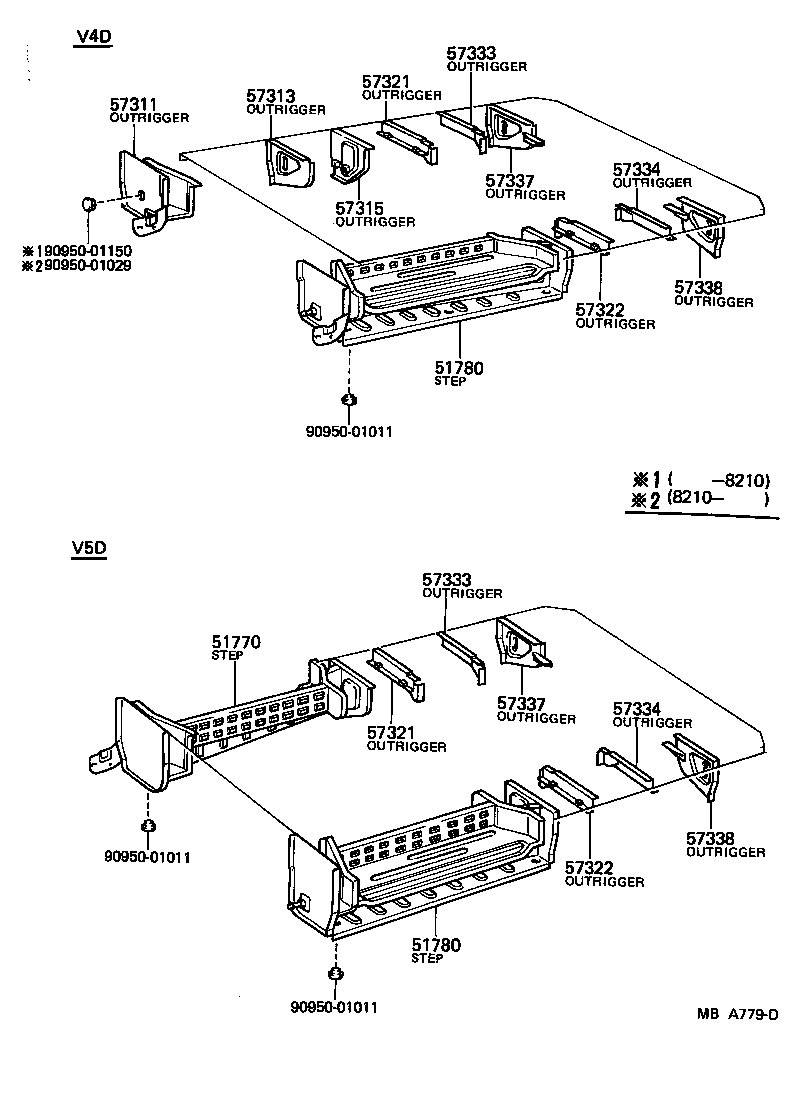

Figure MBB020F MBB020F 1979-10 → 1985-08 Figure MBB020F MBB020F 1982-10 → 1985-08 Figure MBC376G MBC376G 1979-10 → 1985-08 Figure MBC376G MBC376G 1982-10 → 1985-08 Figure MBA778D MBA778D 1979-10 → 1985-08 Figure MBA779D MBA779D 1979-10 → 1985-08

Part groups

PNCDescription
51770 Step Assy, Front, RH
51780 Step Assy, Front, LH
53893 Mudguard, Rear
53894 Plate, Rear Mudguard Set Retainer
57311 Outrigger, NO.1 RH
57313 Outrigger, NO.2 RH
57315 Outrigger, NO.3 RH
57321 Outrigger, NO.4 RH
57322 Outrigger, NO.4 LH
57333 Outrigger, NO.5 RH
57334 Outrigger, NO.5 LH
57337 Outrigger, Rear RH
57338 Outrigger, Rear LH
57413 Rail, Floor Side, Center RH
57414 Rail, Floor Side, Center LH
57415 Rail, Floor Side, Rear RH
57416 Rail, Floor Side, Rear LH
57606 Crossmember Sub-assy, Rear Floor Rear, Inner
57606A Dust Proof(FOR REAR CROSSMEMBER)
57655 Member, Rear Floor Cross, NO.5
58024 Cover, Header Panel
58024A Packing, Header Panel Cover
58309E Plate Sub-assy, Rear Floor
58311 Pan, Rear Floor
58388A Bracket,Rear Floor Plate
58442C Cover, Battery Service Hole, Sub
58446A Packing, Battery Service Hole Cover, Sub
58450 Cover Assy, Battery Service Hole
58450B Cover Assy, Air Cleaner Service Hole
58458A Striker, Battery Service Hole Cover, Lock
58464B Bracket, Air Cleaner Service Hole Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
