Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

28 part groups · 6 illustrations

Illustrations

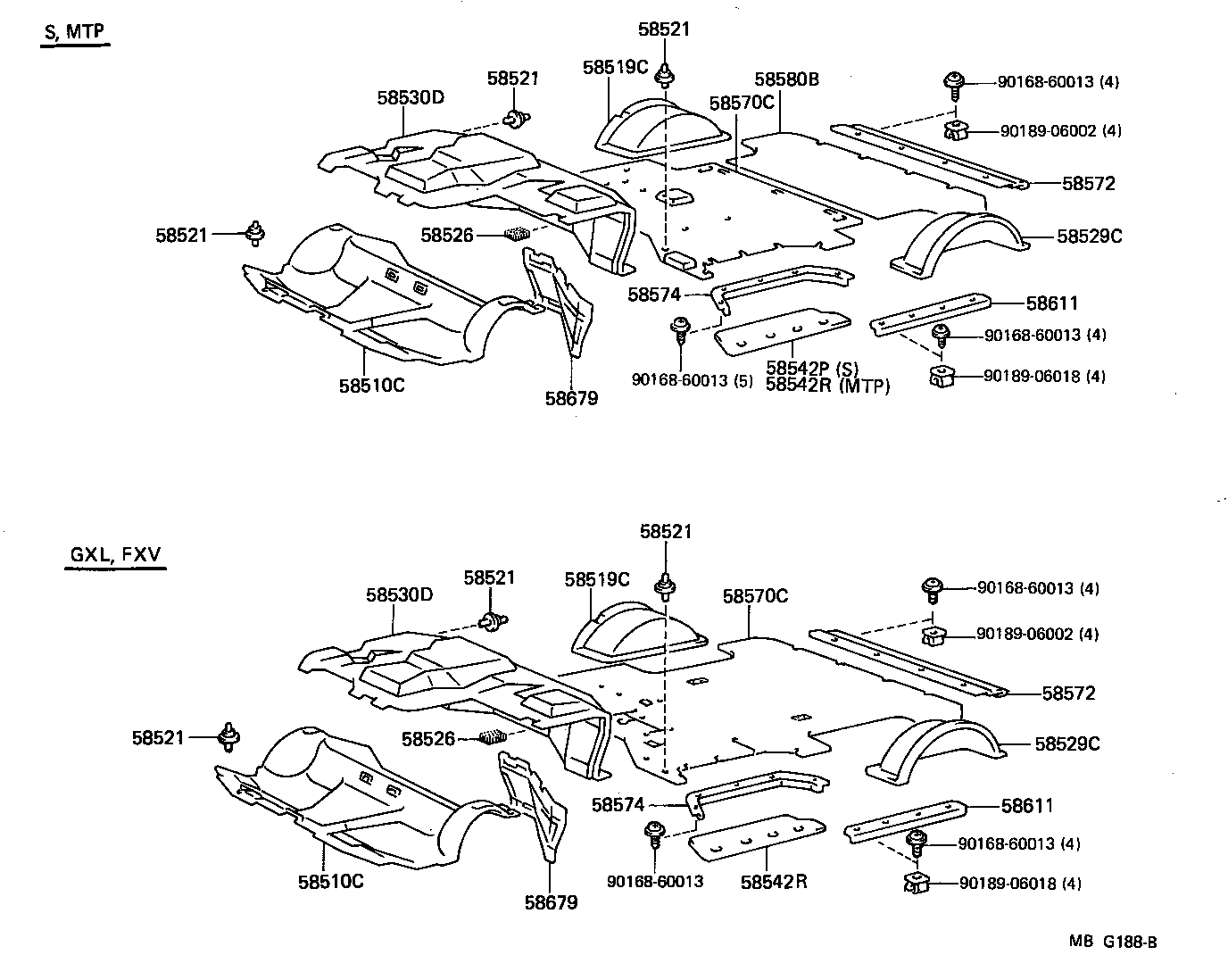

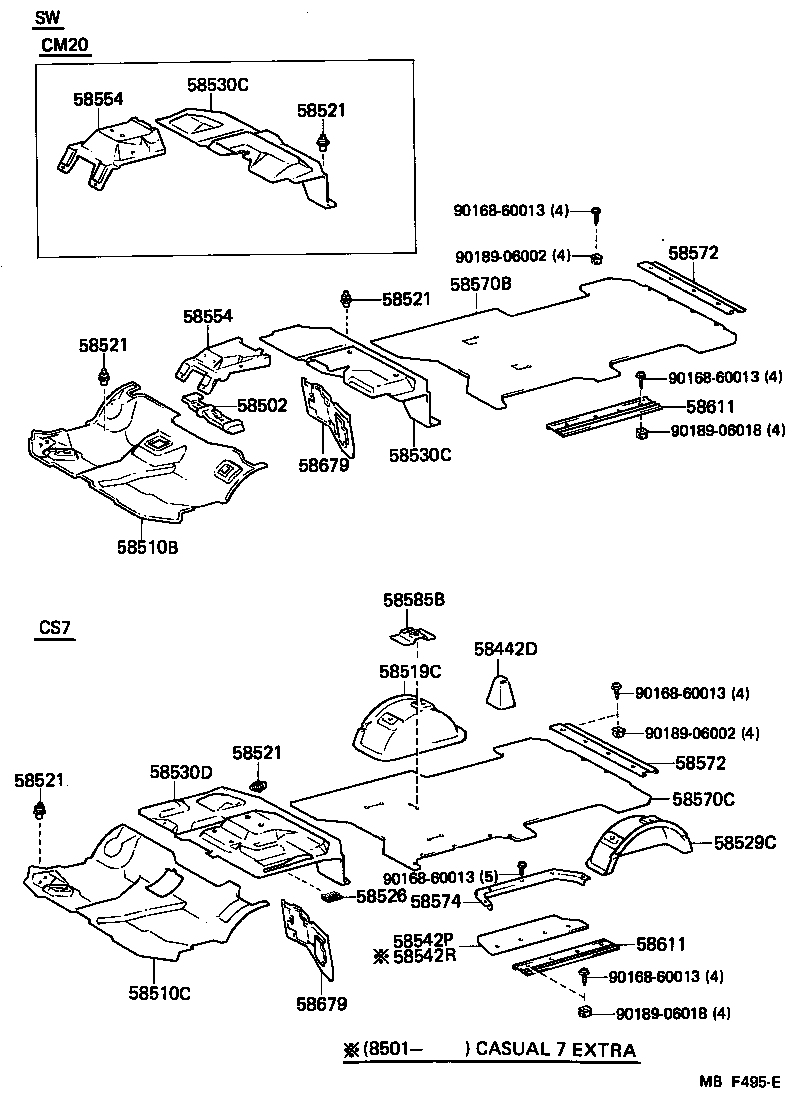

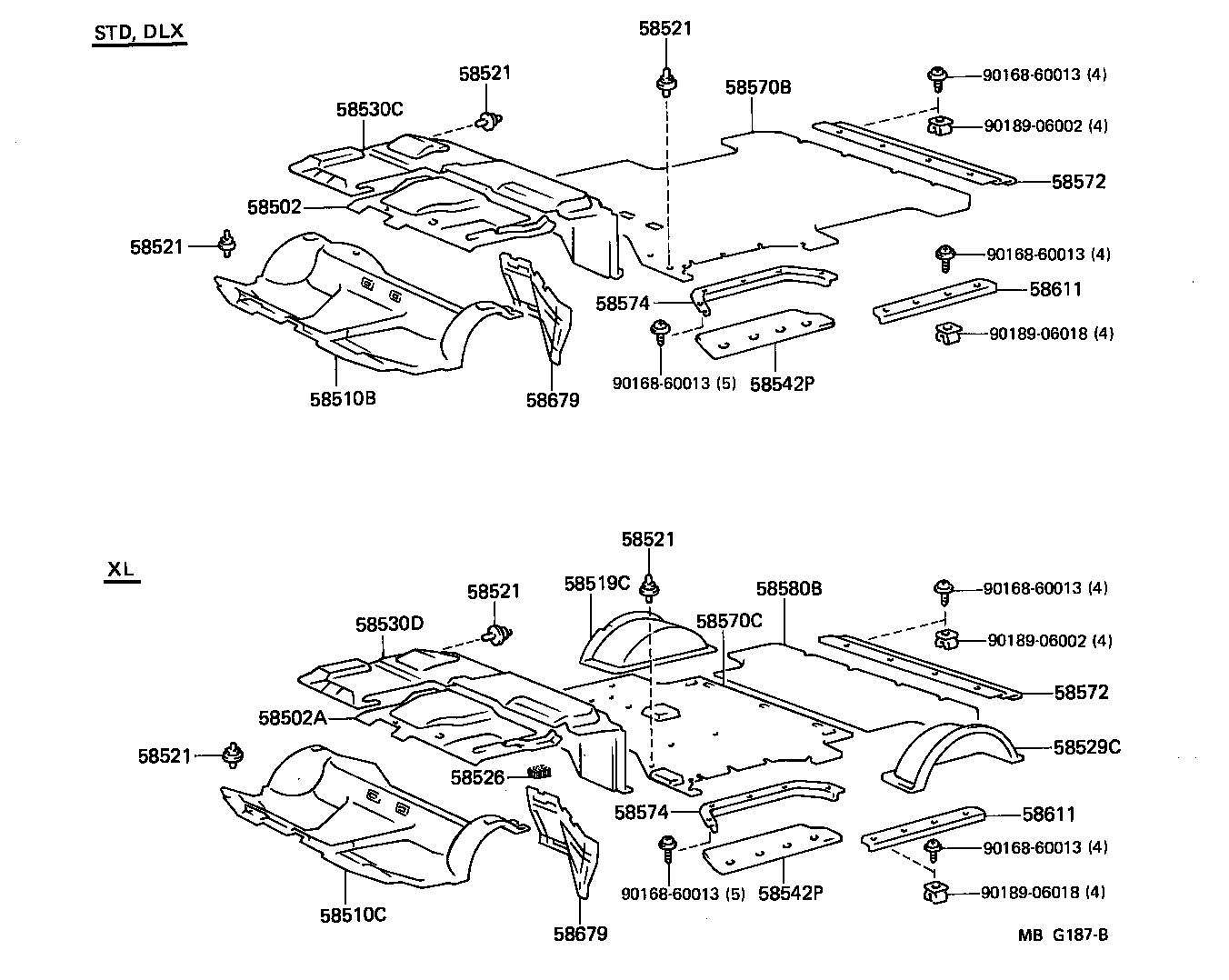

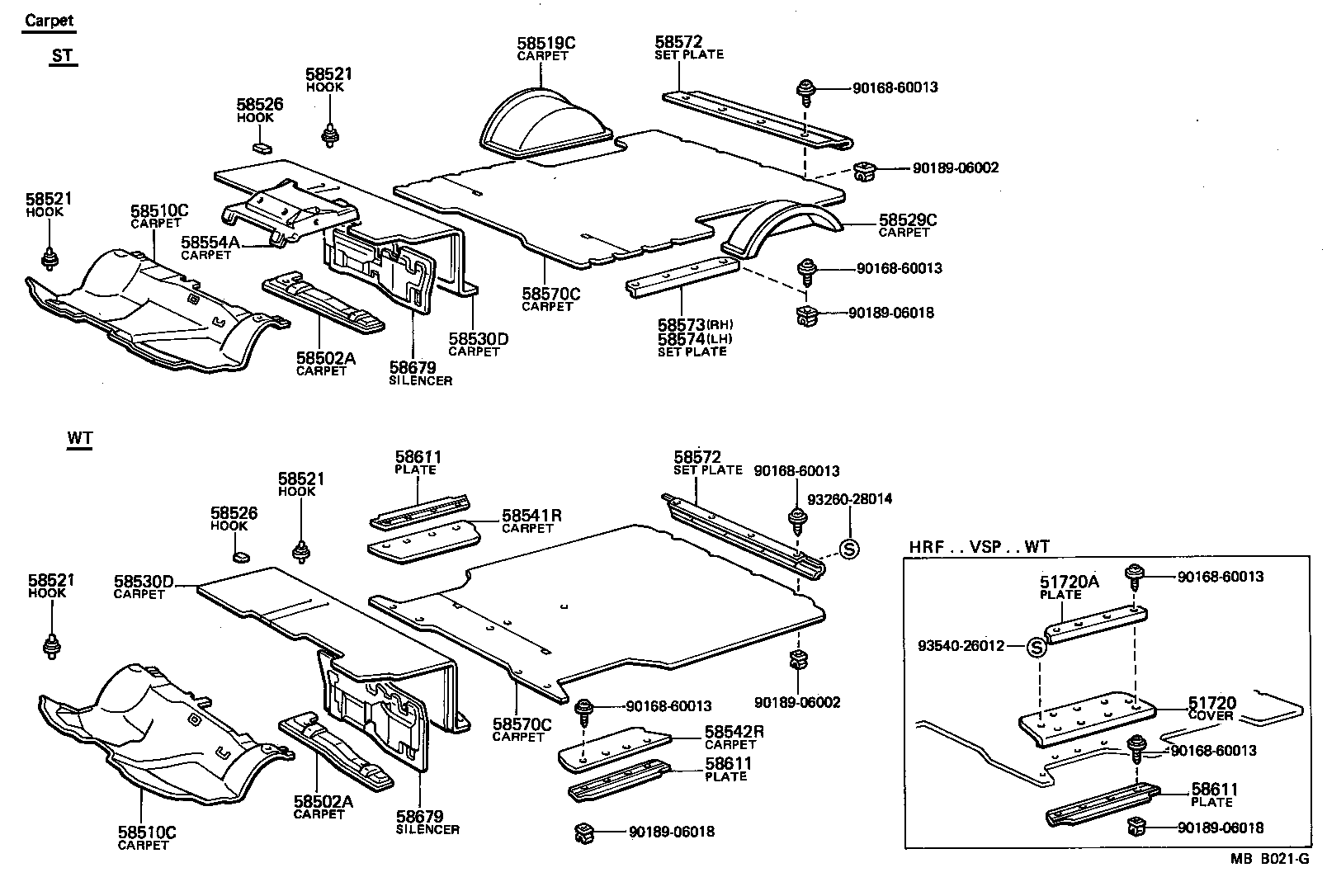

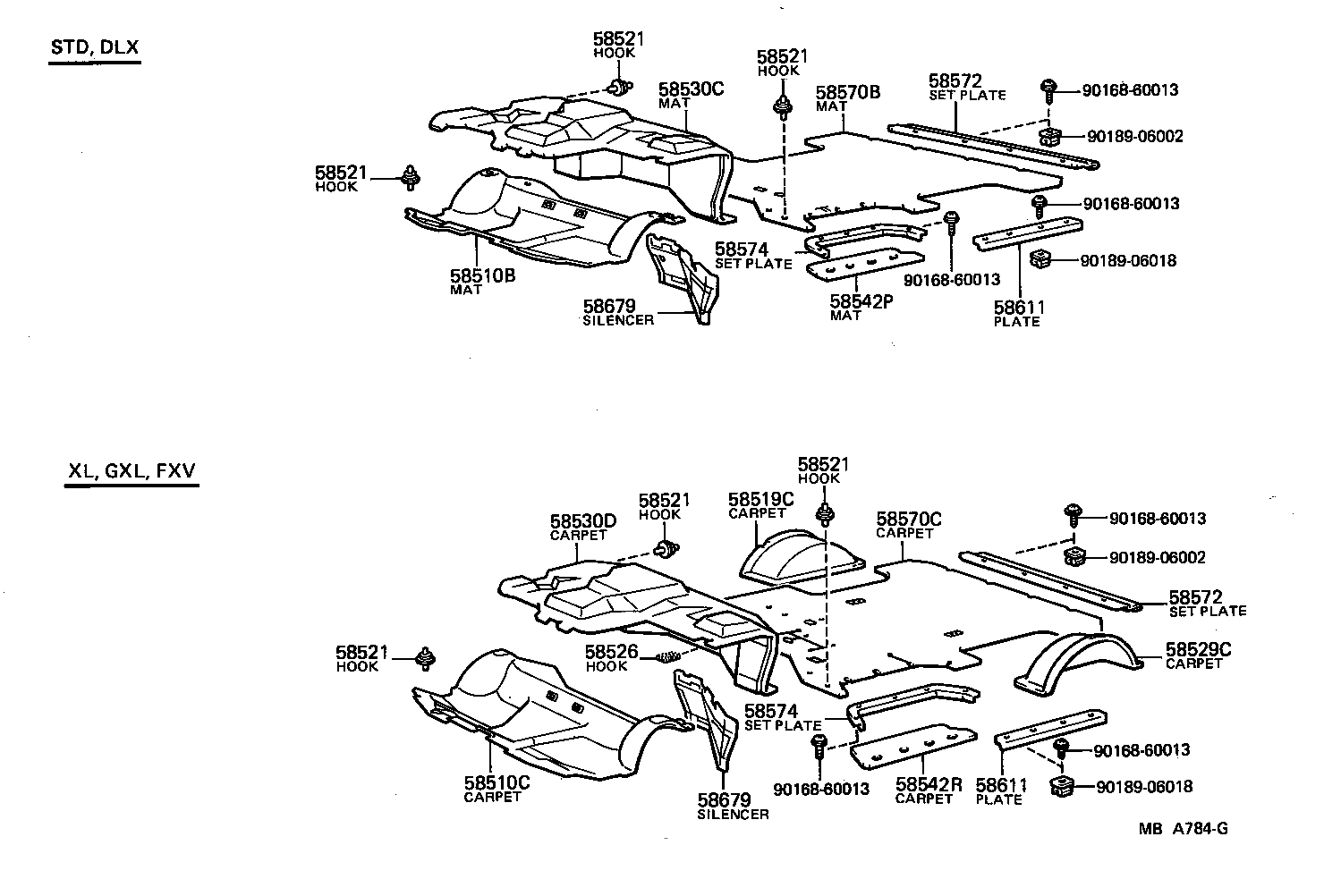

Figure MBA783G MBA783G 1979-10 → — Figure MBB021G MBB021G 1979-10 → 1985-08 Figure MBA784G MBA784G 1979-10 → 1982-10 Figure MBG187B MBG187B 1982-10 → 1985-08 Figure MBG188B MBG188B 1982-10 → 1985-08 Figure MBF495E MBF495E 1983-08 → 1985-08

Part groups

PNCDescription
51720 Cover Assy, Side Door Step Plate, LH
51720A Plate, Rear Door Scuff
58442D Cover, Jack
58502 Mat Assy, Engine Service Hole Cover
58502A Carpet Assy,Engine Service Hole Cover
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58519C Carpet, Rear Wheel House, RH
58521 Hook, Male, NO.1
58526 Hook, Male, NO.2
58529C Carpet, Rear Wheel House, LH
58530C Mat, Front Floor, Rear
58530D Carpet, Front Floor, Rear
58541P Mat, Step, RH
58541R Carpet, Step, RH
58542P Mat, Step, LH
58542R Carpet, Step, LH
58554 Mat, Center Console
58554A Carpet, Center Console
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58572 Set Plate, Rear Floor Mat, Rear
58573 Set Plate, Rear Floor Mat Side, Front RH
58574 Set Plate, Rear Floor Mat Side, Front LH
58580B Mat Assy, Rear Floor, Rear
58585B Cover, Rear Floor Seat Lock
58611 Plate, Rear Floor Mat Set, Side
58679 Silencer, Header Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
