Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 9 illustrations

Illustrations

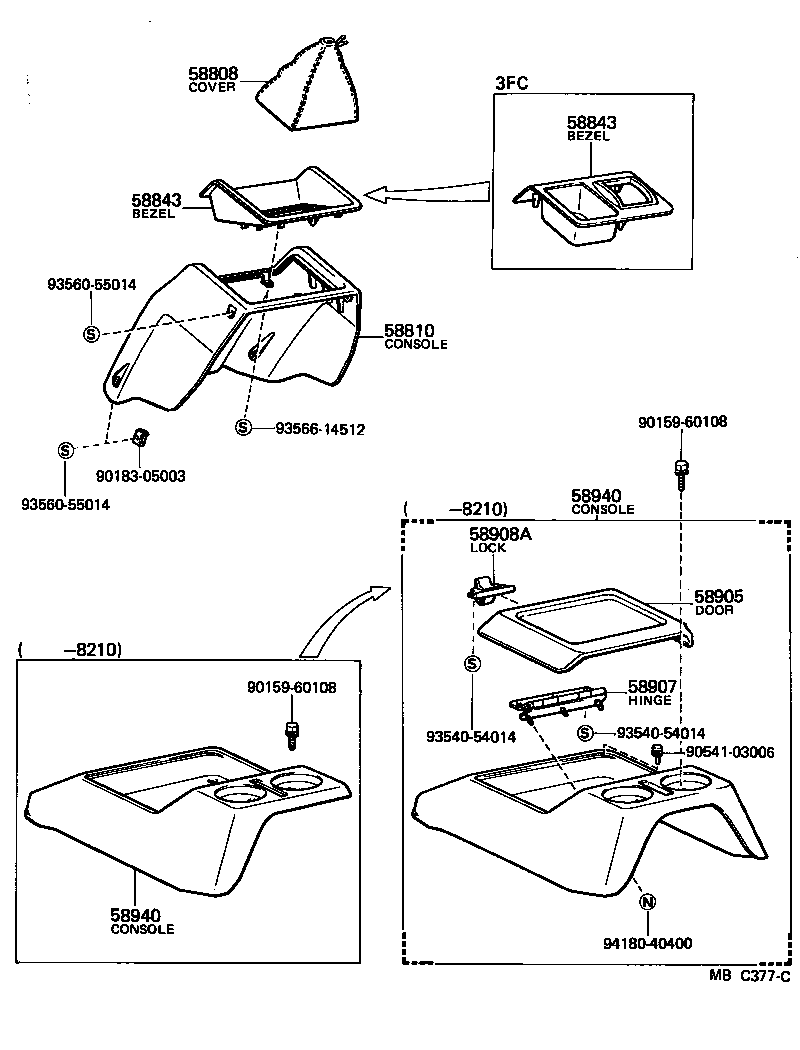

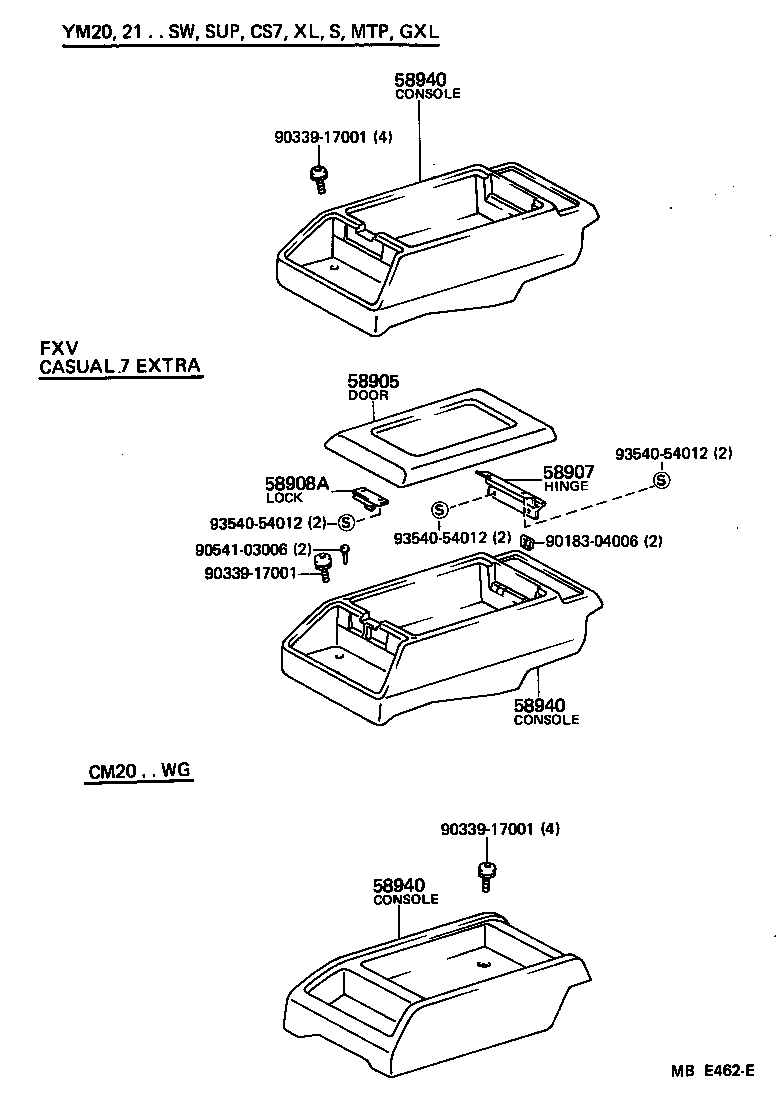

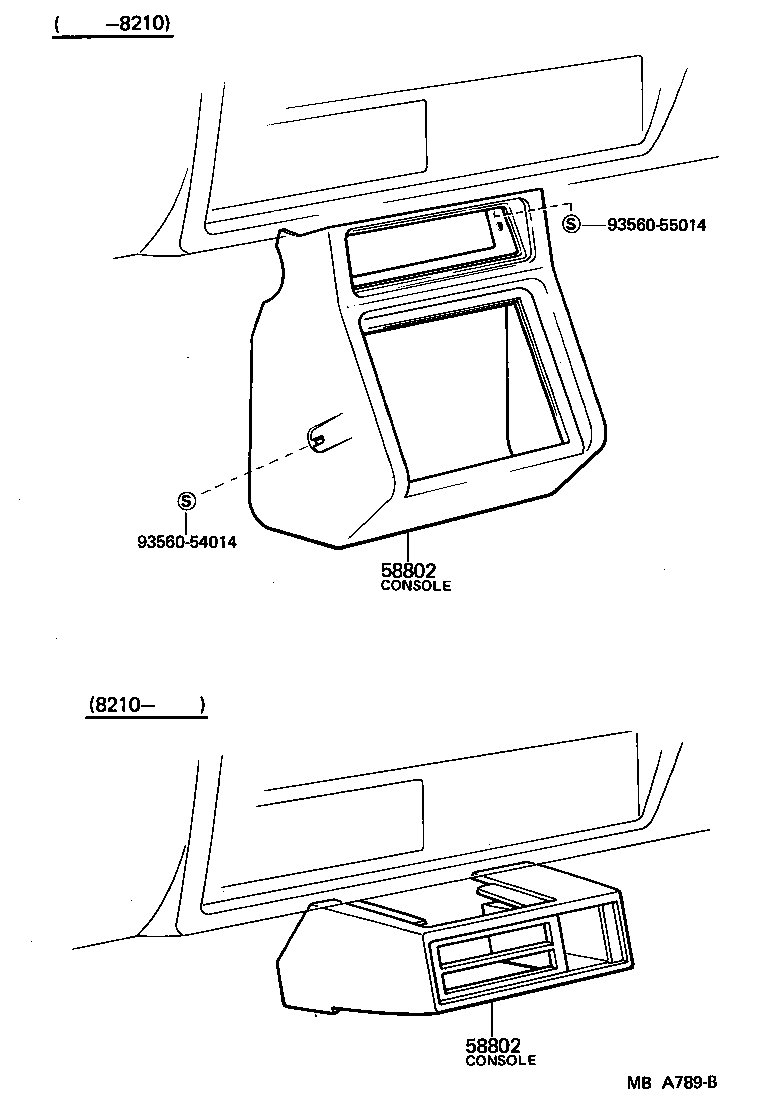

Figure MBA788B MBA788B 1979-10 → 1981-01 Figure MBC377C MBC377C 1981-01 → 1982-10 Figure MBC377C MBC377C 1982-10 → 1985-08 Figure MBE462E MBE462E 1982-10 → 1985-08 Figure MBA789B MBA789B 1979-10 → 1981-01 Figure MBA789B MBA789B 1981-01 → 1985-08 Figure MBC378A MBC378A 1981-01 → 1982-01 Figure MBD167B MBD167B 1981-09 → 1981-11 Figure MBD167B MBD167B 1982-03 → 1982-04

Part groups

PNCDescription
58802 Console Sub-assy, Lower
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58840 Box Assy, Console Compartment
58840D Door, Console Compartment Box
58840G Cover, Console Compartment Box
58843 Bezel, Shifting Hole
58858 Bracket, Console Support, NO.1
58859 Bracket, Console Support, NO.2
58861 Bracket, Console Support, NO.3
58884 Cover, Stereo Opening
58884A Retainer, Stereo Opening, NO.1
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58940 Console Assy, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
