Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

29 part groups · 3 illustrations

Illustrations

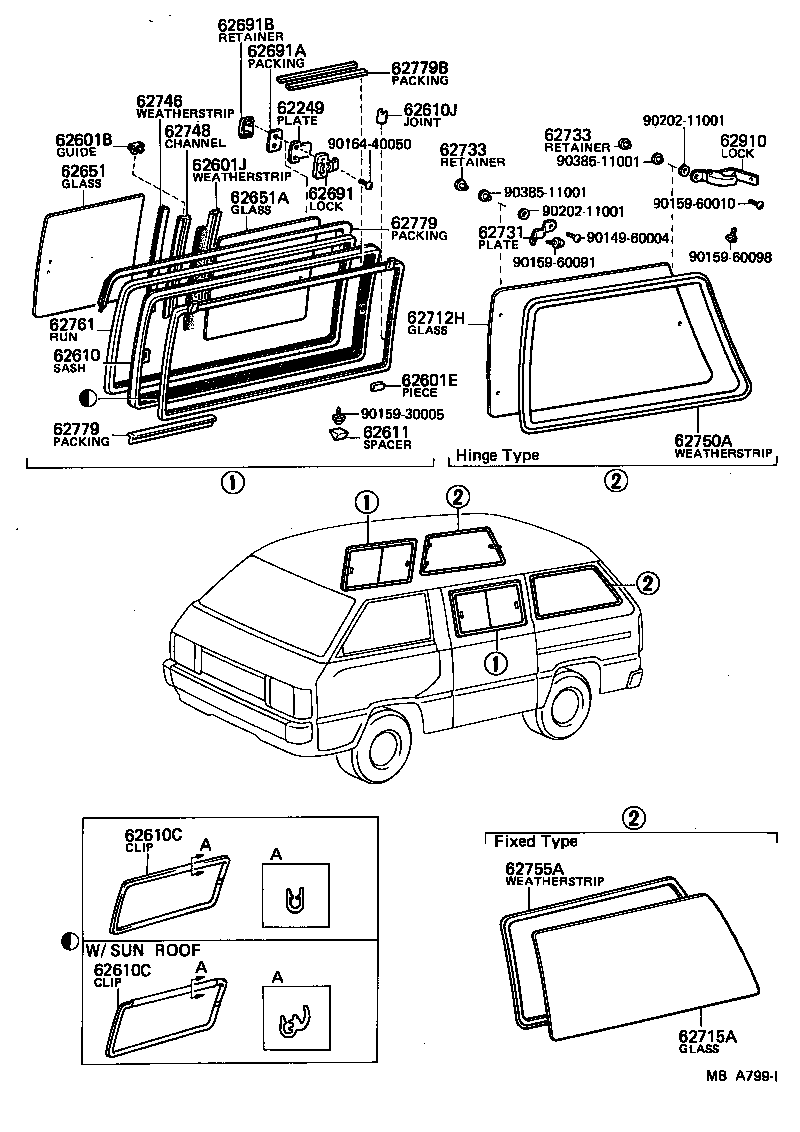

Figure MBA798G MBA798G 1979-10 → 1985-08 Figure MBA798G MBA798G 1983-08 → 1985-08 Figure MBA799I MBA799I 1979-10 → 1985-08

Part groups

PNCDescription
62249 Plate, Side Window, RH
62601B Guide, Side Window Inner Sash, NO.1
62601E Piece, Side Windshield, NO.1
62601J Weatherstrip, Side Window Center, NO.1
62610 Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
62610C Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
62610J Joint, Side Window Clip
62611 Spacer, Side Window Support, NO.1
62651 Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
62651A Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
62691 Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE)
62691A Packing, Side Window Lock, NO.1
62691B Retainer, Side Window Lock, NO.1
62712H Glass, Side Window, NO.2(FOR HINGE TYPE)
62715 Glass, Side Window, NO.1(FOR FIXED TYPE)
62715A Glass, Side Window, NO.2(FOR FIXED TYPE)
62731 Plate, Quarter OR Side Window Hinge
62733 Retainer, Quarter OR Side Window Hinge
62746 Weatherstrip, Side Window Glass Channel, NO.1
62748 Channel, Side Window Glass
62750A Weatherstrip, Side Window, NO.2(FOR HINGE TYPE)
62751 Stop, Side Window Fix Glass
62755 Weatherstrip, Side Window, NO.1(FOR FIXED TYPE)
62755A Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
62761 Run, Side Window, NO.1(FOR SLIDE TYPE)
62779 Packing, Side Window Glass, NO.1
62779B Packing, Side Window Glass, NO.2
62883 Guard Assy, Side Window
62910 Lock Assy, Quarter OR Side Window, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
