Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

39 part groups · 15 illustrations

Illustrations

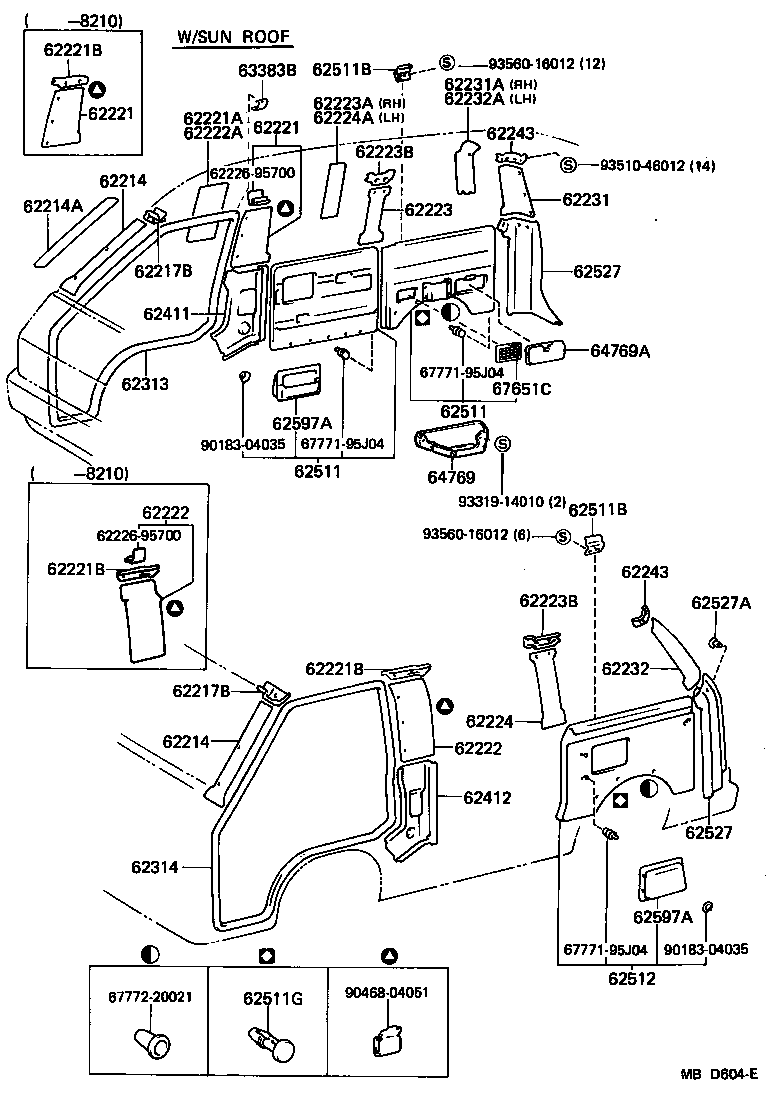

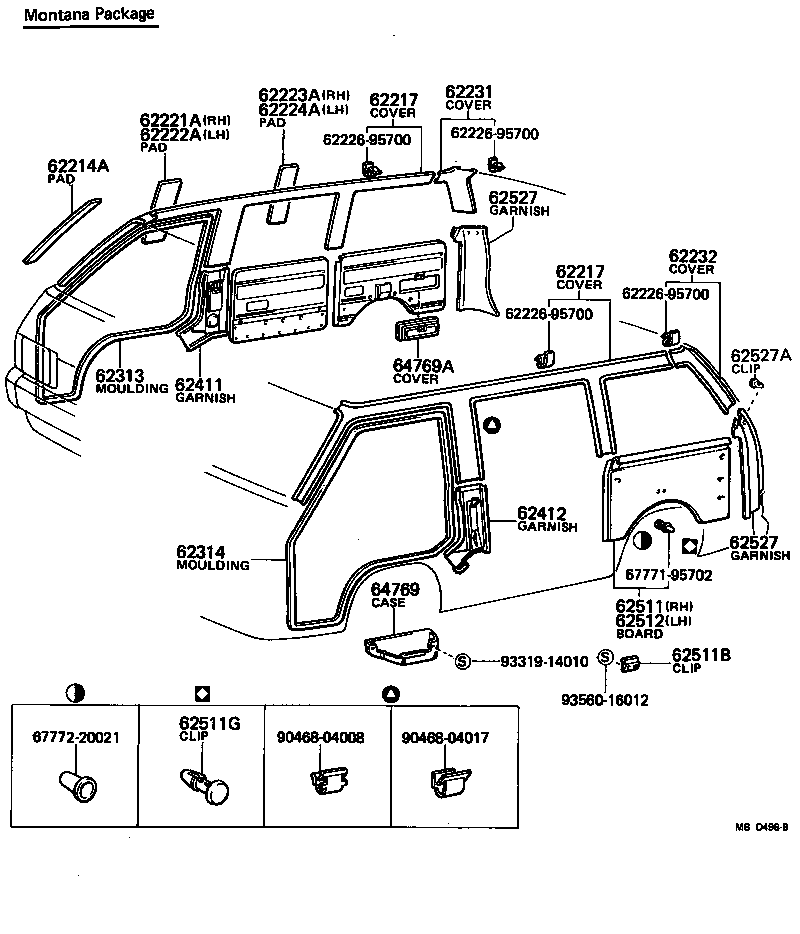

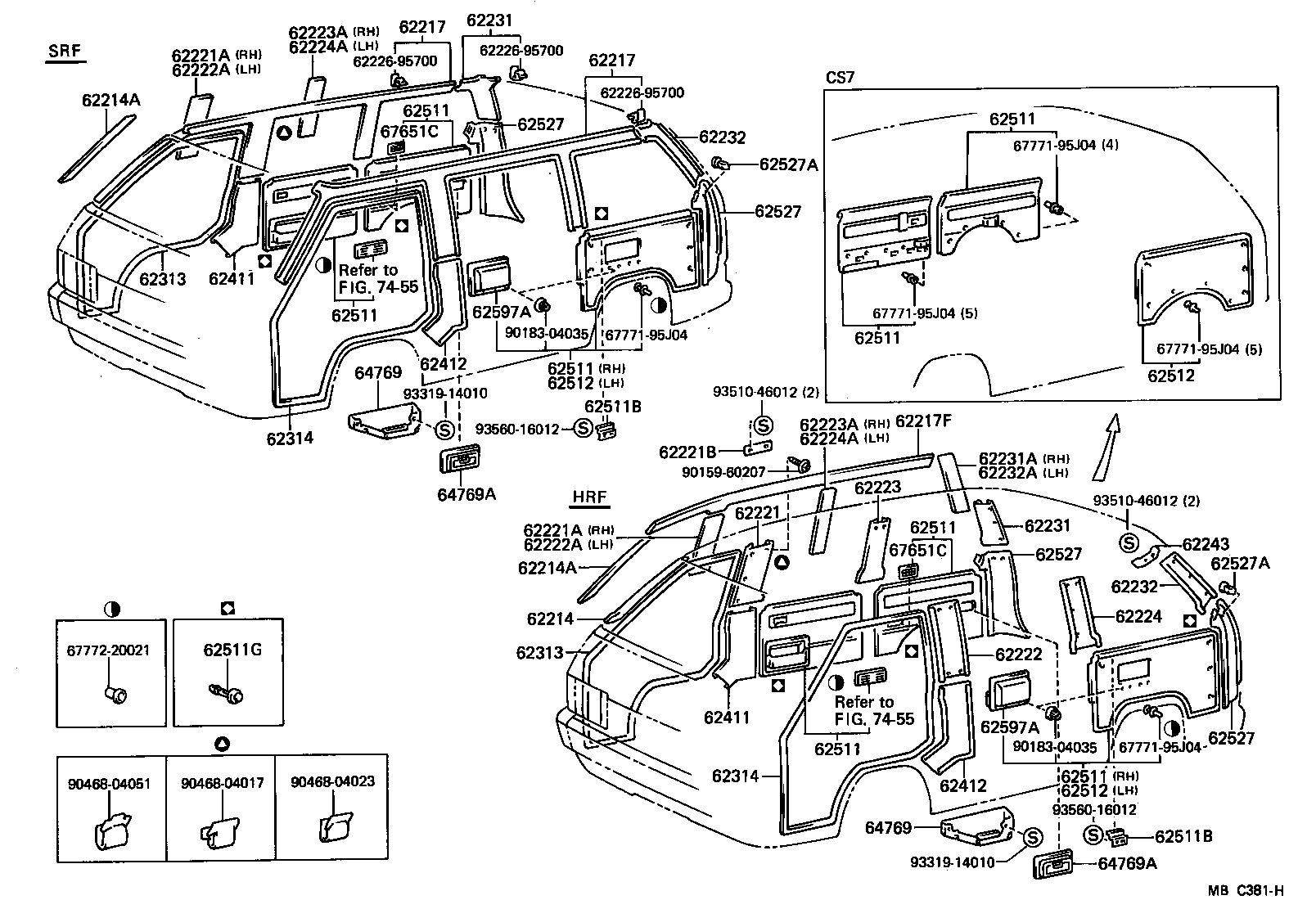

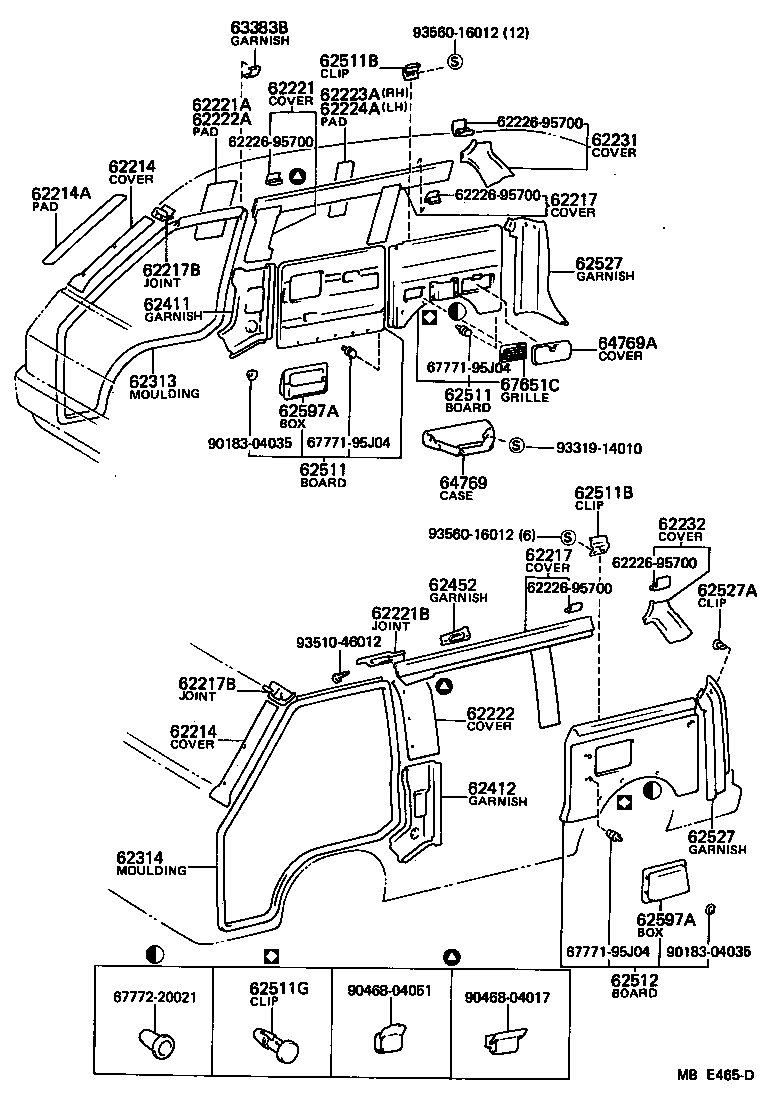

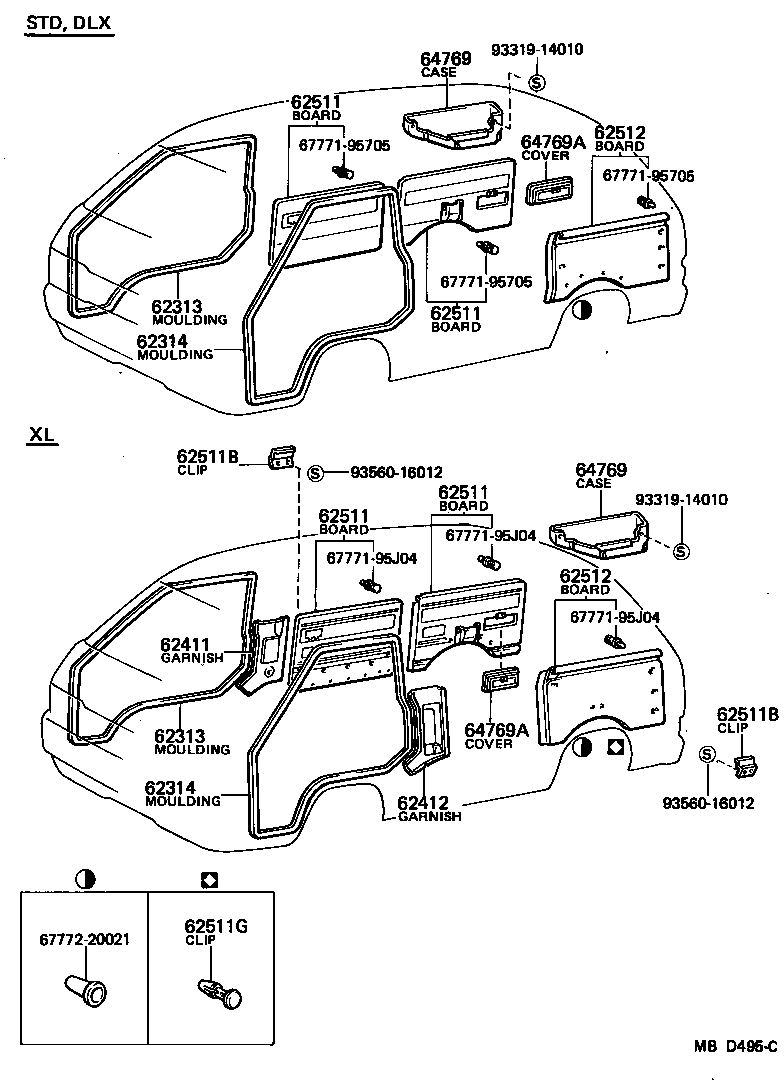

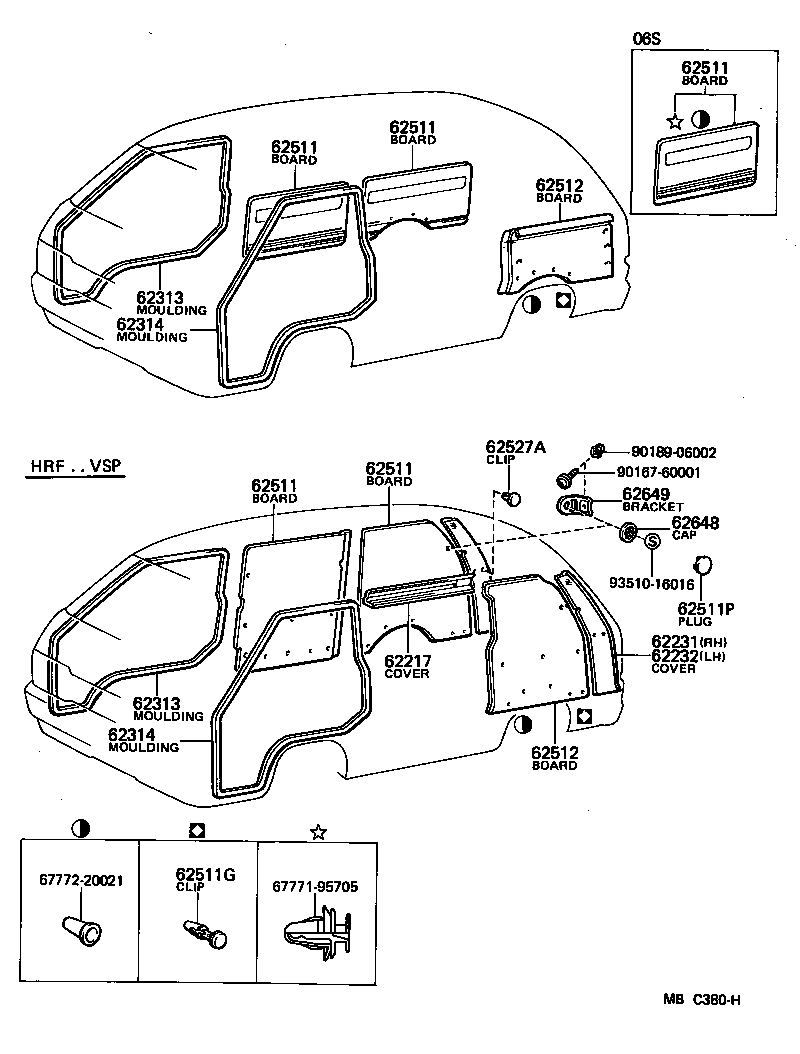

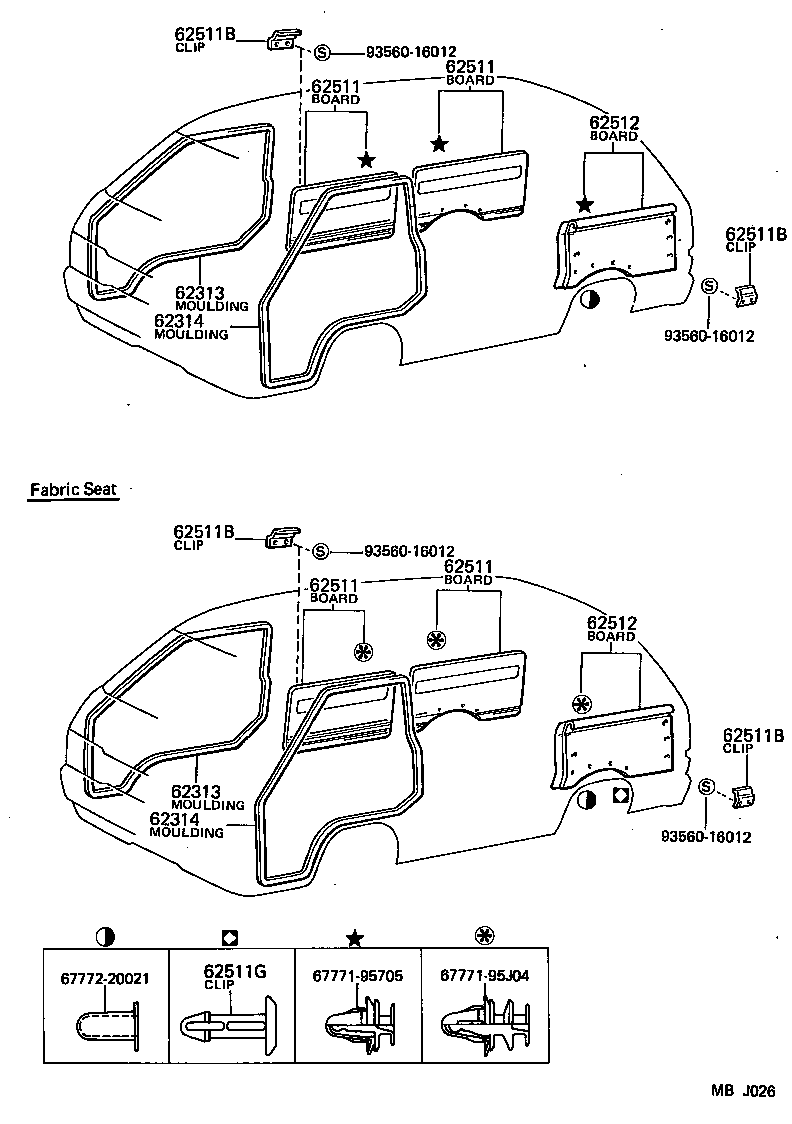

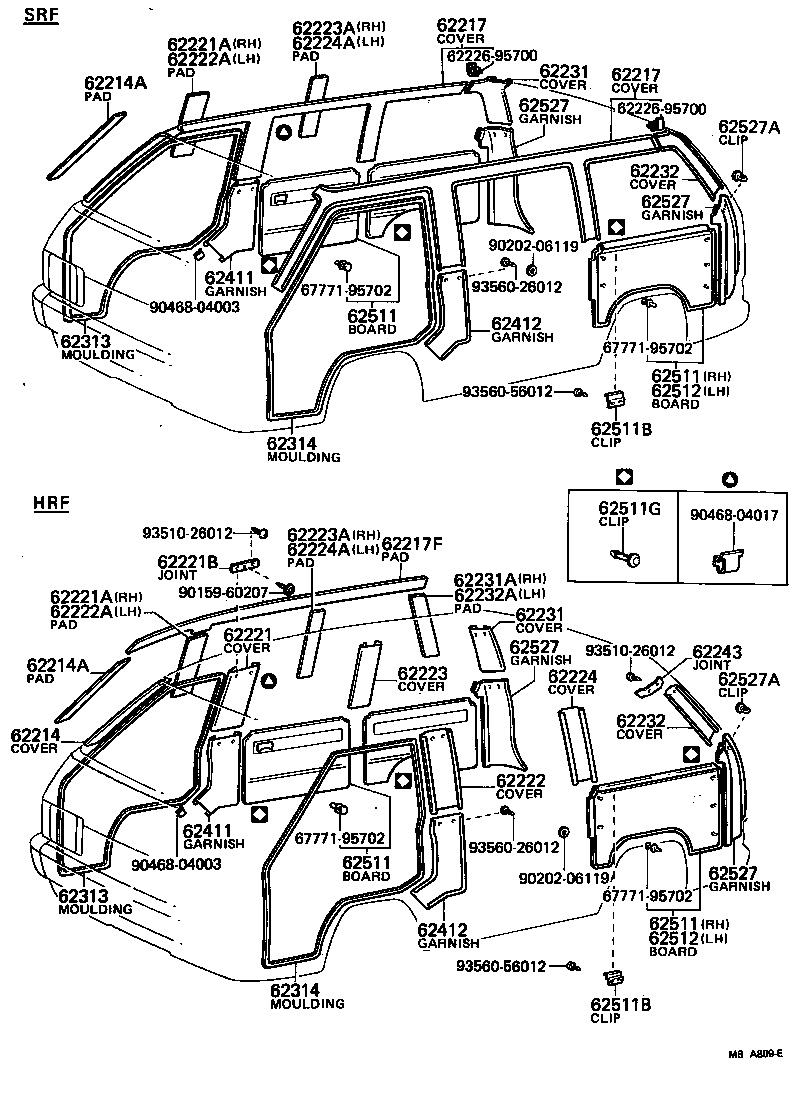

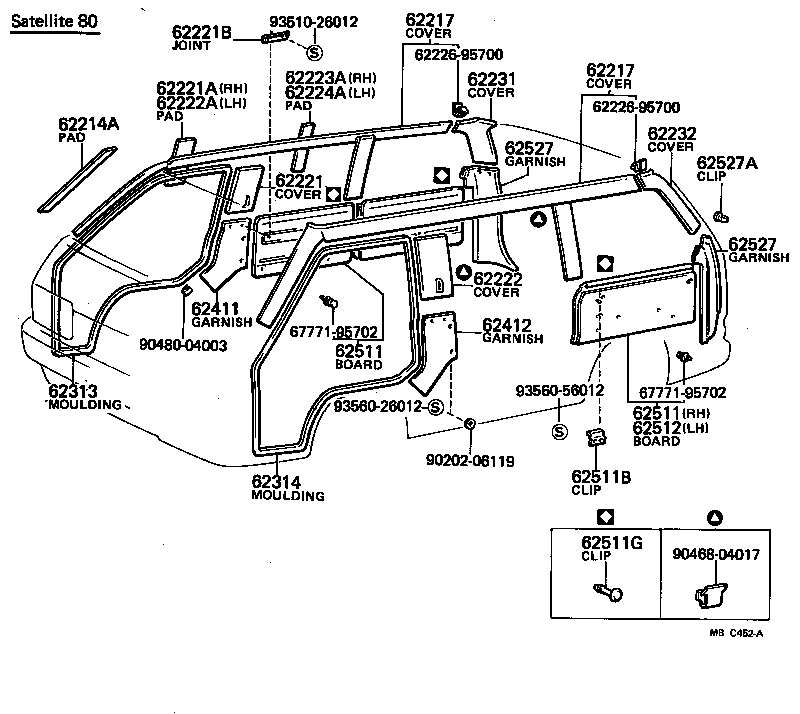

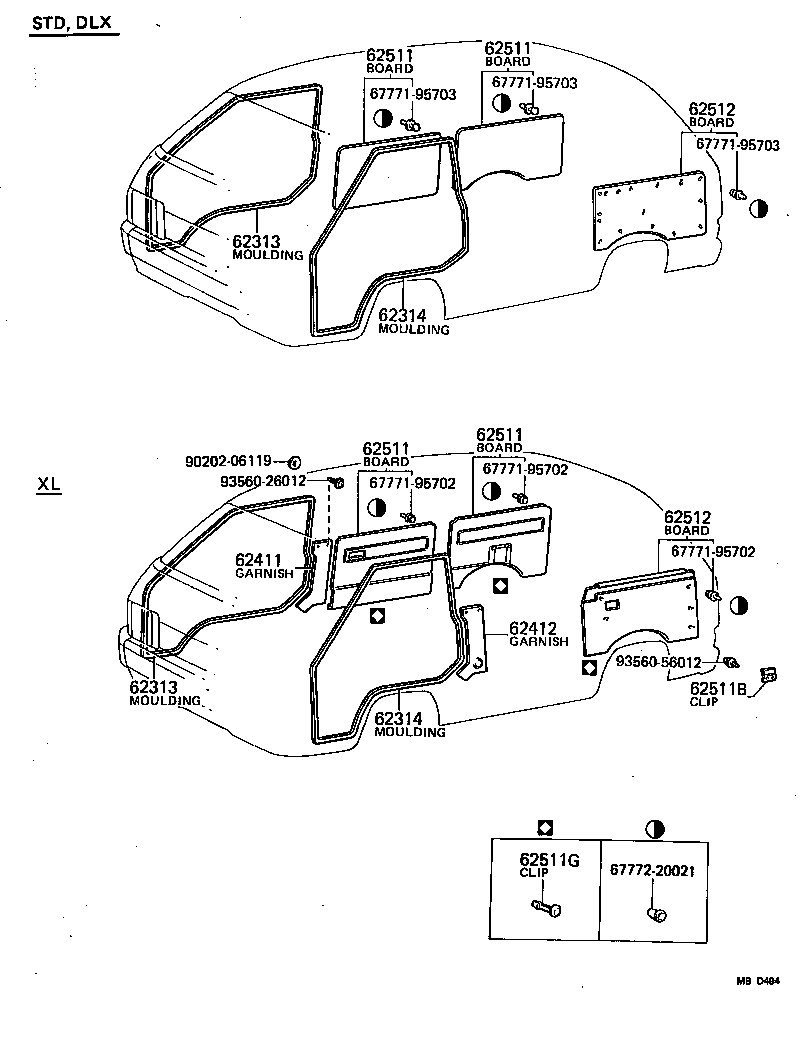

Figure MBA808D MBA808D 1979-10 → — Figure MBC380H MBC380H 1981-01 → 1985-08 Figure MBC380H MBC380H 1982-10 → 1985-08 Figure MBJ026 MBJ026 1979-10 → 1982-10 Figure MBJ026 MBJ026 1982-10 → 1985-08 Figure MBJ026 MBJ026 1983-08 → 1985-08 Figure MBD494 MBD494 1979-10 → 1981-01 Figure MBD495C MBD495C 1981-01 → 1985-08 Figure MBD496B MBD496B 1982-01 → 1982-10 Figure MBE465D MBE465D 1982-10 → 1985-08 Figure MBA809E MBA809E 1979-10 → 1981-01 Figure MBC381H MBC381H 1981-01 → 1985-08 Figure MBD604E MBD604E 1982-04 → 1982-10 Figure MBD604E MBD604E 1982-10 → 1985-08 Figure MBC452A MBC452A 1980-11 → 1980-11

Part groups

PNCDescription
62214 Cover, Front Pillar, Inner
62214A Pad, Front Pillar, Inner
62217 Cover, Rail Roof Side, Inner Center
62217B Joint, Rail Roof Side Cover, NO.1
62217F Pad, Roof Side Rail, Center
62221 Cover, Center Pillar, Inner RH
62221A Pad, Center Pillar, Inner RH
62221B Joint, Center Pillar
62222 Cover, Center Pillar, Inner LH
62222A Pad, Center Pillar, Inner LH
62223 Cover, Quarter Lock Pillar, Inner, RH
62223A Pad, Quarter Lock Pillar, Inner RH
62223B Joint, Quarter Lock Pillar
62224 Cover, Quarter Lock Pillar, Inner LH
62224A Pad, Quarter Lock Pillar Inner LH
62231 Cover, Quarter Pillar, RH
62231A Pad, Quarter Pillar, RH
62232 Cover, Quarter Pillar, LH
62232A Pad, Quarter Pillar, LH
62243 Joint, Quarter Inner Cover
62313 Moulding, Front Door Opening Trim, RH
62314 Moulding, Front Door Opening Trim, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62452 Garnish, Roof Side Inner, LH
62511 Board, Quarter Inside Trim, RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62511G Clip (FOR QUARTER INSIDE TRIM BOARD)
62511P Plug, Quarter Trim Board
62512 Board, Quarter Inside Trim, LH
62527 Garnish, Rear Pillar Side
62527A Clip, Rear Pillar Side Garnish
62597A Box, Side Trim
62648 Cap, Side Trim
62649 Bracket, Side Trim
63383B Garnish, Front Door Opening Trim Edge
64769 Case Sub-assy, Tool Bag
64769A Cover Assy, Side Trim Tool Bag
67651C Grille, Quarter Trim Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
