Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

60 part groups · 10 illustrations

Illustrations

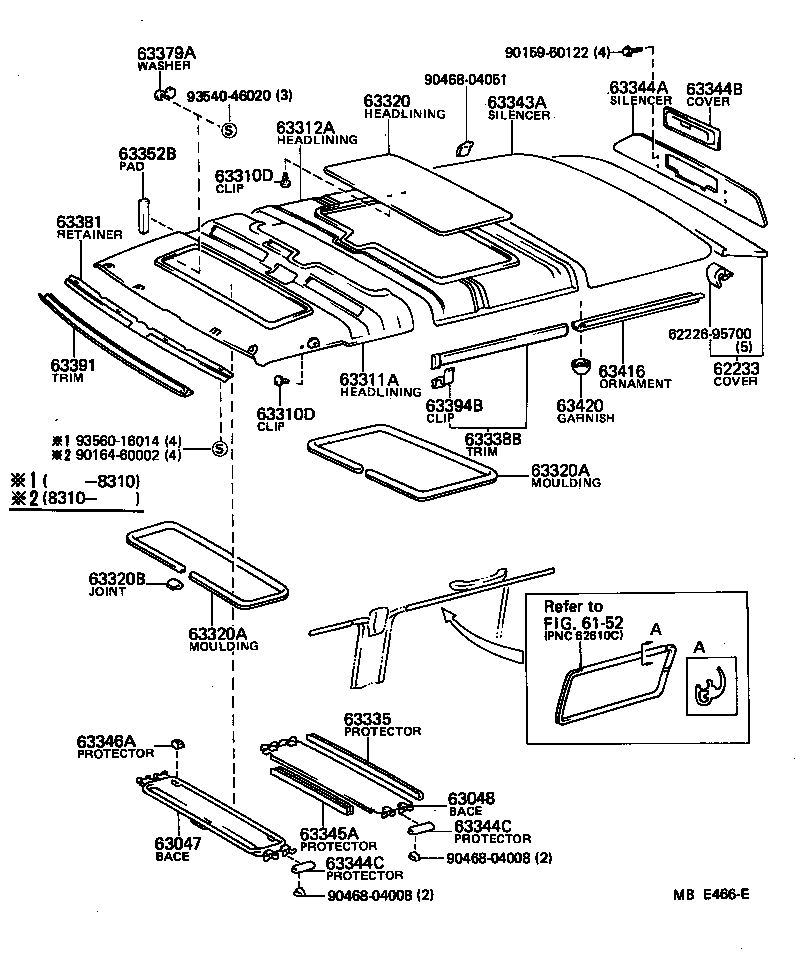

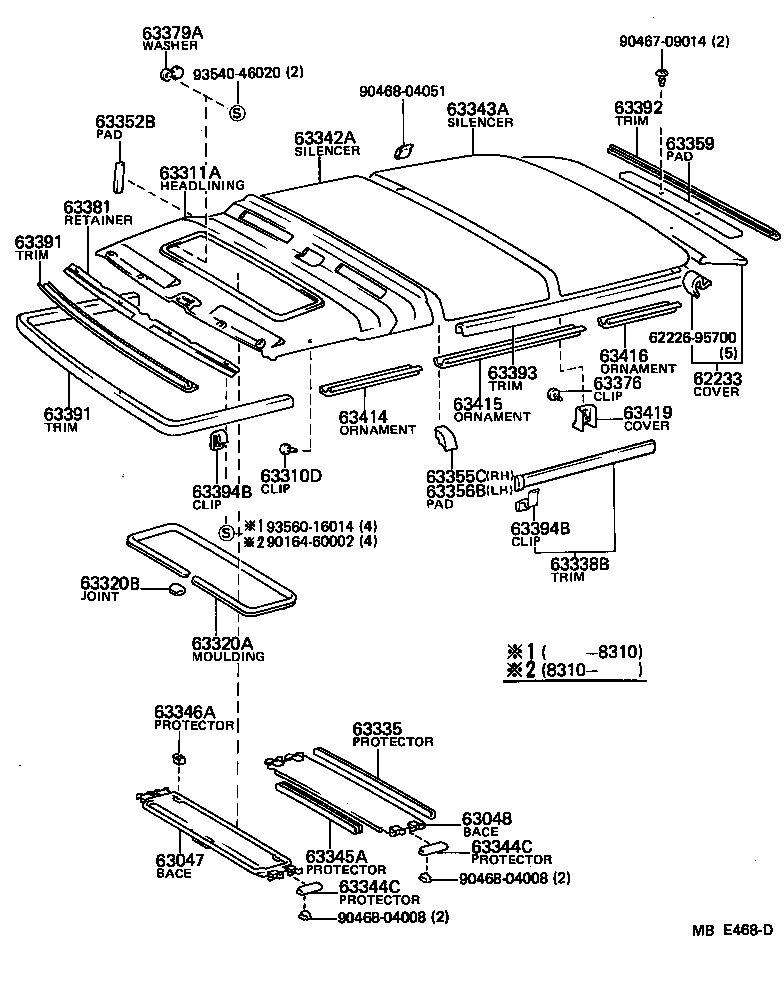

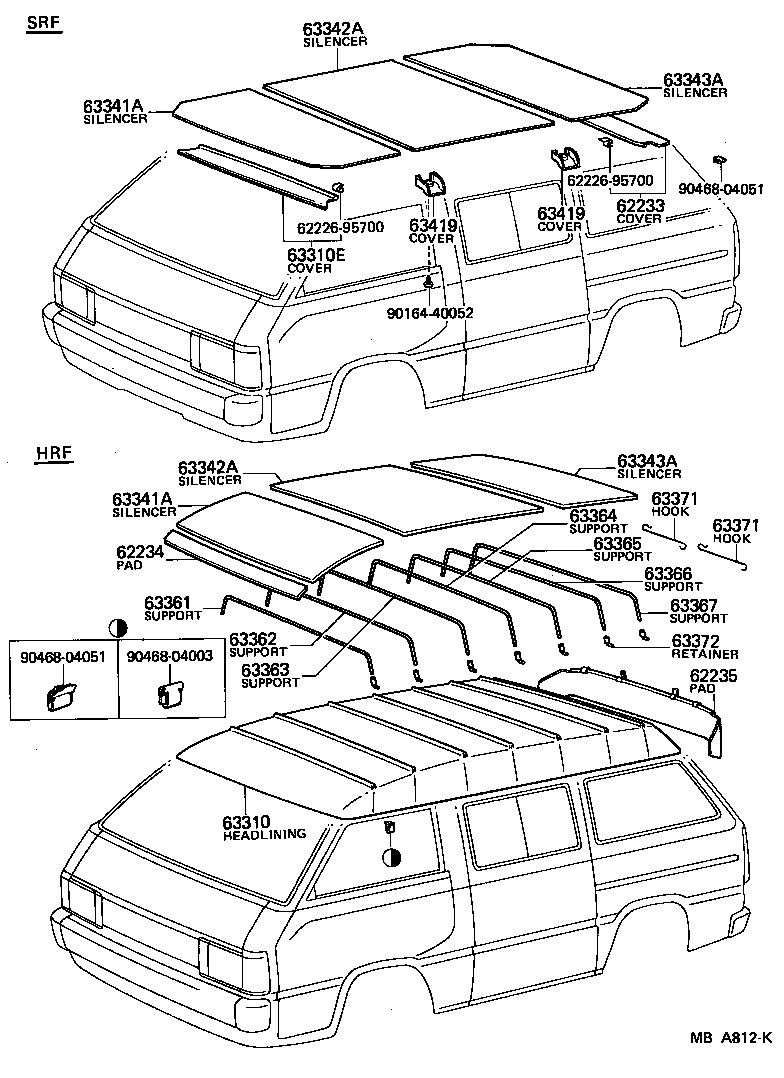

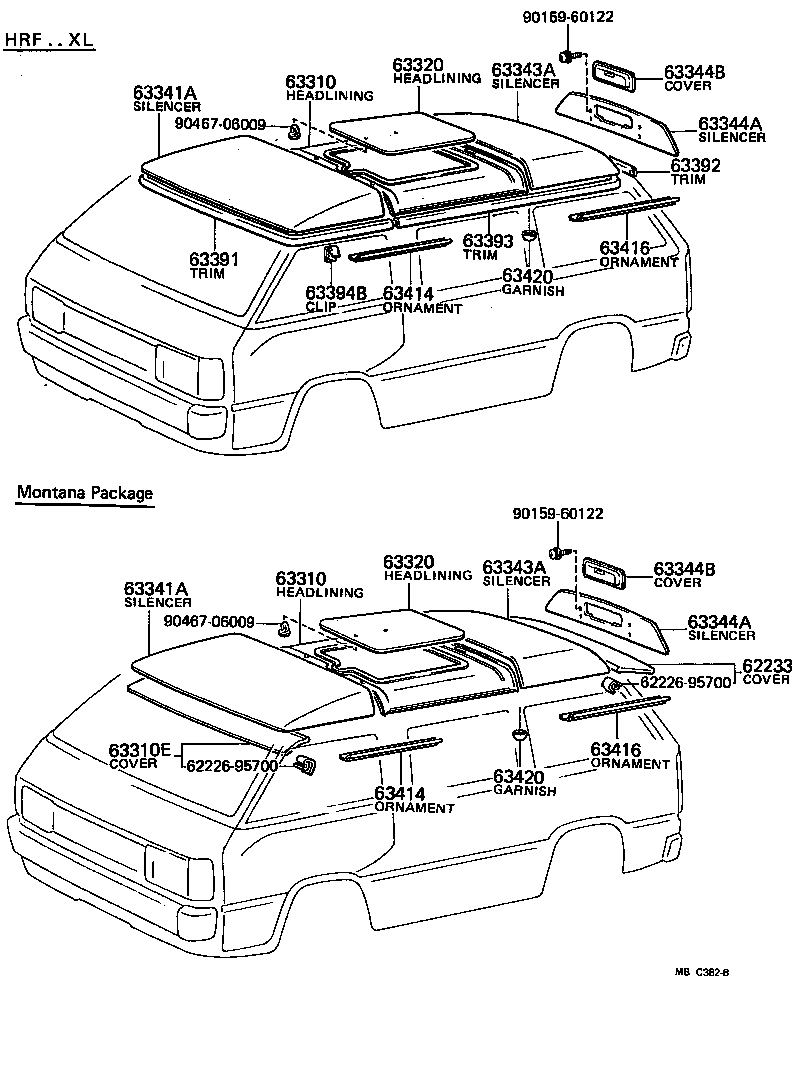

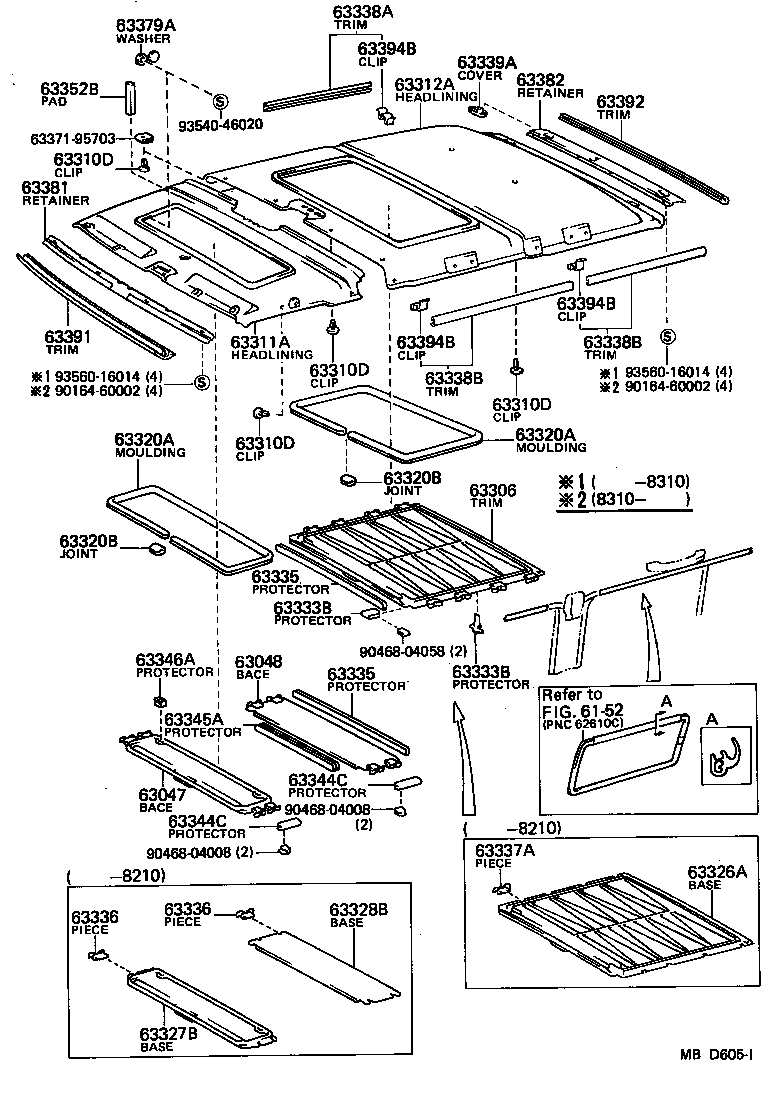

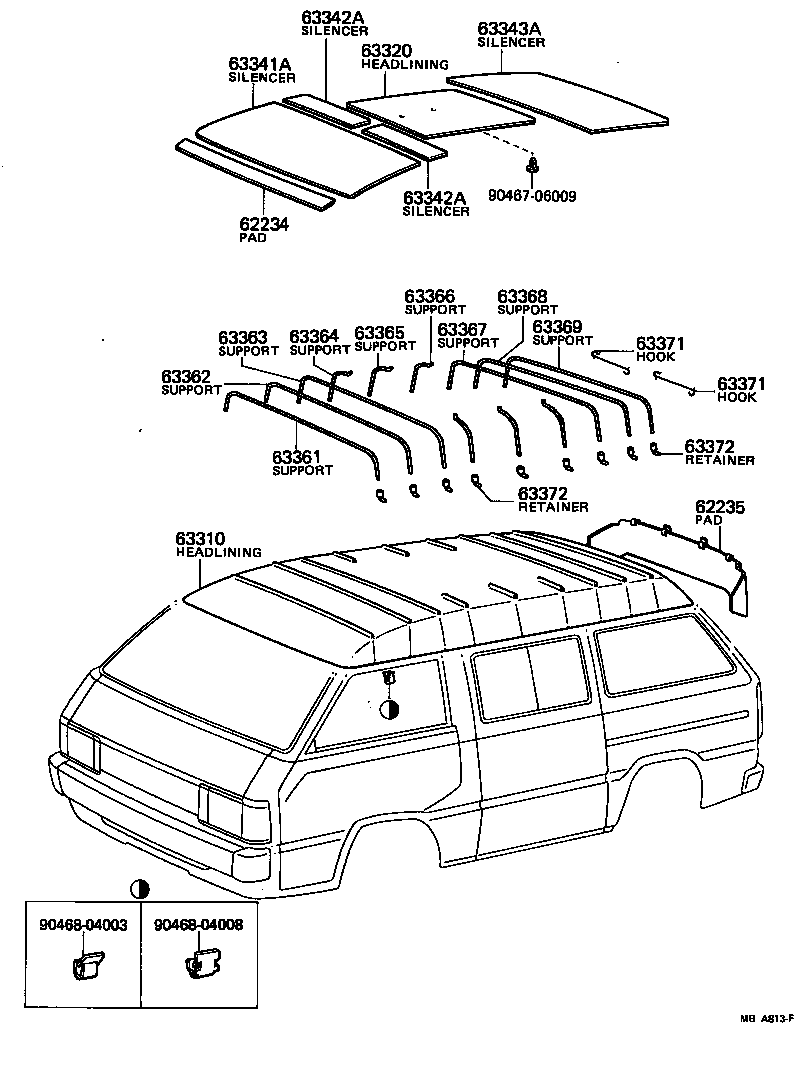

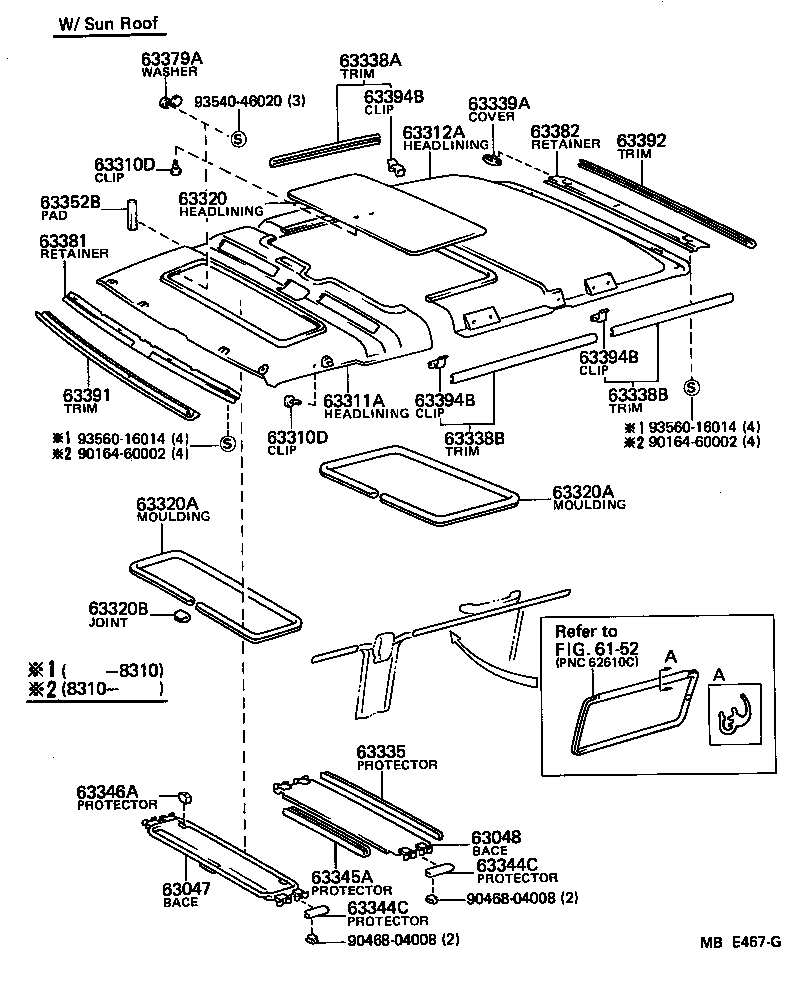

Figure MBA811C MBA811C 1979-10 → — Figure MBC382B MBC382B 1979-10 → 1982-10 Figure MBE468D MBE468D 1982-10 → 1985-08 Figure MBE466E MBE466E 1982-10 → 1985-08 Figure MBA812K MBA812K 1979-10 → 1982-10 Figure MBA812K MBA812K 1982-10 → 1985-08 Figure MBA813F MBA813F 1979-10 → 1982-10 Figure MBE467G MBE467G 1982-10 → 1985-08 Figure MBD605I MBD605I 1982-04 → 1985-08 Figure MBD497A MBD497A 1980-11 → 1980-11

Part groups

PNCDescription
62233 Cover, Frame Back Door Opening, Upper
62234 Pad, Header Inner
62235 Pad, Frame Back Door Opening, Upper
63047 Base Sub-assy, Sunshade Trim, Front NO.1
63048 Base Sub-assy, Sunshade Trim, Front NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310E Cover, Header Inner
63311A Headlining, Roof NO.1
63312A Headlining, Roof, NO.2
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320B Joint, Sun Roof Opening Trim
63326A Base, Sunshade Trim, Rear
63327B Base, Sunshade Trim, Front NO.1
63328B Base, Sunshade Trim, Front NO.2
63333B Protector, Sunshade Trim
63335 Protector, Sunshade Trim, NO.2
63336 Piece,Sunshade Guide, NO.1
63337A Piece, Sunshade Guide, NO.2
63338A Trim, Roof Headlining, Side, RH
63338B Trim, Roof Headlining, Side, LH
63339A Cover, Roof Headlining Service Hole
63341A Silencer, Roof, NO.1
63342A Silencer, Roof, NO.2
63343A Silencer, Roof, NO.3
63344A Silencer, Roof, NO.4
63344B Cover Assy, Roof Tool Bag
63344C Protector, Sunshade Trim, NO.4
63345A Protector, Sunshade Trim, NO.5
63346A Protector, Sunshade Trim, NO.6
63352B Pad, Roof Headlining, Side
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
63359 Pad, Roof Headlining End
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63367 Support, Roof Headlining, NO.7
63368 Support, Roof Headlining, NO.8
63369 Support, Roof Headlining, NO.9
63371 Hook, Roof Headlining Support
63372 Retainer, Headlining Support
63376 Clip, Headlining
63379A Washer, Roof Headlining Setting
63381 Retainer, Headlining, Front
63382 Retainer, Headlining, Rear Center
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63393 Trim, Roof Headlining, Center
63394B Clip(FOR ROOF HEADLINING TRIM GARNISH)
63414 Ornament, Roof Side, NO.1
63415 Ornament, Roof Side, NO.2
63416 Ornament, Roof Side, NO.3
63419 Cover, Roof Reinforcement
63420 Garnish, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
