Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

17 part groups · 3 illustrations

Illustrations

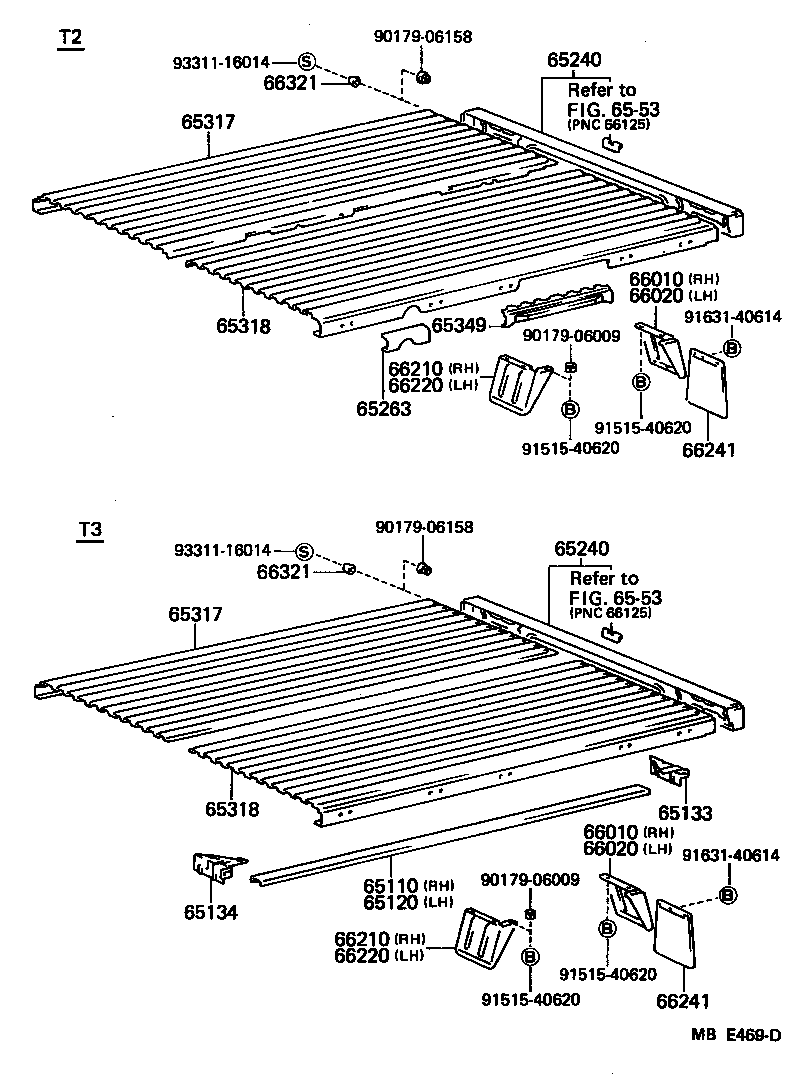

Figure MBA816C MBA816C 1979-10 → — Figure MBA817C MBA817C 1979-10 → 1982-10 Figure MBE469D MBE469D 1982-10 → —

Part groups

PNCDescription
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65133 Reinforcement, Main Sill End, NO.1
65134 Reinforcement, Main Sill End, NO.2
65240 Crossmember, Rear Body Floor, Tail
65263 Reinforcement, Floor Side Frame
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65349 Fender, Floor Side
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66220 Fender Assy, Rear Body, Front LH
66221 Stay, Panel Skirt, Rear
66241 Mudguard, Rear
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
