Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

25 part groups · 3 illustrations

Illustrations

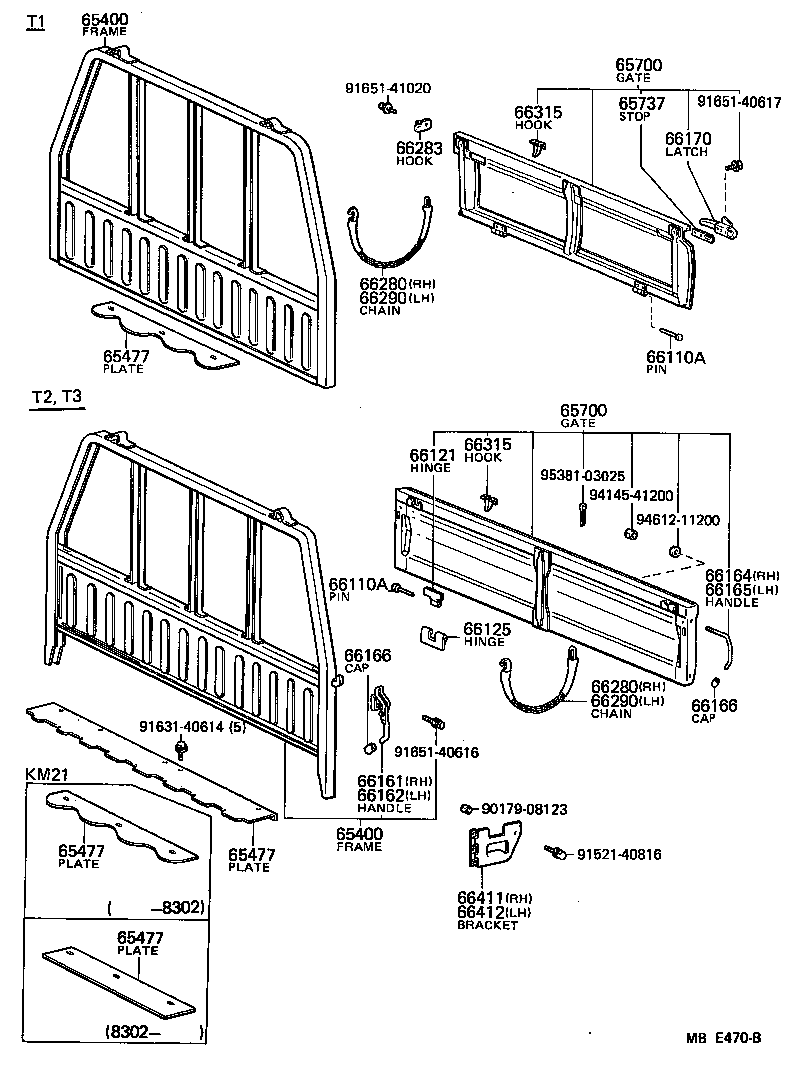

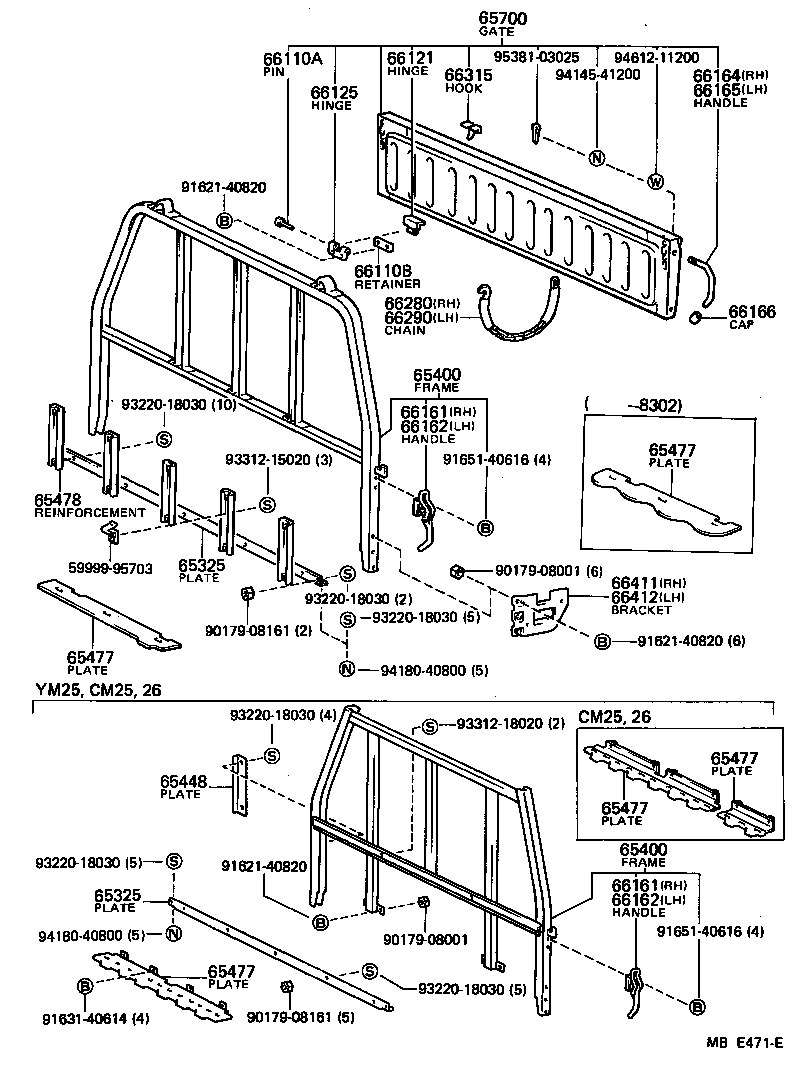

Figure MBC383A MBC383A 1979-10 → 1982-10 Figure MBE470B MBE470B 1982-10 → — Figure MBE471E MBE471E 1982-10 → —

Part groups

PNCDescription
65325 Plate, Floor Board, Front
65326 Plate, Floor Board, Rear
65400 Frame Assy, Rear Body Guard
65448 Plate, Guard Frame, LH
65477 Plate, Baffle
65478 Reinforcement, Header Board
65700 Gate Assy, Rear Body Tail
65737 Stop, Tail Gate
66110A Pin, Tail Gate Hinge
66110B Retainer, Tail Gate Hinge, Lower
66121 Hinge, Tail Gate, Male
66125 Hinge, Tail Gate, Female
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66163 Stop, Side Gate Latch Handle
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66166 Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280 Chain Assy, Tail Gate, RH
66283 Hook, Tail Gate Chain Side
66290 Chain Assy, Tail Gate, LH
66315 Hook, Rope
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
