Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

32 part groups · 4 illustrations

Illustrations

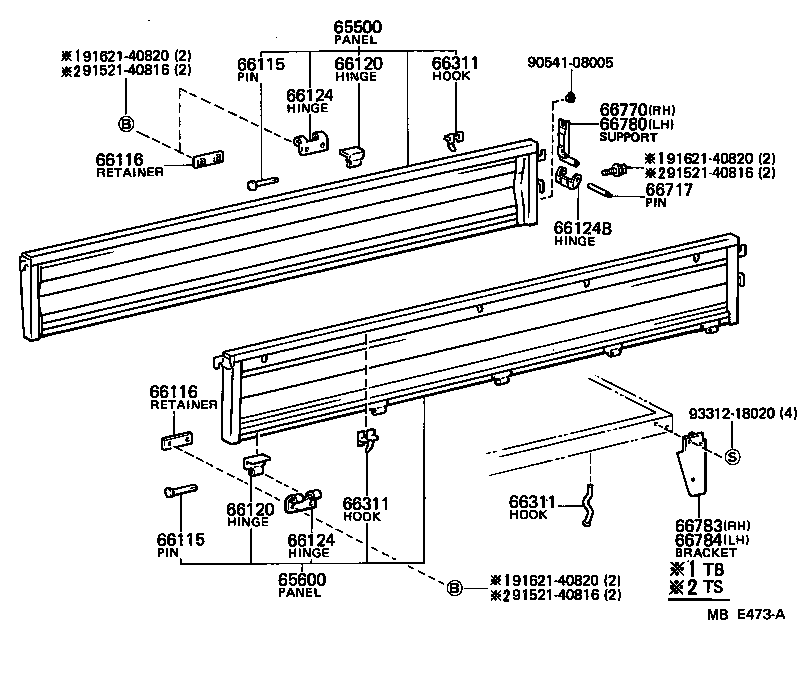

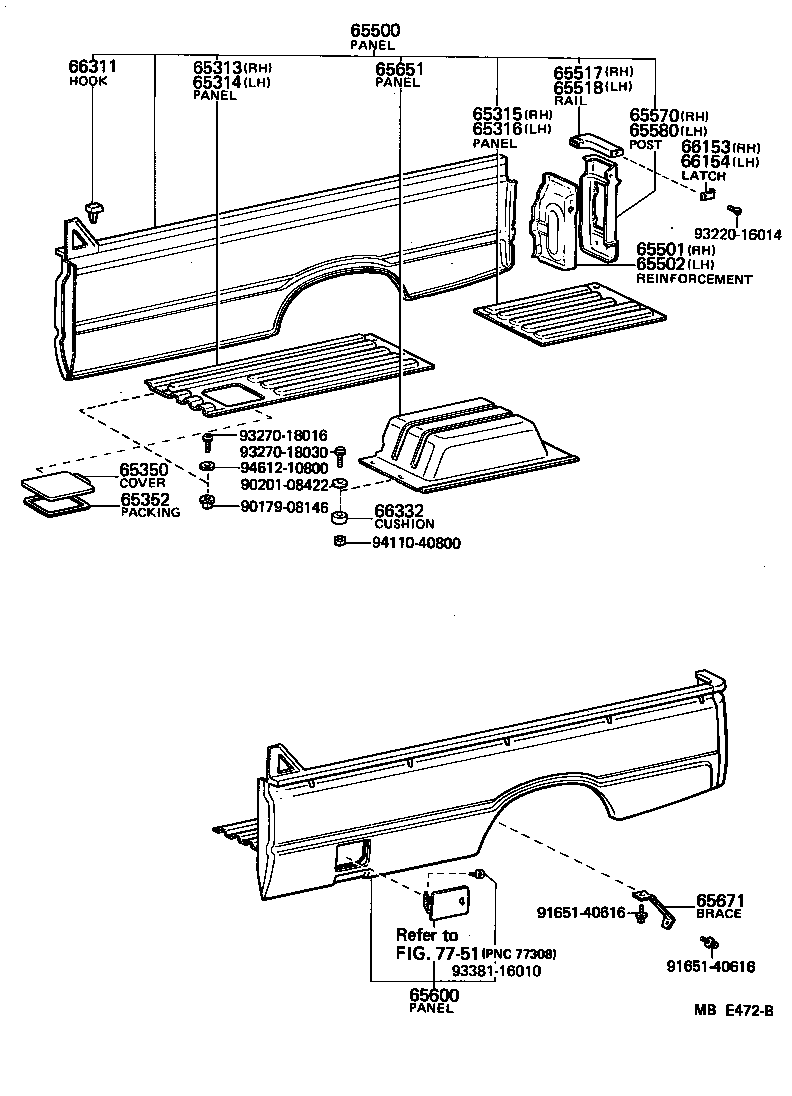

Figure MBA820C MBA820C 1979-10 → 1982-10 Figure MBC384 MBC384 1979-10 → 1982-10 Figure MBE472B MBE472B 1982-10 → — Figure MBE473A MBE473A 1982-10 → —

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65327 Plate, Floor Board Side, RH
65328 Plate, Floor Board Side, LH
65350 Cover Assy, Battery Service Hole
65352 Packing, Battery Service Hole Cover
65500 Panel Assy, Rear Body Side, RH
65501 Reinforcement Sub-assy, Rear End Post, Inner RH
65502 Reinforcement Sub-assy, Rear End Post, Inner LH
65517 Rail, Side Panel Top, Rear RH
65518 Rail, Side Panel Top, Rear LH
65570 Post Assy, Side Panel Rear End, RH
65580 Post Assy, Side Panel Rear End, LH
65600 Panel Assy, Rear Body Side, LH
65651 Panel, Wheel House
65671 Brace, Side Panel Skirt, Front
66115 Pin, Gate Hinge
66116 Retainer, Gate Hinge, Lower
66120 Hinge Assy, Side Gate
66124 Hinge, Side Gate, Female
66124B Hinge, Side Gate, Female
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66311 Hook, Rope
66332 Cushion, Rubber
66717 Pin, Side Gate Holder
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
66783 Bracket, Side Gate Support, RH
66784 Bracket, Side Gate Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
