Toyota Lite/Townace Truck
1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan
Discontinued model
Data version 1987-04
Lock Cylinder Set

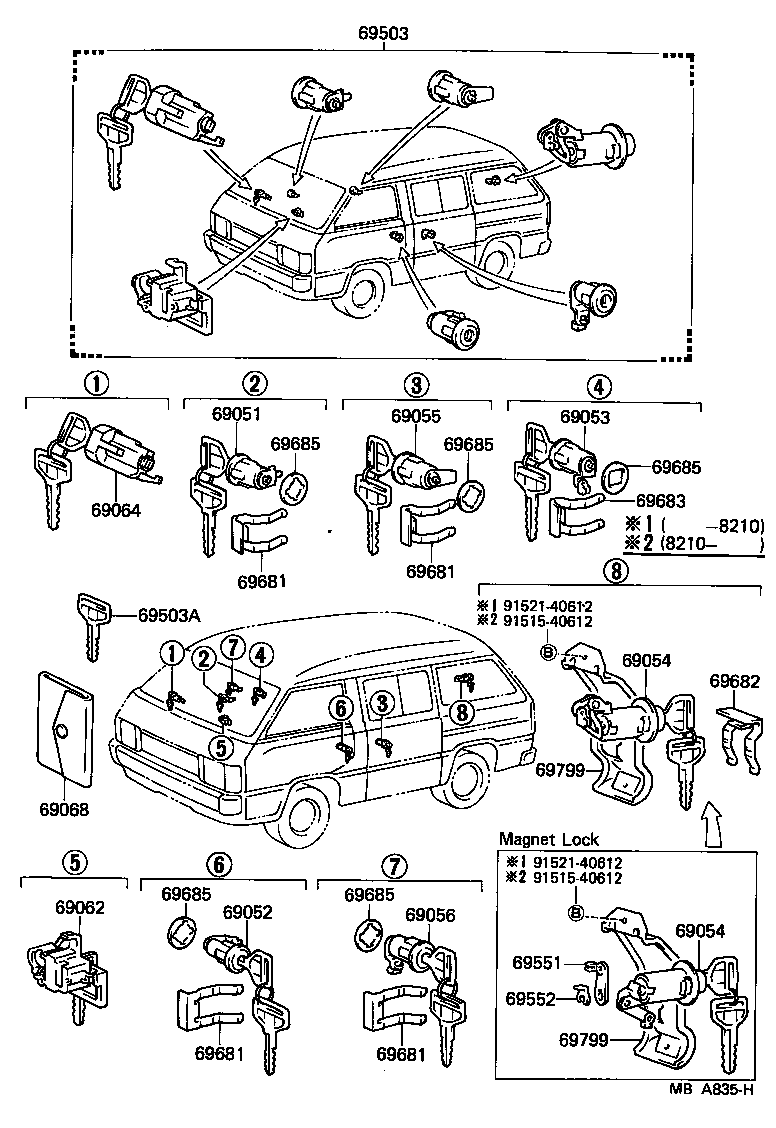

18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69053 | Cylinder & Key Set, Fuel Inlet Lock |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69055 | Cylinder & Key Set, Rear Door Lock, LH |
| 69056 | Cylinder & Key Set, Rear Door Lock, RH |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69068 | Cover Sub-assy, Key |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69551 | Retainer, Back Door Lock Cylinder |
| 69552 | Ring, Back Door Key Cylinder Lever |
| 69681 | Clamp, Door Lock Cylinder & Sleeve |
| 69682 | Retainer, Lock Cylinder |
| 69683 | Clamp, Fuel Lock Cylinder |
| 69685 | Pad, Lock Cylinder |
| 69799 | Bracket, Back Door Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
