Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

14 part groups · 3 illustrations

Illustrations

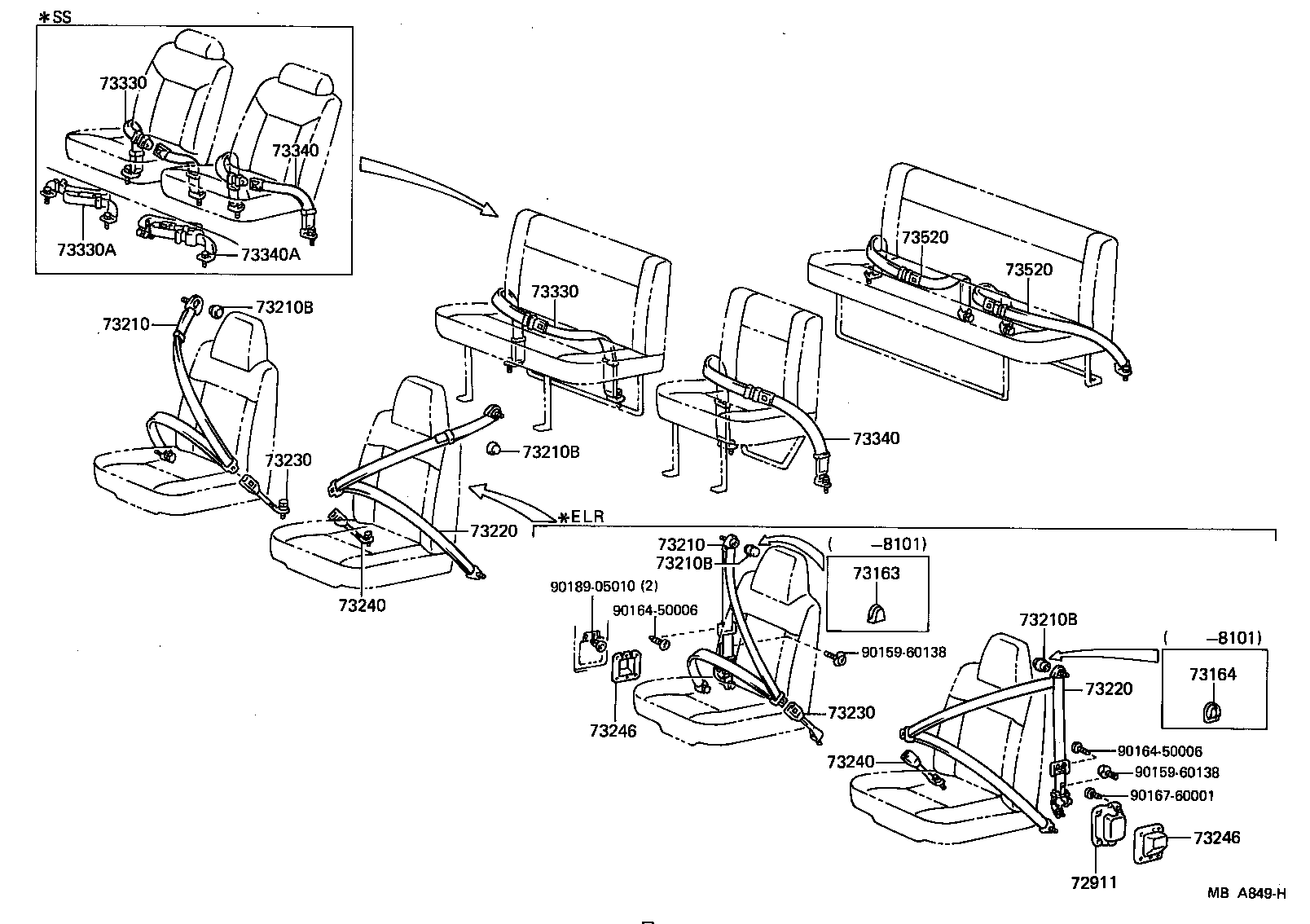

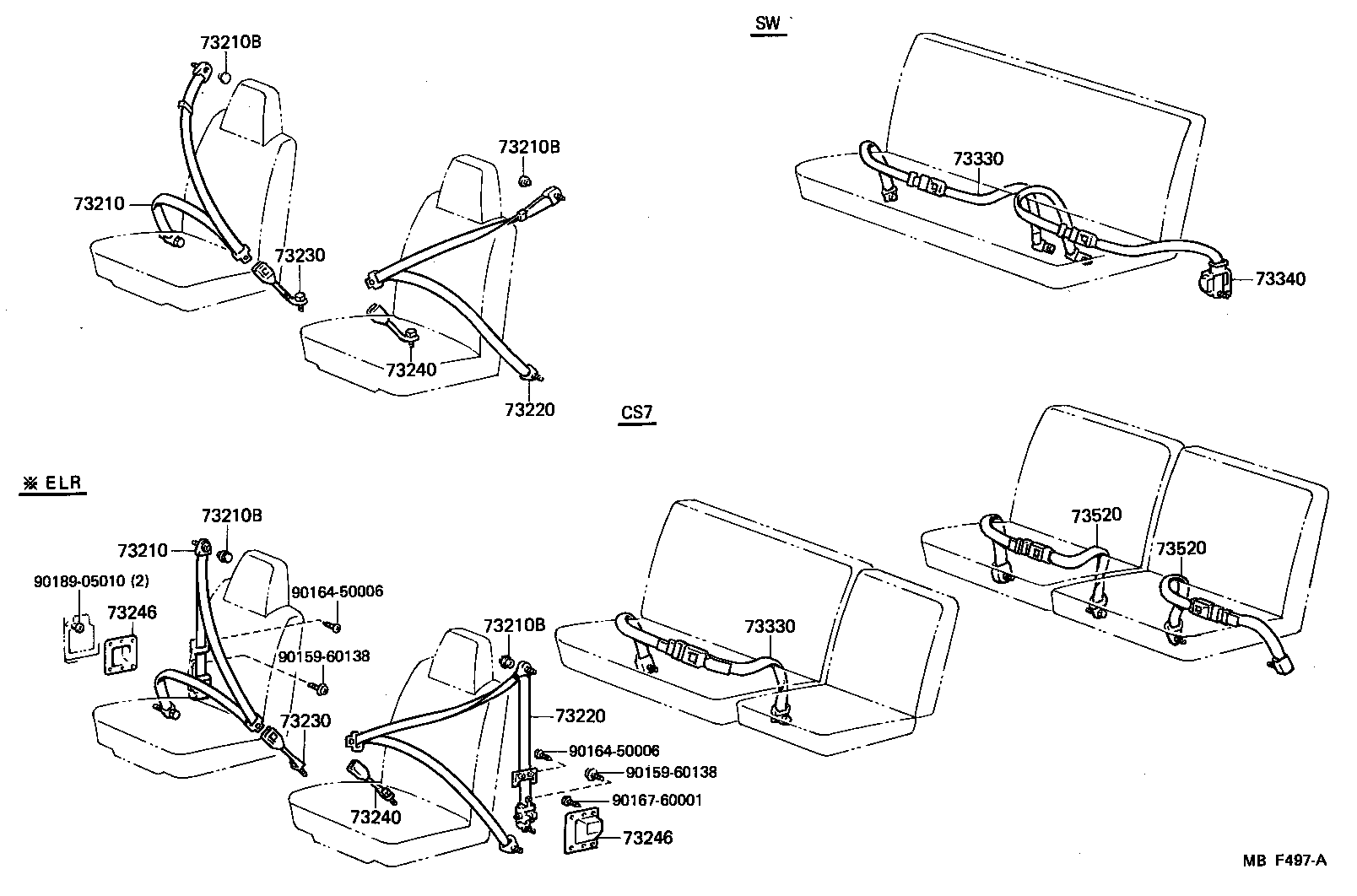

Figure MBA847F MBA847F 1979-10 → — Figure MBA849H MBA849H 1979-10 → 1985-08 Figure MBF497A MBF497A 1983-08 → 1985-08

Part groups

PNCDescription
72911 Cover, Seat Belt Retractor
73163 Cover, Front Seat Belt, RH
73164 Cover, Front Seat Belt, LH
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73246 Retainer, Seat Belt Retractor Cover, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73330A Belt Sub-assy, Rear Seat Lap Type, Front
73340 Belt Assy, Rear Seat Lap Type, LH
73340A Belt Sub-assy, Rear Seat Lap Type, Front
73520 Belt Assy, Rear Seat Lap Type, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
