Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

13 part groups · 8 illustrations

Illustrations

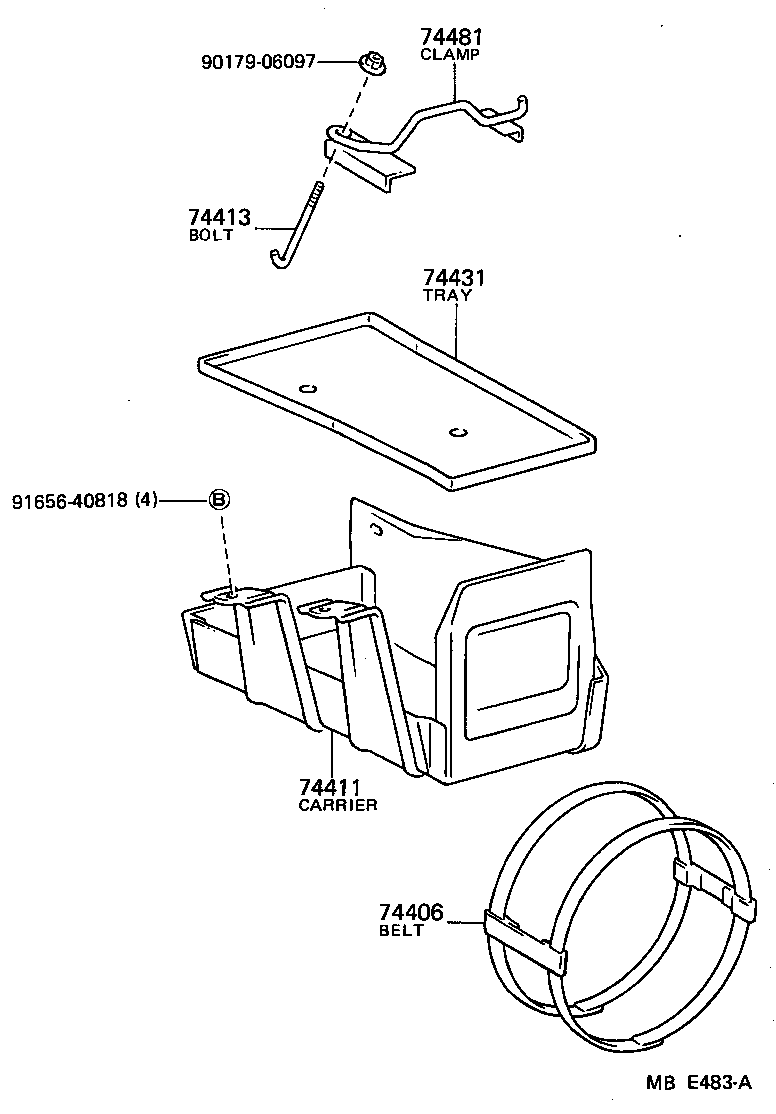

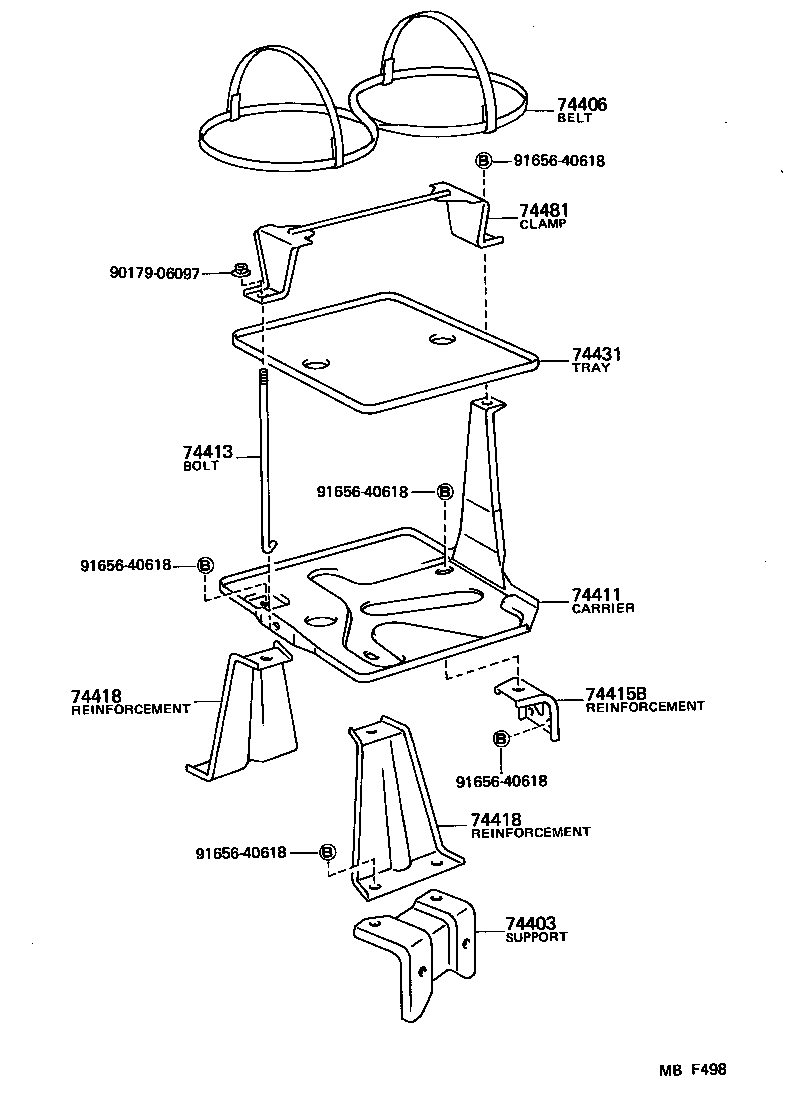

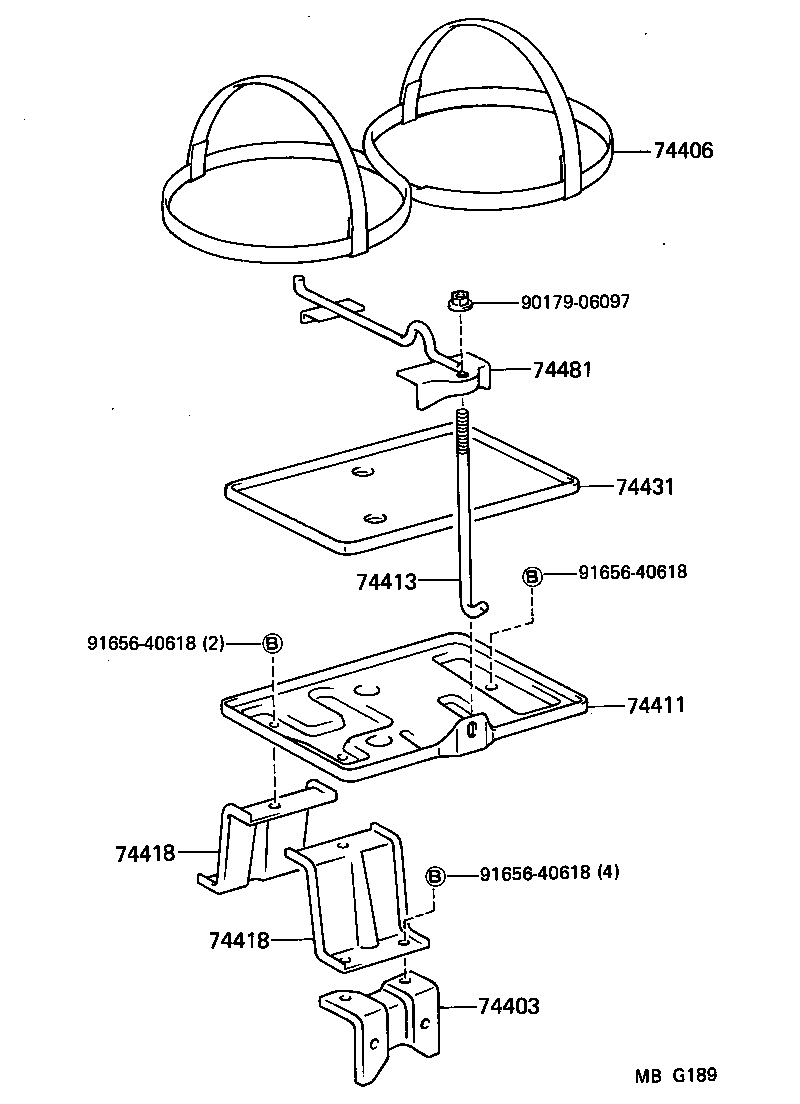

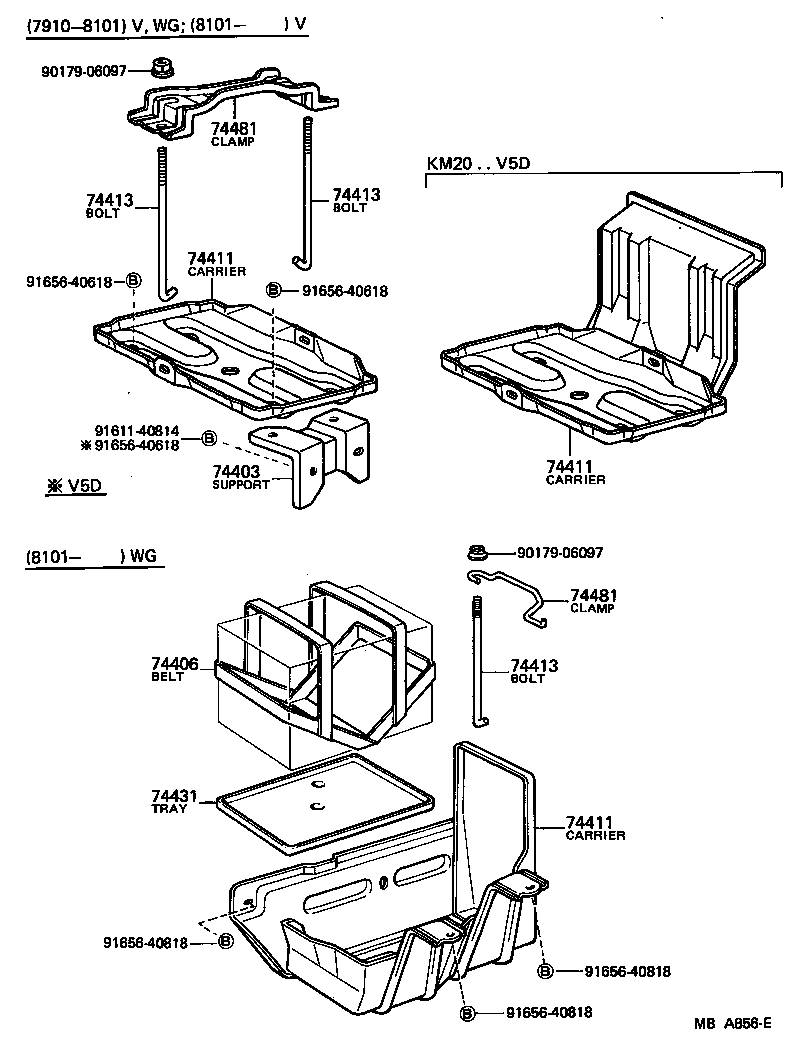

Figure MBA855D MBA855D 1979-10 → — Figure MBE482A MBE482A 1982-10 → — Figure MBA856E MBA856E 1979-10 → 1982-10 Figure MBG186 MBG186 1982-10 → 1985-08 Figure MBE483A MBE483A 1982-10 → 1985-08 Figure MBF498 MBF498 1983-08 → 1983-10 Figure MBG189 MBG189 1983-10 → 1985-08 Figure MBG189 MBG189 1984-06 → 1985-08

Part groups

PNCDescription
74403 Support Sub-assy, Battery Carrier
74406 Belt Sub-assy, Battery
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74414 Bracket, Battery, FR
74415 Bracket, Battery, Rear
74415B Reinforcement, Battery Bracket, Rear
74417 Bracket, Battery Carrier
74418 Reinforcement, Battery Bracket, Front
74421 Hanger, Battery
74431 Tray, Battery
74451 Plate, Battery Carrier Support
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
