Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

12 part groups · 2 illustrations

Illustrations

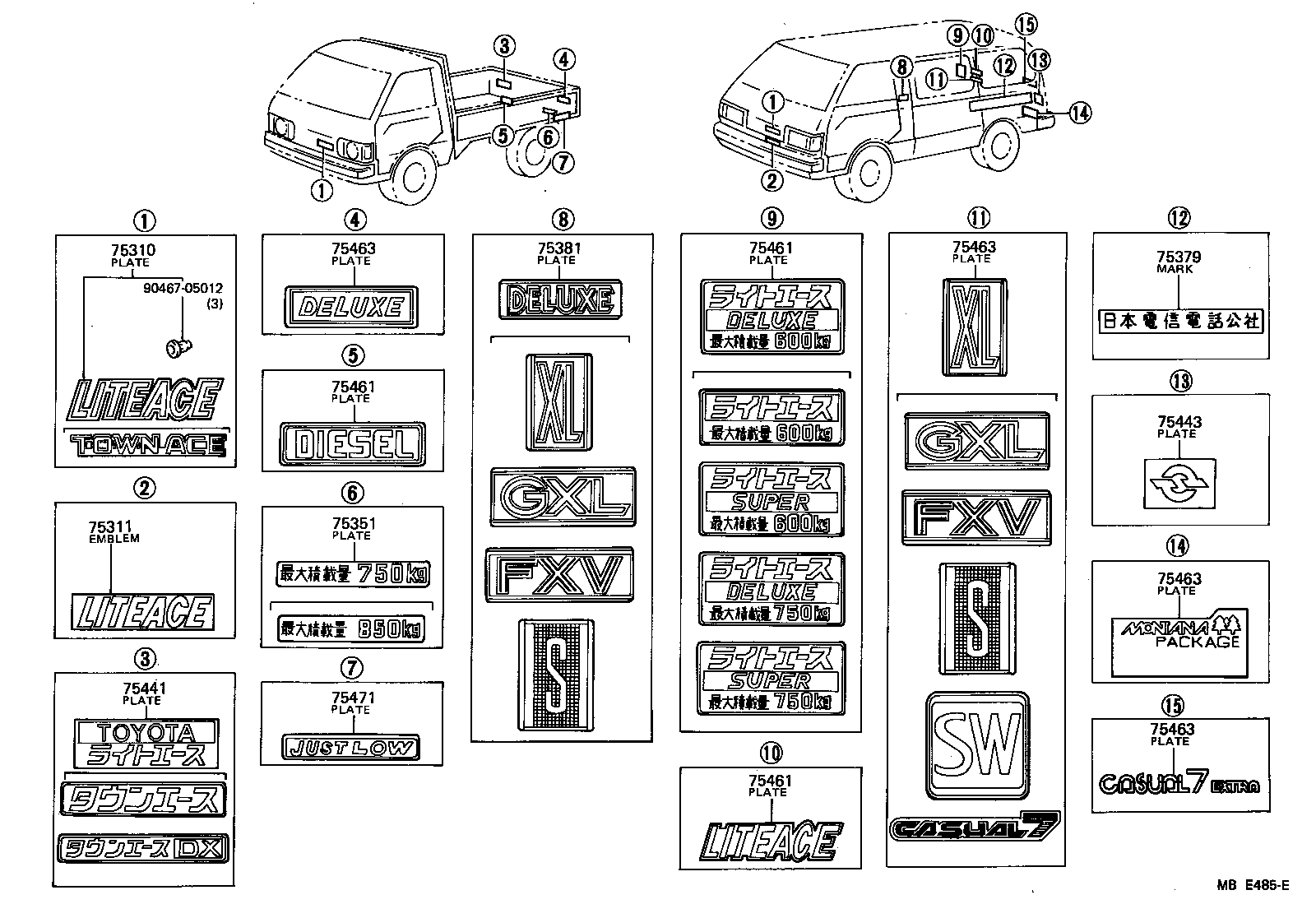

Figure MBA862E MBA862E 1979-10 → 1982-10 Figure MBE485E MBE485E 1982-10 → —

Part groups

PNCDescription
75310 Plate Assy, Front Panel
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75363 Plate, Door Name
75379 Mark, Side Panel
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75441 Plate, Rear Name, NO.1
75443 Plate, Back Door Name, NO.3
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75471 Plate, Rear Body Name, NO.1(MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
