Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

42 part groups · 21 illustrations

Illustrations

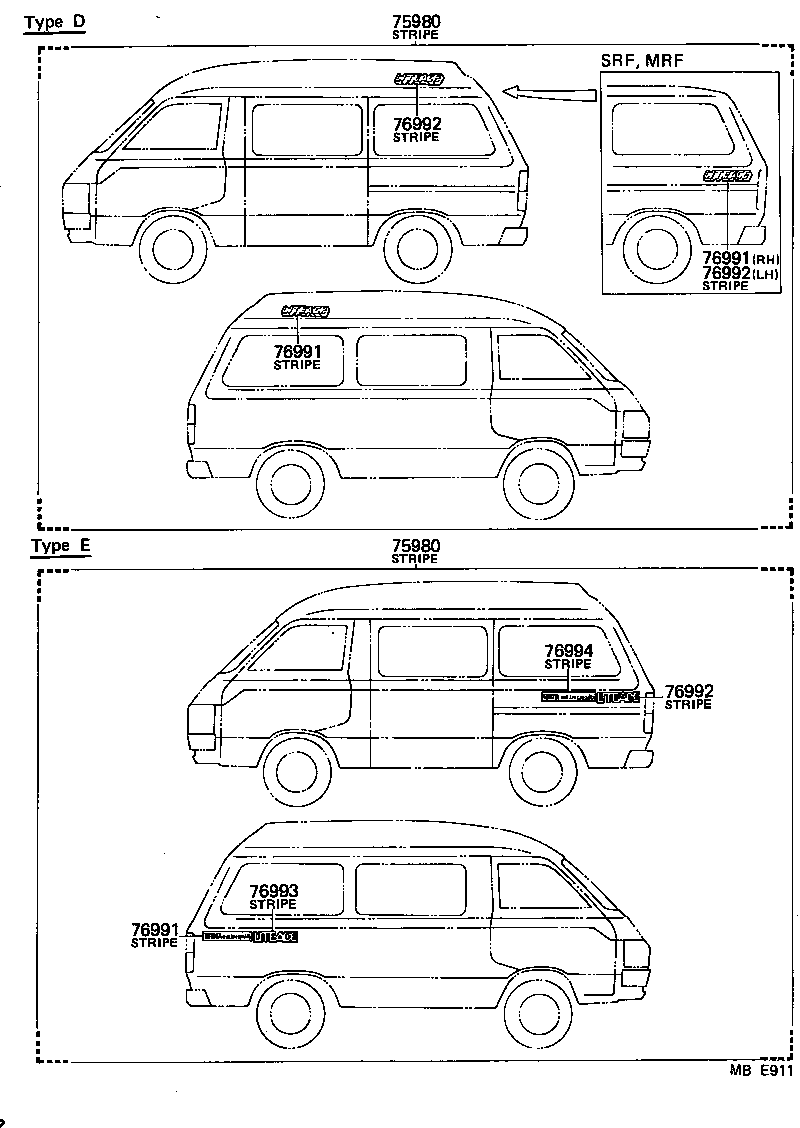

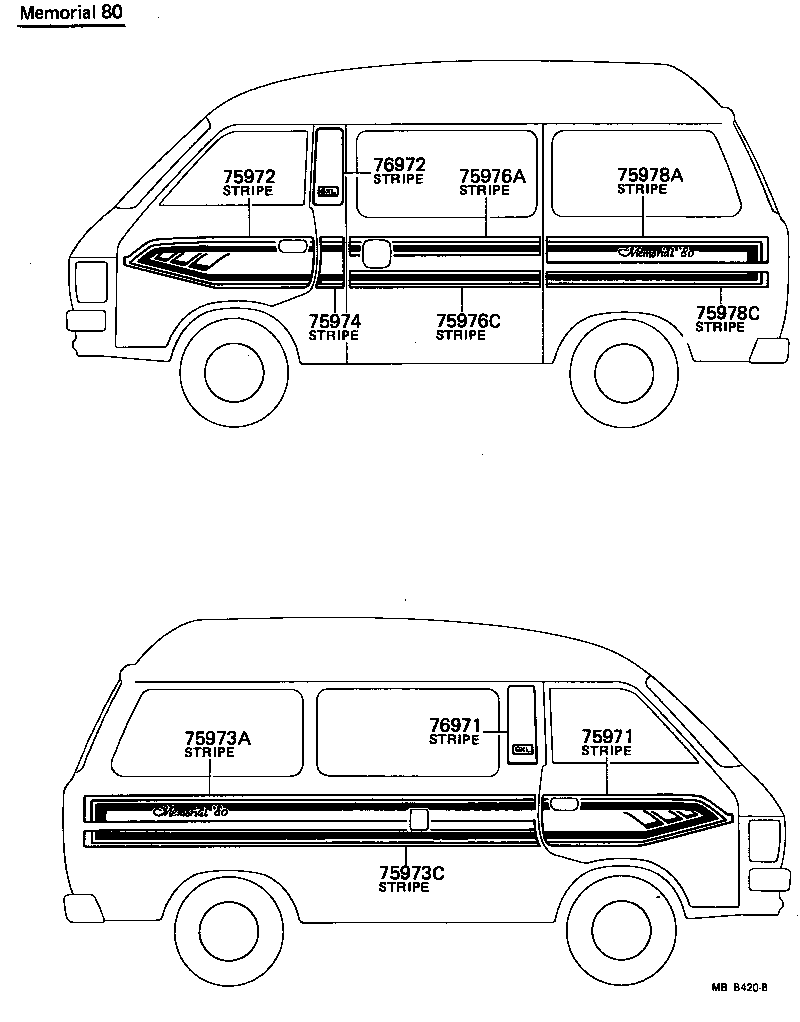

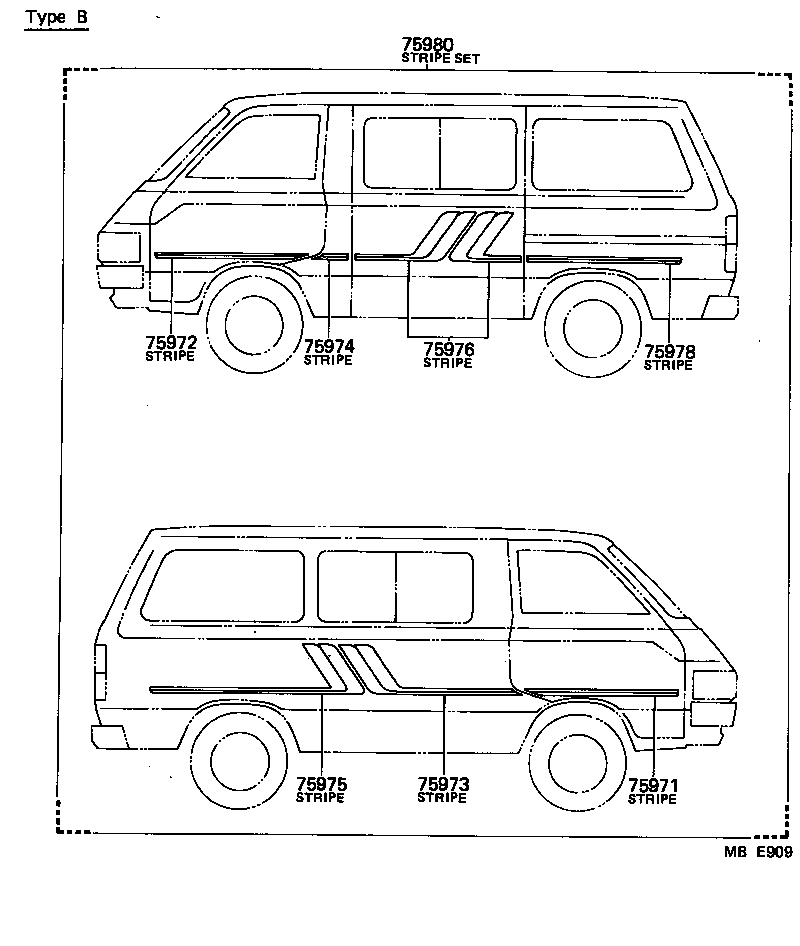

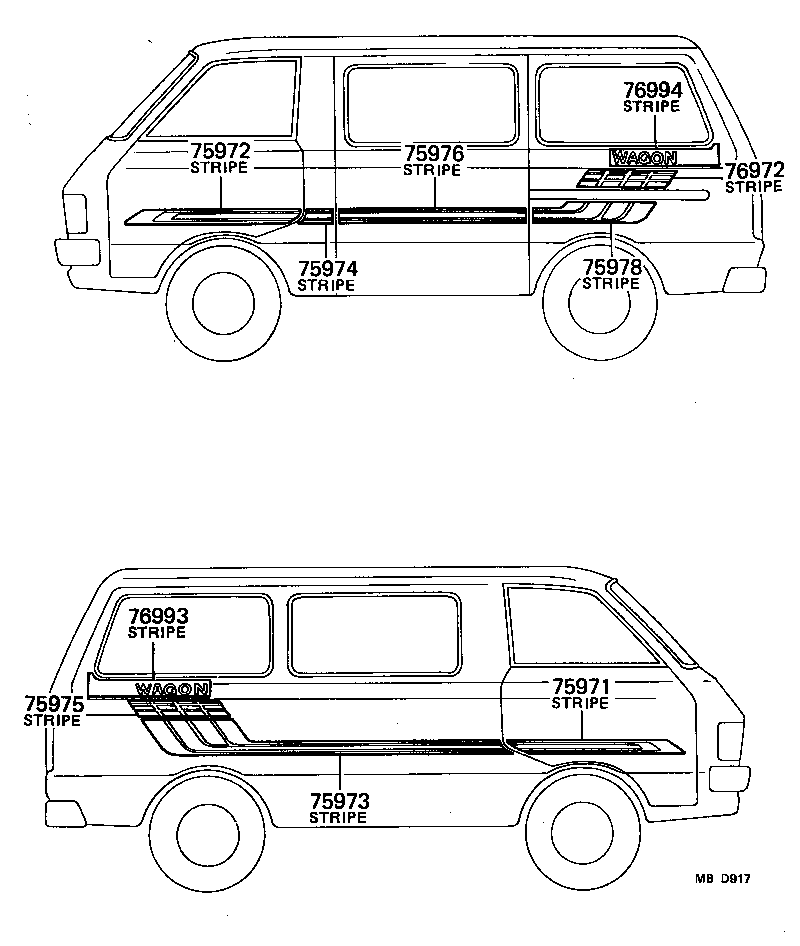

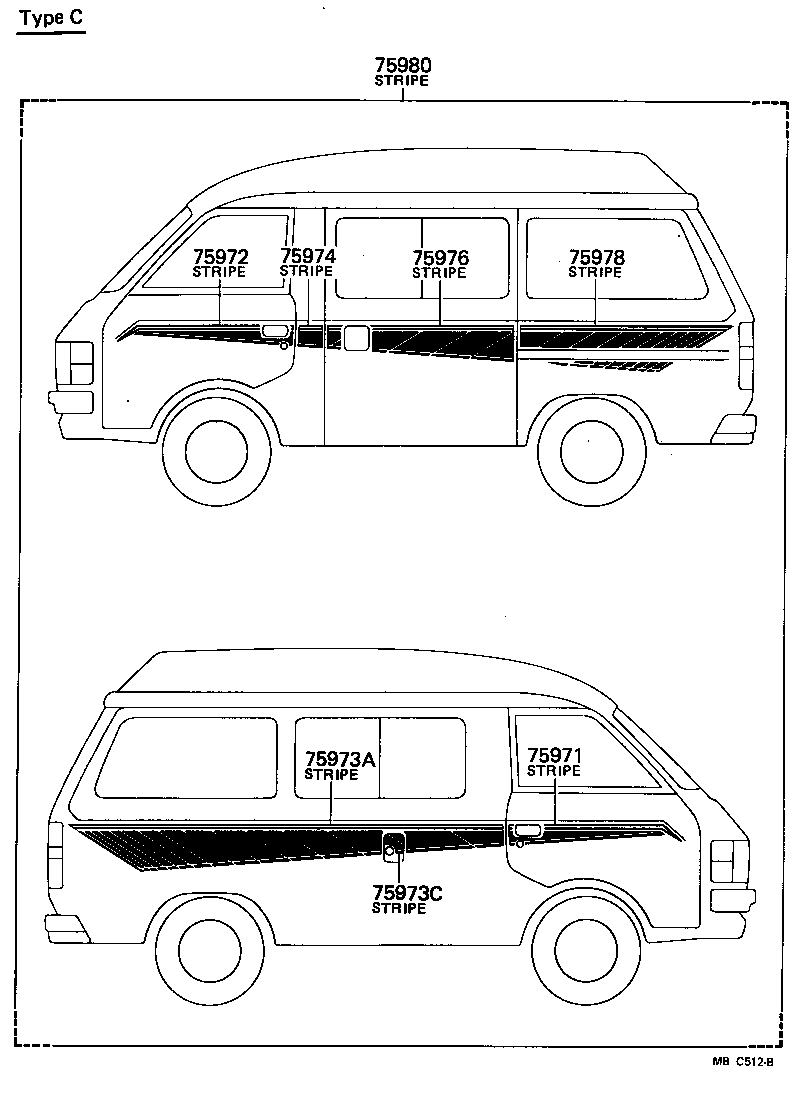

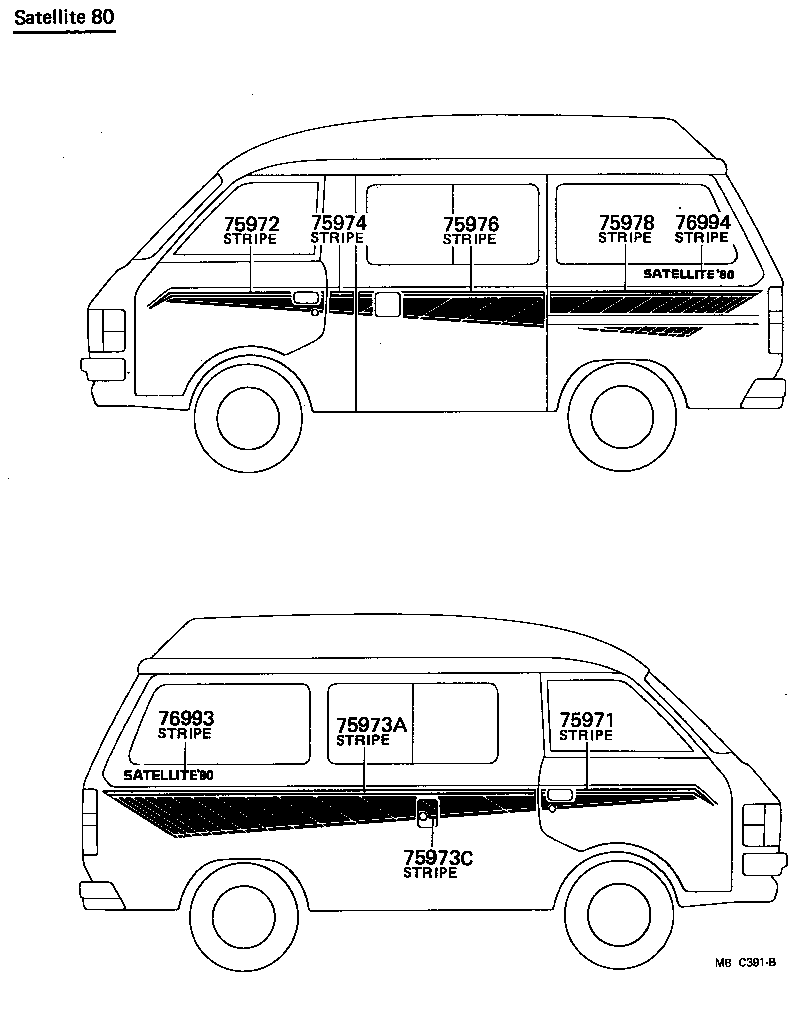

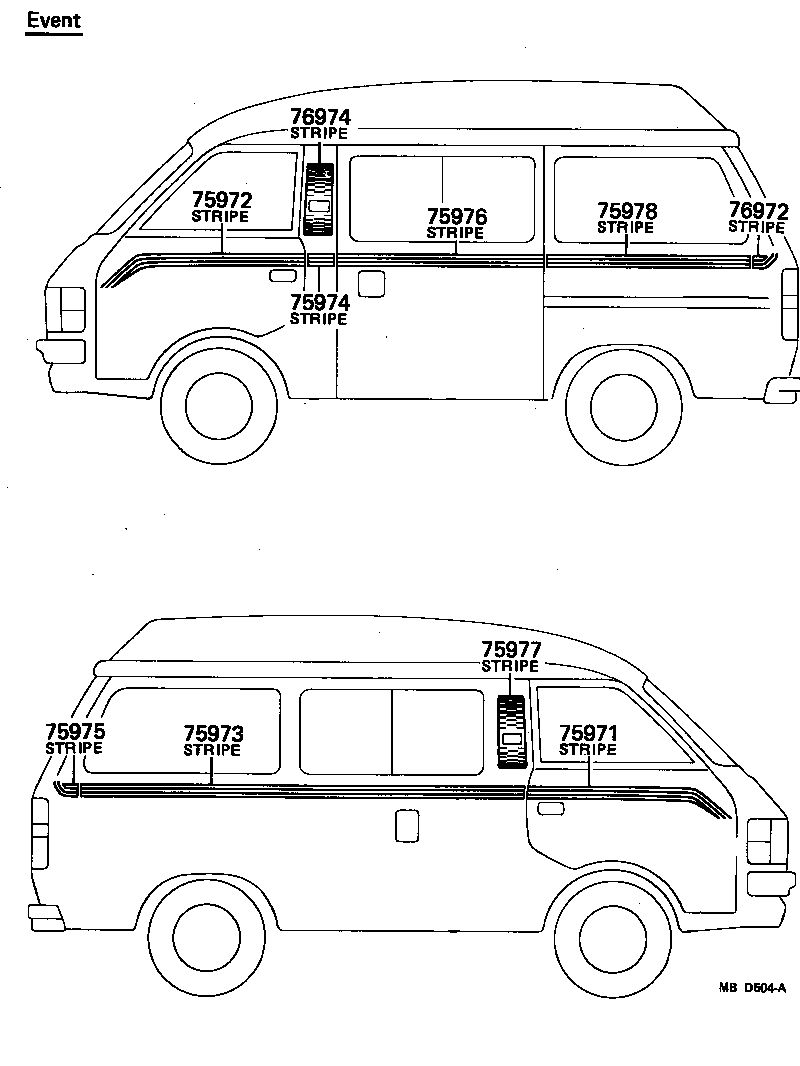

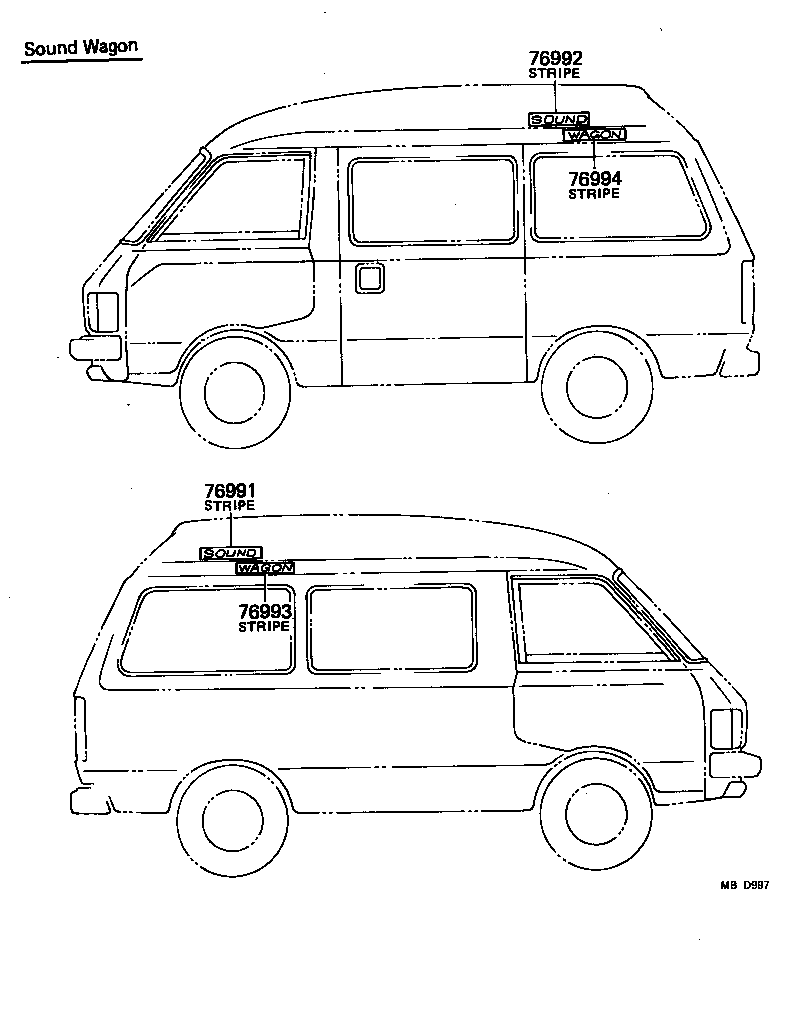

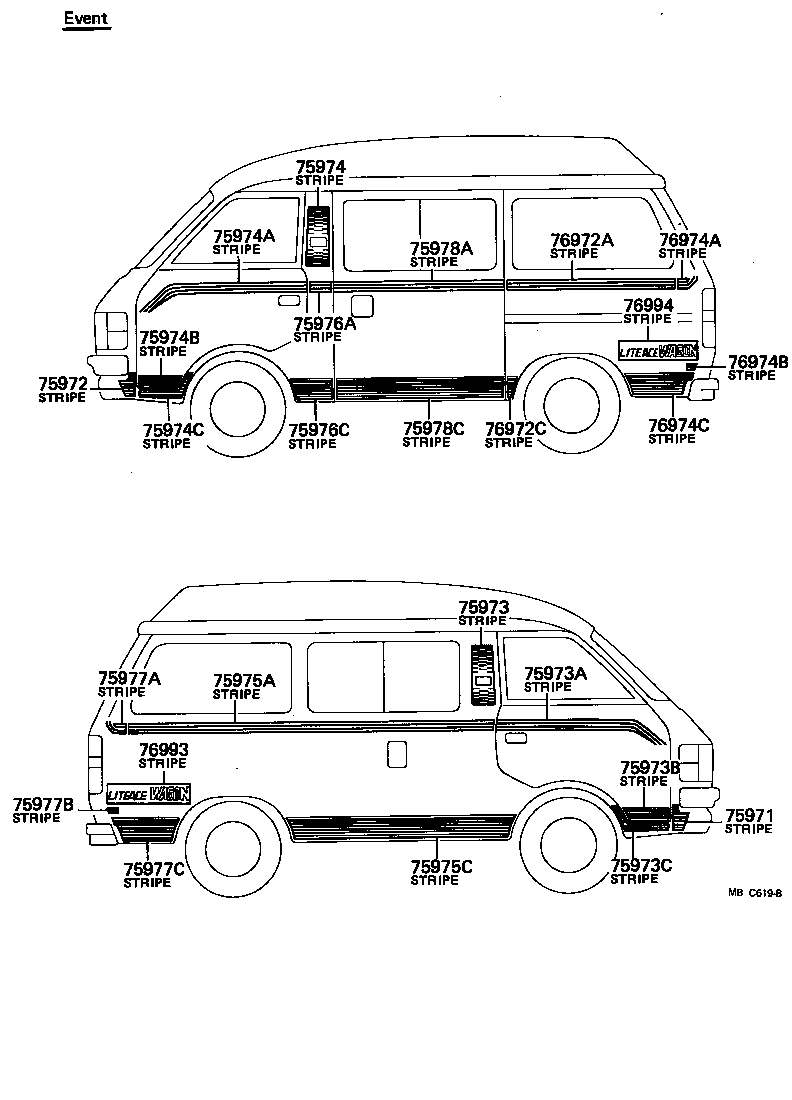

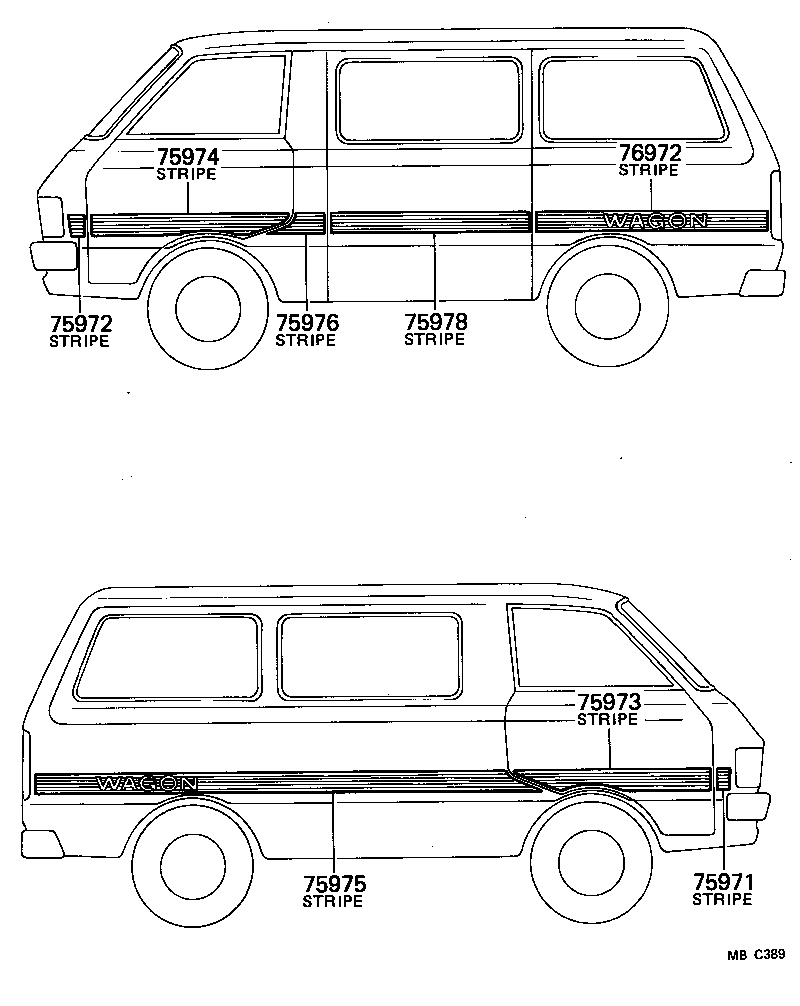

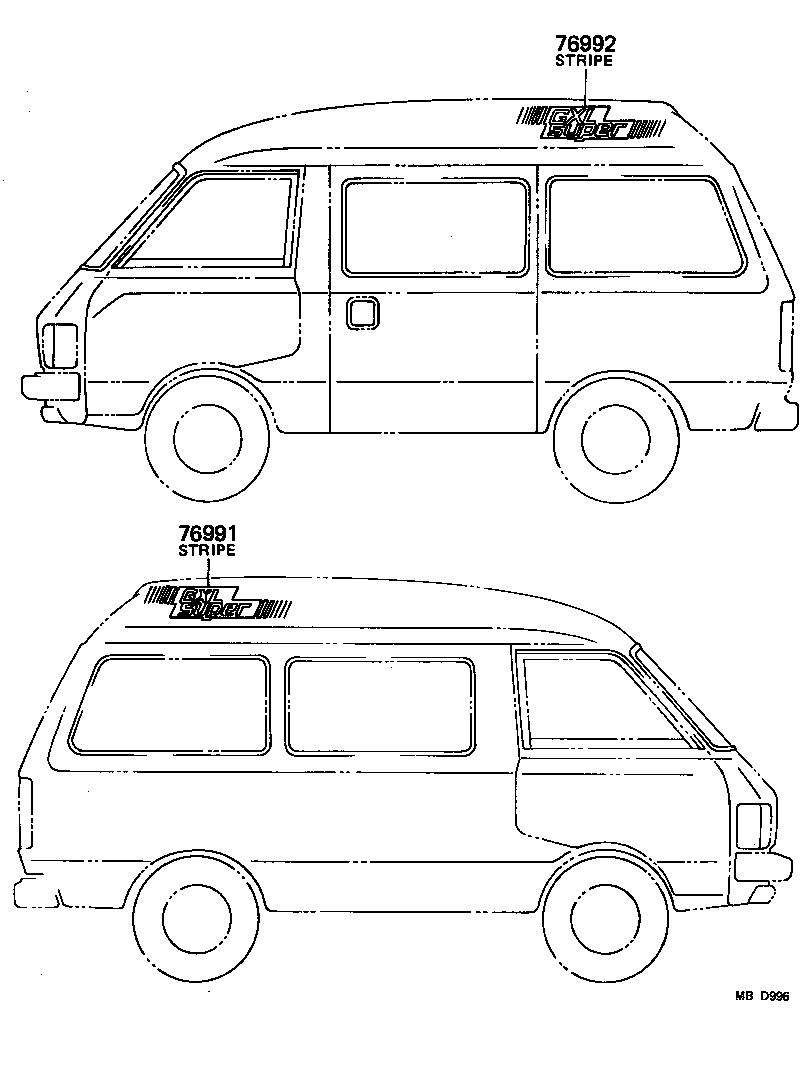

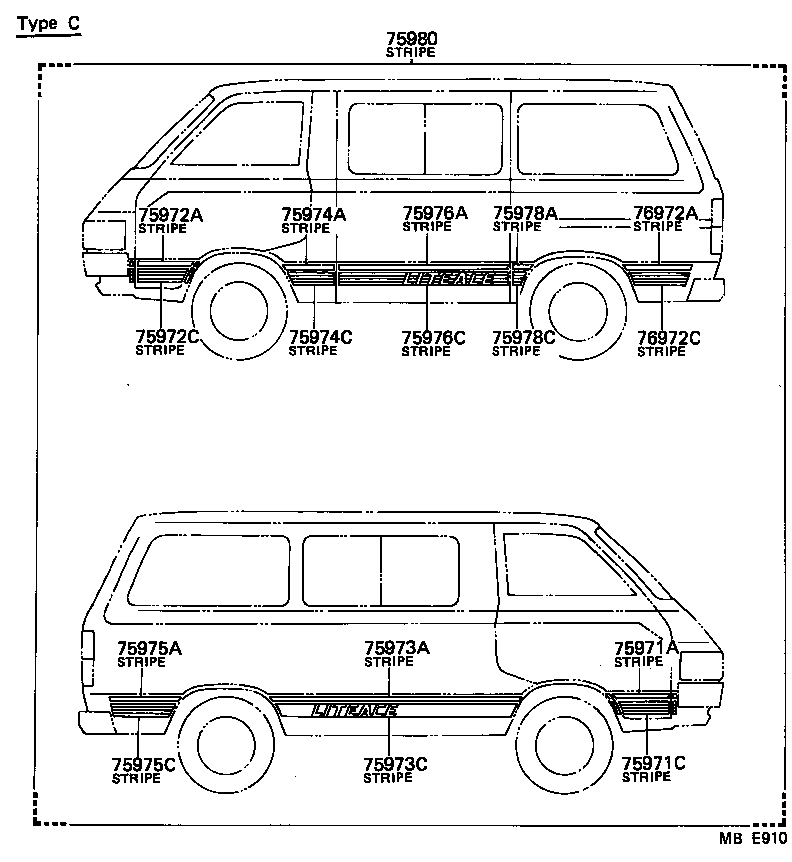

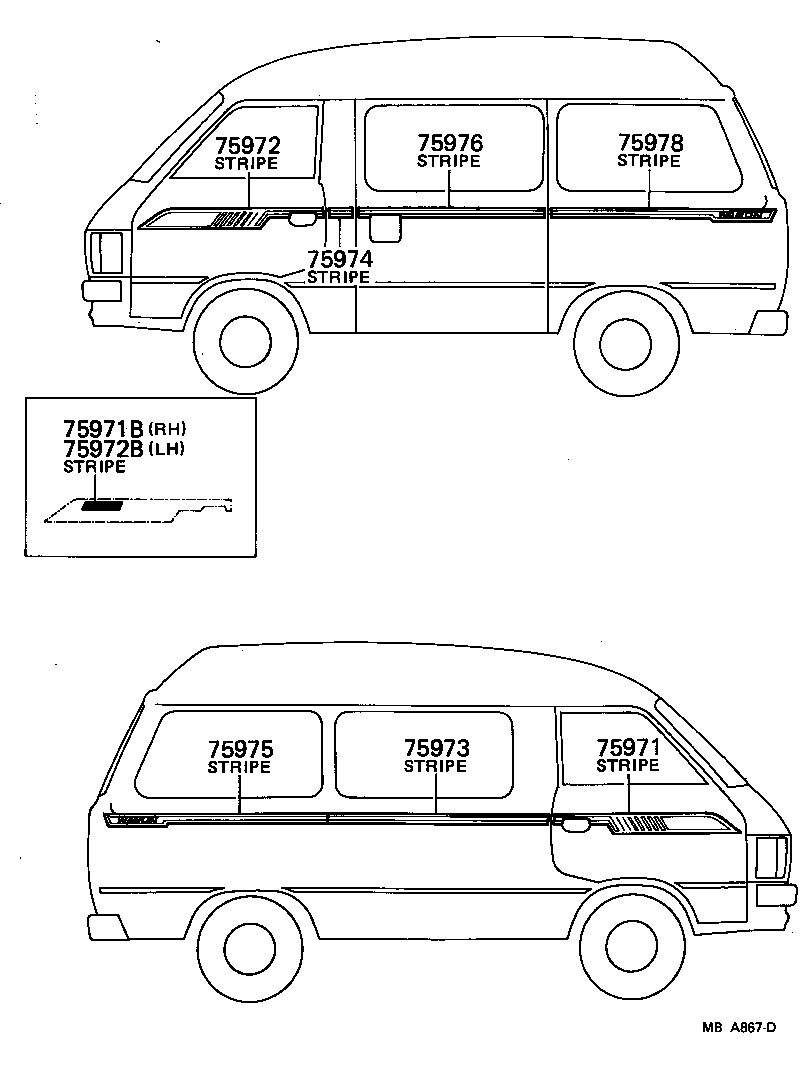

Figure MBA866A MBA866A 1979-10 → 1981-01 Figure MBA867D MBA867D 1979-10 → 1981-01 Figure MBC389 MBC389 1981-01 → 1982-10 Figure MBD917 MBD917 1981-01 → 1982-10 Figure MBC512B MBC512B 1981-01 → 1982-10 Figure MBC513A MBC513A 1981-01 → 1982-10 Figure MBD503A MBD503A 1982-01 → 1982-10 Figure MBD503A MBD503A 1982-10 → 1985-08 Figure MBD996 MBD996 1982-03 → 1982-10 Figure MBE908 MBE908 1982-10 → 1985-08 Figure MBE909 MBE909 1982-10 → 1985-08 Figure MBE910 MBE910 1982-10 → 1985-08 Figure MBE911 MBE911 1984-05 → 1985-08 Figure MBG518 MBG518 1984-05 → 1985-08 Figure MBB420B MBB420B 1980-06 → 1980-07 Figure MBC391B MBC391B 1980-10 → 1980-11 Figure MBC392A MBC392A 1980-11 → 1980-11 Figure MBC619B MBC619B 1981-06 → 1981-07 Figure MBD504A MBD504A 1981-09 → 1981-10 Figure MBD997 MBD997 1982-03 → 1982-04 Figure MBJ027 MBJ027 1985-01 → 1985-08

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75971A Stripe, Side, RH NO.1 (FOR UPPER)
75971B Stripe, Side, RH NO.1 (FOR CENTER)
75971C Stripe, Side, RH NO.1 (FOR LOWER)
75972 Stripe, Side, LH NO.1
75972A Stripe, Side, LH NO.1 (FOR UPPER)
75972B Stripe, Side, LH NO.1 (FOR CENTER)
75972C Stripe, Side, LH NO.1 (FOR LOWER)
75973 Stripe, Side, RH NO.2
75973A Stripe, Side, RH NO.2 (FOR UPPER)
75973B Stripe, Side, RH NO.2 (FOR CENTER)
75973C Stripe, Side, RH NO.2 (FOR LOWER)
75974 Stripe, Center Pillar, LH NO.2
75974A Stripe, Side, LH NO.2(FOR UPPER)
75974B Stripe, Side, LH NO.2(FOR CENTER)
75974C Stripe, Side, LH NO.2(FOR LOWER)
75975 Stripe, Side, RH Upr NO.3
75975A Stripe, Side, RH NO.3 (FOR UPPER)
75975C Stripe, Side, RH NO.3 (FOR LOWER)
75976 Stripe, Side, LH Upr
75976A Stripe, Side, LH NO.3 (FOR UPPER)
75976C Stripe, Side, LH NO.3 (FOR LOWER)
75977 Stripe, Side, RH NO.4
75977A Stripe, Side, RH NO.4(FOR UPPER)
75977B Stripe, Side, RH NO.4(FOR CENTER)
75977C Stripe, Side, RH NO.4(FOR LOWER)
75978 Stripe, Side, LH NO.4
75978A Stripe, Side, LH NO.4(FOR UPPER)
75978C Stripe, Side, LH NO.4(FOR LOWER)
75980 Stripe Set
76971 Stripe, Side, RH NO.5
76972 Stripe, Quarter, Rear LH
76972A Stripe, Side, LH NO.5 (FOR UPPER)
76972C Stripe, Side, LH NO.5 (FOR LOWER)
76974 Stripe, Side, LH NO.6
76974A Stripe, Side, LH NO.6 (FOR UPPER)
76974B Stripe, Side, LH NO.6 (FOR CENTER)
76974C Stripe, Side, LH NO.6 (FOR LOWER)
76991 Stripe, Side Mark, RH NO.1
76992 Stripe, Side Mark, LH NO.1
76993 Stripe, Side Mark, RH NO.2
76994 Stripe, Side Mark, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
