Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

11 part groups · 5 illustrations

Illustrations

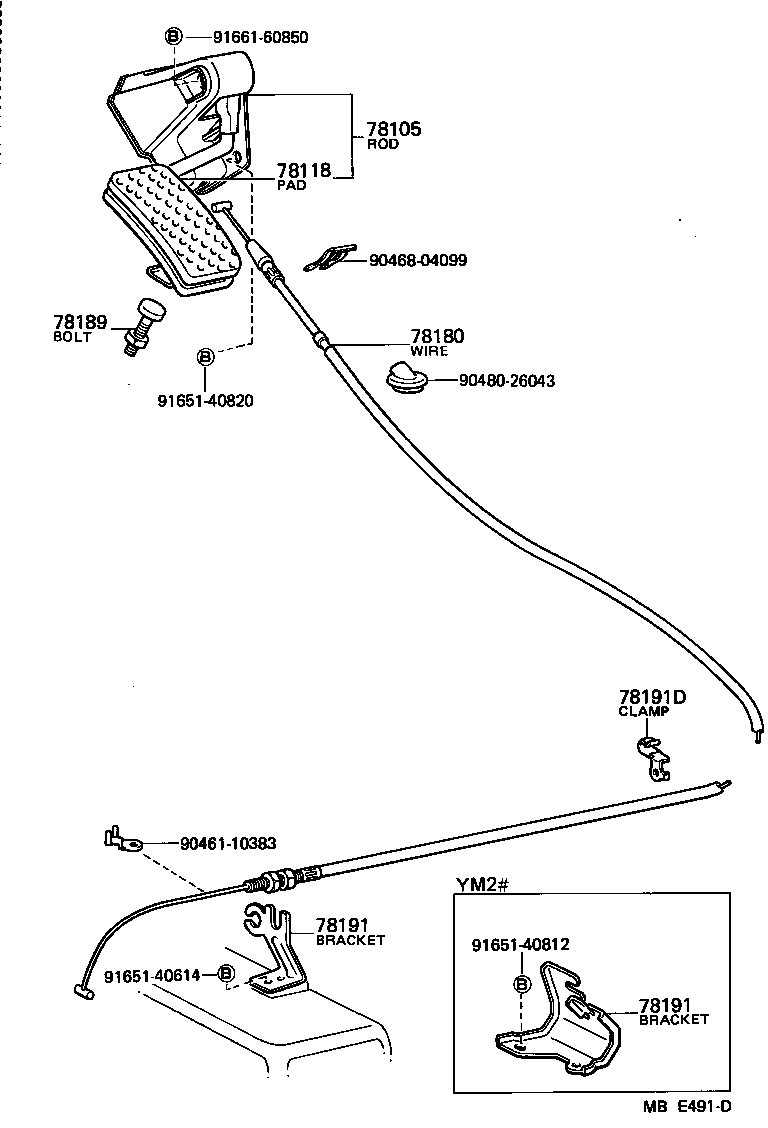

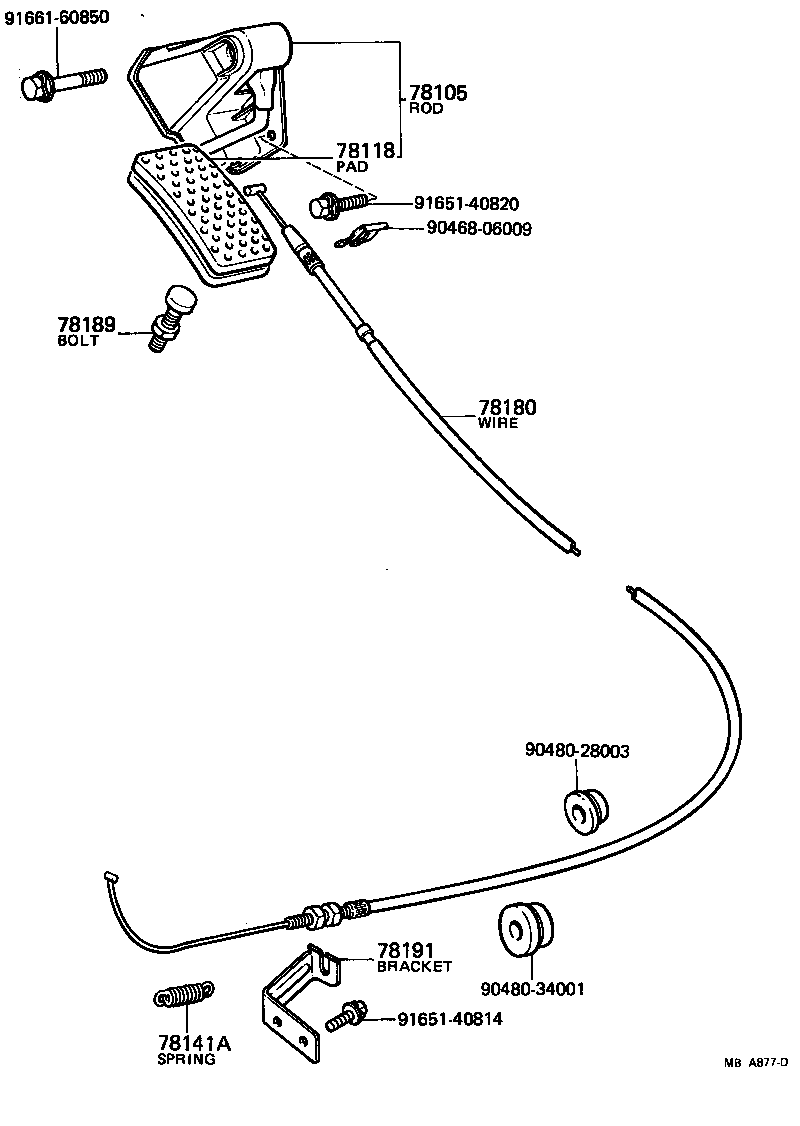

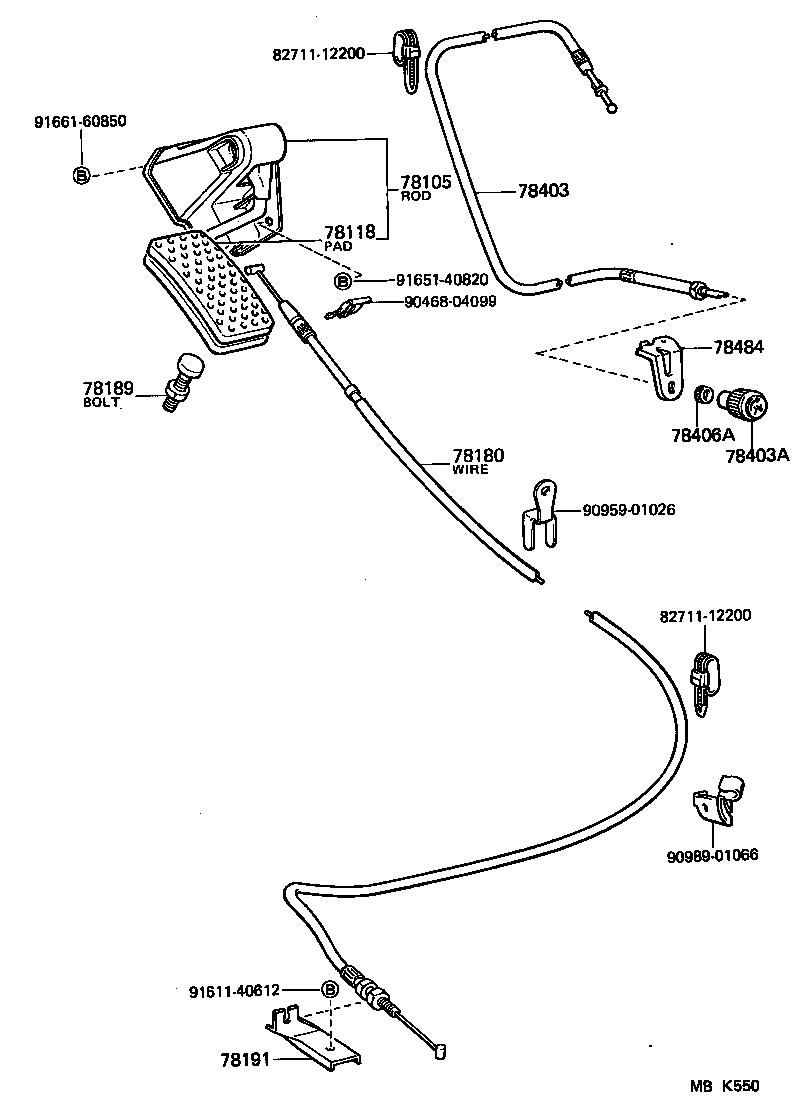

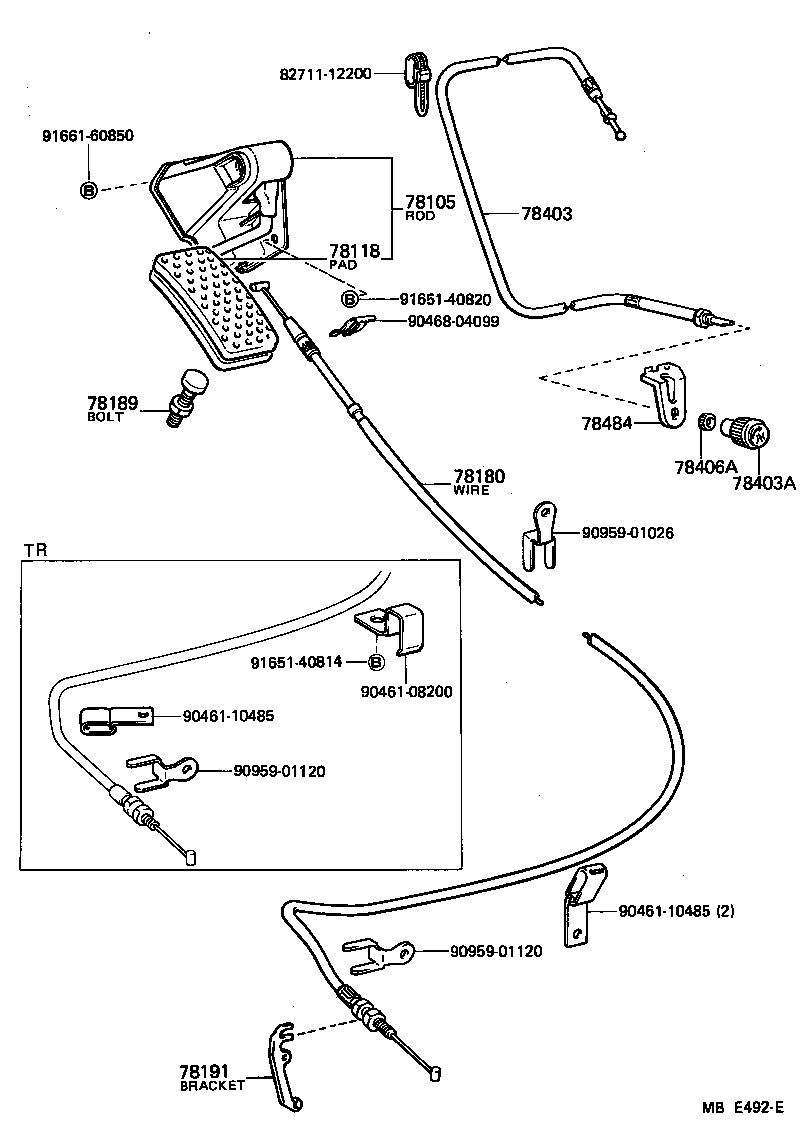

Figure MBA876C MBA876C 1979-10 → 1982-10 Figure MBA877D MBA877D 1979-10 → 1982-10 Figure MBE491D MBE491D 1982-10 → — Figure MBE492E MBE492E 1982-10 → — Figure MBK550 MBK550 1985-08 → —

Part groups

PNCDescription
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78118 Pad, Accelerator Pedal
78141A Spring, Tension(FOR ACCELERATOR WIRE RETURN SPRING)
78180 Wire Assy, Accelerator
78189 Bolt, Accelerator Pedal Stopper
78191 Bracket, Accelerator Wire Support
78191D Clamp, Accelerator Control Cable
78403 Cable Sub-assy, Throttle Control
78403A Knob, Throttle Control
78406A Nut, Holder (FOR THROTTLE BUTTON)
78484 Bracket, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
