Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 4 illustrations

Illustrations

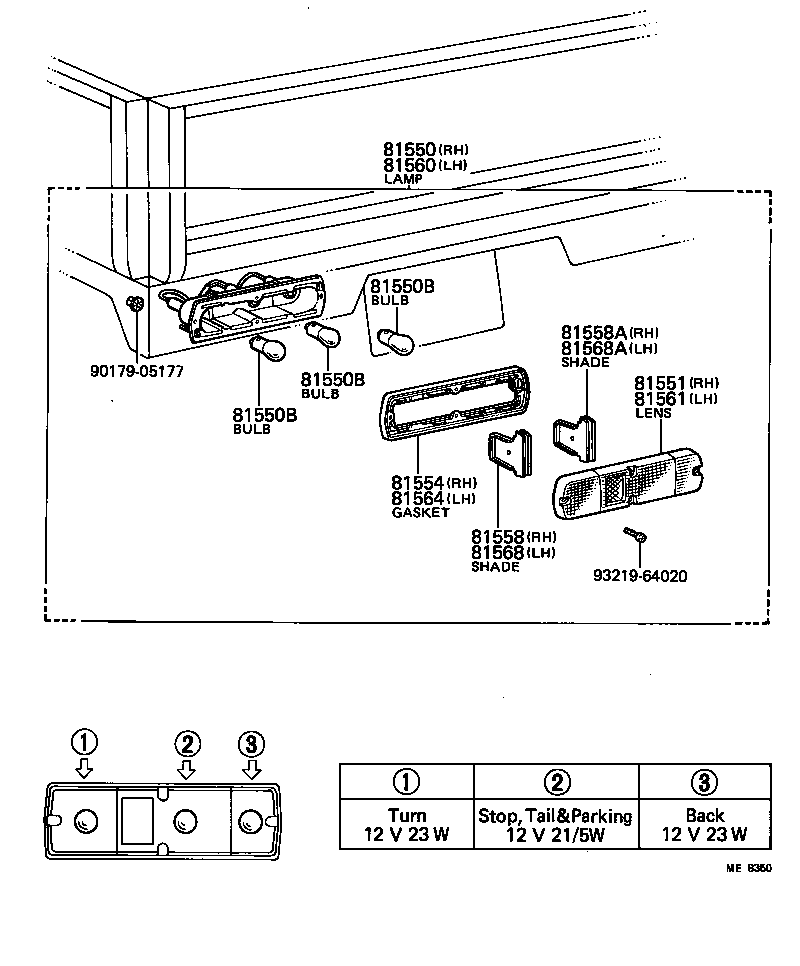

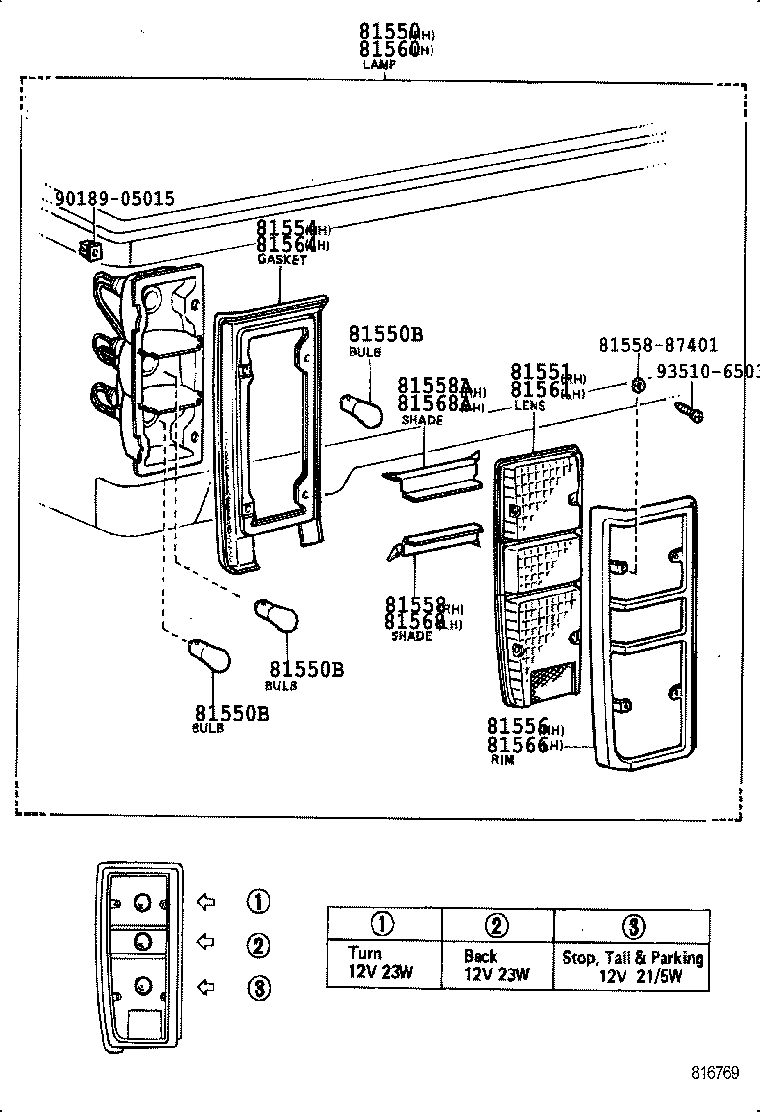

Figure ME8348B ME8348B 1979-10 → — Figure 816769 816769 1979-10 → — Figure ME8350 ME8350 1979-10 → 1982-10 Figure ME8350 ME8350 1979-10 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81566 Rim, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
