Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 9 illustrations

Illustrations

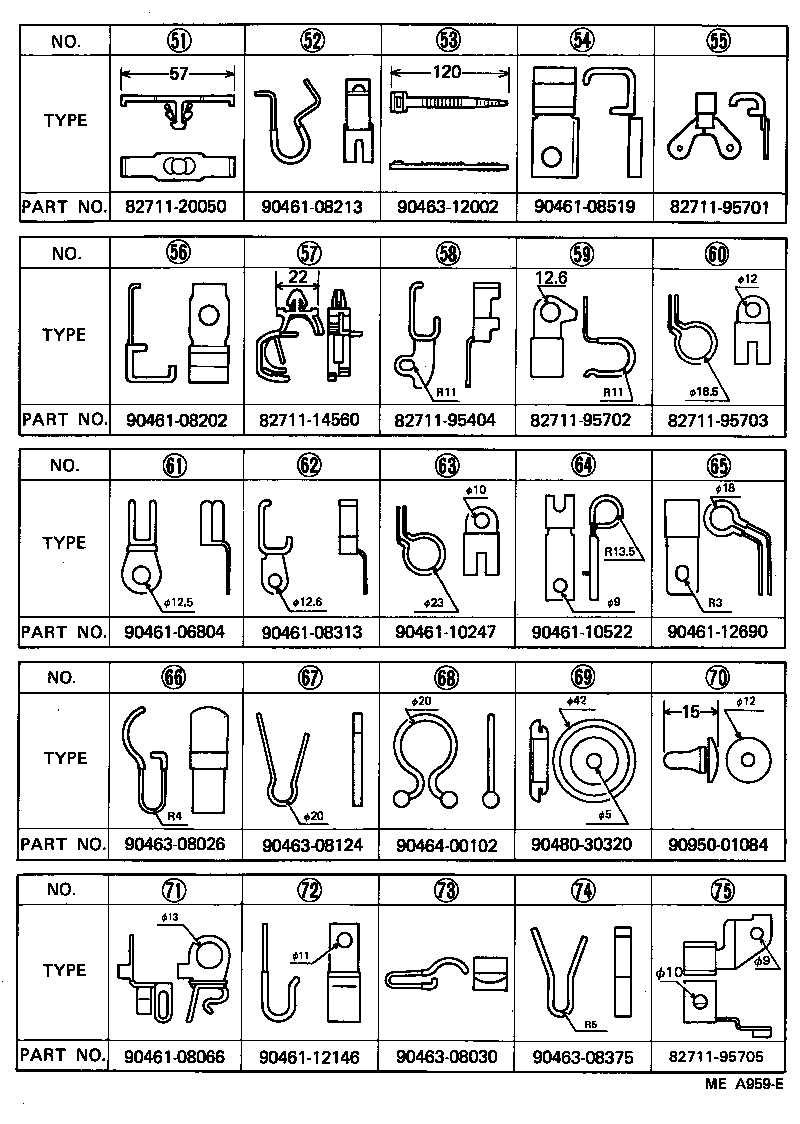

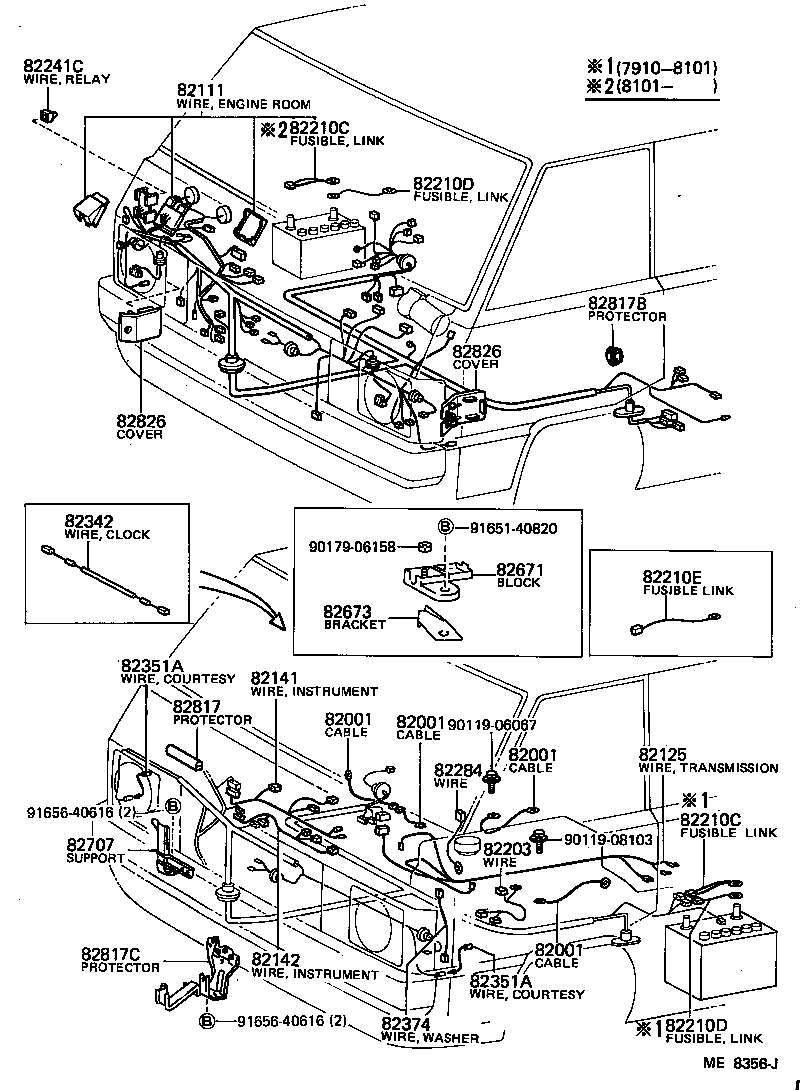

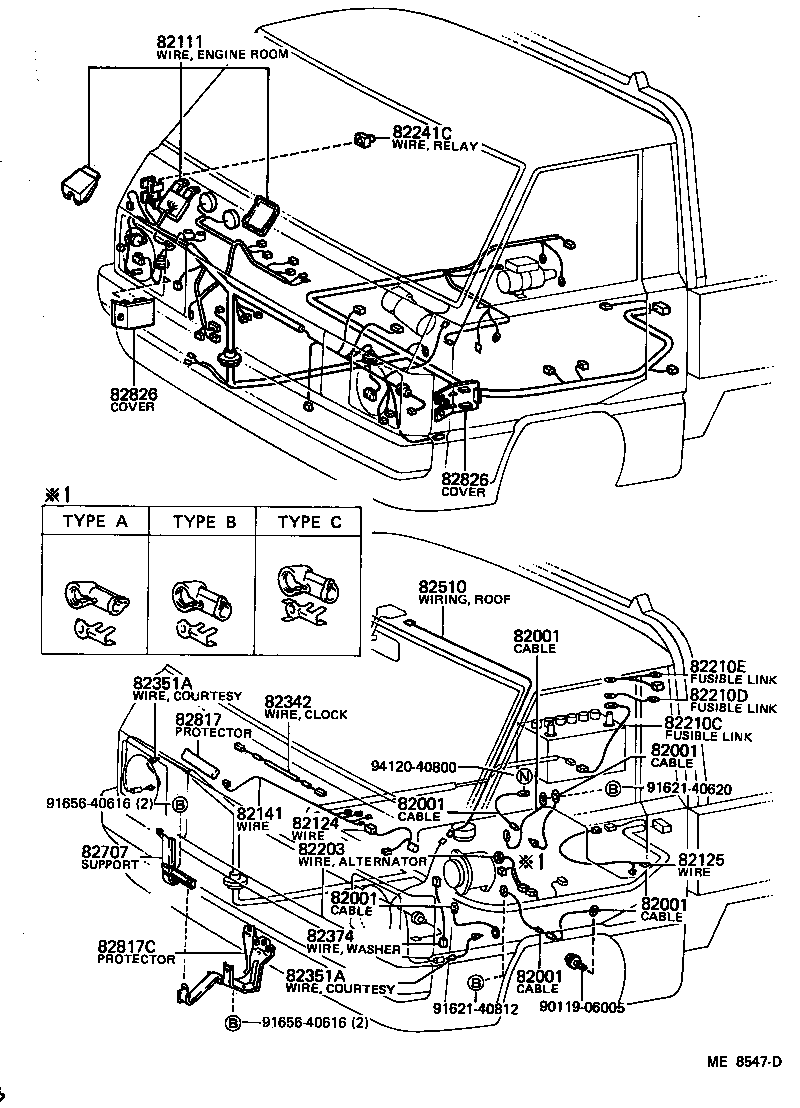

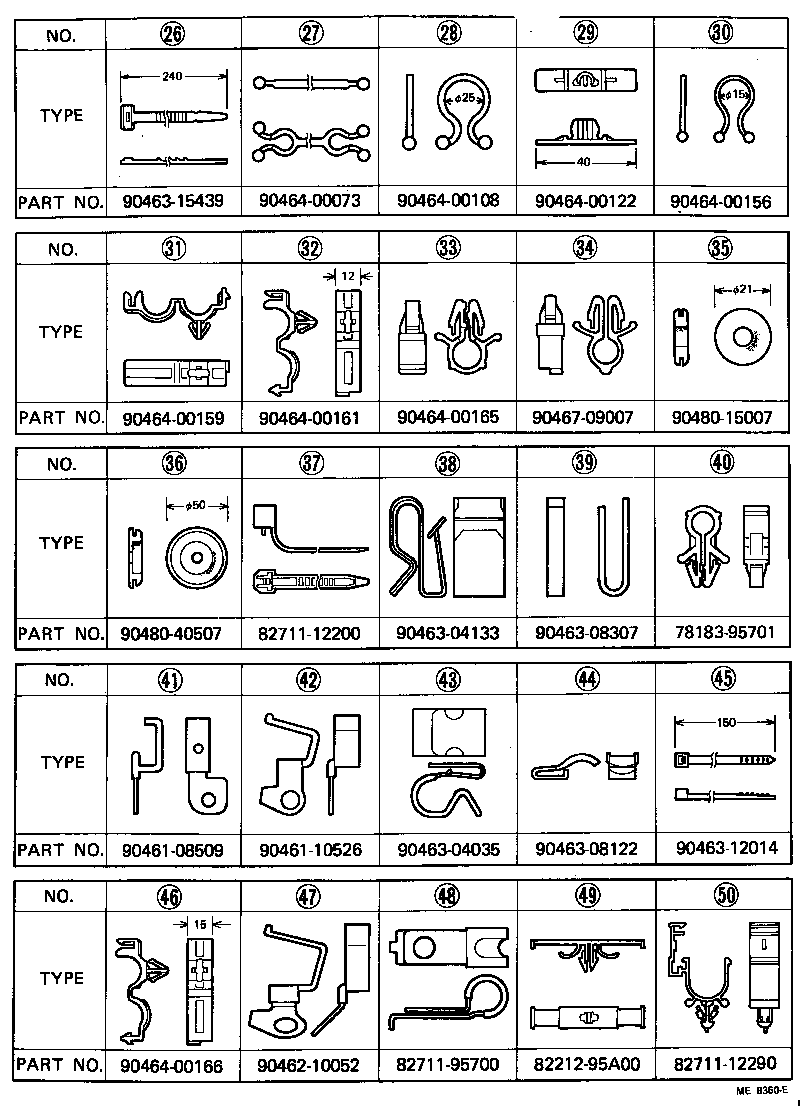

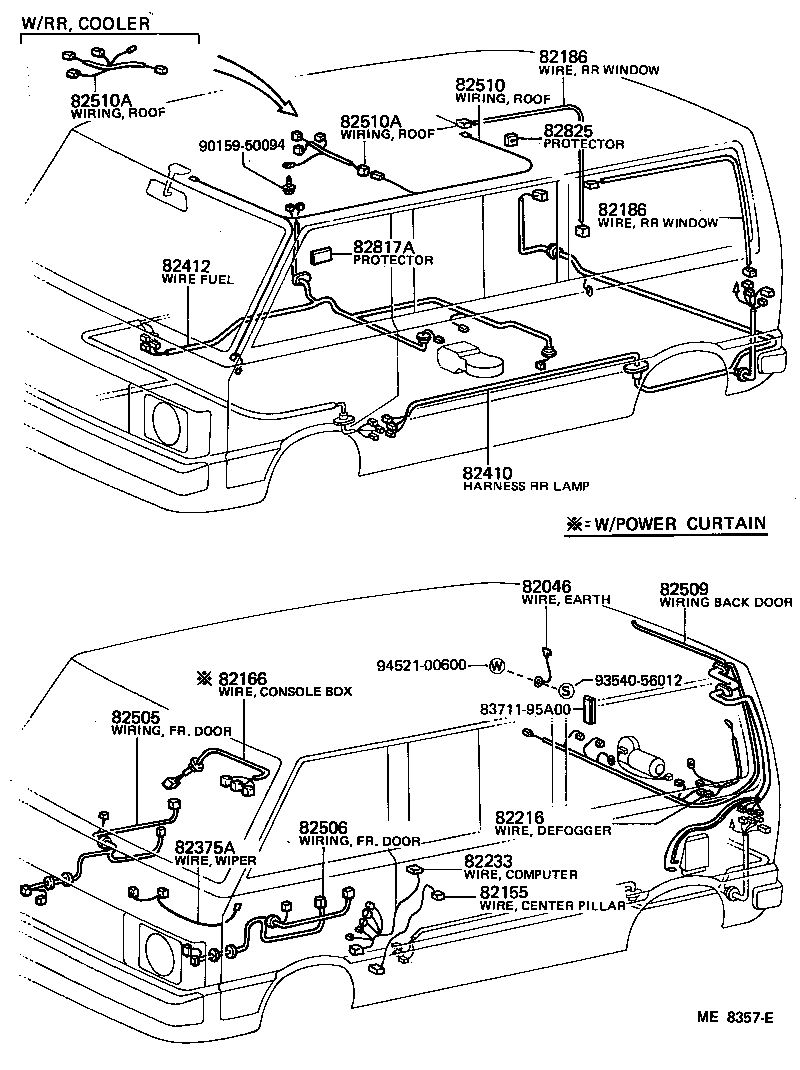

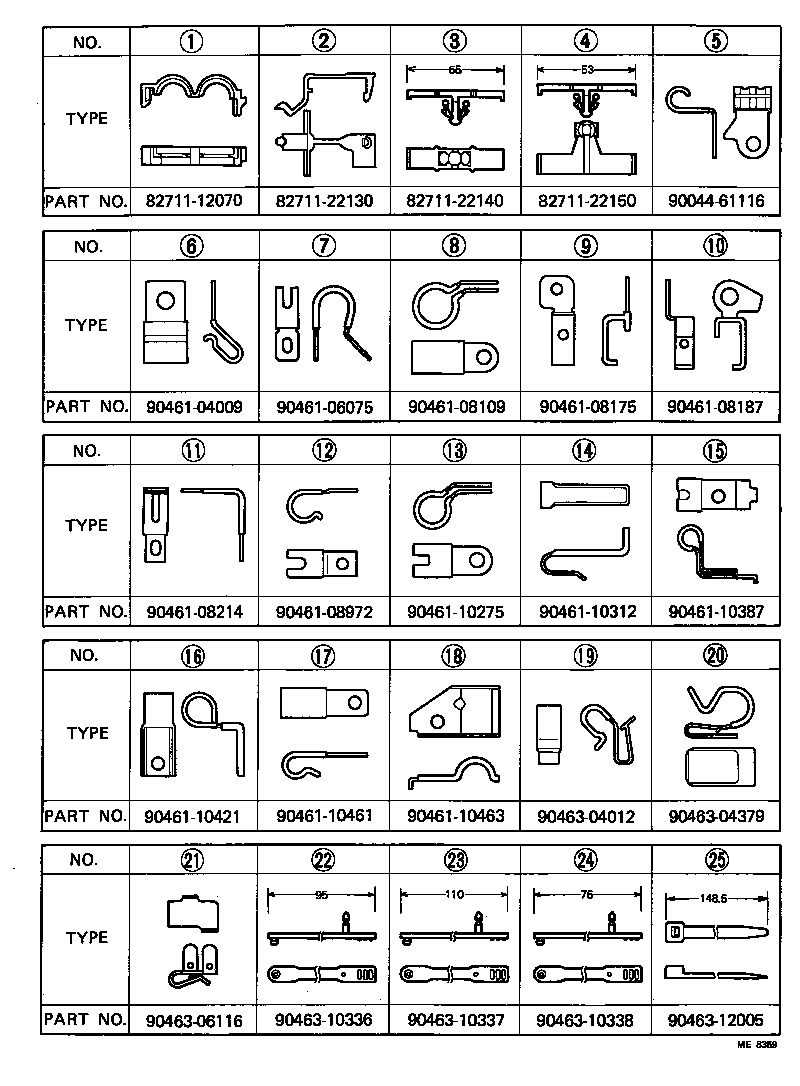

Figure ME8546D ME8546D 1979-10 → 1985-08 Figure ME8547D ME8547D 1979-10 → — Figure ME8356J ME8356J 1979-10 → 1985-08 Figure ME8357E ME8357E 1979-10 → 1985-08 Figure ME8358 ME8358 1979-10 → — Figure ME8359 ME8359 1979-10 → — Figure ME8360E ME8360E 1979-10 → — Figure MEA959E MEA959E 1979-10 → — Figure MED254D MED254D 1979-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82155 Wire, Center Piller, NO.1
82166 Wire, Console Box
82186 Wire, Rear Window, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82233 Wire, Computer
82241C Wire, Relay
82284 Wire, Earth
82342 Wire, Clock
82351A Wire, Courtesy Lamp Switch (FOR FRONT OR REAR DOOR)
82374 Wire, Washer
82375A Wire, Wiper Motor
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82509 Wiring Sub-assy, Back Door
82510 Wiring Assy, Roof
82510A Wiring Assy, Roof, NO.2
82671 Block, Junction
82673 Bracket, Junction Block
82707 Support Sub-assy, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82825 Protector, Wiring Harness
82826 Cover, Wiring Harness Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
