Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

28 part groups · 7 illustrations

Illustrations

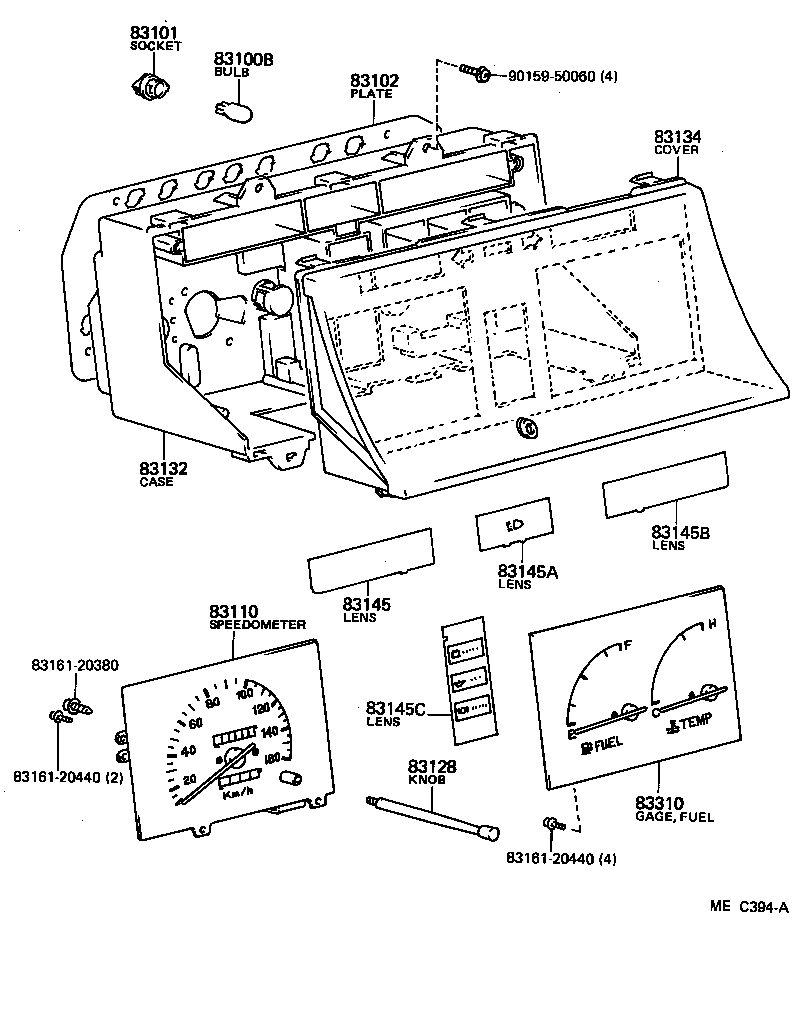

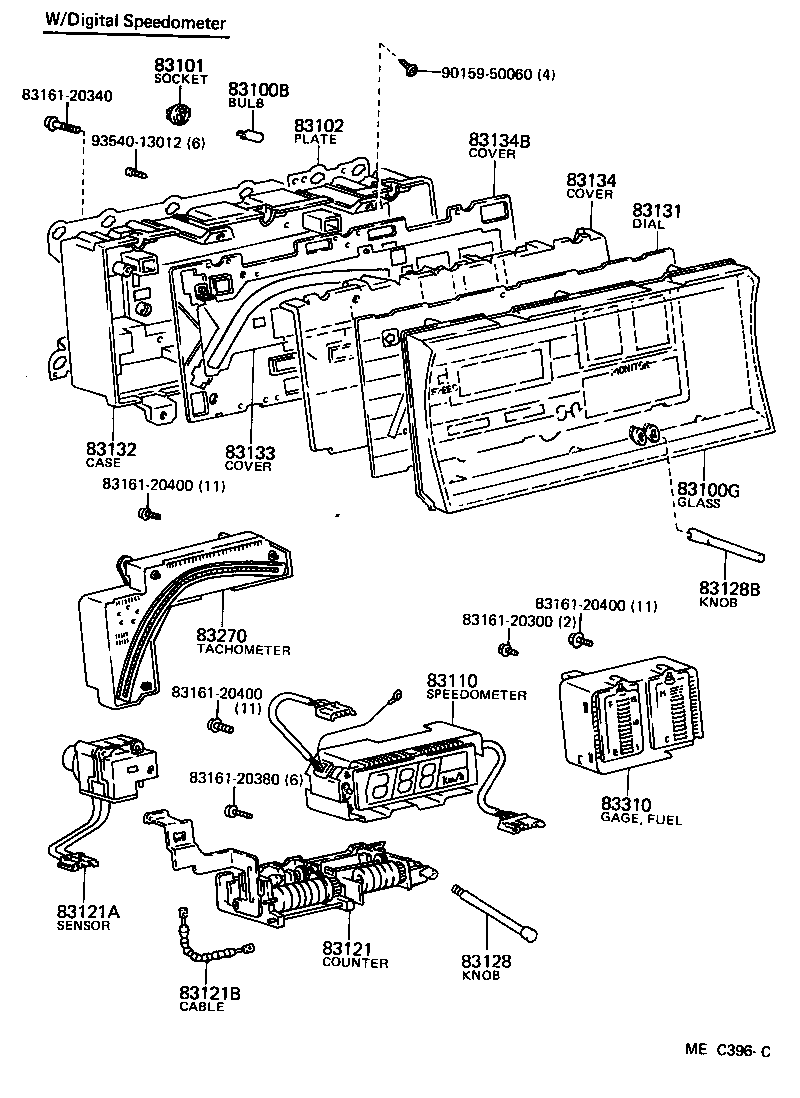

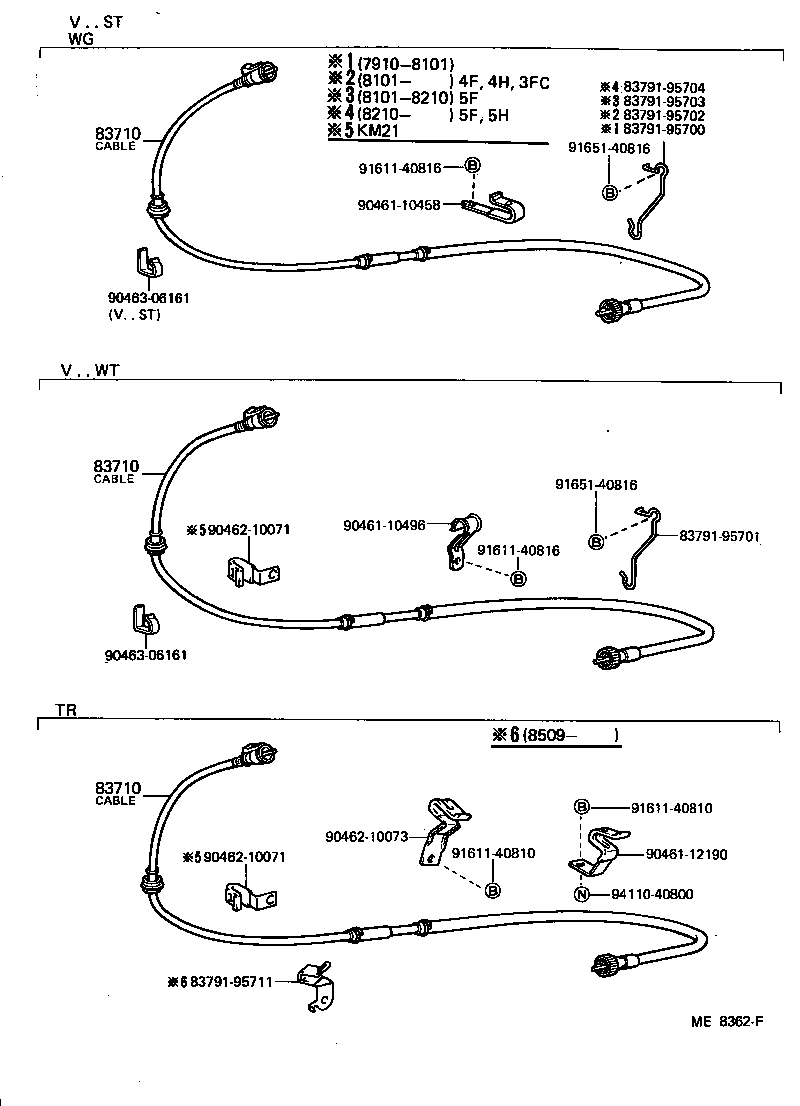

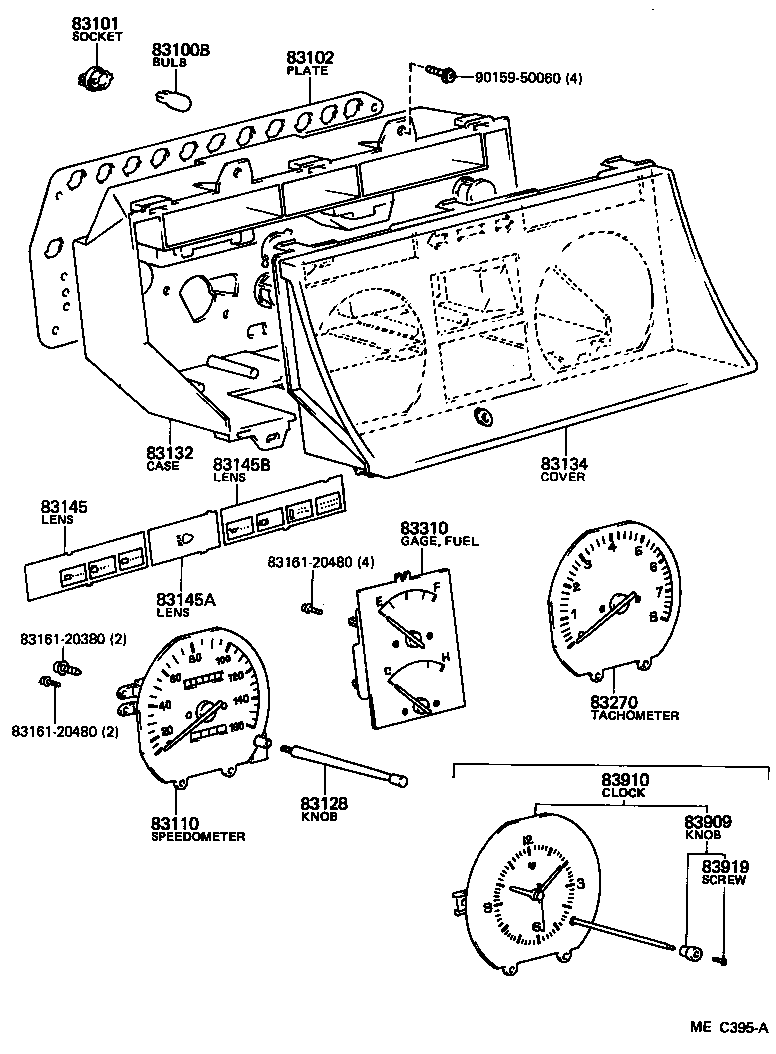

Figure ME8361B ME8361B 1979-10 → 1982-10 Figure MEC394A MEC394A 1982-10 → — Figure MEC395A MEC395A 1982-10 → 1985-08 Figure MEC395A MEC395A 1984-02 → 1984-03 Figure MEC396C MEC396C 1982-10 → 1985-08 Figure MEC877 MEC877 1982-10 → — Figure ME8362F ME8362F 1979-10 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83110 Speedometer Assy
83121 Counter, Total
83121A Sensor, Speed
83121B Cable, Counter And Sensor
83128 Knob, Trip Counter
83128B Knob, Meter Switch
83131 Dial, Meter, NO.1
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83134B Cover, Combination Meter, NO.2
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83901 Clock And Setting Parts Set
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
