Toyota Lite/Townace Truck
1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan
Discontinued model
Data version 1987-04
Switch & Relay & Computer
113 part groups · 12 illustrations

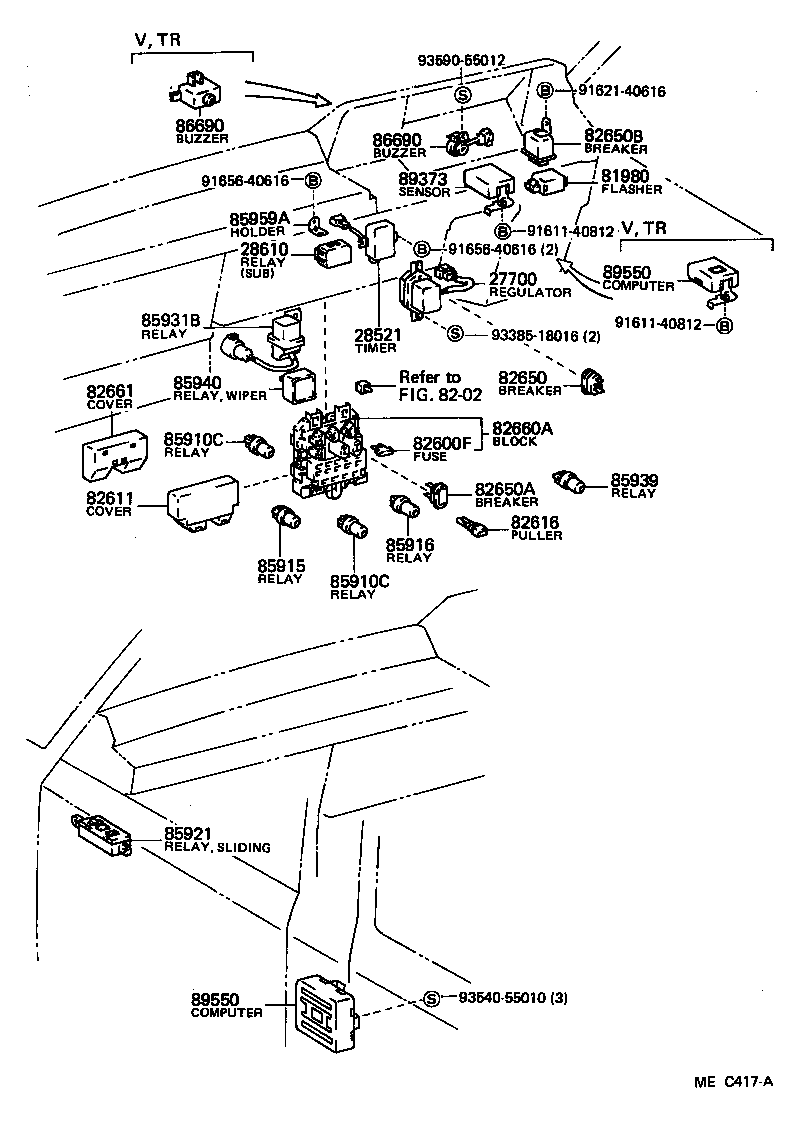

Illustrations
Part groups
| PNC | Description |
|---|---|
| 27700 | Regulator Assy, Generator |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 28631 | Sensor, Glow Plug Current |
| 81944 | Cord, Optical Fiber |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82630 | Holder Assy, Fuse |
| 82630F | Holder, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82650A | Breaker Assy, Wiring Circuit, NO.2 |
| 82650B | Breaker Assy, Wiring Circuit, NO.3 |
| 82660A | Block Assy, Relay, Cowl Side |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83651 | Clamp, Fusee |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84113A | Bracket, Switch, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84210T | Sensor Assy, Shift Point |
| 84231 | Switch Assy, Courtesy Lamp (FOR PARKING BRAKE) |
| 84232 | Switch Assy, Courtesy Lamp (FOR GLOVE BOX) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84261B | Junction, Slide Door Control,Male |
| 84262B | Junction, Slide Door Control, Female |
| 84263 | Cushion, Slide Door Junction |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84335 | Switch Assy, Parking Lamp |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84535A | Switch, Door Lock |
| 84540 | Switch Assy, Neutral Start |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84659 | Bracket, Rear Wiper Switch |
| 84660C | Switch, Cooler |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84731R | Knob, Rear Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84732B | Bulb, Rear Heater Blower Switch |
| 84732C | Nut, Rear Heater Blower Switch |
| 84734R | Plate, Rear Heater Blower Switch Caution |
| 84736R | Spacer, Rear Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84860A | Switch Assy, Sliding Roof |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84930A | Bracket, Door Control Switch |
| 84940 | Switch Assy, Curtain |
| 85336 | Switch Assy, Reserve Tank Level Warning |
| 85430 | Valve, Outer Vent Control |
| 85450 | Solenoid Assy, Door Control, Front RH |
| 85460 | Solenoid Assy, Door Control, Front LH |
| 85480B | Motor Assy, Door Control, Rear LH |
| 85490 | Solenoid Assy, Door Control Back |
| 85490B | Motor Assy, Back Door Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85921 | Relay, Sliding Roof Control |
| 85923 | Relay, Choke Control |
| 85928 | Case, Sliding Roof Switch |
| 85928A | Cover, Sliding Roof Switch Case |
| 85929A | Case, Sliding Roof Control Relay |
| 85931B | Relay, Fuel Heater |
| 85939 | Relay, Power Window |
| 85940 | Relay Assy, Windshield Wiper |
| 85959A | Holder, Relay |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 86651 | Buzzer Assy, Back |
| 86690 | Buzzer Assy, Speed Indicator |
| 88601J | Switch Assy, Heater Control(FOR HEATER IDLE-UP) |
| 89373 | Sensor, Lamp Failure Indicator |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89427 | Switch, Temperature Detect |
| 89429 | Sensor, Oil Temperature |
| 89435 | Bracket, Connector Cover |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89492 | Sensor, Electrolyte Level |
| 89550 | Computer Assy, Emission Control |
| 89590 | Computer Assy, Condition Indicator |
| 89620 | Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
