Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

45 part groups · 13 illustrations

Illustrations

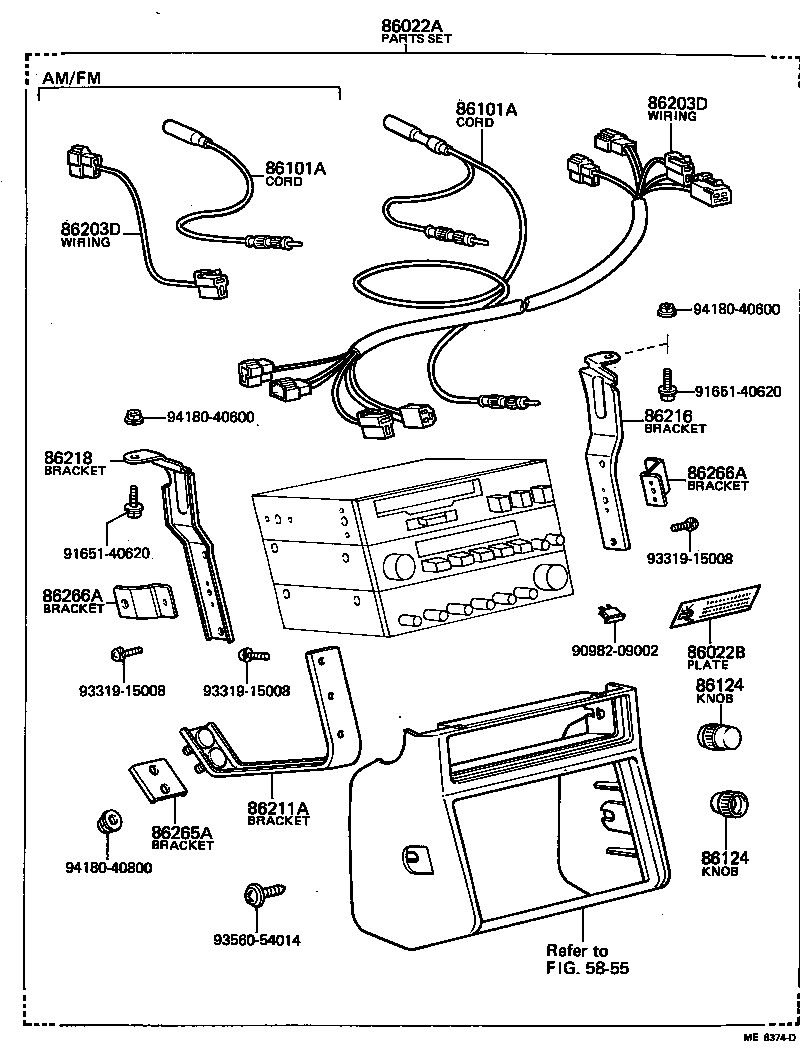

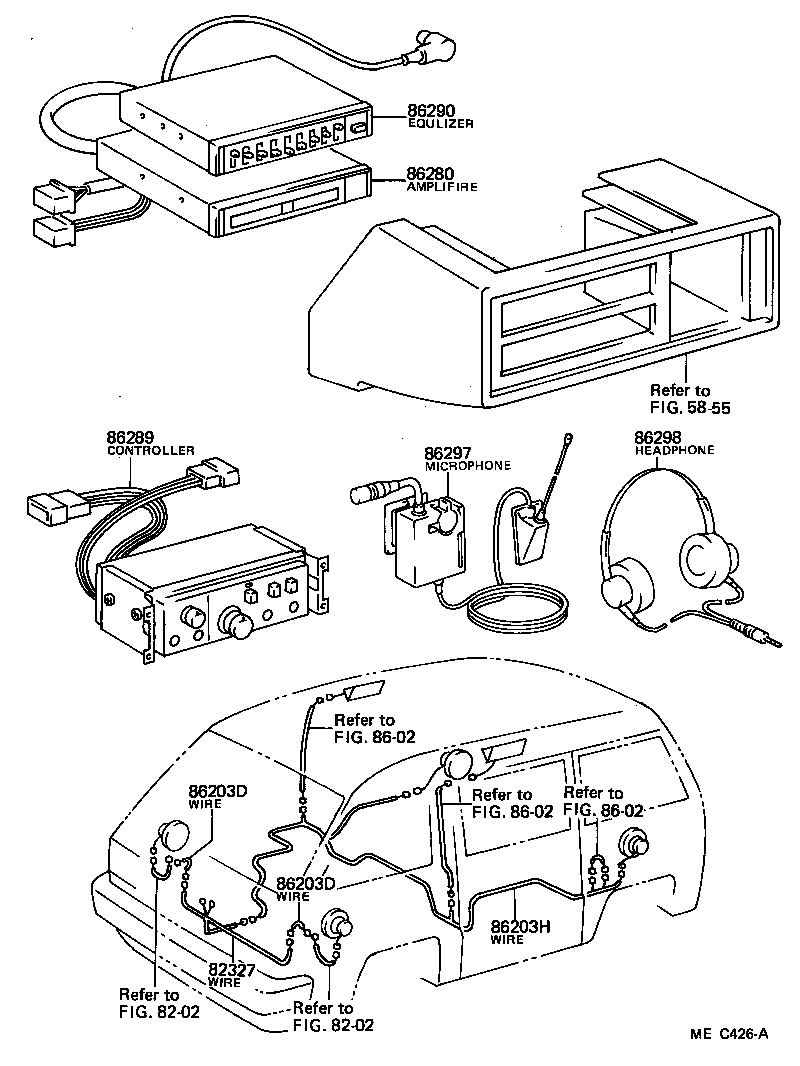

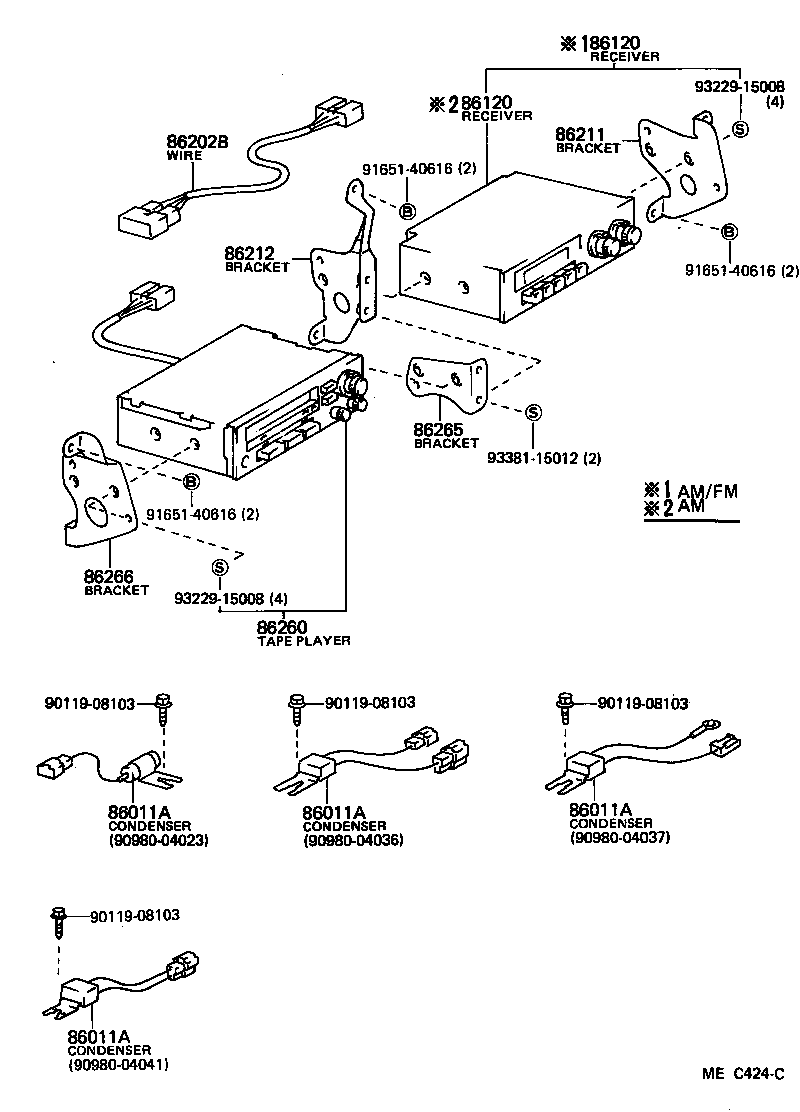

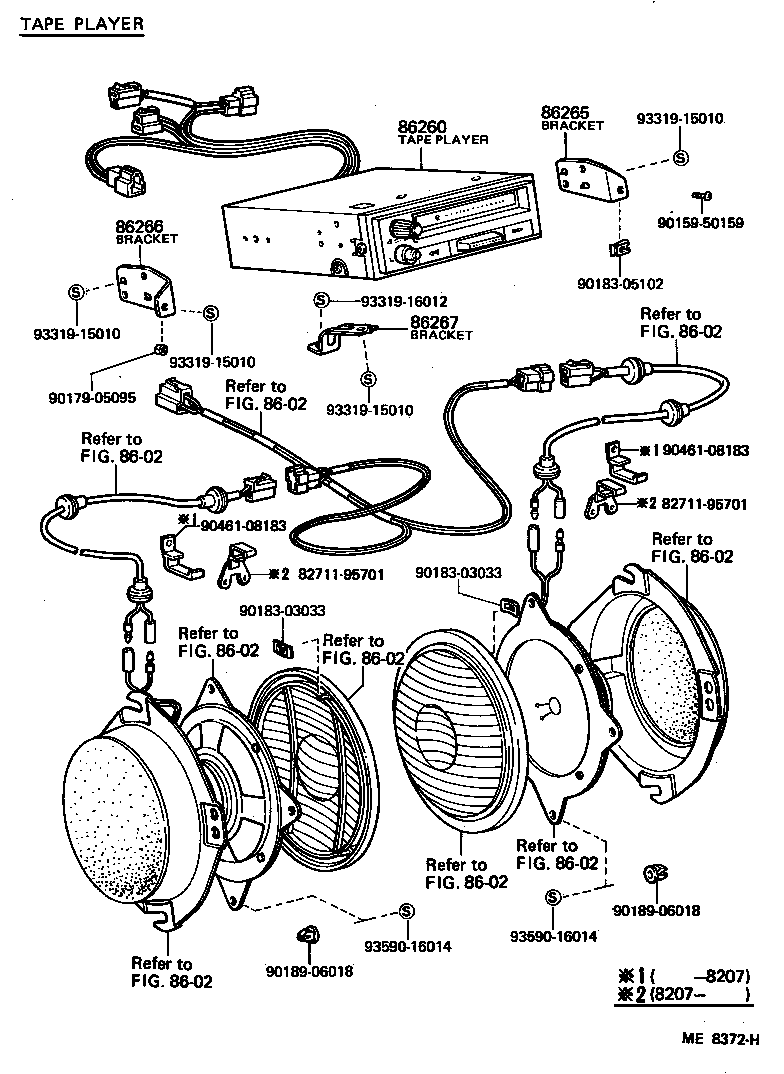

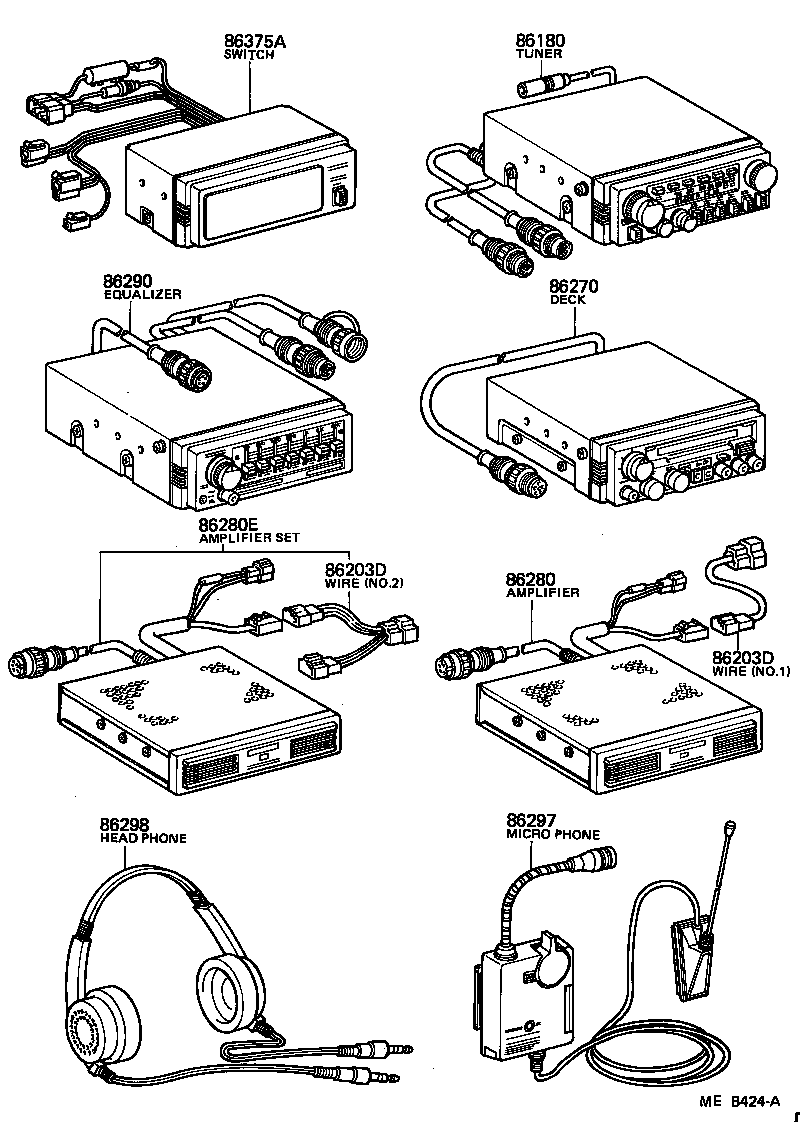

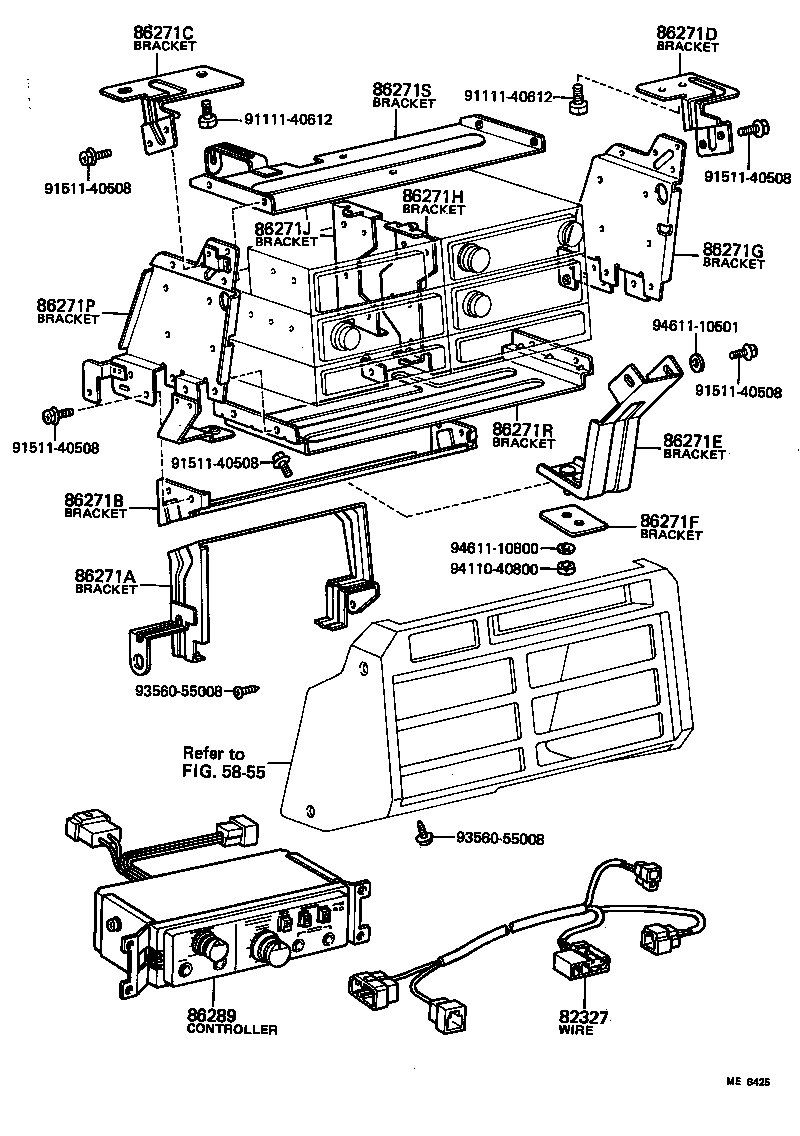

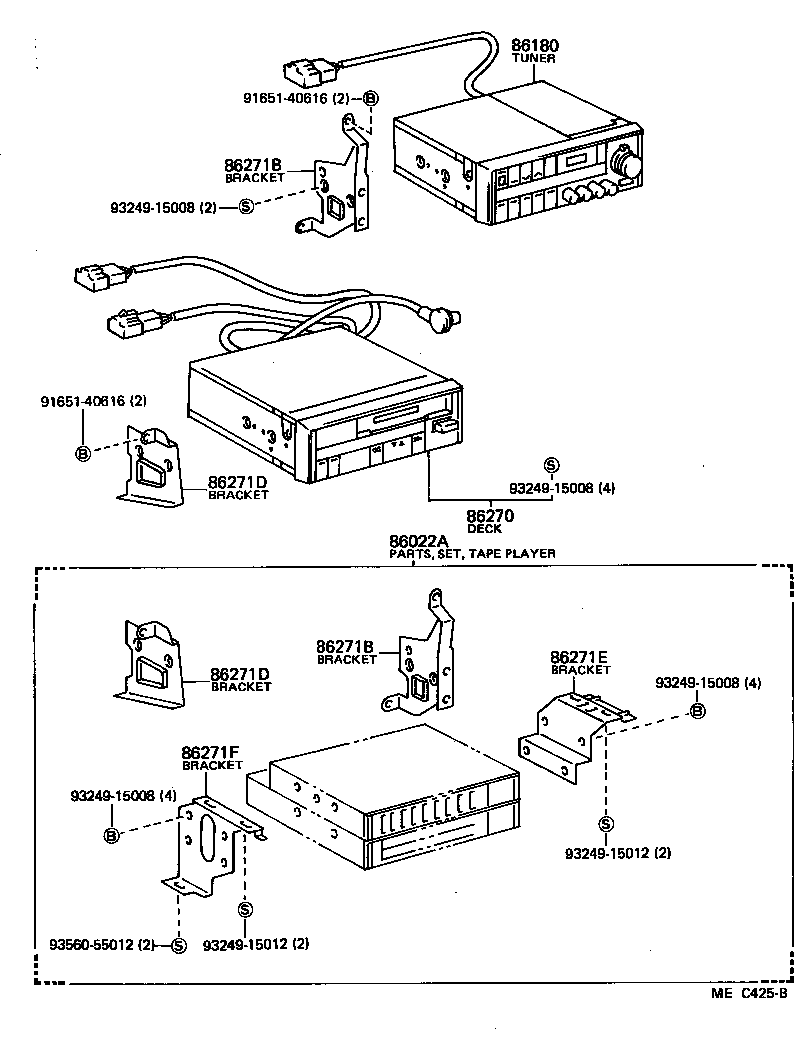

Figure ME8371E ME8371E 1979-10 → 1982-10 Figure MEA274B MEA274B 1981-01 → 1982-10 Figure ME8372H ME8372H 1979-10 → 1981-01 Figure MEA275A MEA275A 1981-01 → 1982-10 Figure ME8373 ME8373 1979-10 → 1982-10 Figure ME8374D ME8374D 1979-10 → 1982-10 Figure MEB424A MEB424A 1981-09 → 1981-11 Figure MEB424A MEB424A 1982-03 → 1982-04 Figure MEB425 MEB425 1981-09 → 1981-11 Figure MEB425 MEB425 1982-03 → 1982-04 Figure MEC424C MEC424C 1982-10 → — Figure MEC425B MEC425B 1982-10 → 1985-08 Figure MEC426A MEC426A 1982-10 → 1985-08

Part groups

PNCDescription
82327 Wire, TO Radio Instration
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86021 Tape Player And Setting Parts Set
86022A Parts Set, Stereo Component Setting
86022B Plate, Caution
86101A Cord Sub-assy, Antenna, NO.1
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86180 Tuner Assy, Stereo Component
86202B Wire, Tape Player
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86211 Bracket, Radio, NO.1
86211A Bracket, Stereo Component, NO.1
86212 Bracket, Radio, NO.2
86216 Bracket, Stereo Component, NO.2
86218 Bracket, Stereo Component, NO.3
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86265A Bracket, Stereo Component, NO.4
86266 Bracket, Tape Player, NO.2
86266A Bracket, Stereo Component, NO.5
86267 Bracket, Tape Player, NO.3
86270 Deck Assy, Stereo Component
86271A Bracket, Stereo Component, A
86271B Bracket, Stereo Component, B
86271C Bracket, Stereo Component, C
86271D Bracket, Stereo Component, D
86271E Bracket, Stereo Component, E
86271F Bracket, Stereo Component, F
86271G Bracket, Stereo Component, G
86271H Bracket, Stereo Component, H
86271J Bracket, Stereo Component, I
86271P Bracket, Stereo Component, J
86271R Bracket, Stereo Component, K
86271S Bracket, Stereo Component, L
86280 Amplifier Assy, Stereo Component
86280E Amplifier Set, Stereo Component
86289 Controller, Stereo Component Speaker
86290 Equalizer Assy, Stereo Component
86297 Microphone, Wireless
86298 Headphone
86375A Switch, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
