Toyota Lite/Townace Truck

1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan

Discontinued model Data version 1987-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

31 part groups · 9 illustrations

Illustrations

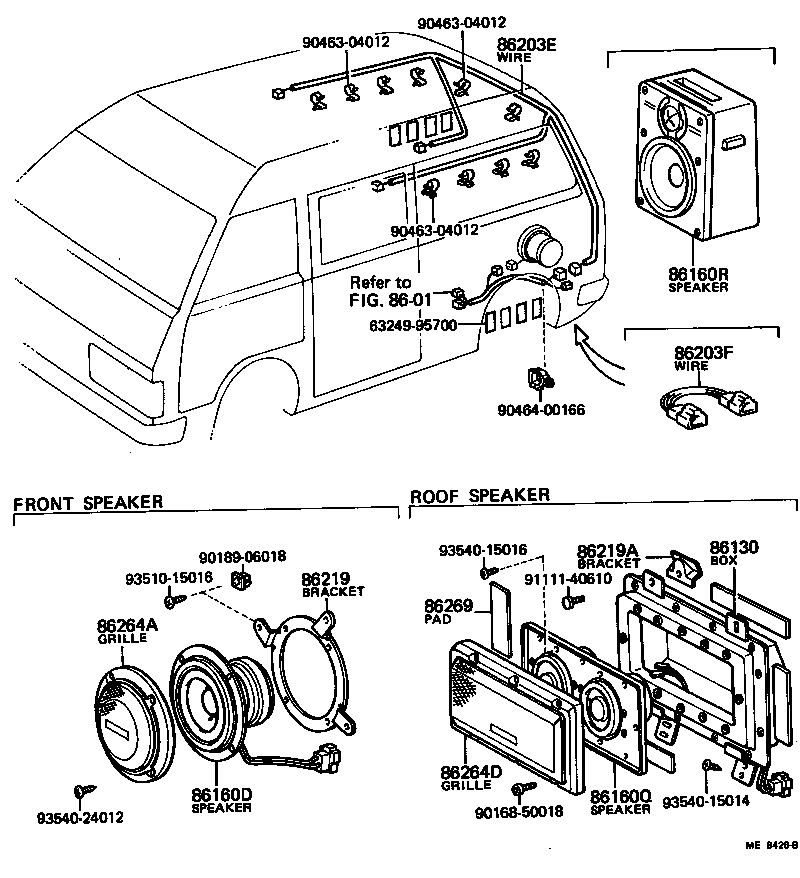

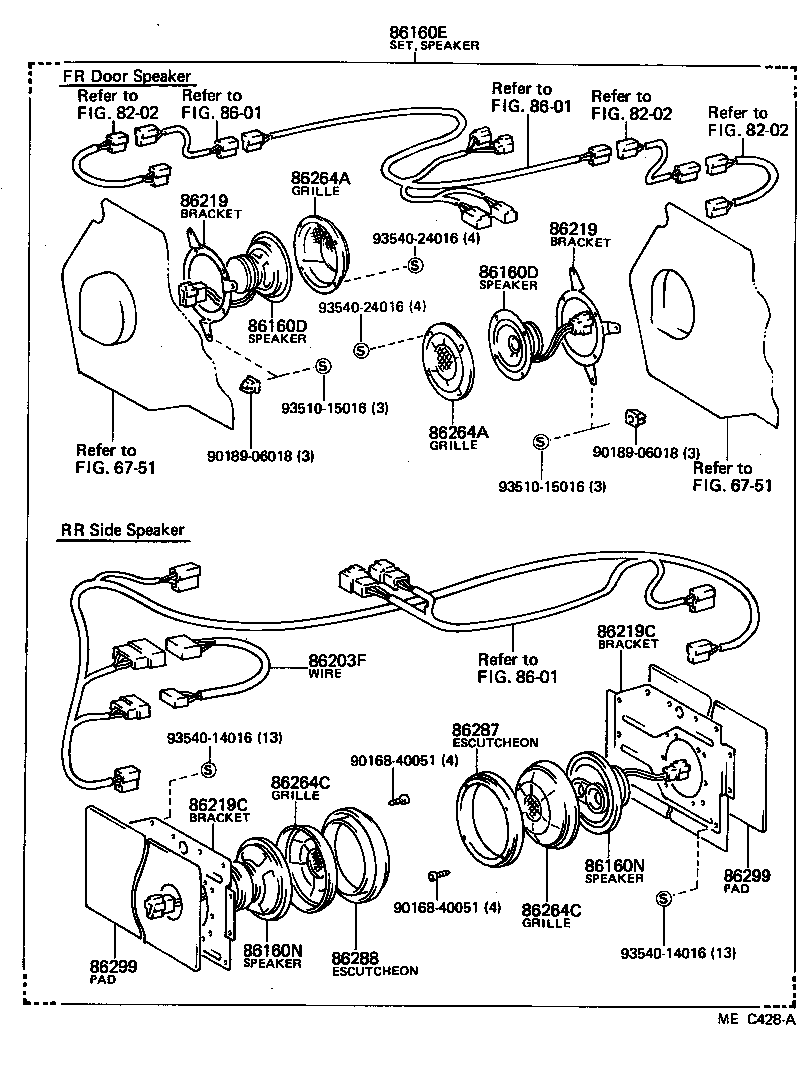

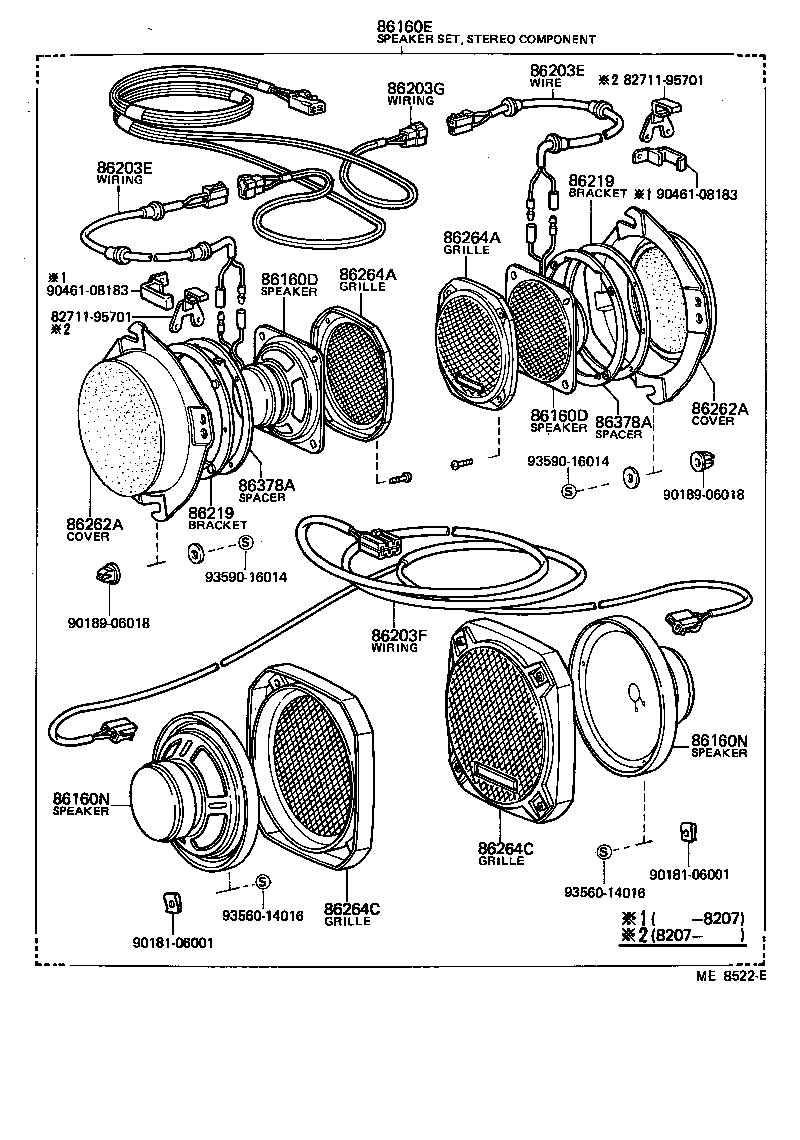

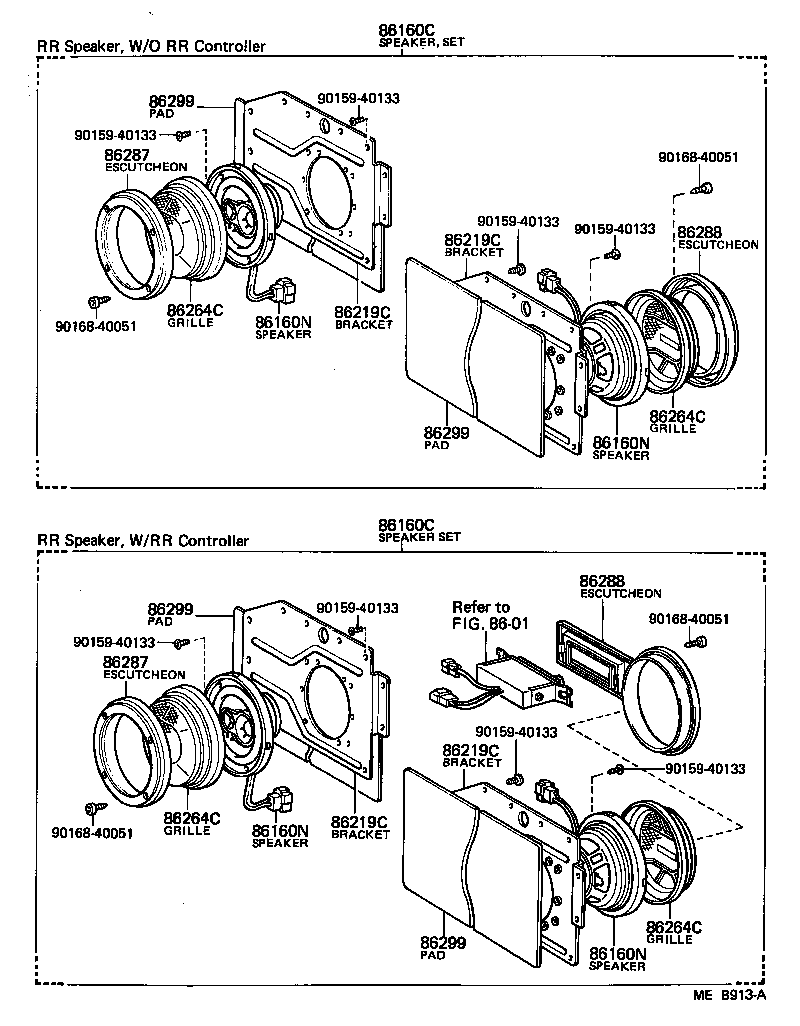

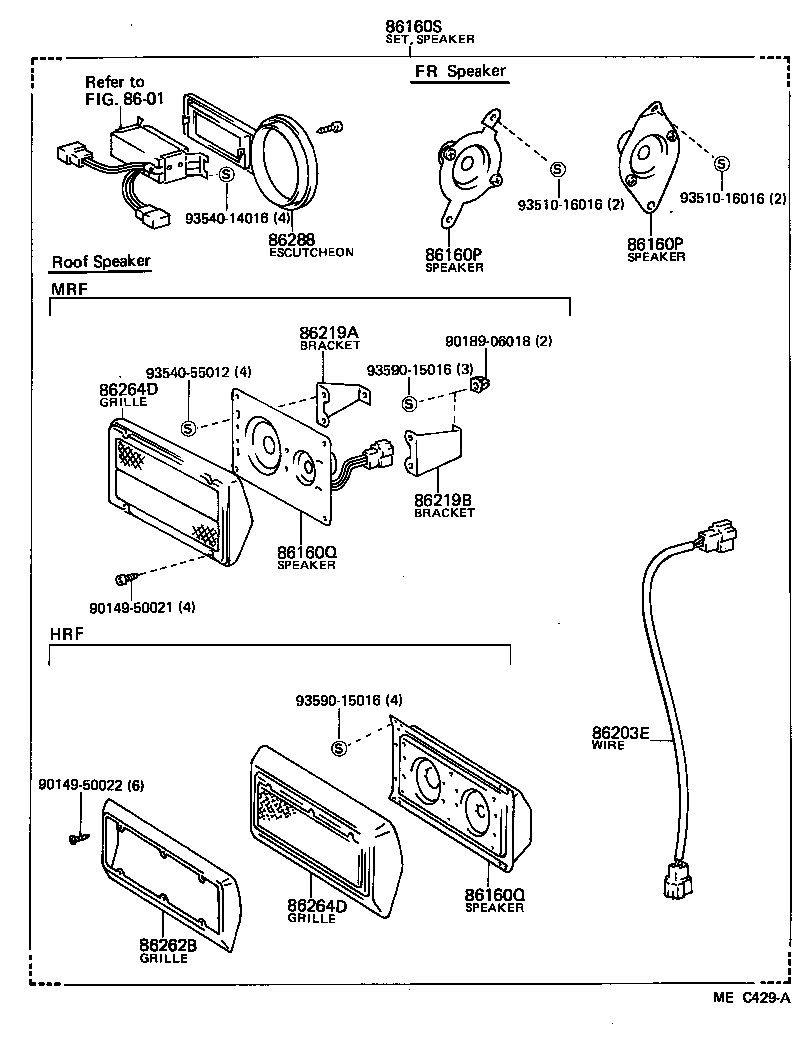

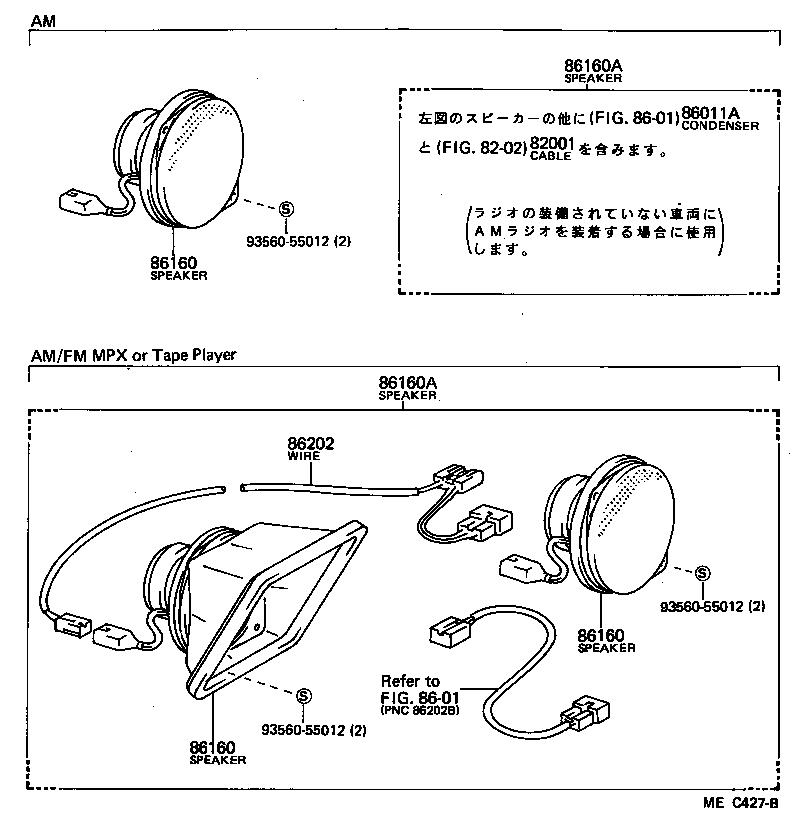

Figure MEA483A MEA483A 1979-10 → 1982-10 Figure ME8522E ME8522E 1979-10 → 1982-10 Figure MEB426B MEB426B 1981-09 → 1981-11 Figure MEB426B MEB426B 1982-03 → 1982-04 Figure MEB913A MEB913A 1981-09 → 1981-11 Figure MEB913A MEB913A 1982-03 → 1982-04 Figure MEC427B MEC427B 1982-10 → — Figure MEC428A MEC428A 1982-10 → 1985-08 Figure MEC429A MEC429A 1982-10 → 1985-08

Part groups

PNCDescription
86130 Box Assy, Speaker, Roof
86160 Speaker Assy, Front NO.1
86160A Speaker Set, Front
86160C Speaker Set, Rear
86160D Speaker Assy, Stereo Component, Front
86160E Speaker Set, Stereo Component
86160N Speaker Assy, Stereo Component, Rear
86160P Speaker Assy, Front NO.2
86160Q Speaker Assy, Roof
86160R Speaker Assy, Stereo Component
86160S Speaker Set
86202 Wire, Speaker, NO.1
86202A Wire, Speaker, NO.2
86203E Wire, Stereo Component Speaker, NO.1
86203F Wire, Stereo Component Speaker, NO.2
86203G Wire, Stereo Component Speaker, NO.3
86219 Bracket, Stereo Component Speaker, NO.1
86219A Bracket, Stereo Component Speaker, NO.2
86219B Bracket, Stereo Component Speaker, NO.3
86219C Bracket, Stereo Component Speaker, NO.4
86262A Cover, Speaker, Front
86262B Cover, Speaker, Rear
86264 Grille, Speaker, Front
86264A Grille, Stereo Component Speaker, Front
86264C Grille, Stereo Component Speaker, Rear
86264D Grille, Speaker, Roof
86269 Pad, Speaker
86287 Escutcheon, RH
86288 Escutcheon, LH
86299 Pad, Speaker
86378A Spacer, Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
