Toyota Lite/Townace Truck
1979-10 → 1986-09 · chassis KM2#,TM20,YM2#,CM2# · catalogue 631120 · Japan
Discontinued model
Data version 1987-04

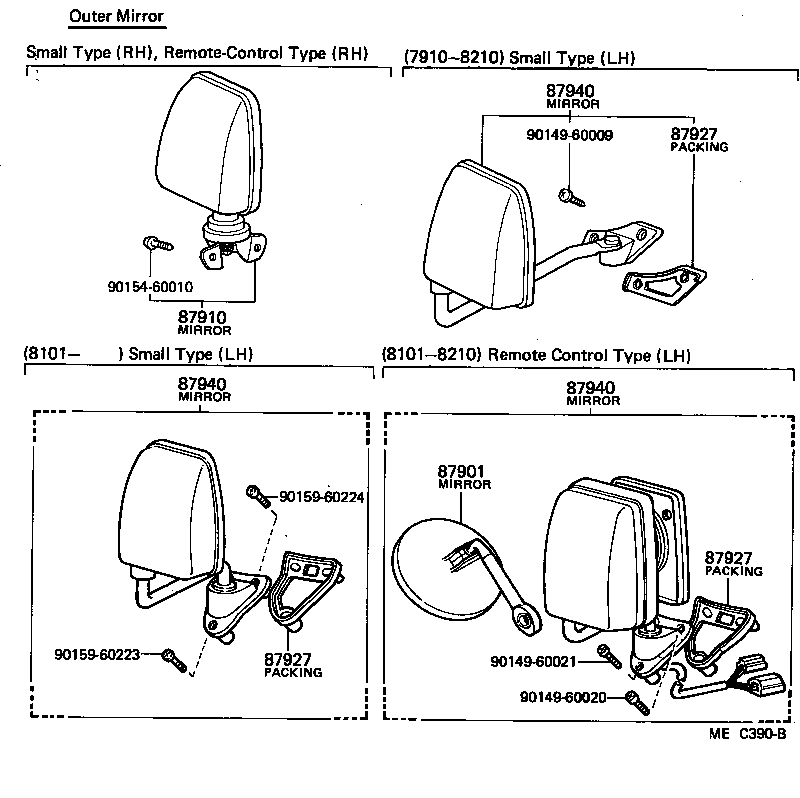

Mirror
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87093 | Stay Sub-assy, Outer Rear View Mirror, Upper RH |
| 87094 | Stay Sub-assy, Outer Rear View Mirror, Upper LH |
| 87095 | Stay Sub-assy, Outer Rear View Mirror, Lower RH |
| 87096 | Stay Sub-assy, Outer Rear View Mirror, Lower LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901 | Mirror Sub-assy, Outer Under View |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87922 | Bush, Rear View Mirror Support |
| 87927 | Packing, Rear View Outside Mirror Stay |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87954 | Gasket, Outer Rear View Mirror Base, Upper LH |
| 87955 | Gasket, Outer Rear View Mirror Base, Lower RH |
| 87956 | Gasket, Outer Rear View Mirror Base, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
